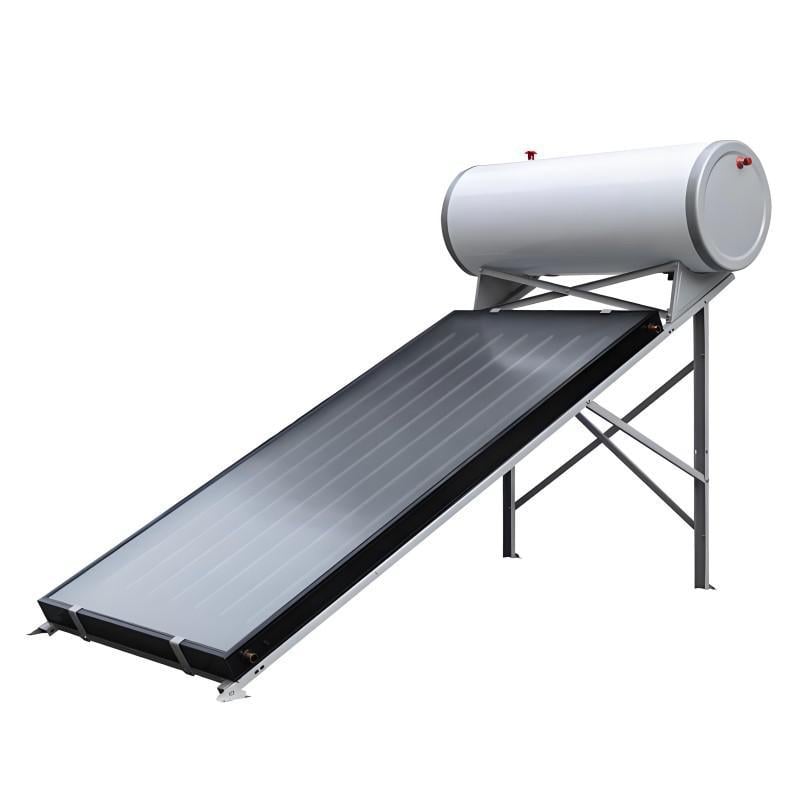

Flat Plate Pressurized Solar Water Heater
Inner tank: SUS304-2B or SUS316L stainless steel
Out tank: Color steel/stainless steel/PVDF
Insulation:High density PU foam
Collector: Flat plate solar collector
Absorber: coated black or blue conductive material
Support frame: Aluminum alloy or galvanized steel
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

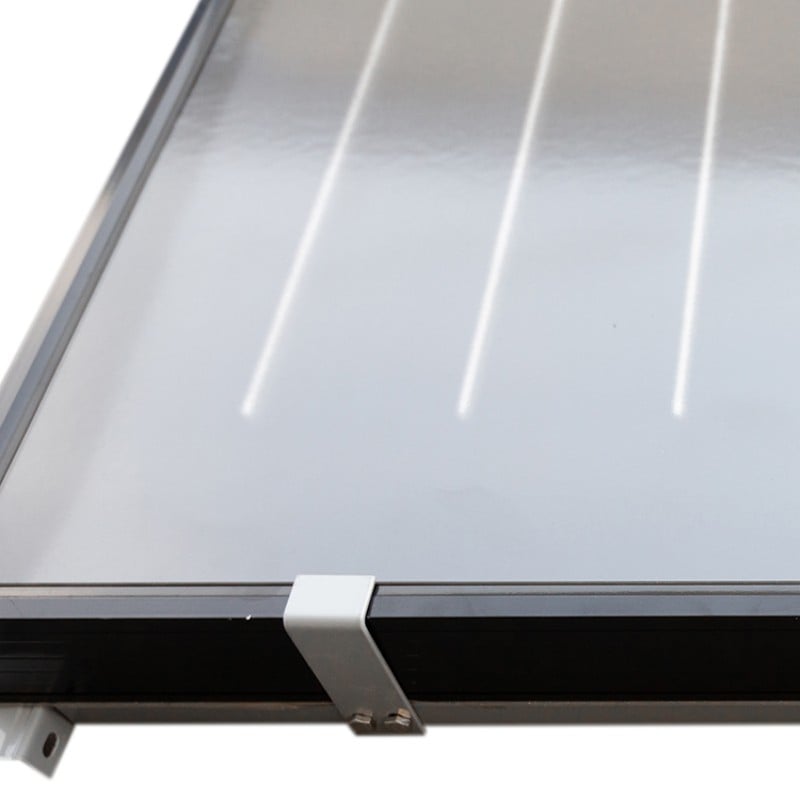

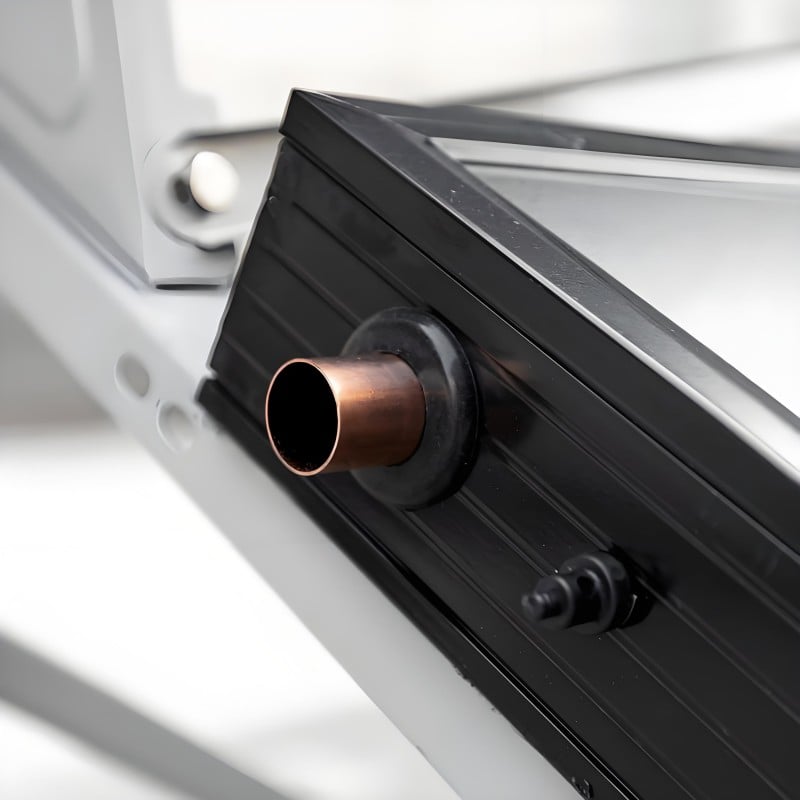

Flat plate solar collector is a metal box with a glass cover on top and a colored absorber plate at the middle. The sides and bottom of the collector are insulated to minimize heat loss. Sunlight passes through the glass cover and absorbed by the absorber plate, convert solar energy into heat energy. The heat energy is transferred to heat transfer liquid passing through copper pipes, which attached on the absorber plate.
Main features
Pressurized hot water flows out
Thermosyphon System: circulation without the need for additional pumps
Easy installation and free maintenance
Flat plate solar collector certified by Solar Keymark (EN12975).
Multifunctional bracket for both flat and sloped roof installation.
Withstanding high pressure (0.6MPa), comfortable shower.
Suitable for hot area, where is no frozen risk area.
No Glycol, No Chemicals!
Specifications
Out tank: Color steel/stainless steel/PVDF
Insulation: High density PU foam
Collector: Flat plate solar collector
Absorber: coated black or blue conductive material
Support frame: Aluminum alloy or galvanized steel

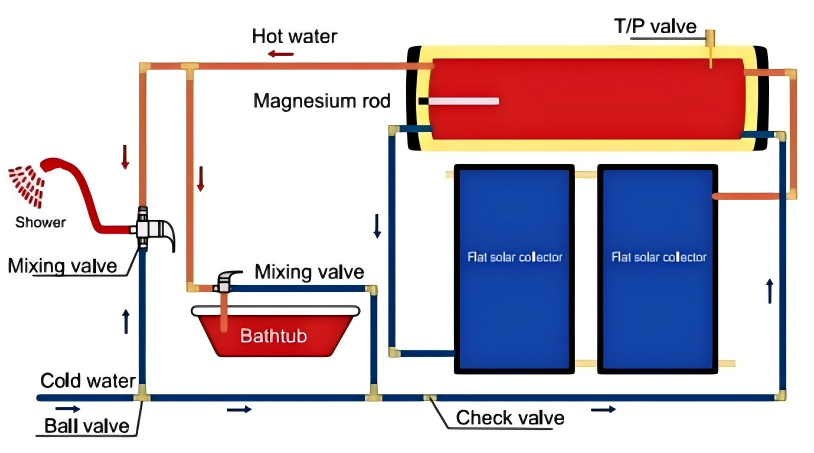

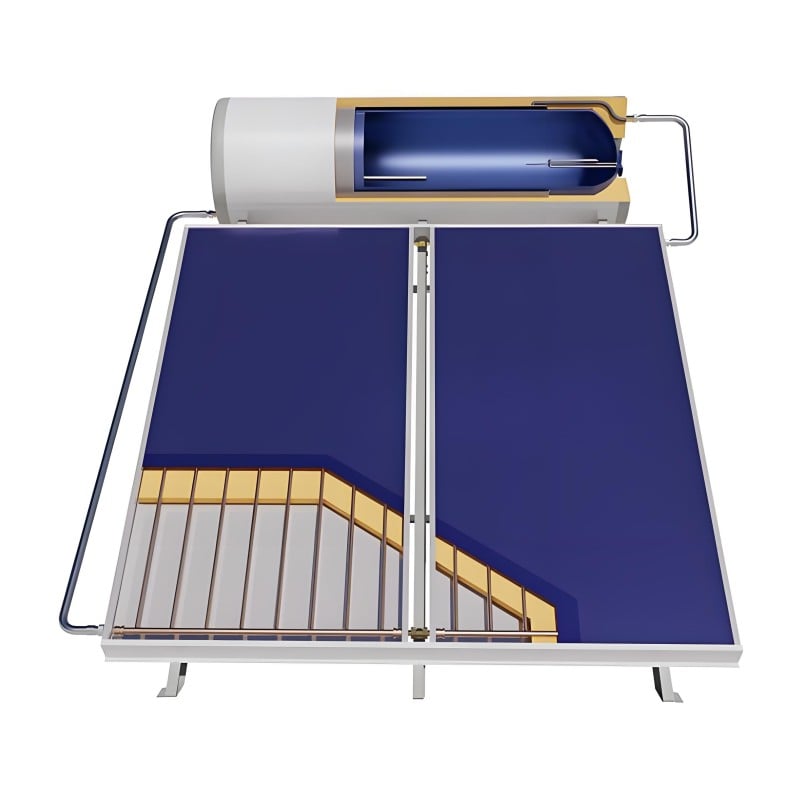

The flat plate pressurized solar water heater is a comprehensive sysstem comprised of a pressurized storage tank, a flat plate solar collector, and a support frame. This systperates on the principle of thermosyphon, where hot water naturally ascends from the topof the solar collector to fill the tank while cold water descends from the tank to the bottom of thecollector. This efficient design ensures continuous circulation of heated water, providing a reliable and sustainable solution for meeting hot water needs.
| Model | Tank capacity (L) | Absorber Area (m²) | Person No. | Loading Qty. (sef) - 20GP | Loading Qty. (sef) - 40GP | Loading Qty. (sef) - 40HQ |
|---|---|---|---|---|---|---|
| DM-CPT-150 | 150 | 2 | 3 | 46 | 95 | 105 |
| DM-CPT-200 | 200 | 2 | 4 | 40 | 88 | 96 |
| DM-CPT-250 | 250 | 4 | 5 | 29 | 62 | 68 |
| DM-CPT-300 | 300 | 4 | 6 | 27 | 52 | 60 |
The flat plate pressurized solar water heater is a comprehensive sysstem comprised of a pressurized storage tank, a flat plate solar collector, and a support frame. This systperates on the principle of thermosyphon, where hot water naturally ascends from the topof the solar collector to fill the tank while cold water descends from the tank to the bottom of thecollector. This efficient design ensures continuous circulation of heated water, providing a reliable and sustainable solution for meeting hot water needs.
