EN
H10 Solar Camera
Model number: H10
Version: 4G
APP: UCON
Main control chip: Ingenic-T31ZX
Pixel: 4MP
- Introduction
- Main features
- Specifications
- Recommended

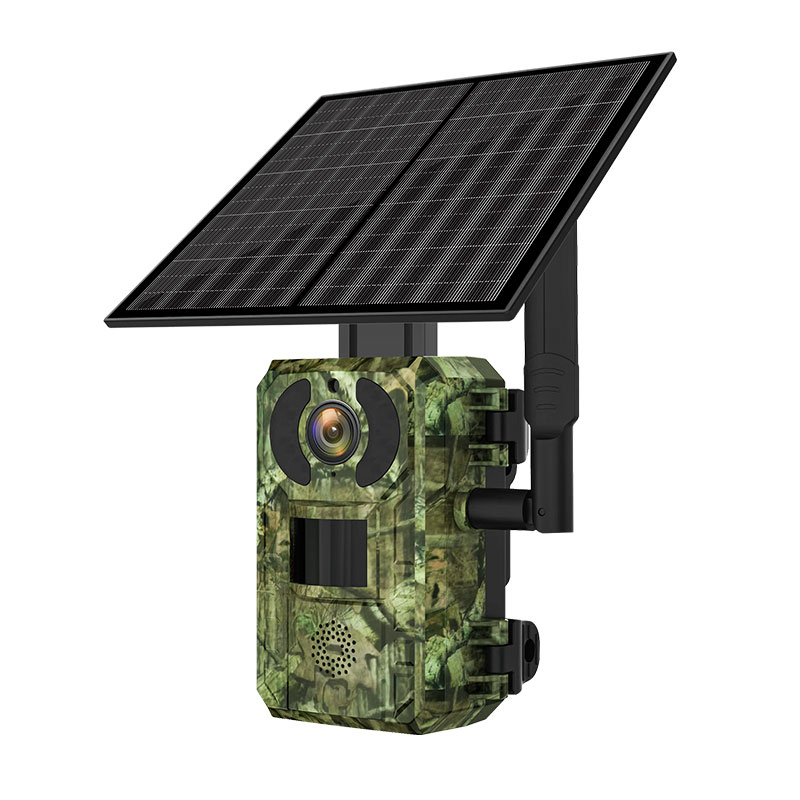

The Demax H10 is a 4G-enabled solar-powered smart camera (powered by the Ingenic-T31ZX chip) designed for remote outdoor monitoring. It uses a 6W monocrystalline silicon solar panel to charge a 3-section 18650 battery, enabling ultra-low standby power (0.003W) for long-term wire-free operation. Equipped with a 4MP GC4653 sensor (2560×1440 video resolution), it supports H.265 video/AAC/G.726 audio compression. Its PIR + AI mobile detection (0-12M range, 95° angle) triggers 0.2-second quick wake-up, capturing photos (4M/8M/16M) or videos, with real-time call/SMS alerts. It offers 25M night vision (940nm/850nm IR), two-way audio (3W horn, 20M mic range), and 128G TF card + cloud storage, accessible via the UCON app.
Features and Advantages：
|
Features |
Advantages |
|
Core Hardware & Imaging - Model: H10 (4G version) - Main chip: Ingenic-T31ZX - Sensor: GC4653 - Pixel: 4MP - Video resolution: 2560×1440/15fps; 640×360/15fps - Photo resolution: 4M/8M/16M - Compression: H.265 (video); AAC/G.726 (audio) |
- High-definition capture: 4MP sensor + multiple resolutions deliver sharp videos/photos - Efficient storage: H.265 compression reduces file size without quality loss |
|

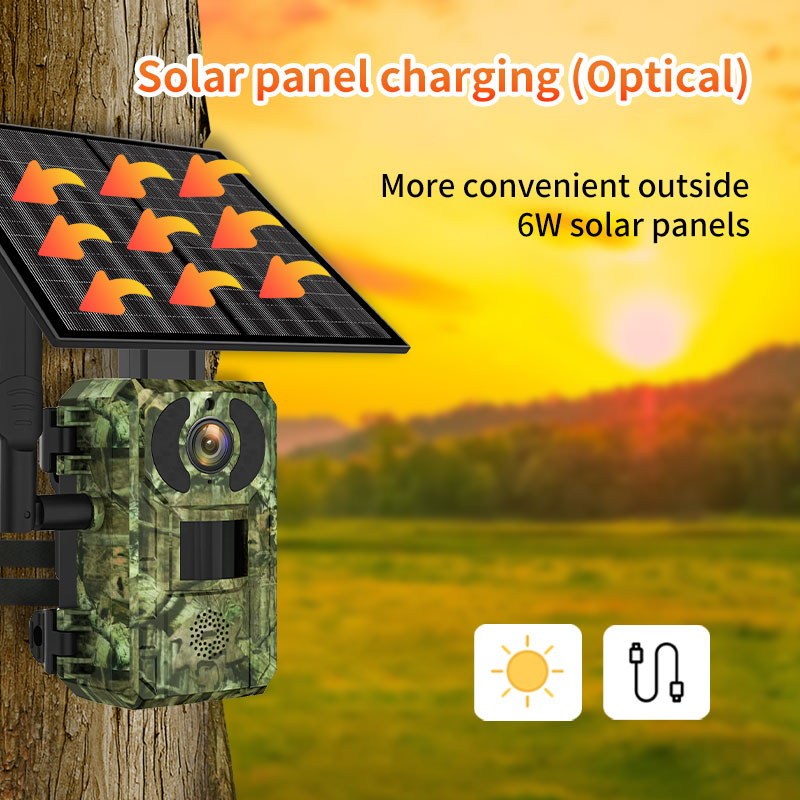

Power System - Power mode: Solar panel + battery - Solar panel: 6W monocrystalline silicon - Battery: 3-section 18650 - Standby power: 0.003W |
- Wire-free long operation: Solar charging + low standby power enables 24/7 use without external cables |
|

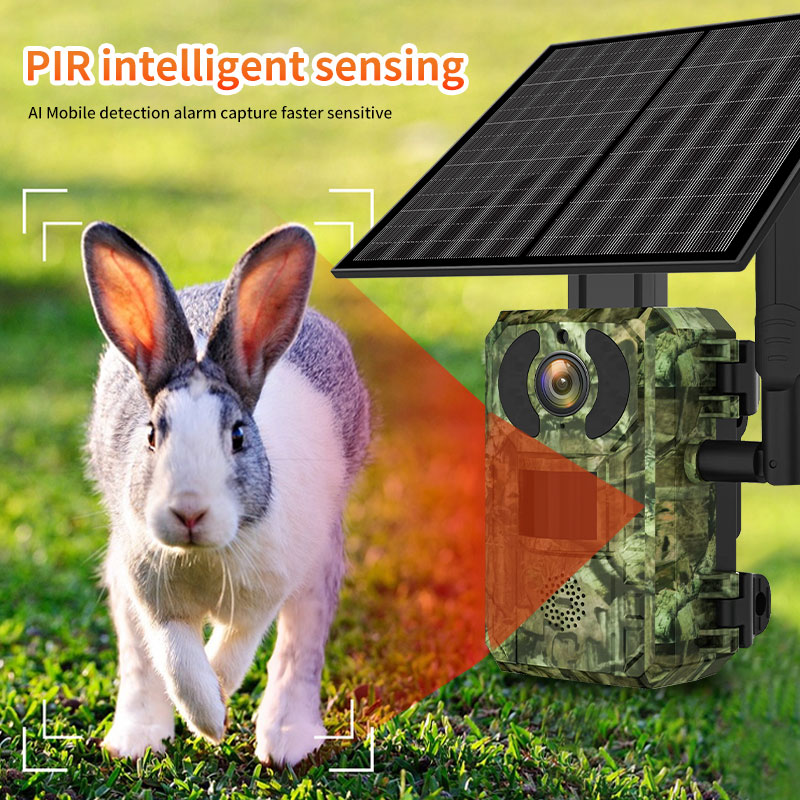

Detection & Alerts - Detection mode: PIR sensing + AI mobile detection - Detection range: 0-12M - Detection angle: 95° - Alarm mode: Real-time call/SMS push - Wake-up speed: 0.2 seconds |
- Accurate, fast response: PIR+AI detection reduces false alarms; 0.02s wake-up captures transient events - Timely notifications: Call/SMS alerts ensure users are informed instantly |
|
Night Vision - IR wavelength: 940nm/850nm (optional) - Night vision distance: 25M |
- 24/7 visibility: 25M IR night vision works in dark outdoor environments |
|
Audio- Built-in horn: 3W - Built-in microphone: 20M pickup range |
- Two-way communication: Remote voice interaction (e.g., warning intruders, monitoring livestock sounds) |
|
Lens- Focal length: 3.6mm- Lens angle: 85° |
- Wide coverage: 85° lens angle monitors large outdoor areas |
|
Storage- Local storage: TF card (max 128G)- Cloud storage: Alarm event video |
- Secure backup: Dual storage (local + cloud) prevents data loss/theft |
|
Connectivity & App- Network: 4G- App: UCON (supports remote real-time view) |
- Remote access: 4G + UCON app enables monitoring from anywhere (no Wi-Fi needed) |
|
Environmental & Packaging - Working environment: Indoor/outdoor - Operating temperature: -30°~+60° - Net weight: 1KG - Color box size: 19.4×16.9×10.4CM - Carton: 40×35×42.3CM (16PCS, 17KG gross weight) |
- Durable outdoor use: Wide temperature range suits harsh environments - Efficient packaging: 16 units per carton reduces shipping costs |
| Solar 4G alert intelligent hunting machine | ||

|
||
| Model number | H10 | |
| version | 4G | |
| APP | UCON | |
| Main control chip | Ingenic-T31ZX | |
| pixel | 4MP | |
| Image sensor | GC4653 | |
| Video pixel | 2560 X 1440/15fps 640 X 360/15fps | |
| Photo pixel | 4M /8M /16M | |
| Video compression format | H.265 | |
| Audio compression format | AAC/G.726 | |
| Detection mode | PIR sensing +AI mobile detection alarm | |
| Detection range | 0-12M | |
| Detection Angle | 95° | |
| Alarm mode | Call mobile phone or message push in real time | |
| Red light | 940nm/850nm Optional | |
| Night vision distance | 25M | |
| Built-in microphone | The pickup range is 20M | |
| Focal length of lens | 3.6MM | |
| Lens Angle | 85° | |
| Cloud storage | Cloud storage (alarm event video) | |
| Local storage | TF card (Max 128G) | |
| Power supply mode | Solar panel + battery | |
| Solar cell material | Monocrystalline silicon | |
| Solar cell power | 6W | |
| battery | 3 sections18650 | |
| Standby power | 0.003W | |
| Working environment | Indoor/outdoor | |
| Operating temperature | -30°~+60° | |
| net weight | 1KG | |
| Color box size | 19.4*16.9*10.4CM | |
| Packing quantity | 16PCS | |
| Gross weight of outer box | 17KG | |
| carton size | 40*35*42.3CM | |
