Electric Heater

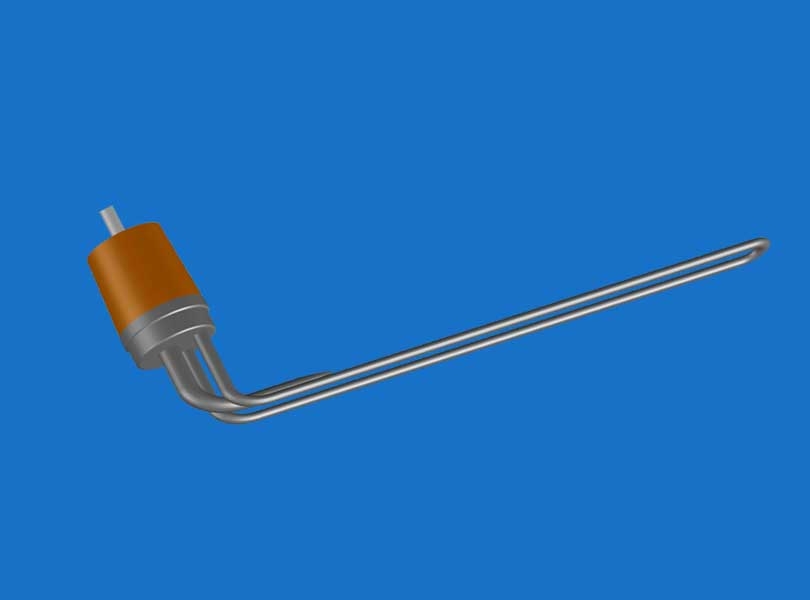

Demax provides three distinct electric heater models (Incoloy 800, Thermostat, Stainless Steel) engineered for heating needs (e.g., solar water systems). Each model uses specialized materials and configurations to match specific applications, with standardized 220V electrical input and model-specific connections/interfaces.
- Introduction
- Main features
- Specifications
- Recommended
|
Parameter |
Incoloy 800 Electric Heater |

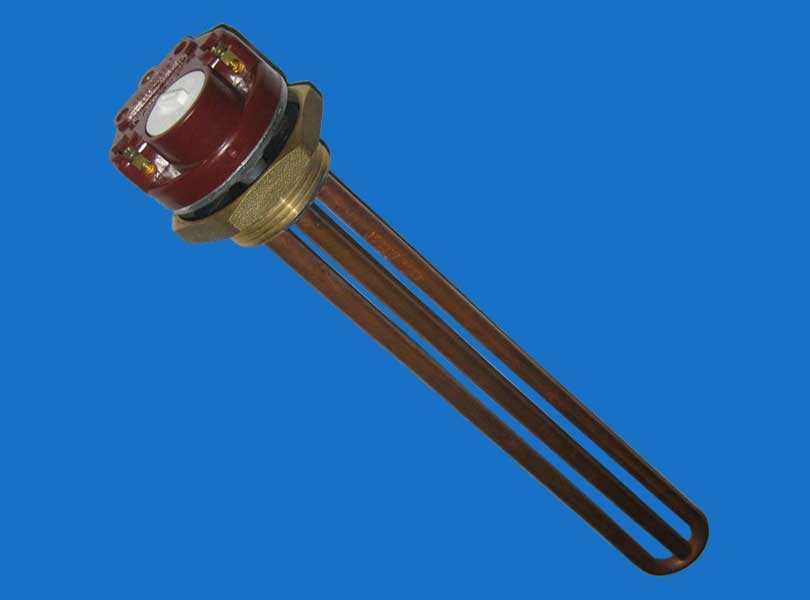

Thermostat Electric Heater |
Stainless Steel Electric Heater |
|
Model Name |
Incoloy 800 Electric Heater |
Thermostat Electric Heater |
Stainless Steel Electric Heater |
|
Heating Element Material |
Incoloy 800 |
Thermostat (Copper) |
Stainless Steel |
|
Key Features |
Super anti-corrosion, high heat conduction, dry-heat resistant |
Copper material |
Stainless steel material |
|
Connection/Interface |
1" male thread connection |
1.25" male thread connection |
Φ 47mm interface |
|
Rated Voltage |
220V |
220V |
220V |
|
Rated Power |
1500W, 2500W |
1500W, 2500W |
1500W |
|
Item No. |
812900191 |
812900192 |
812900193 |
|
Application |
- |
- |
Non-pressurized solar water heater |
| Parameter | Incoloy 800 Electric Heater | Thermostat Electric Heater | Stainless Steel Electric Heater |
| Heating Element | Incoloy 800 | Thermostat | Stainless steel |
| Material | Incoloy 800 | Copper | Stainless steel |
| Key Features | Super anti-corrosion & heat conduction, dry-heat resistant | - | - |
| Connection/Interface | 1" male thread connection | 1.25" male thread connection | Φ 47mm Interface |
| Rated Voltage | 220V | 220V | 220V |
| Rated Power | 1500W, 2500W | 1500W, 2500W | 1500W |
| Item No. | 812900191 | 812900192 | 812900193 |
| Application | - | - | Non-pressurized solar water heater |
