Q39 Solar Camera
Model number: Q39
Edition: 4G
APP: V380 Pro
Pixel: 3MP+3MP
Sensor: 1/2.9"" Progressive Scan CMOS
- Introduction
- Main features
- Specifications
- Recommended

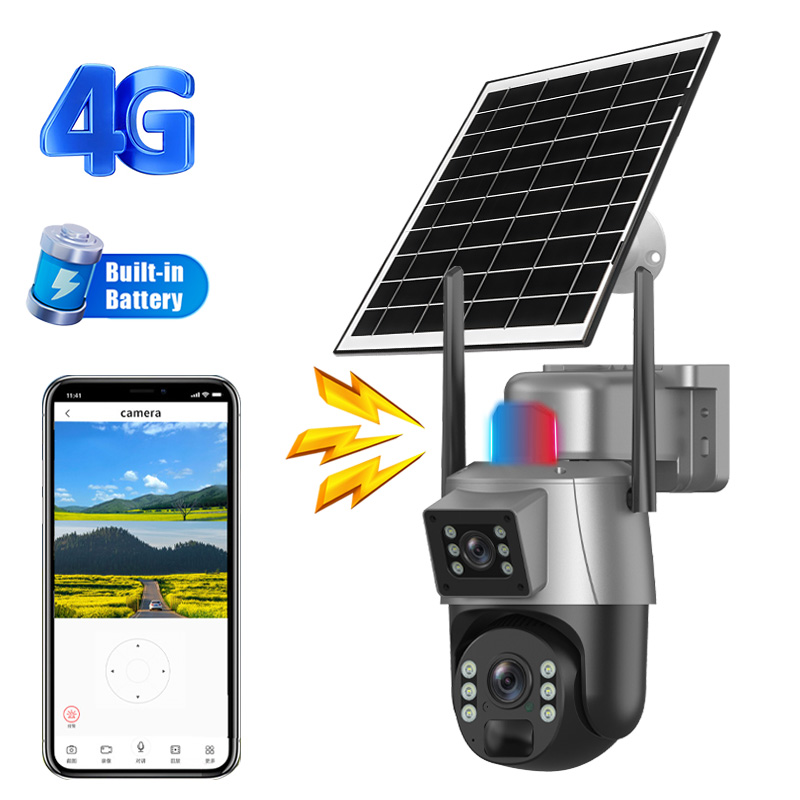

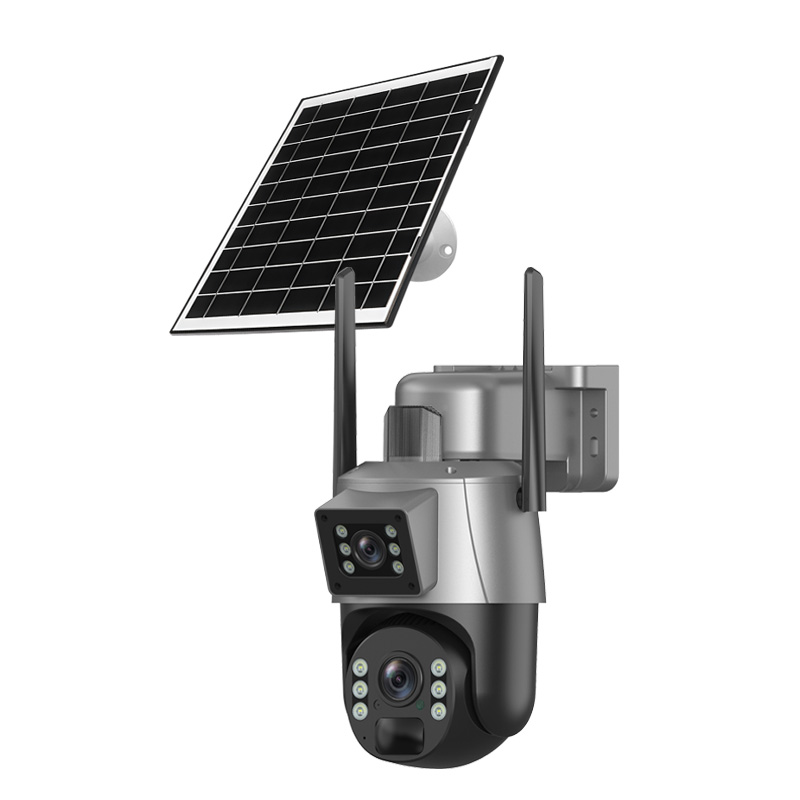

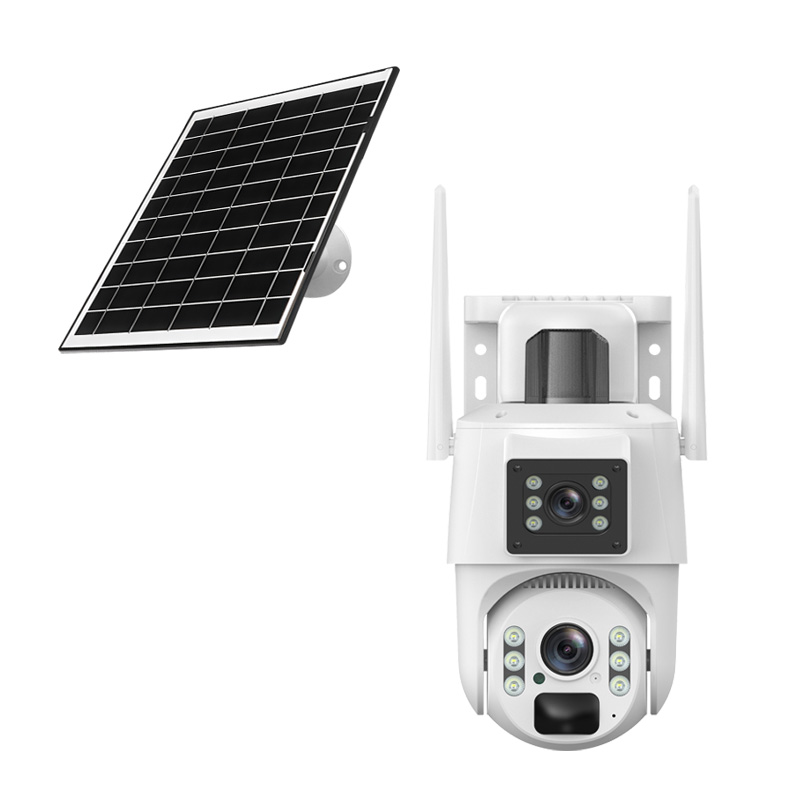

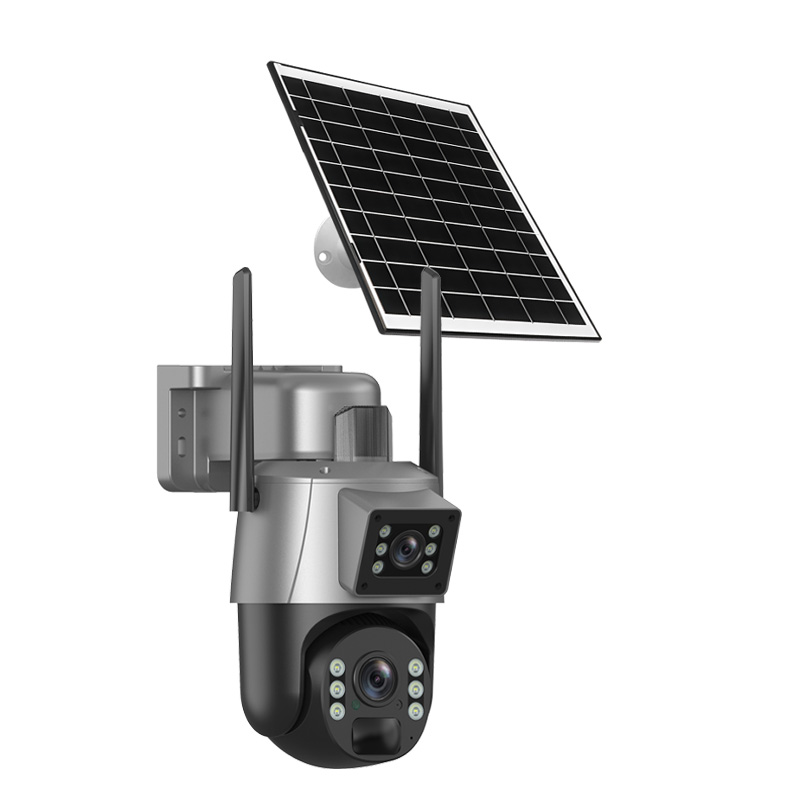

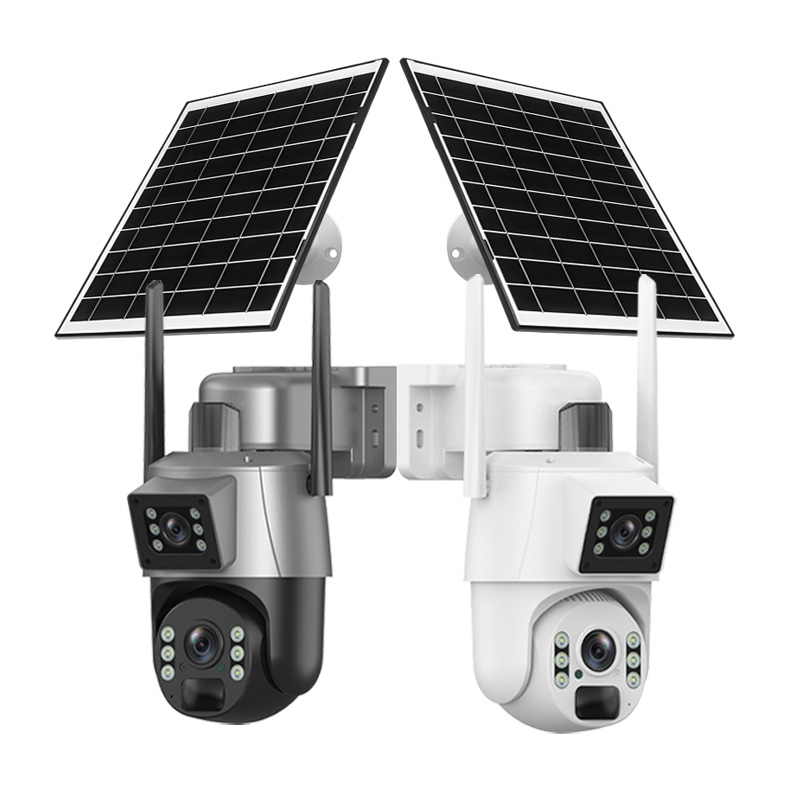

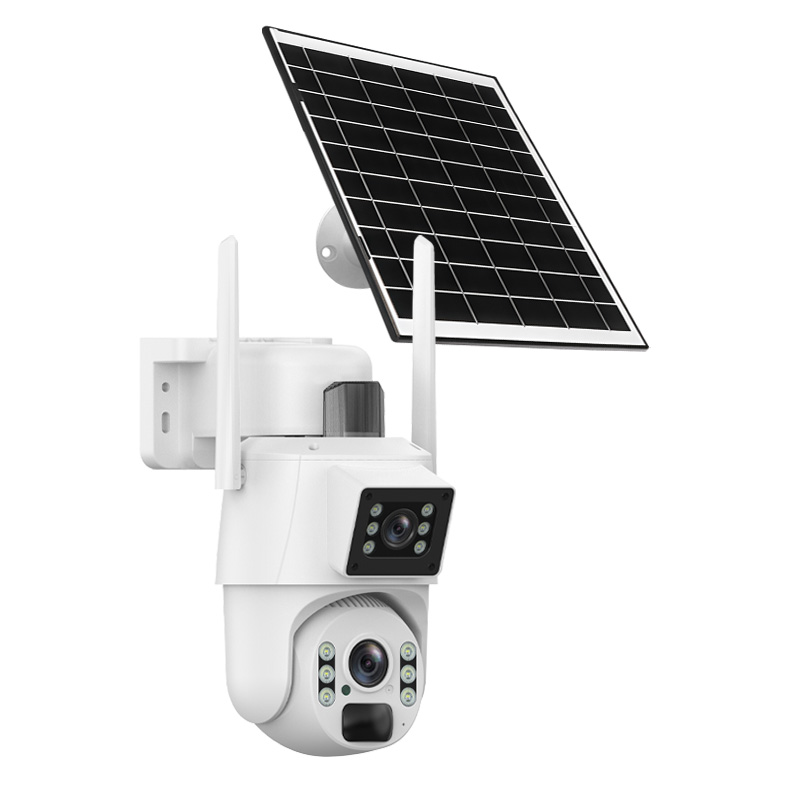

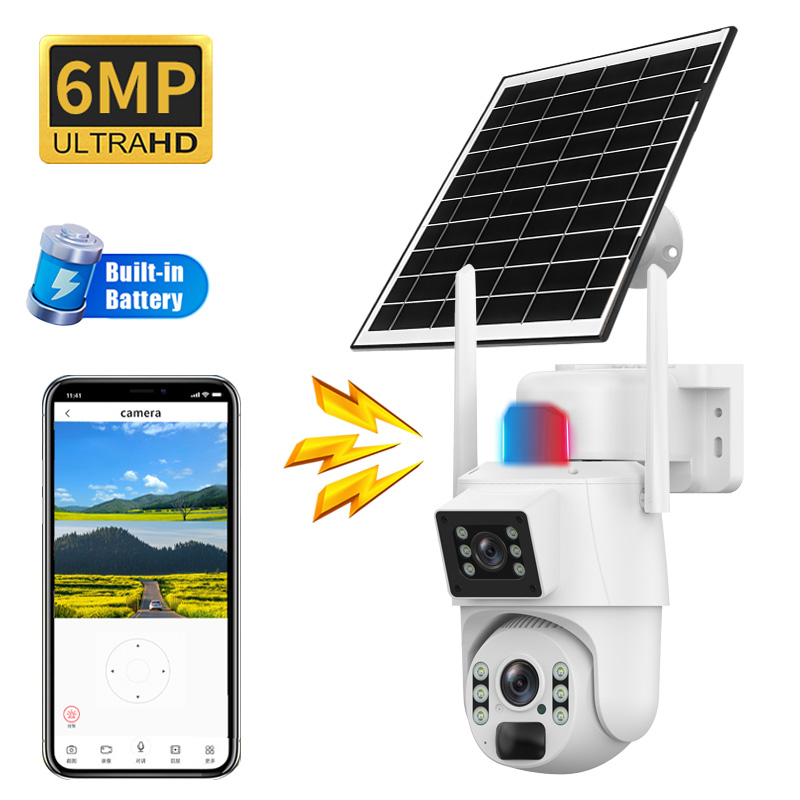

The Demax Dual-Lens Solar Security Camera is a wire-free, 4G/Wi-Fi-enabled device powered by a solar panel (charging a built-in 18650 battery) for 24/7 operation. It features dual 3MP lenses (total 6MP resolution) with dual-view functionality (simultaneous global/detail monitoring) and PTZ rotation for flexible coverage. PIR motion detection triggers alerts, while 4+6 array LEDs support 30m infrared/full-color night vision. It offers two-way audio, 128G TF card + cloud storage, and IP65 waterproofing, with multiple installation modes (ceiling hanging/wall mounting) for diverse outdoor/indoor scenarios.
|
Features |
Advantages |
|

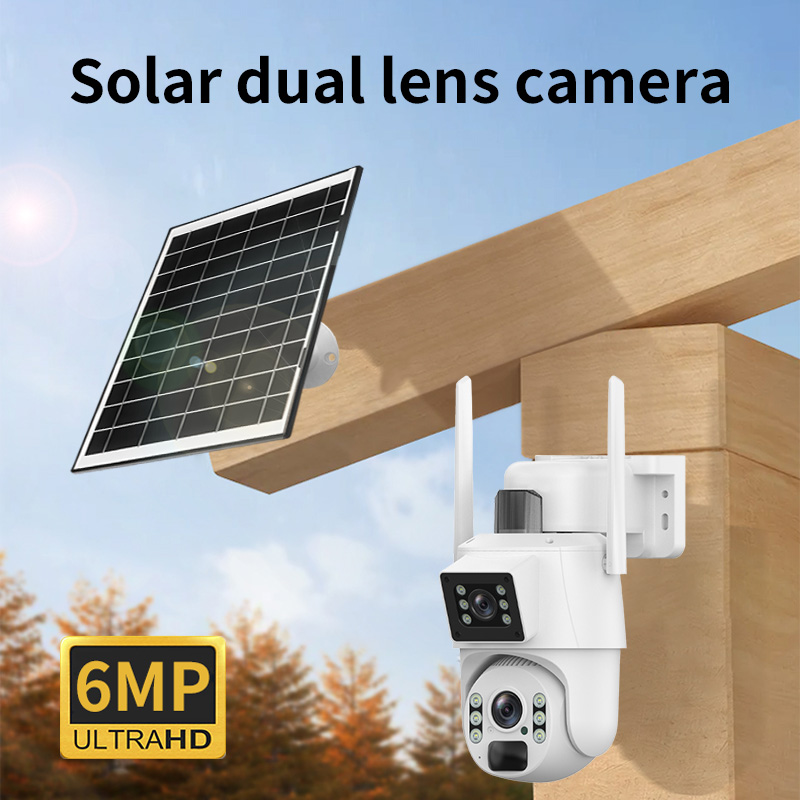

Core Imaging- Resolution: 6MP (3MP+3MP dual lens)- Dual view: Simultaneous global/detail monitoring via two lenses |
- Ultra-clear footage: 6MP dual-lens delivers sharp, high-definition video- Comprehensive coverage: Dual view balances wide-area monitoring and close-up detail tracking |
|

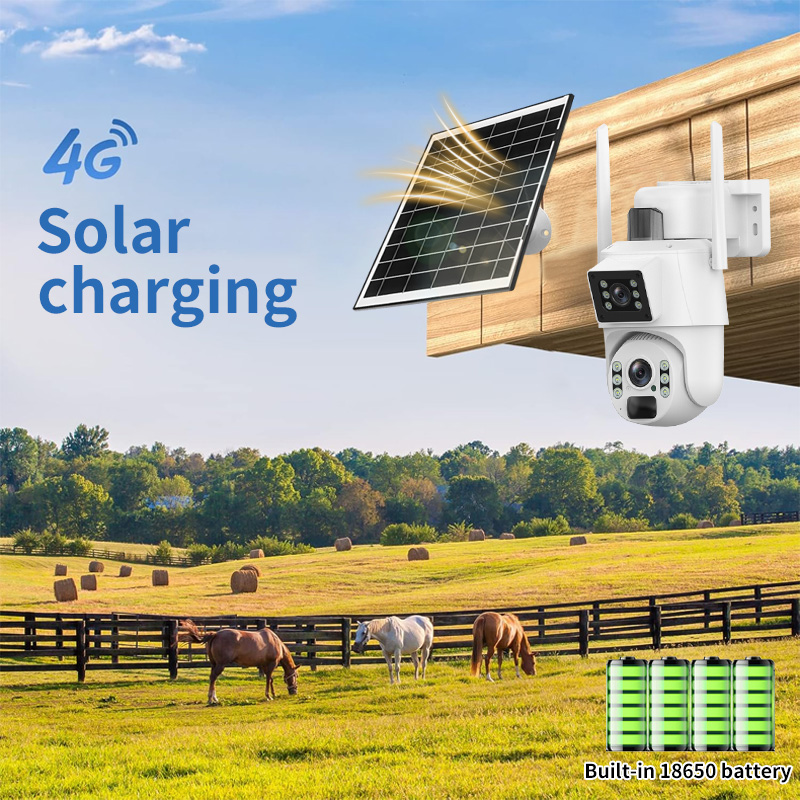

Connectivity & Power- Connectivity: 4G/Wi-Fi selectable- Power: Solar panel (12W, 23.5×17CM) + built-in 18650 battery |
- Wire-free deployment: Works in remote (4G) or Wi-Fi-covered areas without cables- Self-sustaining power: Solar charging + battery enables 24/7 operation without external power |
|
PTZ & Coverage- PTZ rotation: Flexible angle adjustment (supports near-360° monitoring)- Lenses: Dual lenses (separate for wide/detail views) |
- No dead zones: PTZ + dual lenses cover large areas with adjustable focus- Flexible monitoring: Switch between wide and detail views as needed |
|
Night Vision- Modes: Infrared night vision + full-color night vision- LEDs: 4+6 array LEDs (infrared + white light)- Range: 30m |
- 24/7 visibility: Full-color night vision ensures clear, colored footage in dark environments; infrared mode works in low-light conditions |
|
Audio & Alerts- Two-way audio: Built-in mic & speaker (supports real-time voice communication)- Detection: PIR motion detection (triggers alerts) |
- Remote interaction: Two-way audio enables communication (e.g., talking to family, warning intruders)- Timely alerts: PIR detection notifies users of activity instantly |
|
Storage- Modes: TF card storage (up to 128G) + cloud storage |
- Secure backup: Dual storage prevents data loss (local card + cloud) |
|
Environmental & Installation- Waterproofing: IP65 (resists rain/dust)- Installation modes: Ceiling hanging, wall mounting |
- Durable outdoor use: IP65 rating withstands harsh weather (rain, dust)- Versatile placement: Multiple installation modes fit different scenarios (e.g., ceilings, walls) |
|
Dimensions- Camera: 15.5×9.5×16CM (manual measurement)- Solar panel: 23.5×17CM |
- Compact design: Fits in limited spaces while maintaining full functionality |
| Solar-powered dual-lens camera | ||
 |
||
| Model number | Q39 | |
| edition | 4G | |
| APP | V380 Pro | |
| pixel | 3MP+3MP | |
| sensor | 1/2.9" Progressive Scan CMOS | |
| illuminance | Color: 0.1Lux@(F2.0,AGC ON),0 Lux with Light | |
| Lens | 4.0mm_F1.6, field of view Angle: 110°±5°; 4.0mm_F1.6, field of view Angle: 110°±5° | |
| shutter | 1/3s ～1/100,000s | |
| Day-night switching mode | ICR infrared filter type | |
| Wide dynamic function | Supports digital wide dynamic | |
| Frame rate | 15fps | |
| Image setting | Support image inversion | |
|
Image enhancement |
3D digital noise reduction, strong light suppression, digital wide dynamic | |
| Video compression standard | H.265_AVI | |
| Video compression bit rate | 2Kbps~1.5Mbps bit rate adaptive | |
| Audio compression standard | AAC | |
| Audio compression bit rate | 8kbps | |

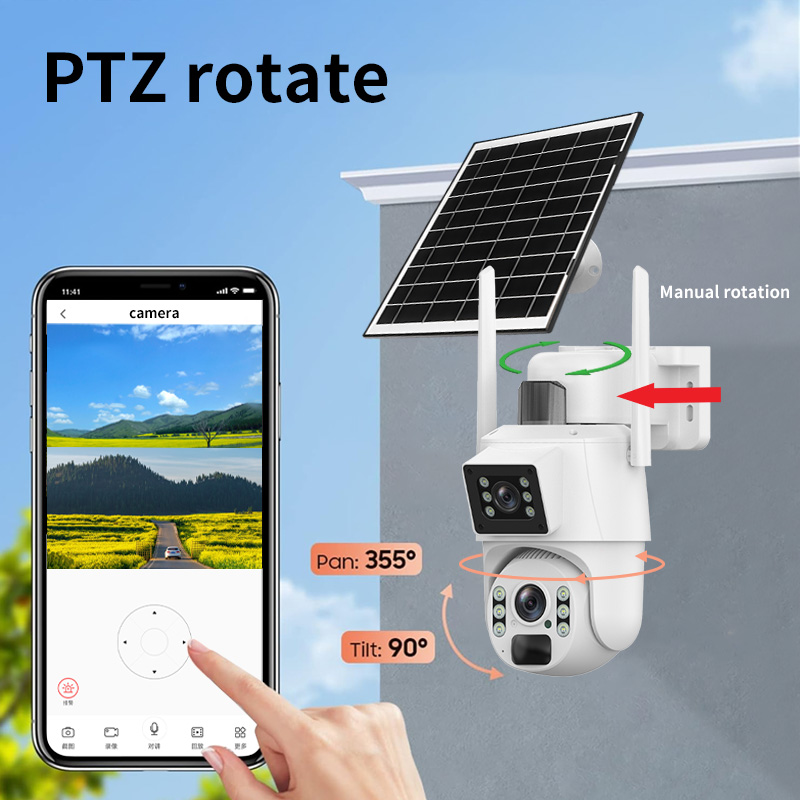

| PTZ control | Horizontal direction: 355°, vertical direction: 90° | |
| Audio interface | Built-in 1 microphone, 1 speaker | |
| General function | NTP time calibration, time watermarking, support Micro SD card (128G) local storage video | |
| Anomaly detection | Motion detection, motion tracking, humanoid detection | |
| factory data reset | Equipment body recovery | |
| Power supply | Photovoltaic cell power supply /DC 5V/2A (max) | |
| Power dissipation | The working state is about 5W | |
| Solar panel | 7W | |
| battery | Built-in 18650 battery | |
| Night vision distance | Infrared light 10m ~ 15m (depending on the specific environment) | |
| Box size | 25.2*19.5*17CM | |
| Box weight | 1.2KG | |
| Outer box size | 52.5*41.5*52CM（12PCS） | |
| Outer box weight | 16.2KG | |
