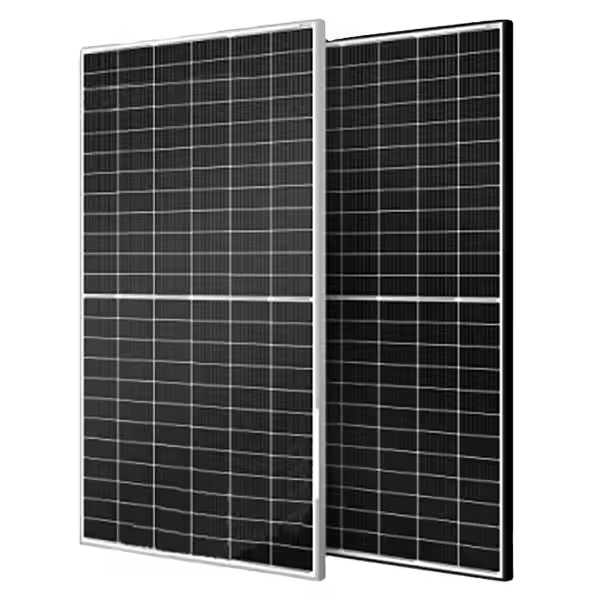

P-Type 210 Mono-Facial module GPM12-(650-670)W(132)
Output power: 650-670W
Maximum efficiency: 21.6%
Power tolerance: 0~+3%
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
P-GPM12-(650-670)W(132)
Output power: 650-670W
Maximum efficiency: 21.6%
Power tolerance: 0~+3%
Main features
SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability.
Reduced Hot Spot LossOptimized electrical and lower operating current for reduced hot spot loss and better temperature coefficient.
PID ResistanceExcellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Durability Against Extreme Environmental ConditionsHigh salt mist and ammonia resistance.
Enhanced Mechanical LoadCertified to withstand；wind load(2400 Pascal)and snow load(5400 Pascal).
High Reliability12 years product warranty；25 years linear power warranty
Specifications
Cell Type: P-type 210 Mono-crystalline
No. of cells: 132（2x66）
Dimensions: 2384x1303x35mm
Front Glass: 3.2mm,Anti-Reflection Coating,High Transmission,Low Iron,Tempered Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP68 Rated
Output Cables: TUV 1x4.0mm：（+）: 300mm，（-）: 300mm or Customized Length
