Q3 Solar Camera

Model: Q3
Product Name: Solar PTZ Camera
Networking: 4G model: Built-in 4G traffic card module
WiFi model: Built-in WIFI networking module

Introduction
Main features
Specifications
Recommended

Product Introduction

The Demax Solar PTZ Camera is a wire-free (solar + 18650 battery) security device powered by the INGENIC T31Z chip. It combines PIR + radar dual detection to trigger alerts, with a PTZ lens (355° horizontal/120° vertical rotation) for flexible monitoring. Its 8W solar panel charges the 19200mAh battery (6×3200mAh cells) for 24/7 operation; 4G/Wi-Fi connectivity enables remote access via UBOX app. Dual encoding (H.264/H.265) and 2MP/4MP sensors support color night vision (0.0001LUX), while local (128G TF card) + cloud storage ensures data security. IP66 waterproofing allows indoor/outdoor use in -30°C~60°C environments.

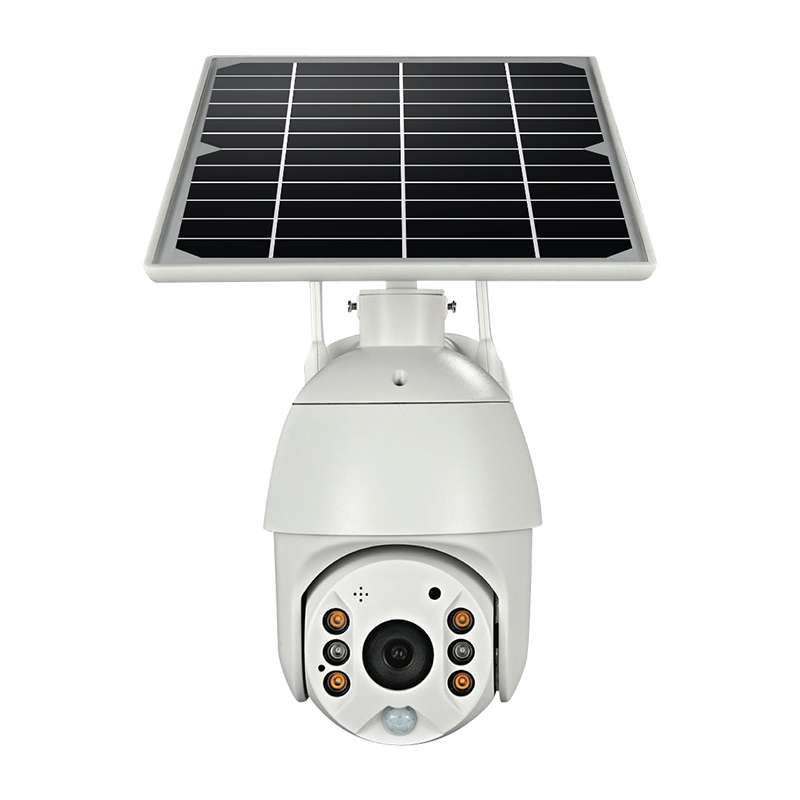

Solar Camera5.jpg

Main features

Features and Advantages：

Features	Advantages
Core Hardware & Encoding- Master chip: INGENIC T31Z- Sensor: 1/2.7” IMAGE SENSOR GC2063- Encoding: H.264/H.265- Pixel: 2MP/4MP optional	- Stable performance: Reliable chip + sensor ensures clear, efficient video capture- Flexible resolution: Choose 2MP/4MP for different clarity needs
Networking- 4G model: Built-in 4G traffic card module- Wi-Fi model: Built-in Wi-Fi module	- Wire-free connectivity: Works in remote (4G) or Wi-Fi-covered areas without network cables
Detection & Alerts- Detection method: PIR + radar dual induction- Detection distance: 0-12M- Detection angle: 120°- Alarm method: Dual induction confirms & pushes alerts to mobile phone	- Accurate alerts: Dual detection reduces false alarms- Wide coverage: 120° angle + 0-12M range covers large areas
PTZ Performance- PTZ angle: Horizontal 355°/Vertical 120°- Rotating speed: Horizontal 55°/sec; Vertical 40°/sec	- Flexible monitoring: Near-360° rotation tracks targets smoothly at high speed
Night Vision- Full color night vision: 0.0001LUX illuminance- Infrared light: 2 infrared LED lights- White light: 4 white LED lights	- 24/7 visibility: Color night vision (0.0001LUX) + IR/white light adapts to dark/dim environments
Audio- Built-in speaker: 3W- Built-in microphone: Monitoring range 20M	- Two-way intercom: Real-time voice communication for remote interaction (e.g., warning intruders, talking to visitors)
Lens- Focal length: 3.6mm- Angle: 120°	- Wide coverage: 120° angle monitors large areas with a single camera
Storage- Local storage: TF card (max 128G)- Cloud storage: Alarm recording	- Secure backup: Dual storage (local + cloud) prevents data loss/theft- Flexible capacity: 128G TF card supports long-term local recording
Power Supply- Power mode: Solar + 18650 battery- Solar panel: 8W- Battery: 6×3200mAh = 19200mAh (optional)- Maximum working power: 4W- Standby power: 0.03W	- Wire-free power: Solar + large battery enables 24/7 operation without external power cables- Low consumption: 0.03W standby saves battery for long use
Environmental Adaptability- Working environment: Indoor/Outdoor- Operating temperature: -30°C ~ 60°C- Working humidity: 0% ~ 90%RH- Shell: IP66 waterproof/rustproof/dustproof/sunproof	- Durable use: IP66 + wide temperature/humidity range withstands rain, dust, extreme heat/cold for outdoor/indoor deployment
App & Multi-User- App: UBOX (supports Android/iOS)- Multi-users live view	- Remote access: Monitor via app anytime, anywhere- Shared access: Multiple users view footage simultaneously (e.g., family members)

Specifications

model	Q3
Features	"• The product sleeps quickly, wakes up quickly, and achieves intelligent power saving • High performance 1/2"" black light full color image processor • Solar rechargeable built-in battery • 1080P HD video • Ultra-low power consumption, long standby time • Built-in microphone and speaker, support two-way voice intercom • Sound and light alarm function • Support cloud storage and local storage. • APP supports Android/IOS • Metal body, IP66 outdoor waterproof"
product name	Solar PTZ Camera
comprehensive	Master chip	INGENIC T31Z
	APP operating system	Android, IOS
	sensor	1/2.7" Image Sensor GC2063
	Compression format	H.264+/H.265
	pixel	2MP/4MP optional
Networking	4G model	Built-in 4G traffic card module
Networking	WiFi model	Built-in WIFI networking module
Alarm mode	detection mode	PIR + radar dual induction detection
	Detection distance	0~12M
	Detection angle	120°
	Alarm method	Double induction to confirm push alarm information to mobile phone
PTZ	PTZ angle	Horizontal 355° Vertical 120°
PTZ	Rotating speed	Horizontal 55°/sec Vertical 40°/sec
night vision mode	Full color night vision	Illuminance 0.00001LUX
	Infrared light	2 infrared LED lights
	white light	4 white LED lights
sound	Built-in speaker	3W
sound	Built-in microphone	Monitoring range 20M
lens	focal length	3.6mm
lens	angle	120°
storage	cloud storage	Cloud storage (alarm recording)
storage	local storage	TF card (maximum 128G)
power supply	Power Mode	Solar + 18650 battery
	solar cell power	8W
	battery capacity	Maximum support 6 18650 batteries (6*3200MA=19200MA) optional
	Maximum working power	4W
	Standby power	0.003W
other	working environment	Indoor/Outdoor
	Operating temperature	-30°~+60°
	Working humidity	0%~90%RH
Package	weight	1.84kg

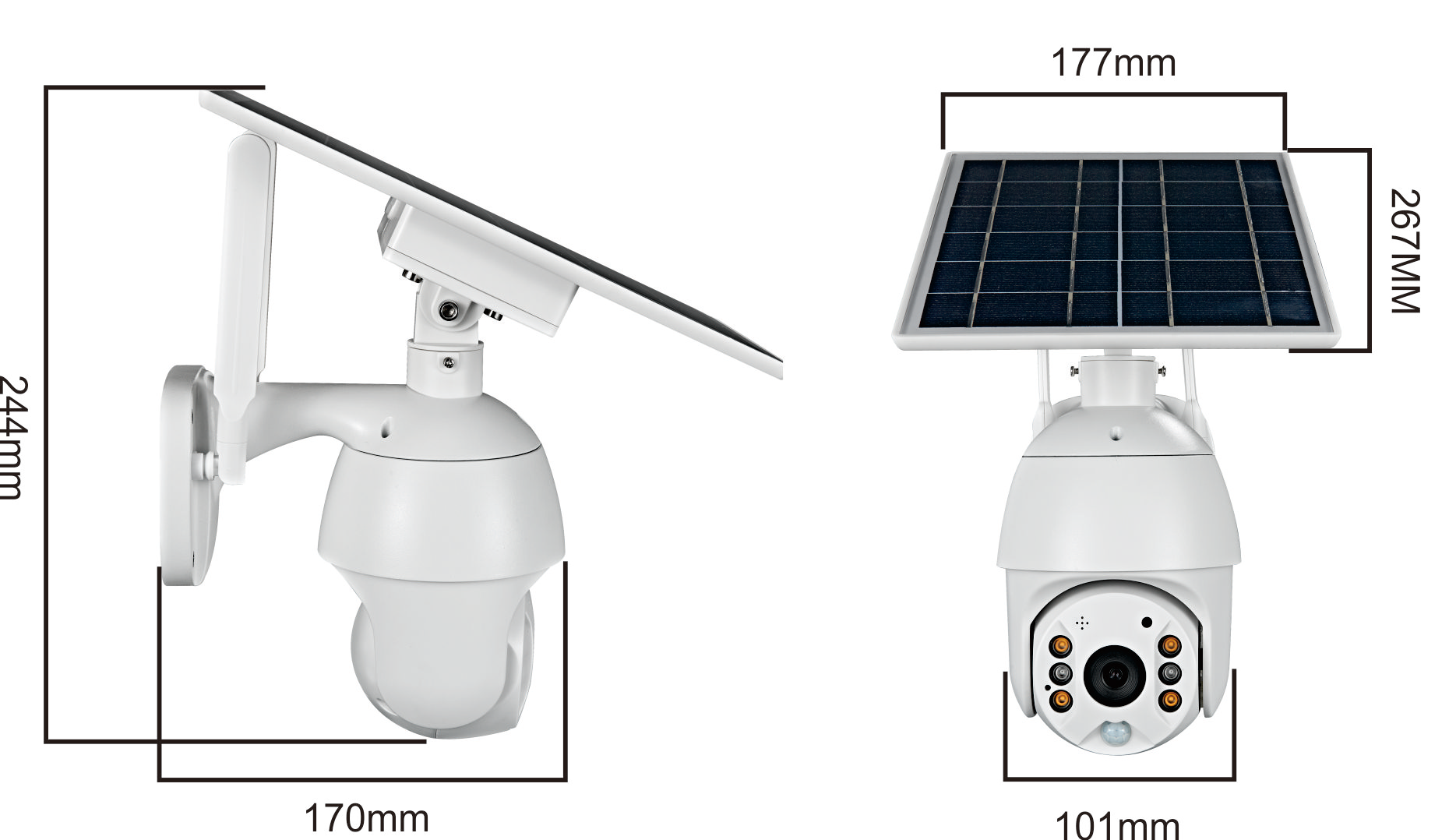

	size	290200166mm
	Qty	6
	packing weight	12kg
	Carton size	615300360mm
