Containerized Energy Storage System
1.According to customer needs, the type and capacity of the battery system can be flexibly configured;
2.PCS adopts modular, power frequency overall architecture, simple maintenance, flexible configuration, and can realize multiple parallel machines;
3.Supports on-grid and off-grid operation mode, seamless switching, and supports black start;
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

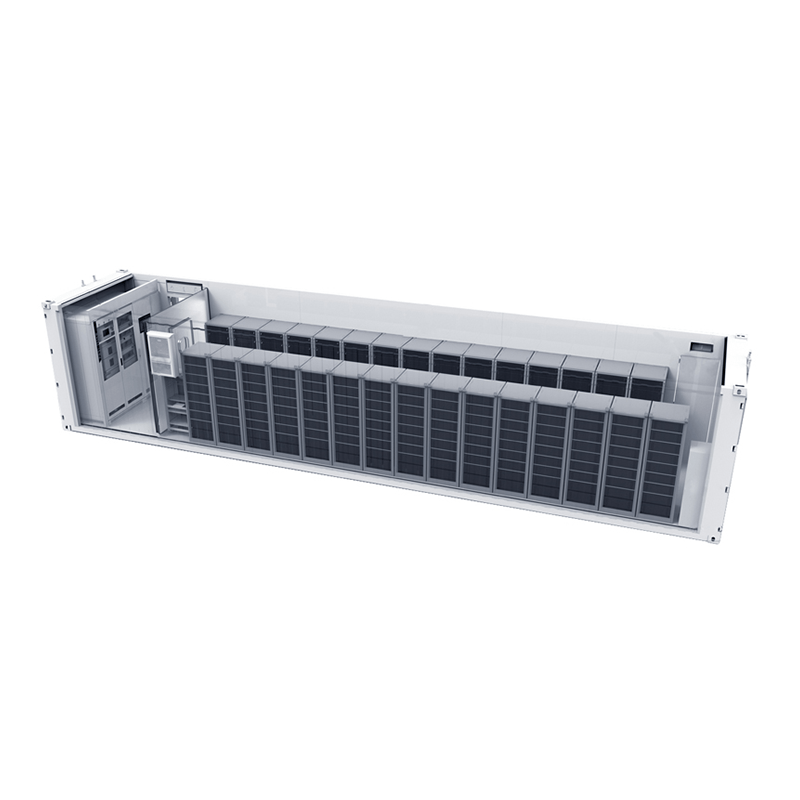

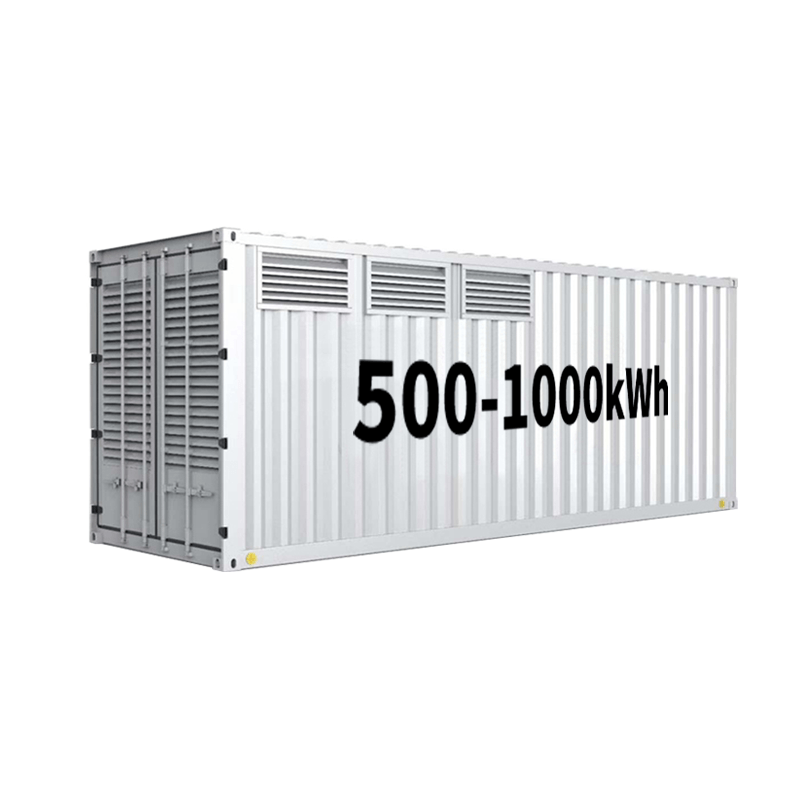

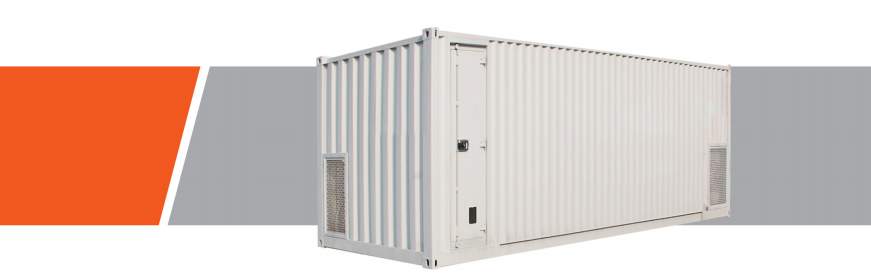

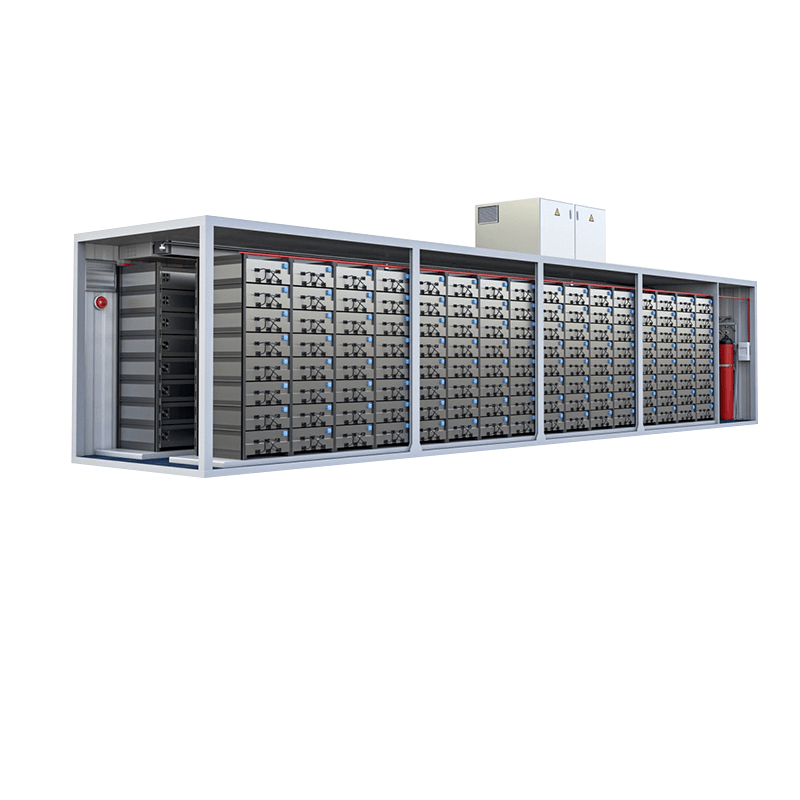

Containerized 10ft 20ft 40ft

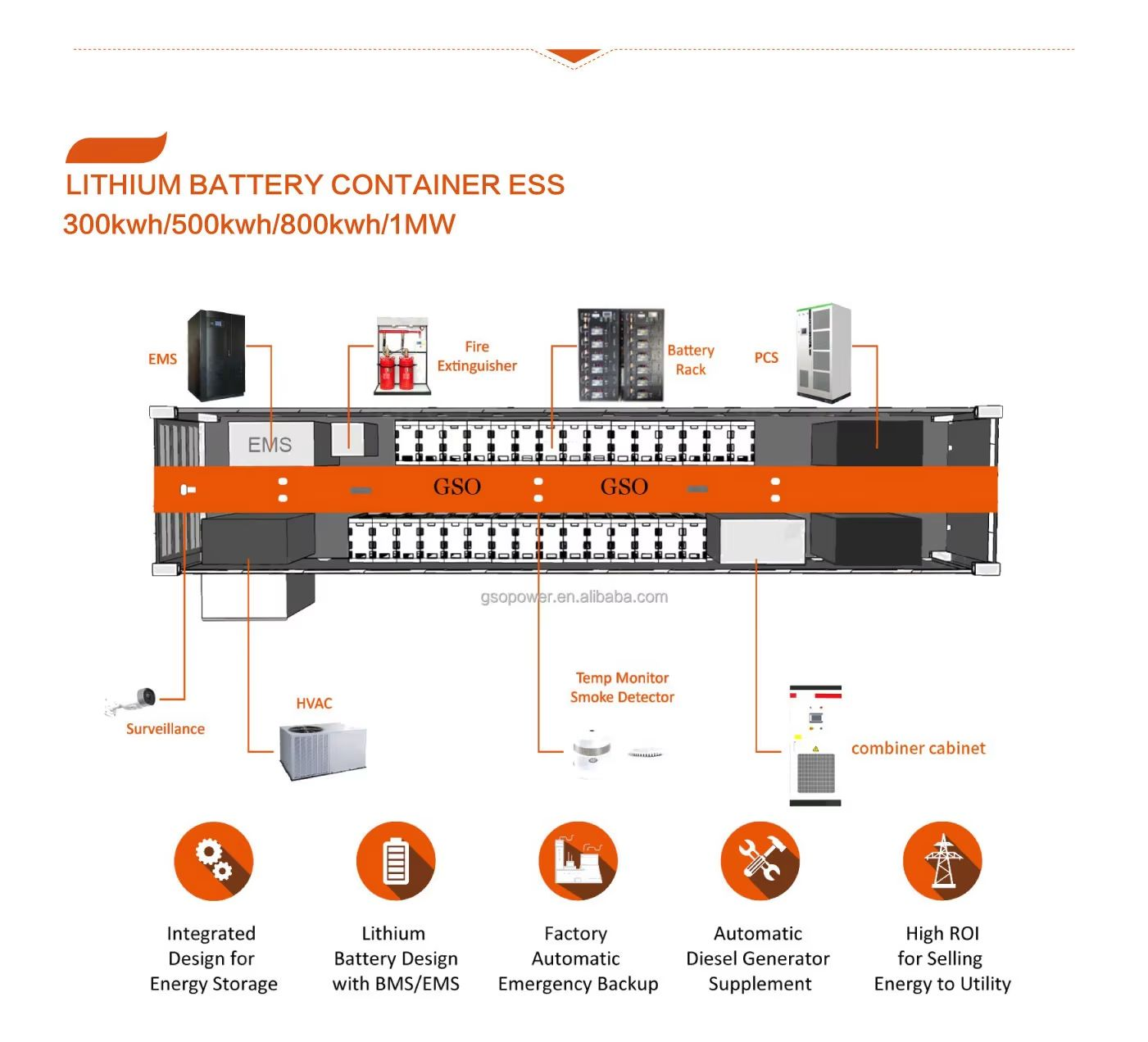

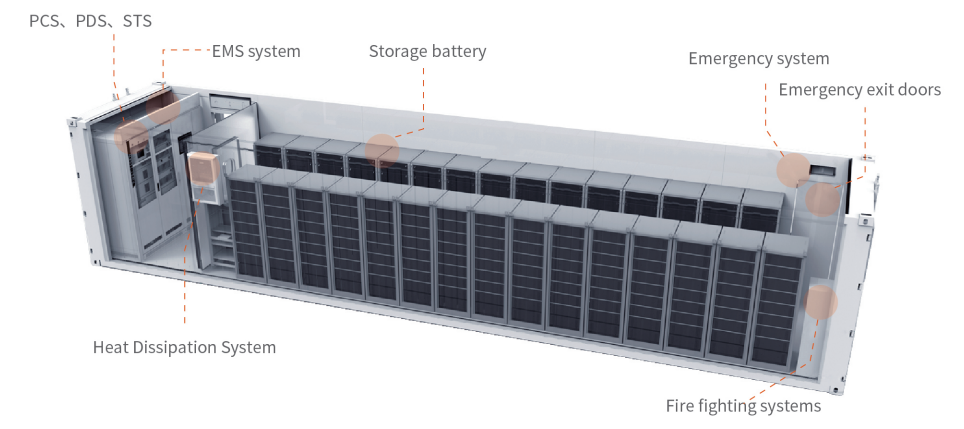

Main features
• According to customer needs, the type and capacity of the battery system can be flexibly configured；
• PCS adopts modular, power frequency overall architecture, simple maintenance, flexible configuration, and can realize multiple parallel machines；
• Supports on-grid and off-grid operation mode, seamless switching, and supports black start；
• EMS unattended system, local control, cloud monitoring operation, with highly customizable functions；
• With peak shaving and valley filing, demand response, anti-reverse flow operation, backup power supply, command response and other modes；
• With a complete gas fire extinguishing system and automatic fire monitoring and alarm system, sound and light alarm and fault transmission；
• With a complete heat dissipation and temperature control system to ensure that the temperature of the battery compartment is within the optimal working range；
• The access control system has remote control and on-site operation functions.

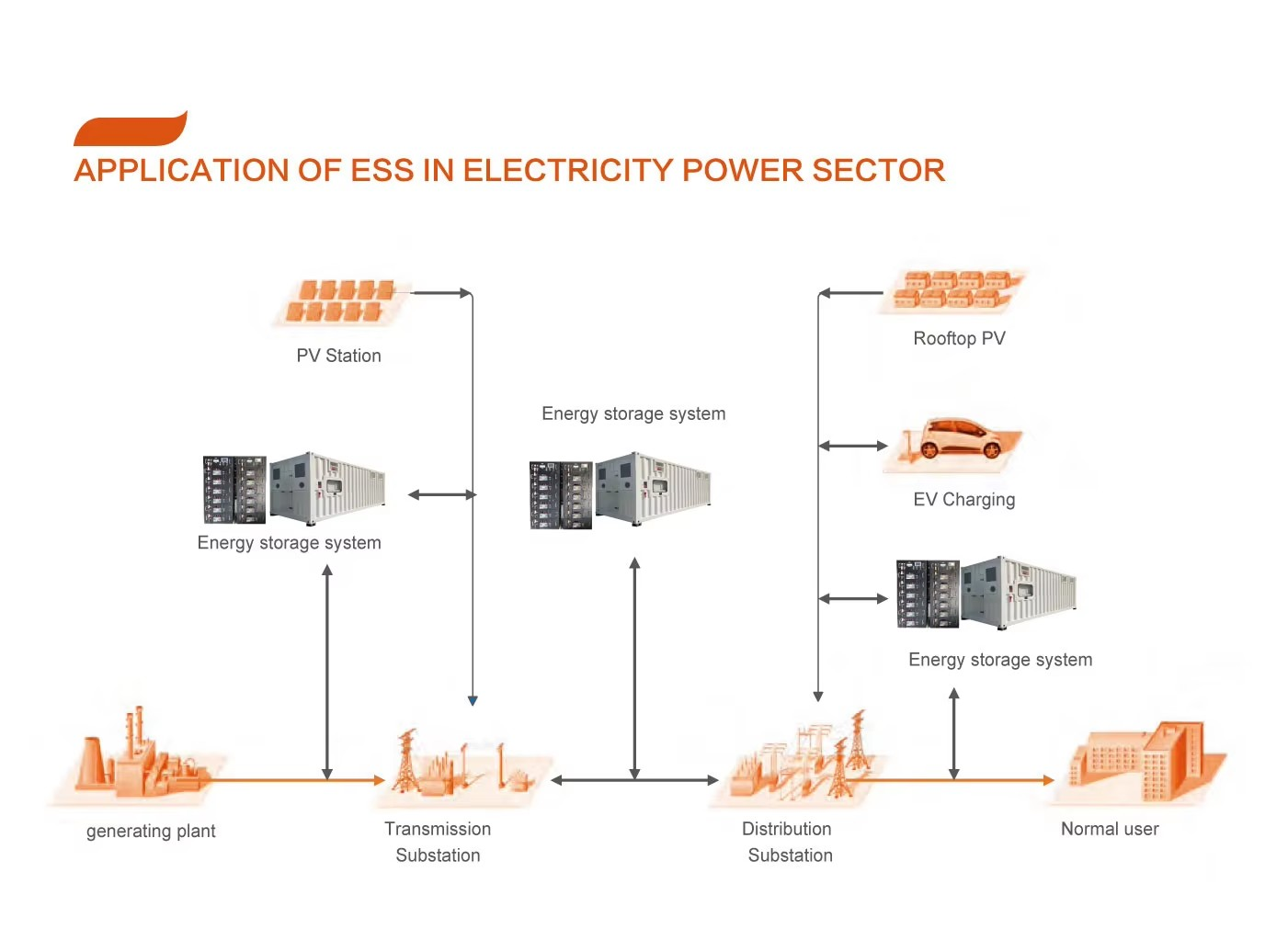

Application
Specifications
| Model | 10ft | 20ft | 40ft |
| Output Voltage (V) | 380/400±15% | ||
| Grid Frequency (Hz) | 50/60（±2.5） | ||
| Output Power (kW) | 50~100 | 50~500 | 250~630 |
| Battery Capacity (kWh) | 51~400 | 200~1500 | 800~3000 |
| Battery Type | Lithium iron phosphate battery | ||
| Dimensions (D*W*H)mm | Inner :2831*2352*2385 | Inner :2352*5898*2385 | Inner :2352*12032*2385 |
| Outer ：2438*2991*2591 | Outer ：2438*6058*2591 | Outer ：2438*12192*2591 | |
| Protection Level | IP54 | ||
| Humidity Range(%RH) | 0~95 | ||
| Altitude(m) | 3000 | ||
| Operating Temperature (°C) | -20~50 | ||
| Battery Voltage Range (V) | 250~850 | ||
| Maximum DC Current (A) | 200 | 750 | 1500 |
| Connection Method | 3P4W | ||
| Power Factor | -1~1 | ||
| Communication Method | RS485，CAN，Ethernet | ||
| Isolation Method | Power frequency isolation | ||
