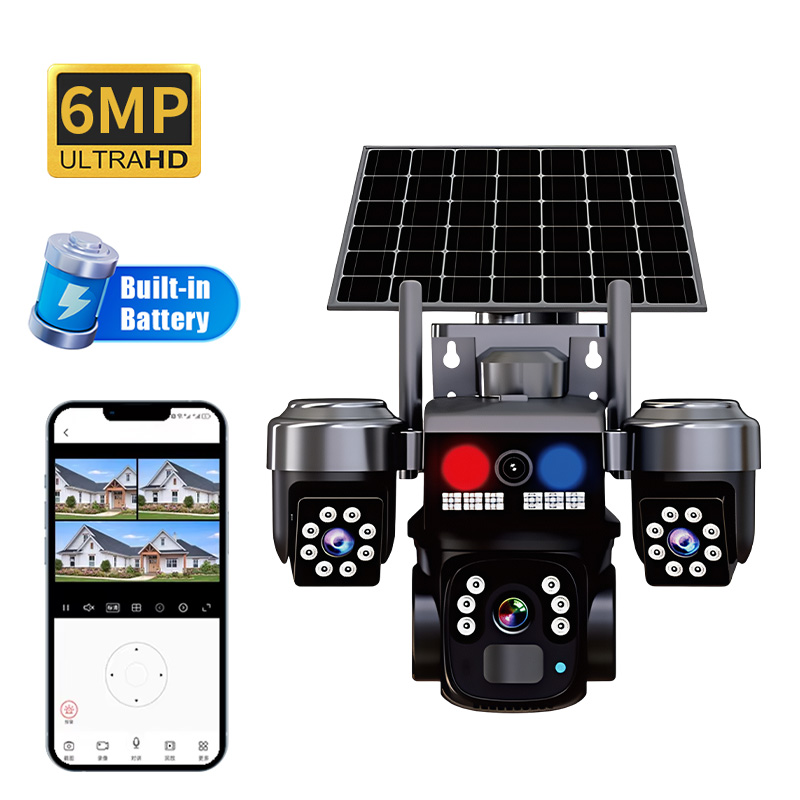

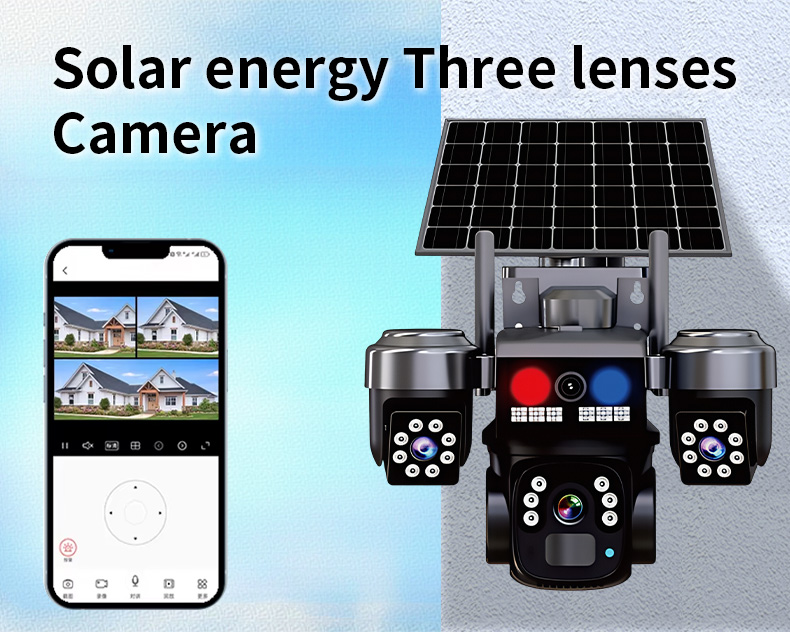

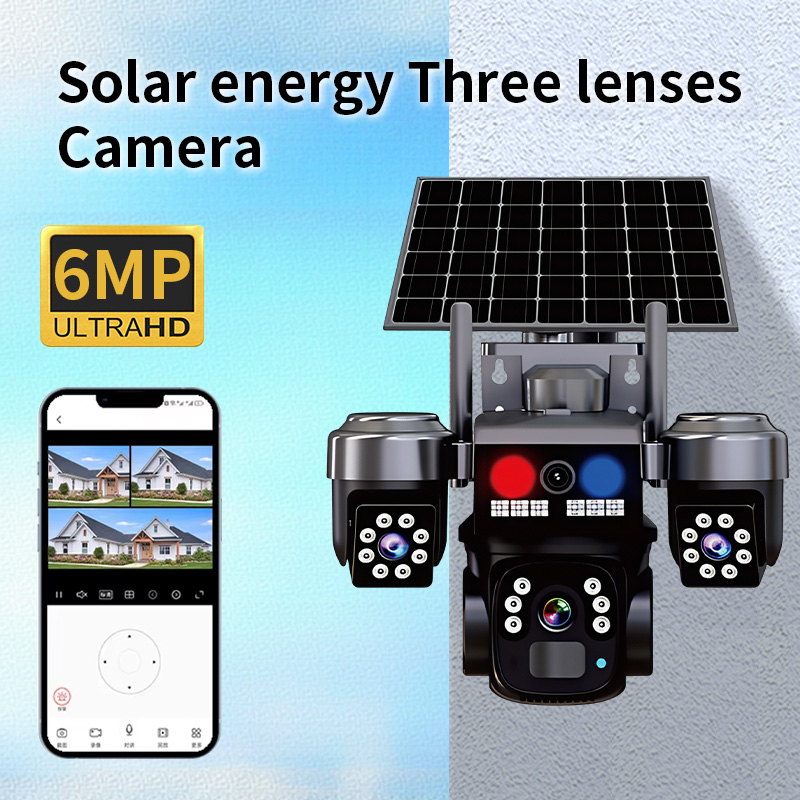

The Demax QD5 is a 4G-enabled, solar-powered dual-lens (gun + ball, 4mm each) security camera, operating via the V380-Pro app. It uses a 7W solar panel to charge an 8000mAh lithium battery, with ultra-low standby power (0.003W) for long-term wire-free use. Equipped with a 6MP sensor (H.264 encoding), it supports triple-view monitoring (via dual lenses + PTZ rotation: 350° pan/90° tilt). Its PIR + motion detection + tracking (7M range, 120° angle) triggers app alerts, while IR-CUT enables full-color/infrared night vision. It offers two-way audio, 128G TF card + cloud storage, and multiple working modes (adaptive/battery-saving, etc.) for flexible deployment.

|
Features |
Advantages |
|
Core Hardware & Imaging- Model: QD5 (4G version)- App: V380-Pro- Pixel: 6MP- Video coding: H.264- Audio coding: AAC/G.726- OSD: Time, battery level, signal strength- Lenses: Gun 4mm + Ball 4mm |
- High-definition footage: 6MP resolution delivers sharp, detailed video- Dual-lens flexibility: Gun (fixed) + ball (PTZ) lenses balance wide coverage & targeted tracking |
|

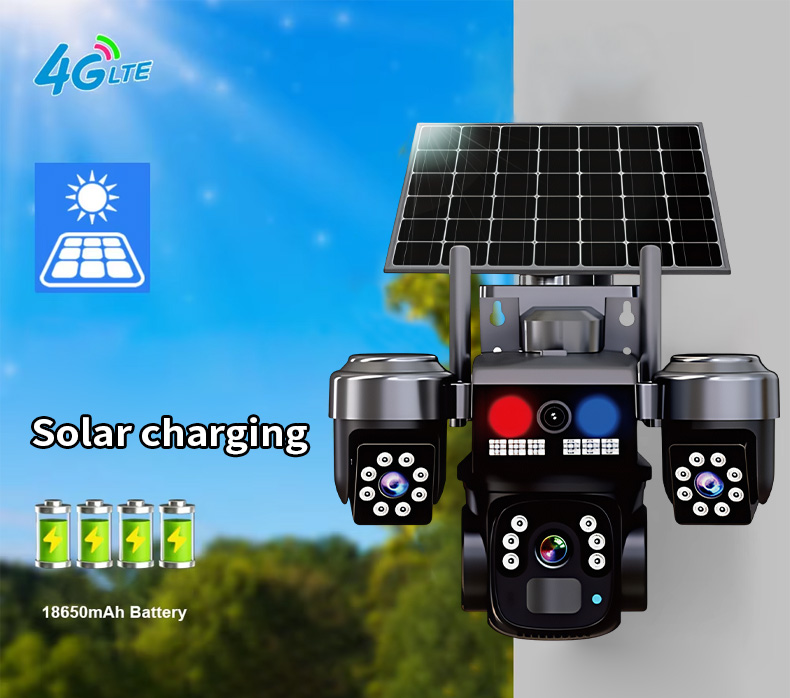

Power System- Power mode: Solar + 8000mAh lithium battery- Solar panel: 7W- Power consumption: Max 3.3W (working); 0.003W (standby) |
- Wire-free long operation: Solar charging + low standby power enables 24/7 use without external cables |
|
Detection & Tracking- Detection: PIR (7M range, 120° angle) + motion detection- Intelligent functions: Motion tracking (gun lock + ball tracking)- Alerts: App push notifications |
- Proactive monitoring: Motion tracking follows targets in real time- Accurate alerts: PIR + motion detection reduces false notifications |
|

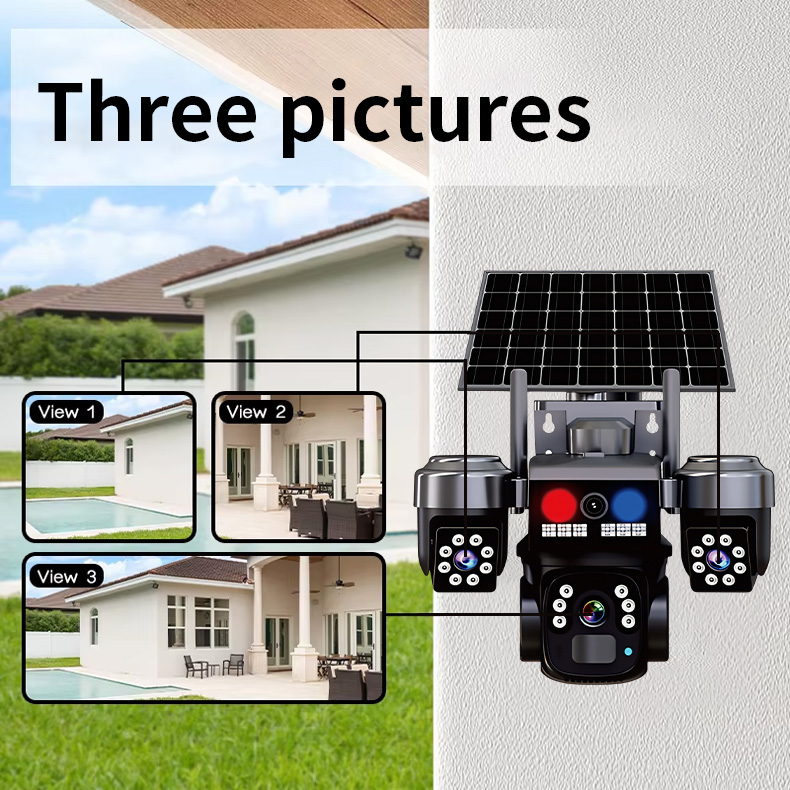

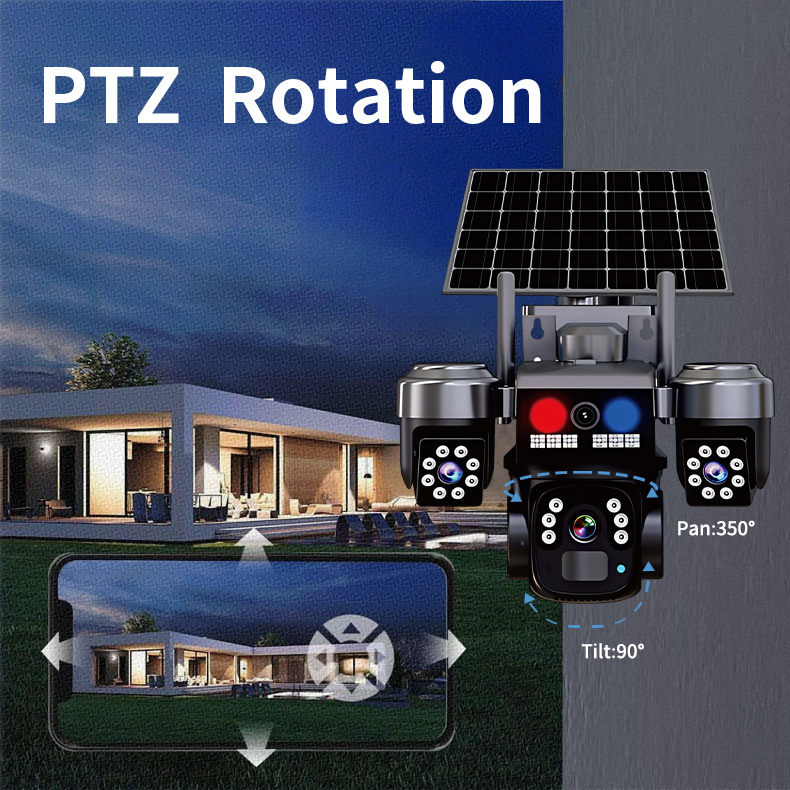

PTZ & Viewing- PTZ rotation: 350° pan / 90° tilt- Triple-view monitoring: Simultaneous multi-angle views (via app) |
- No dead zones: 350°/90° rotation + triple-view covers large, complex areas |
|
Night Vision- Mode: IR-CUT (full-color + infrared) |
- 24/7 visibility: Full-color mode preserves scene details; infrared mode works in total darkness |
|
Audio & Storage- Audio: Two-way intercom (built-in mic + speaker)- Storage: 128G TF card + cloud storage |
- Remote interaction: Two-way audio enables real-time communication (e.g., warning intruders)- Secure backup: Dual storage prevents data loss/theft |
|

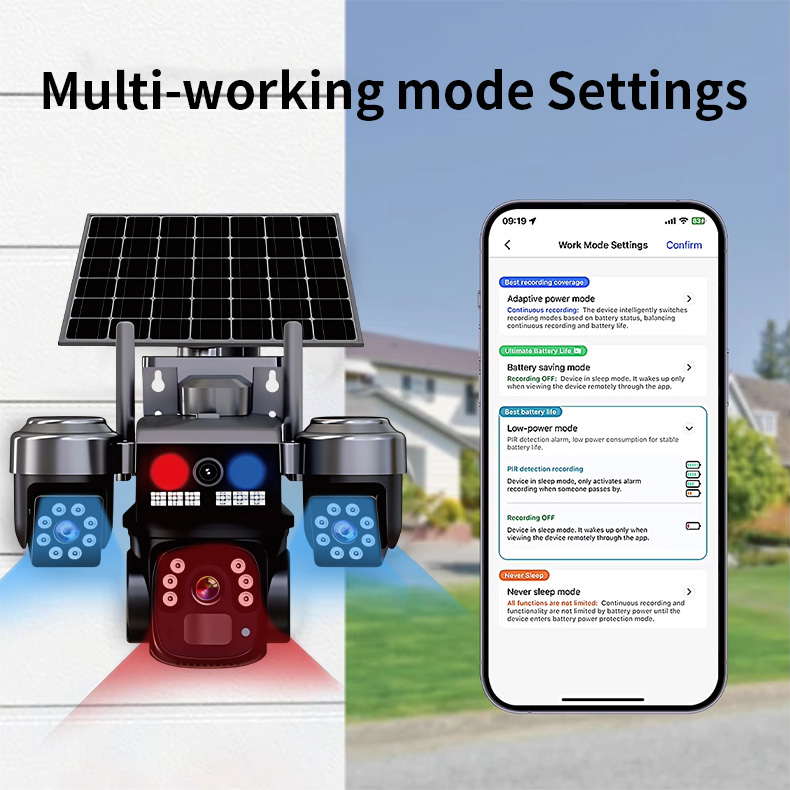

Working Modes- Adaptive power, battery-saving, low-power, never sleep modes (via app) |
- Customizable operation: Choose modes to balance performance & battery life (e.g., battery-saving for remote areas) |
|
Packaging- Color box: 28.5×20×22CM (1.7KG)- Outer box: 61.5×58×45CM (12PCS, 22.5KG gross weight) |
- Efficient logistics: 12 units per carton reduces shipping costs for bulk orders |

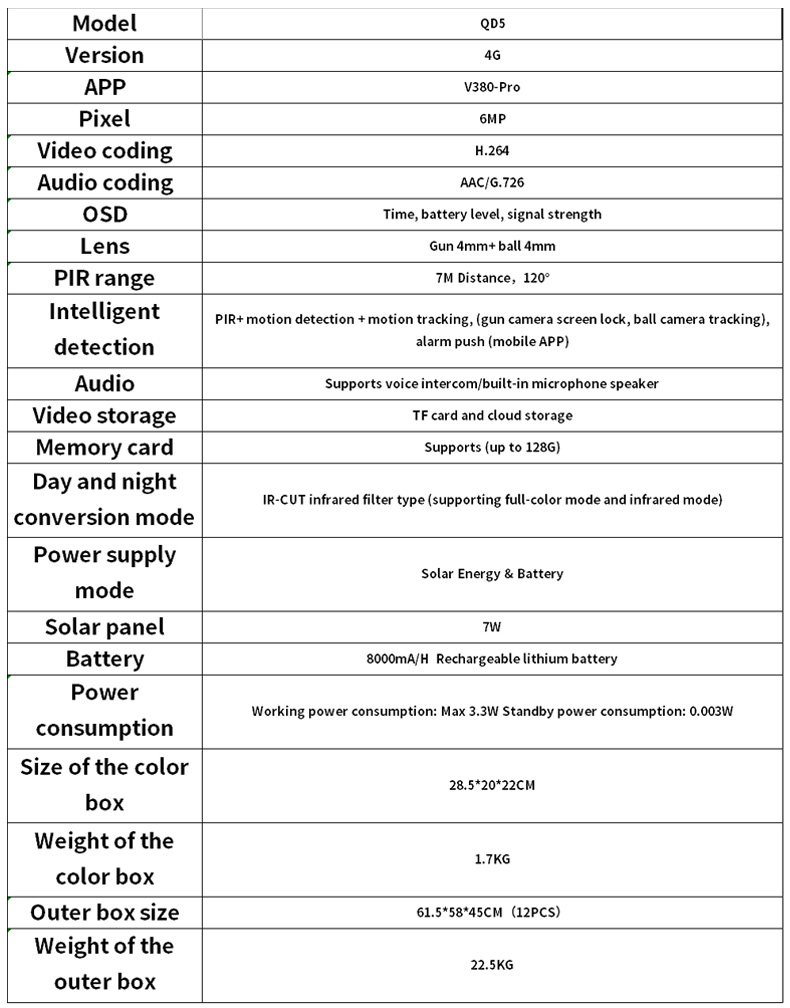

| Solar-powered multi-lens camera | ||
![]() |
||
| Model | QD5 | |
| Version | 4G | |
| APP | V380-Pro | |
| Pixel | 6MP | |
| Video coding | H.264 | |
| Audio coding | AAC/G.726 | |
| OSD | Time, battery level, signal strength | |
| Lens | Gun 4mm+ ball 4mm | |
| PIR range | 7M Distance,120° | |
| Intelligent detection | PIR+ motion detection + motion tracking, (gun camera screen lock, ball camera tracking), alarm push (mobile APP) | |
| Audio | Supports voice intercom/built-in microphone speaker | |
| Video storage | TF card and cloud storage | |
| Memory card | Supports (up to 128G) | |
| Day and night conversion mode | IR-CUT infrared filter type (supporting full-color mode and infrared mode) | |
| Power supply mode | Solar Energy & Battery | |
| Solar panel | 7W | |
| Battery | 8000mA/H Rechargeable lithium battery | |
| Power consumption | Working power consumption: Max 3.3W Standby power consumption: 0.003W | |
| Size of the color box | 28.5*20*22CM | |
| Weight of the color box | 1.7KG | |
| Outer box size | 61.5*58*45CM(12PCS) | |
| Weight of the outer box | 22.5KG | |
