Q6Max Solar Camera
Model number: Q6Max
Edition: 4G/WIFI
APP: UBOX/i-Cam+
Pixel: 6MP
PIR detection range: Supports a maximum PIR range of 12 meters
- Introduction
- Main features
- Specifications
- Recommended

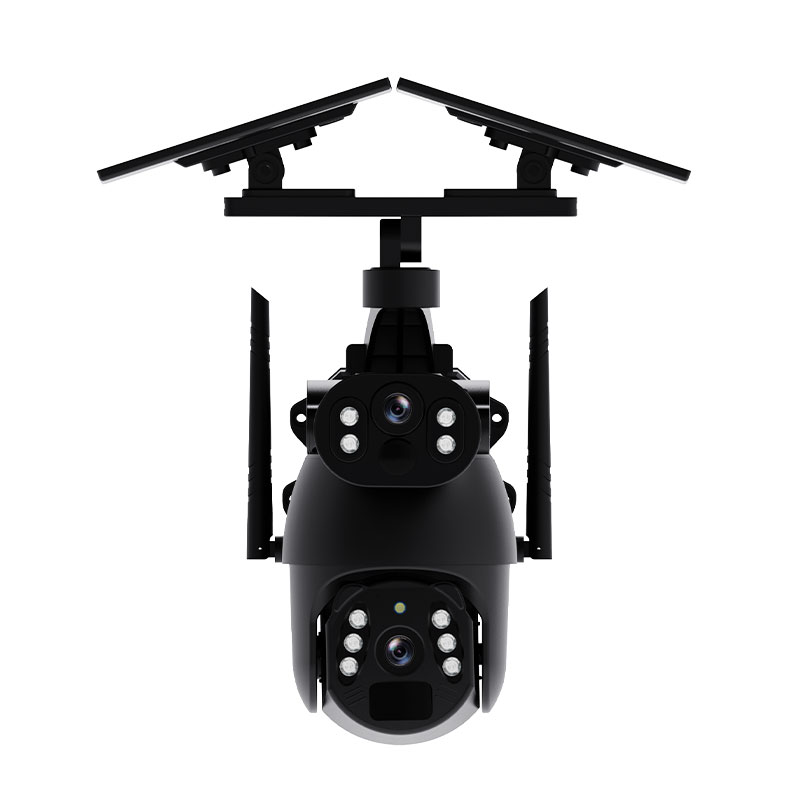

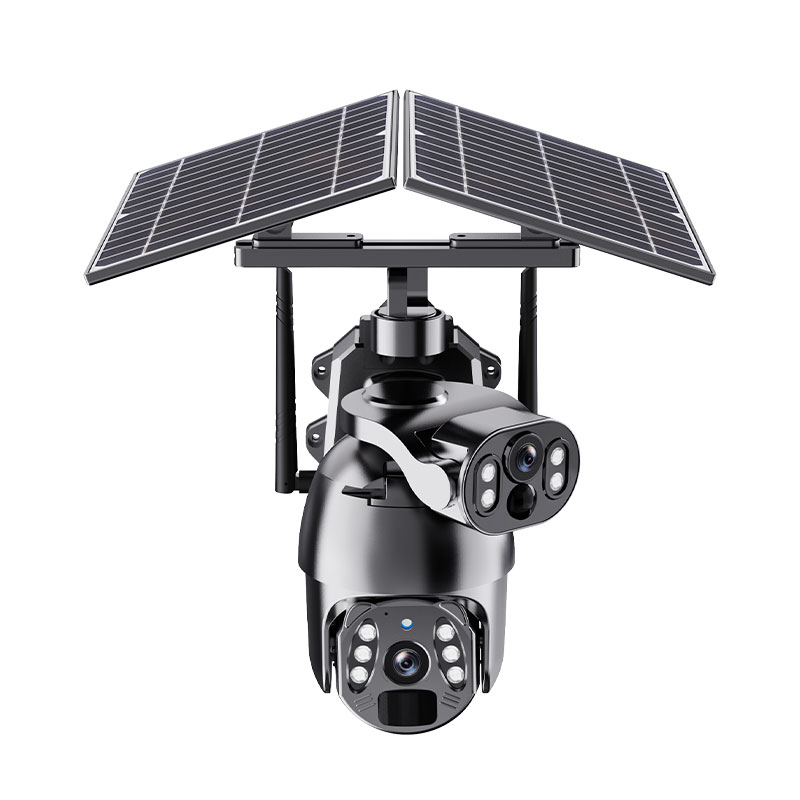

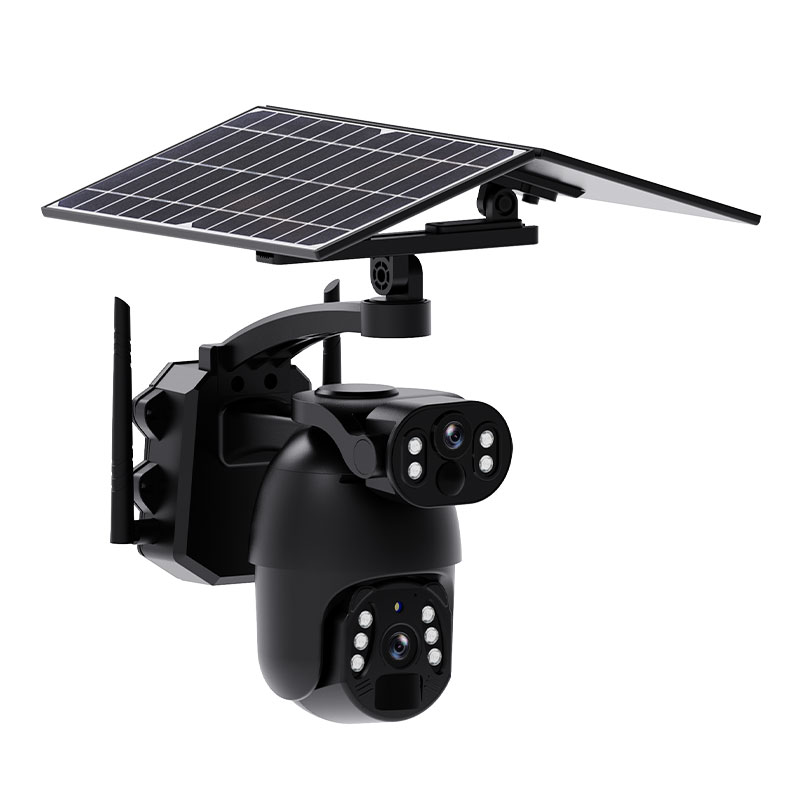

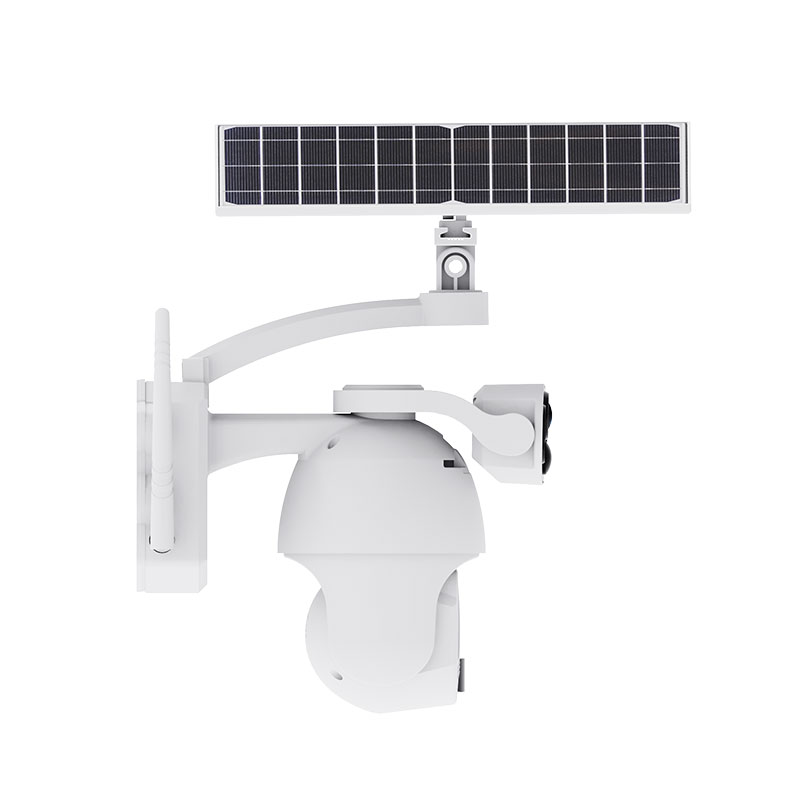

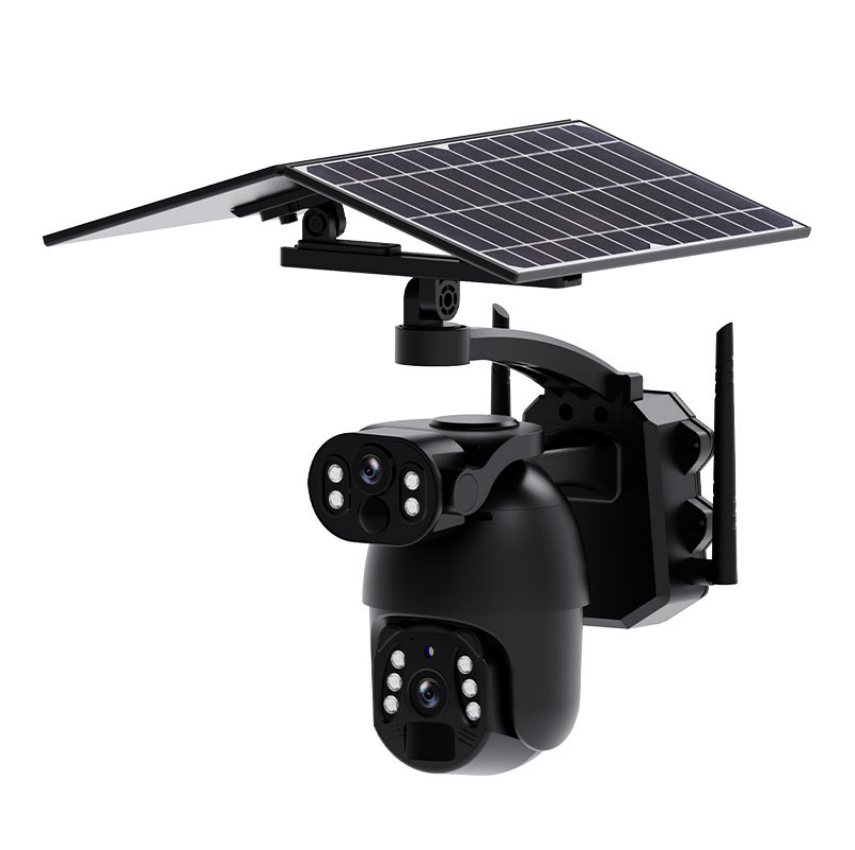

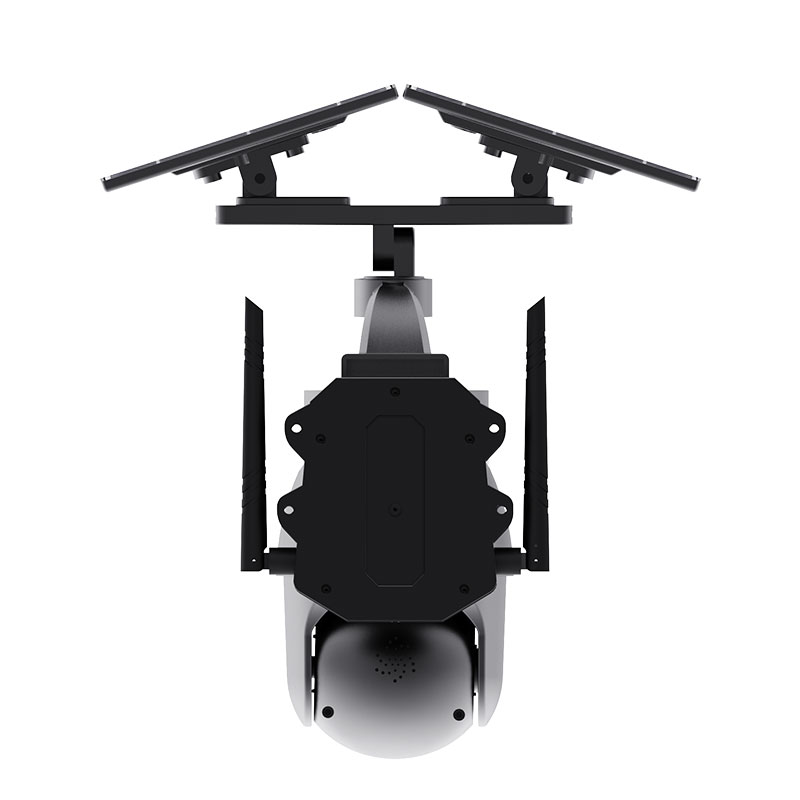

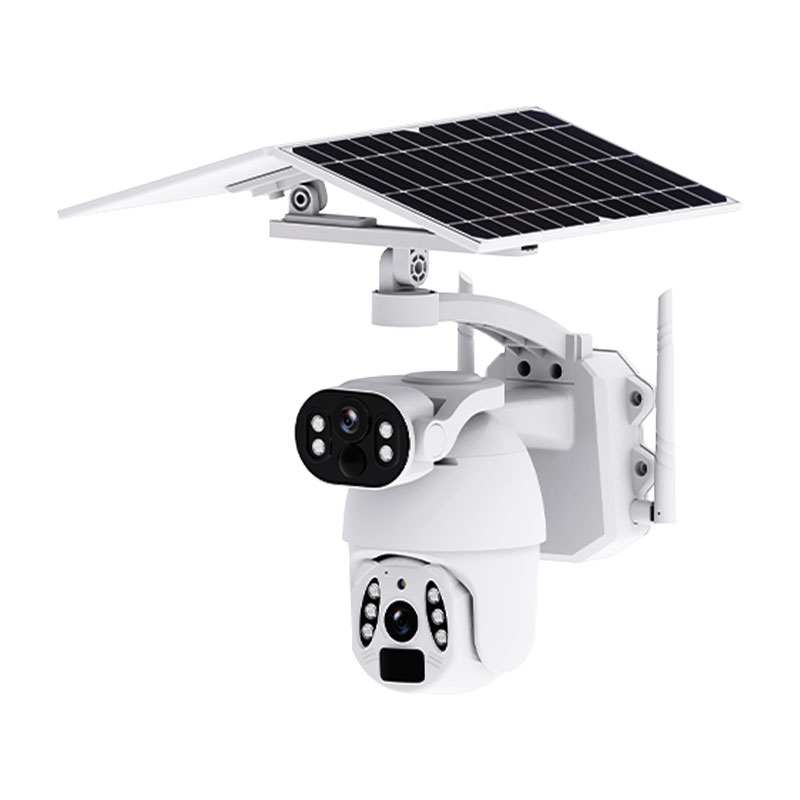

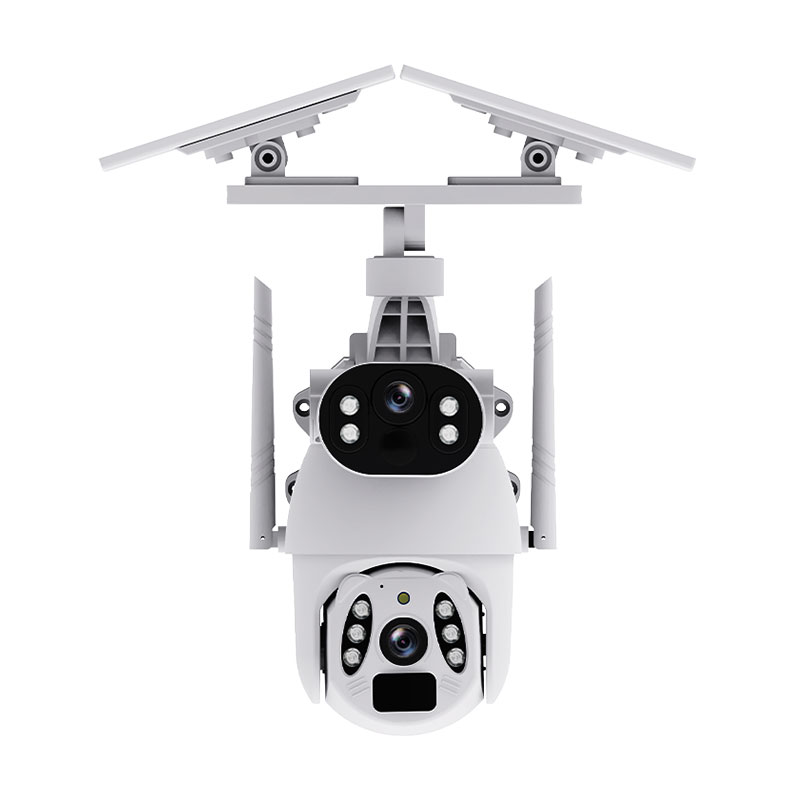

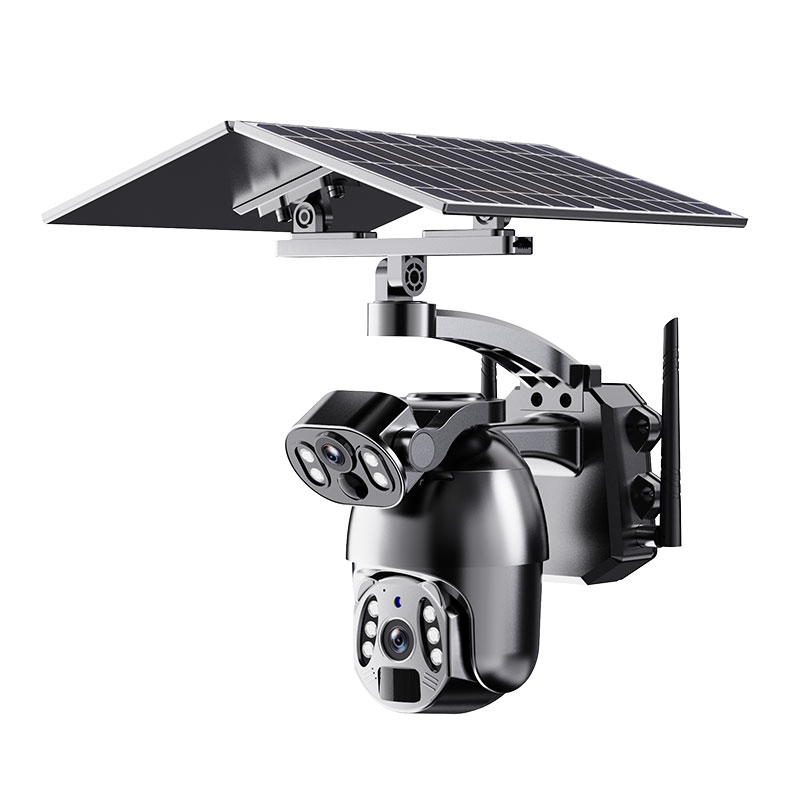

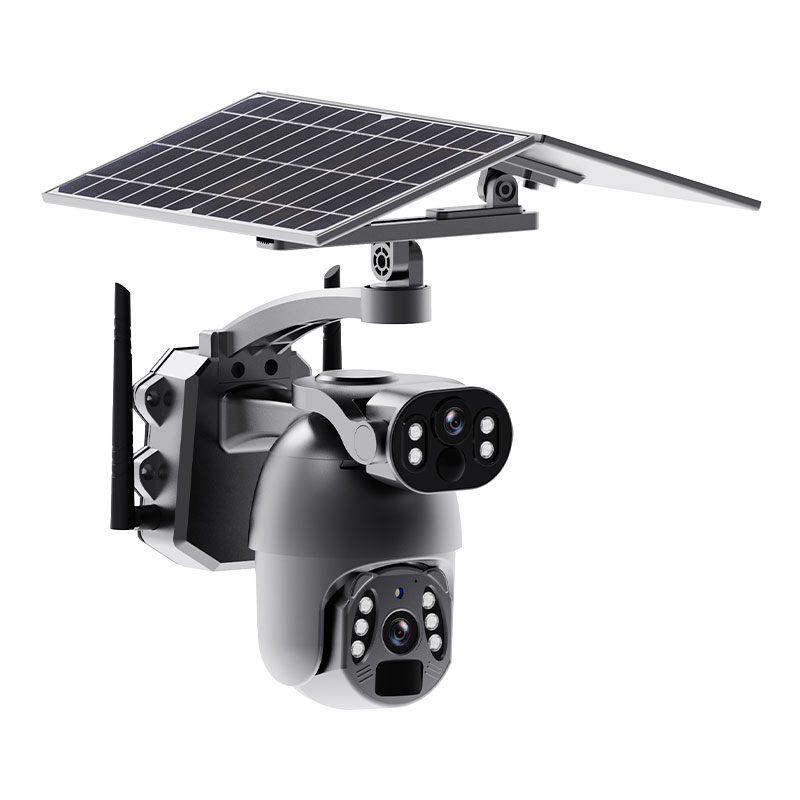

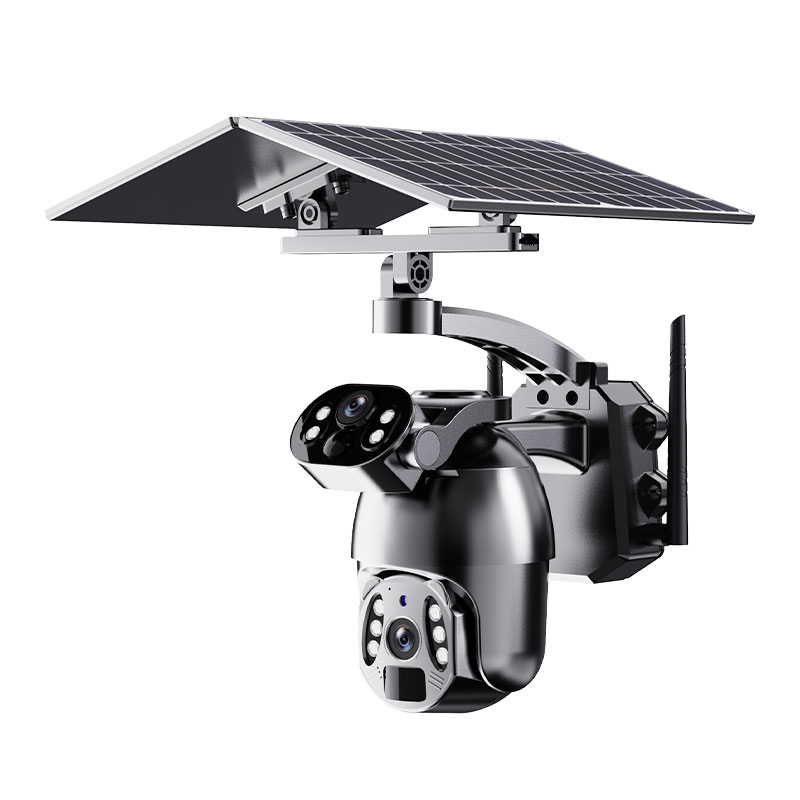

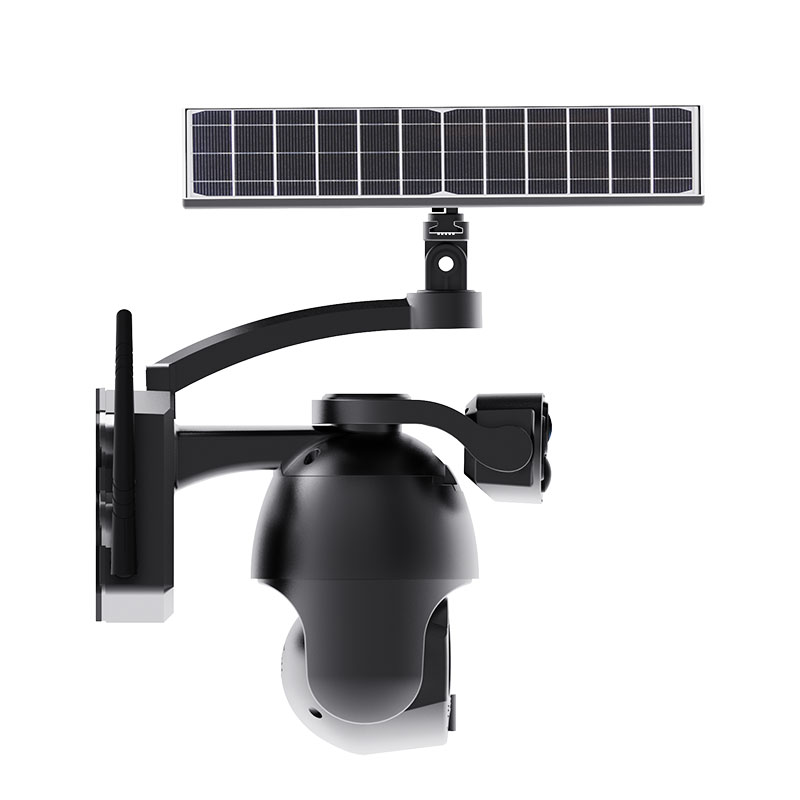

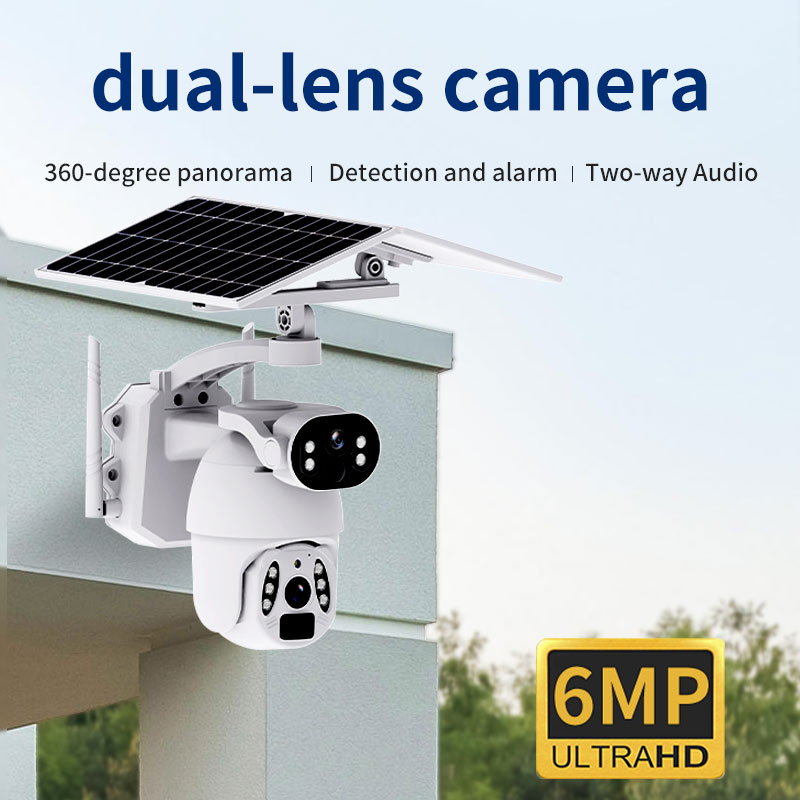

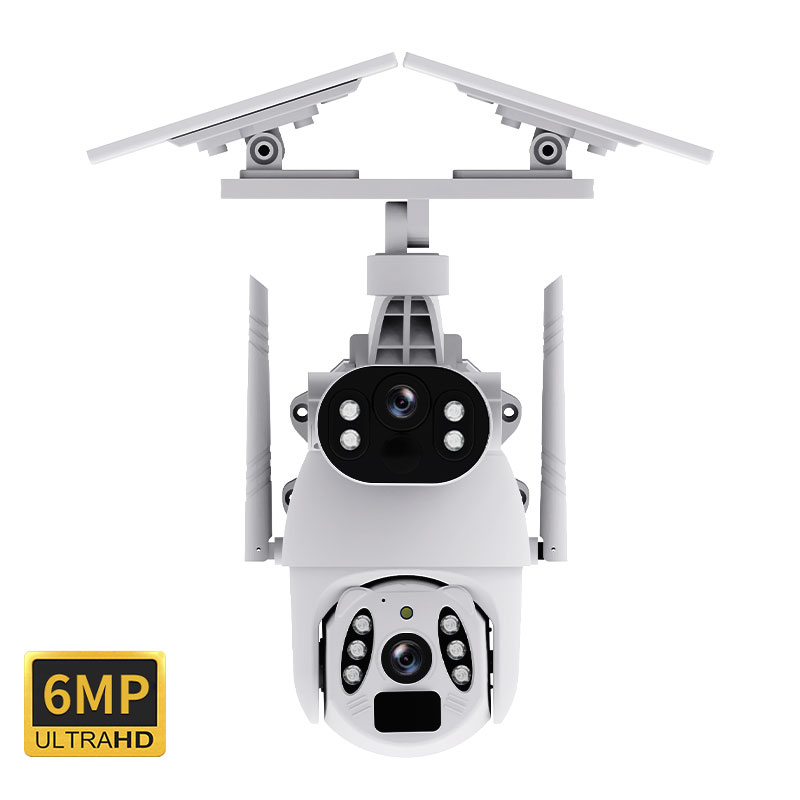

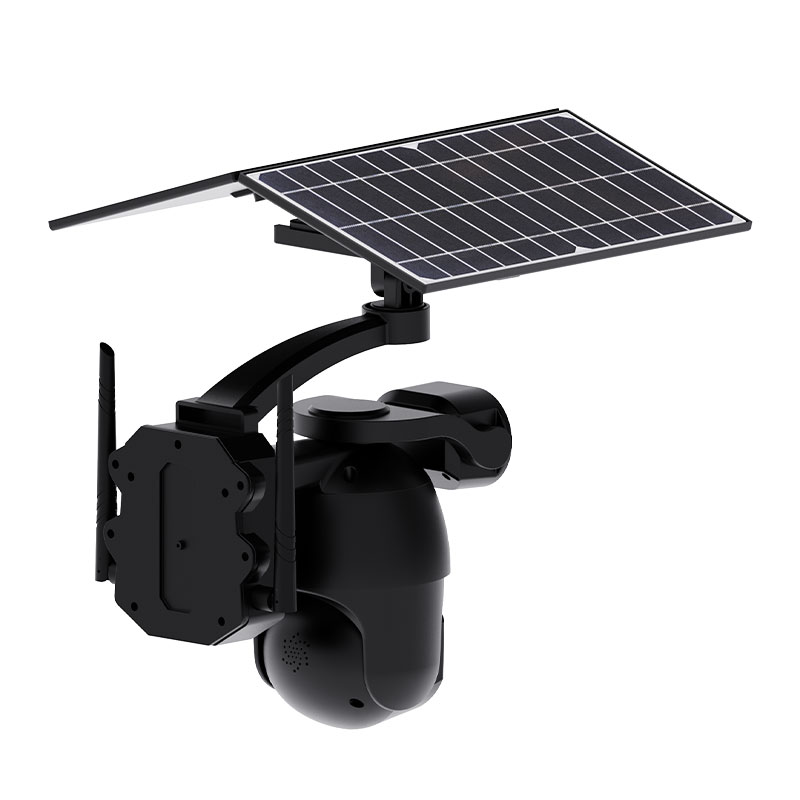

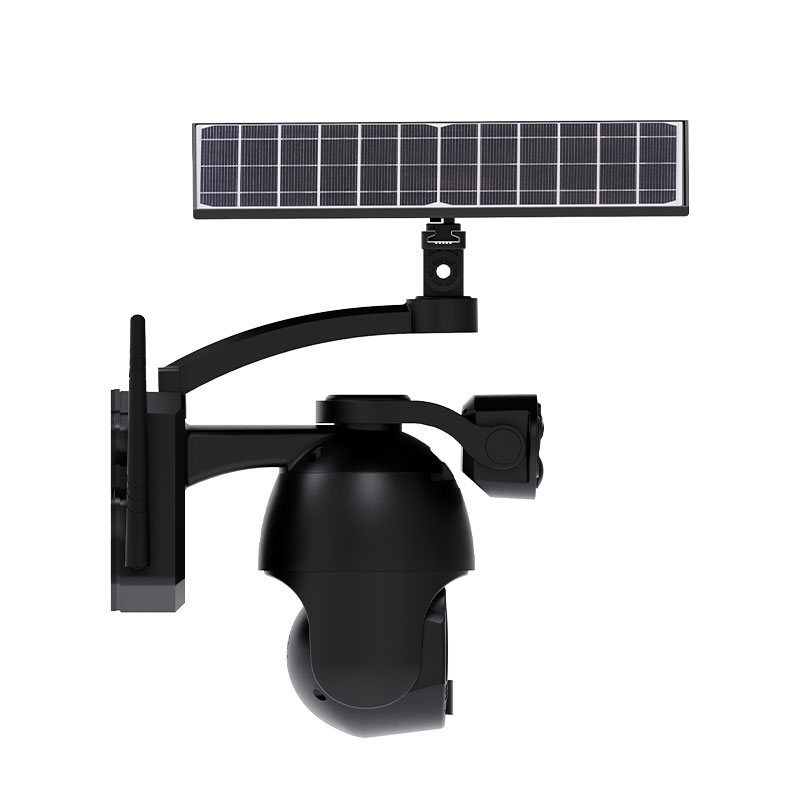

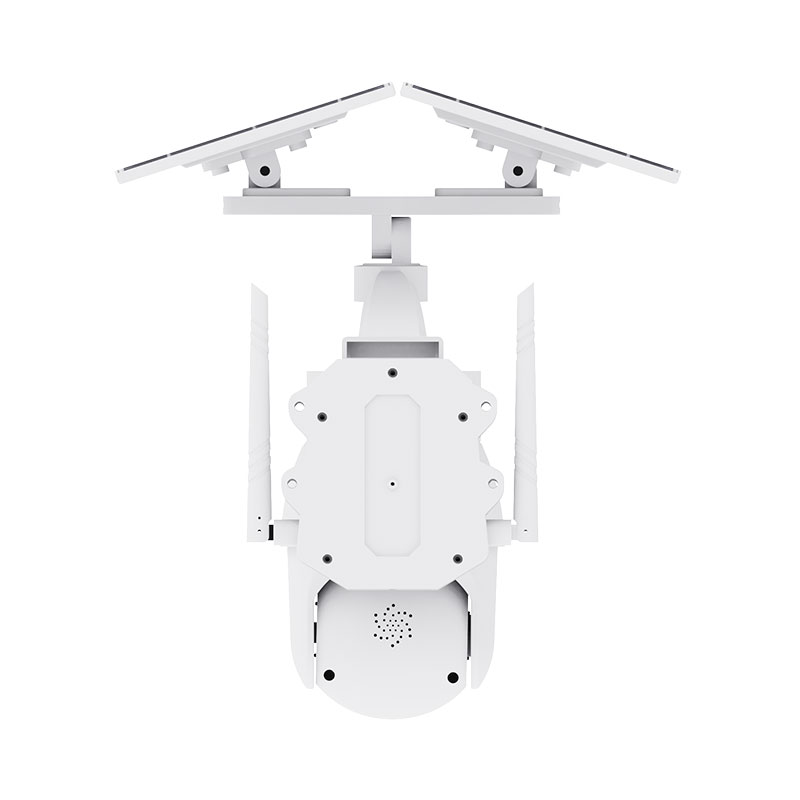

The Demax Q6Max is a wire-free solar-powered dual-lens security camera, operating via the UBOXi-Cam+ app. It uses a 12W solar panel to charge a built-in 9600mAh (3×18650) battery, enabling low-power 24/7 operation. The dual-lens system (2.8mm+6mm) supports 4× digital zoom; PTZ (355° horizontal/120° vertical) + manual bullet rotation (110° horizontal/90° vertical) achieve near-360° coverage. PIR detection (12m range) triggers dual alerts (SD card recording + SMS push), while 4+6 array LEDs enable 30m full-color night vision. It supports 4G/Wi-Fi connectivity, 128G TF card + cloud storage, and IP65 waterproofing for -20°C~60°C environments.
|
Features |
Advantages |
|
- Model: Q6Max |
- High clarity: 6MP dual |
|
- Focal length: 2.8mm+6mm F2.0 |
- Flexible viewing: Dual focal lengths + 4× zoom balance wide coverage & detail |
|
- PTZ: 355° horizontal/120° vertical (10~30°/sec horizontal; 8~25°/sec vertical) |
- No dead zones: Near-360° rotation (PTZ + manual bullet) monitors all directions |
|

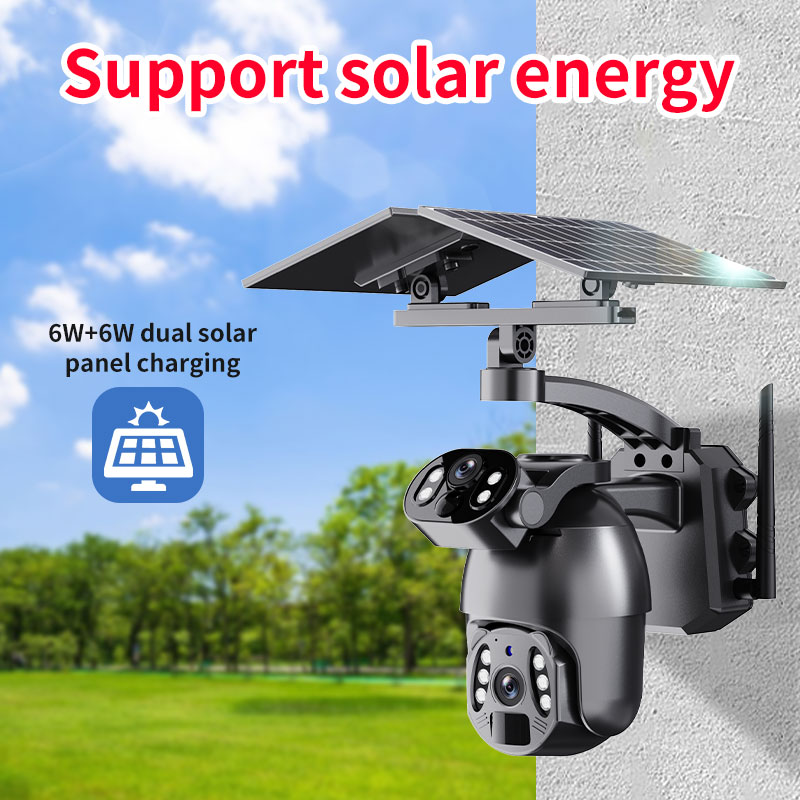

Power System- Solar panel: 12W monocrystalline silicon (6W+6W dual panel) - Battery: 3×18650 (9600mAh) - Power consumption: 0.03W standby; 1.3W (day)/3W (night) - Power input: DC5V2A |
- Wire-free operation: Solar + large battery eliminates external power cables - Long endurance: Low-power mode + 9600mAh battery supports 24/7 use |
|
Detection & Alerts- PIR range: 12m - Alarm linkage: SD card recording + mobile SMS push |
- Reliable alerts: 12m PIR detection triggers timely, dual -channel notifications (local + mobile) |
|
Night Vision - LEDs: 4+6 array LEDs - Night vision range: 30m - Full color night vision |
- 24/7 visibility: Full -color night vision + 30m IR coverage ensures clear footage in dark environments |
|

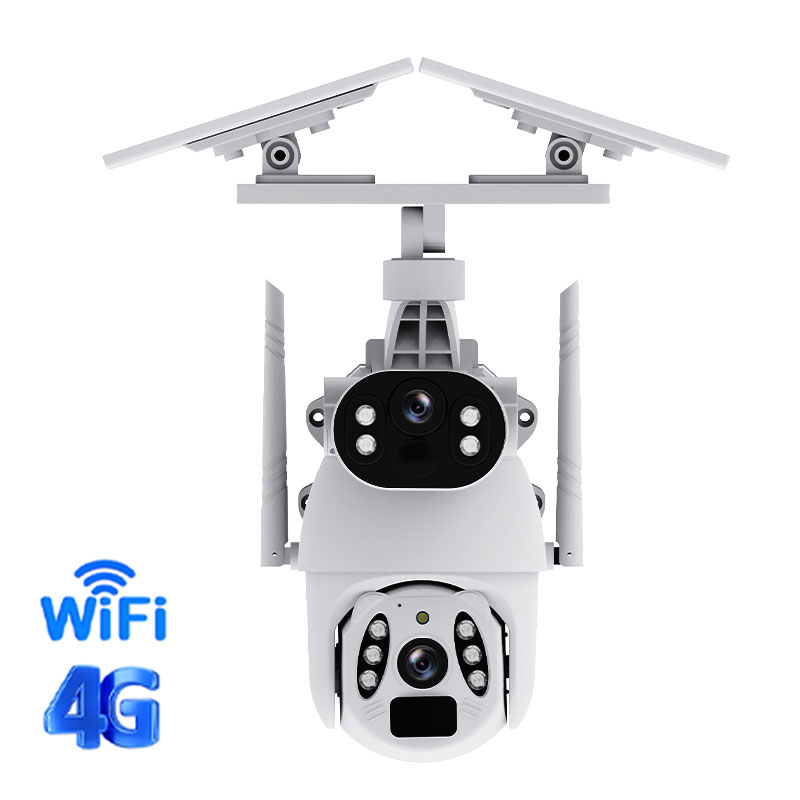

Audio & Connectivity - Two-way audio: Built-in mic & speaker - Connectivity: 4G/Wi-Fi selectable |
- Remote interaction: Two-way audio enables real -time communication (e.g., warning intruders) - Flexible deployment: 4G/Wi-Fi works in remote/connected areas |
|
Storage- Local: 128G SD card- Cloud: Supported |
- Secure backup: Dual storage (local + cloud) prevents data loss/theft - Large capacity: 128G SD card stores long-term footage |
|
Environmental Adaptability - Housing: ABS fireproof plastic (IP65 waterproof/dustproof/vandal-proof) - Environment: -20°C~60°C, 10%~80% humidity (non-condensing) |
- Durable use: IP65 + wide temperature/humidity range withstands rain, dust, and extreme weather for indoor/outdoor deployment |
|
Accessories & Packaging - Package includes: Camera, 2× solar panels, mount, screws, user guide, etc. - Box size: 26.5×24.5×19.5CM; Box weight: 2.38KG- Packing size: 54.2×51×40.5CM; Packing weight: 20.66KG (8PSC) |
- Complete kit: All accessories included for easy installation- Efficient packaging: 8 units per carton reduces shipping costs |
| Solar-powered dual-lens camera | ||

|
||
| Model number | Q6Max | |
| edition | 4G/WIFI | |
| APP | UBOX/i-Cam+ | |
| pixel | 6MP | |
| PIR detection range | Supports a maximum PIR range of 12 meters | |
| Lens focal length | 2.8mm+6mm F2.0, Angle :180+60 degrees. 4x digital zoom | |
| Compressed format | H.265 | |
| Video file format | MP4 | |
| Night vision | 4+6pcs array led, night vision maximum 30m. Full color night vision | |
| Input/output | Built-in MIC and speaker for two-way audio | |
| Alarm linkage | Alarm video to SD card; Alarm mobile phone SMS push | |
| Memory card | SD cards up to 128GB are supported. Support cloud storage | |
| Solar panel | 12W single crystalline silicon solar panel | |
| battery | Built-in 3 18650 batteries with a maximum capacity of 9600mAh | |
| Operation mode | Low power operation mode | |
| Power consumption | Sleeping standby power :0.03W; Work :1.3 w@days / 3 w@night | |

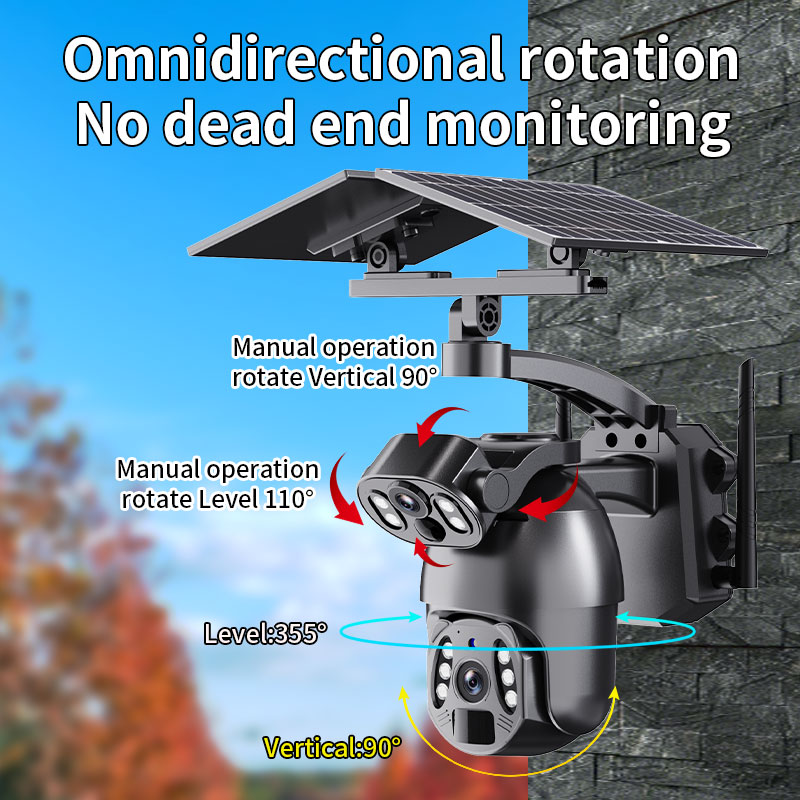

| Rotation Angle |
PTZ：Horizon Pan: 0°～355°, Vertical Tilt: 0°～120°； Bullet：Horizon Pan: 0°～110°，Vertical Tilt: 0°～90°； |
|
| Spinning speed |
PTZ：Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S Bullet：Manual adjustment |
|
| Power input | DC5V 2A | |
| environment |
Environment :-20℃~+60℃(-4℉~+140℉), humidity 10%~80%, non-condensing |
|
| Housing material | ABS fireproof plastic material, vandal-proof, waterproof IP65 | |
| Power cable | Type-c interface, extension cable 3 meters | |
| Operating temperature | Environment -20℃~+60℃ | |
| Box size | 26.5*24.5*19.5CM | |
| Box weight | 2.38KG | |
| Packing size | 54.2*51*40.5CM | |
| Packing weight | 20.66 (8 PSC) | |
