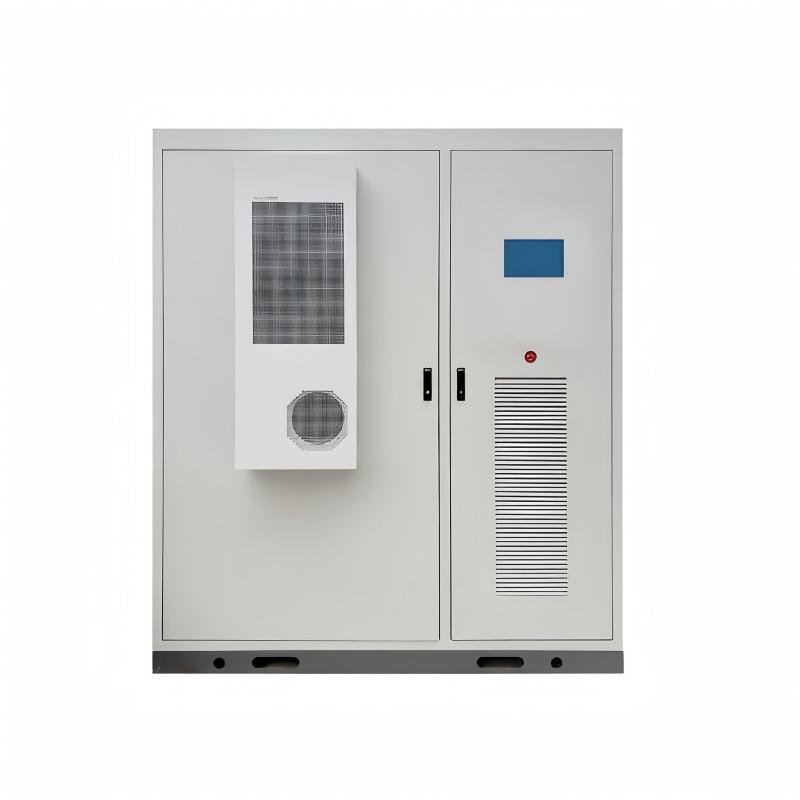

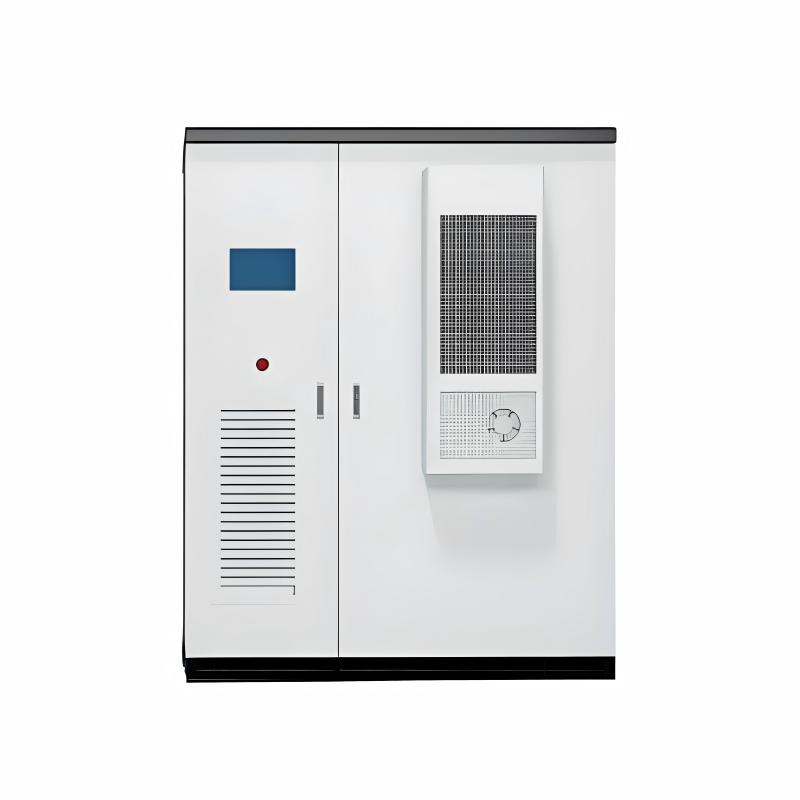

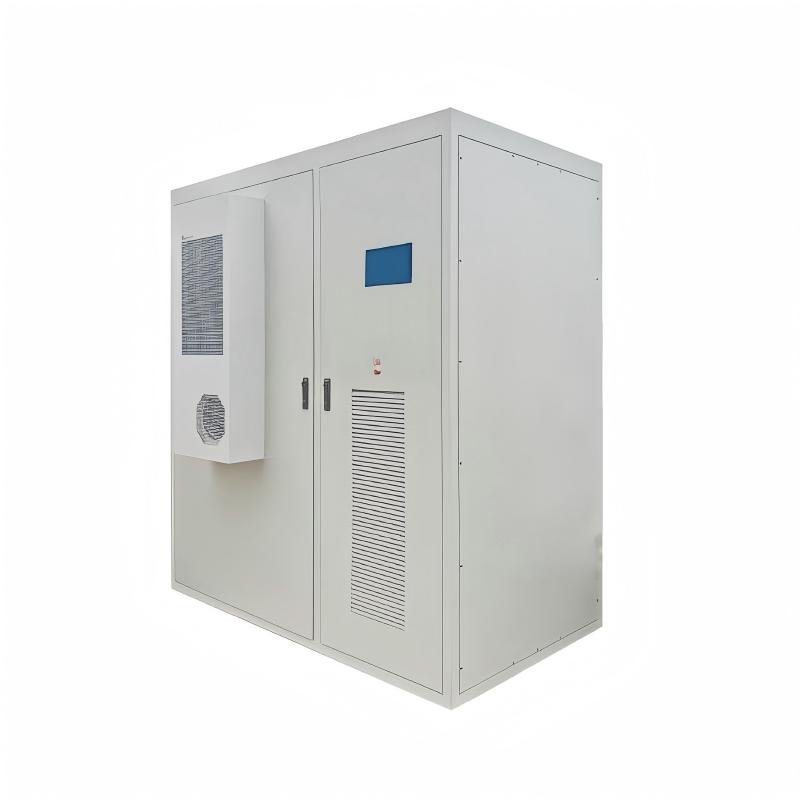

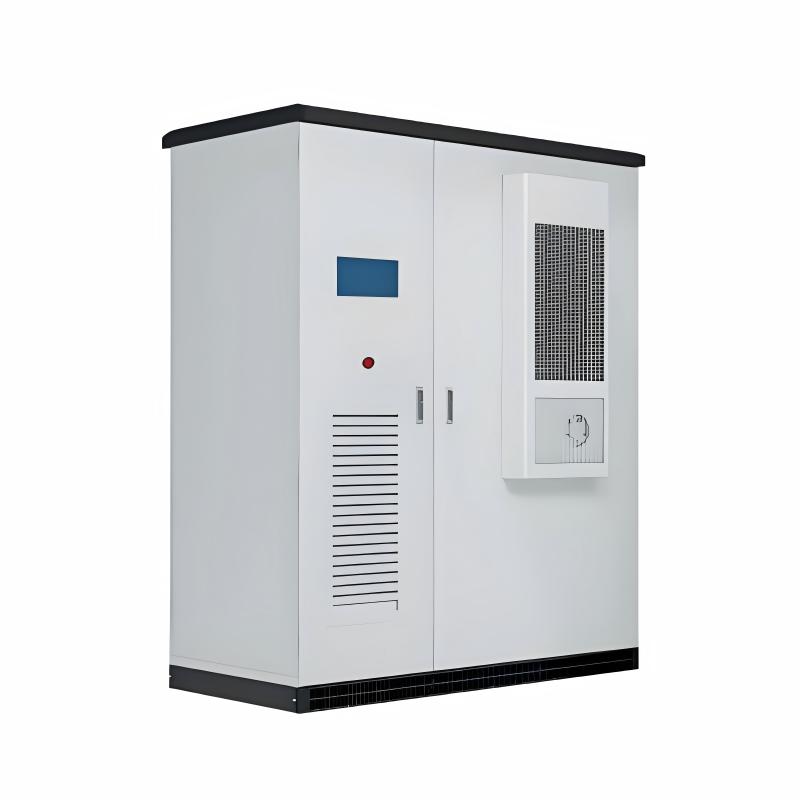

Rack Mouted High-Voltage ESS
1. Outdoor cabinet-type compact structure, optimized for small C&I loads
2. Integrates battery units, PCS, fire extinguishing system, temperature control system, and EMS
3. On-grid operation, with capacity range of 50kWh–200kWh
4. Adopts air cooling system for temperature regulation
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

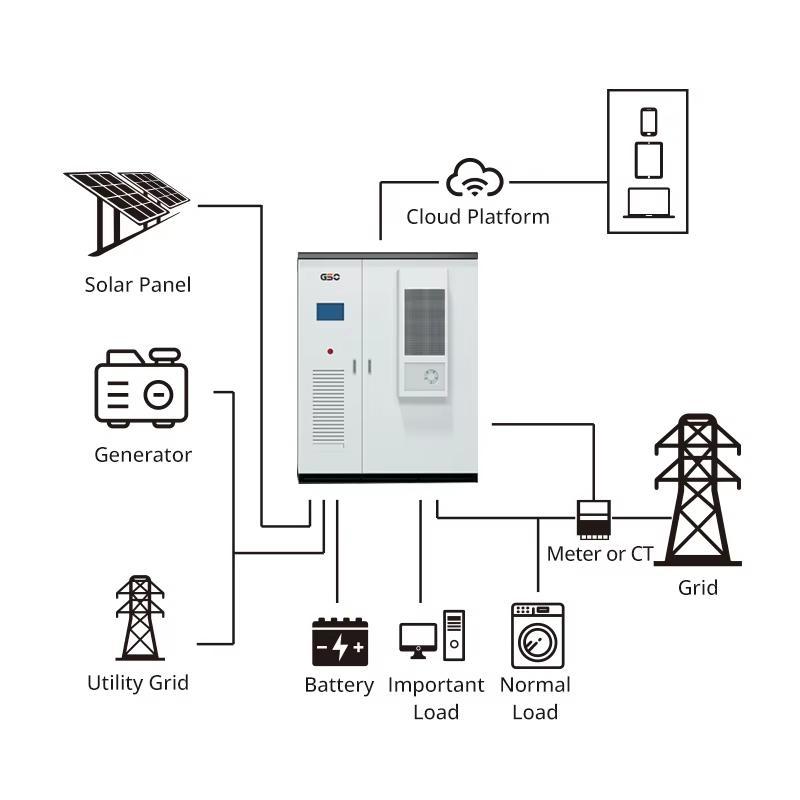

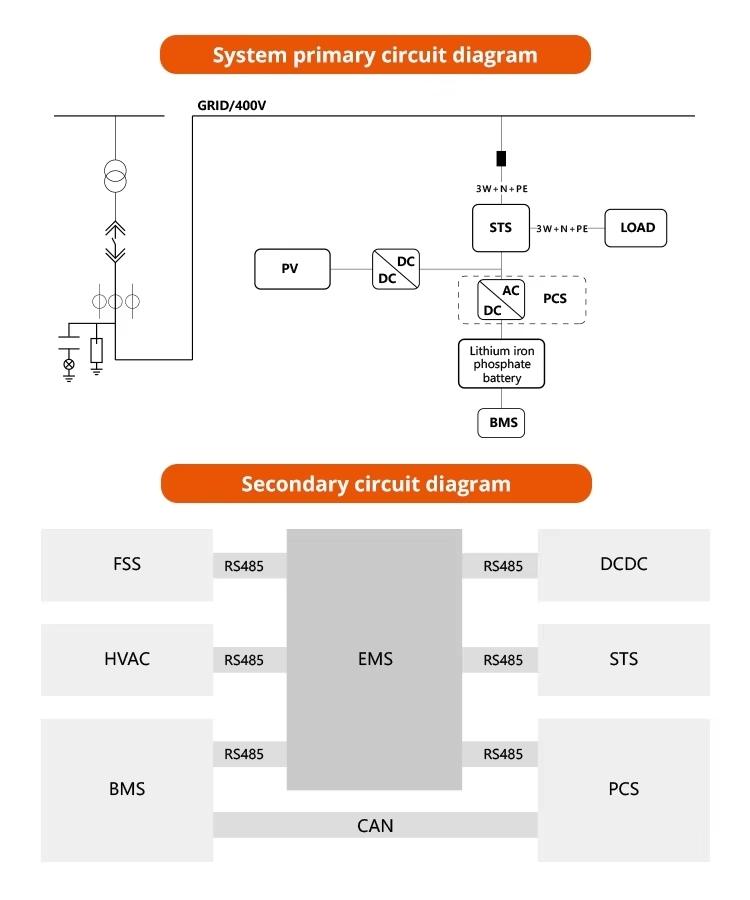

Integrating batteries, PCS, fire protection, temperature control, and EMS (50kWh–200kWh capacity), it accepts grid/solar/generator inputs. Solar power is processed via DC/DC converter; PCS enables bidirectional AC-DC conversion for battery charging/discharging (powering loads/grid). EMS coordinates components via RS485/CAN for real-time monitoring. Air cooling ensures stable temperature, fire protection guarantees safety. It supports cloud-based remote management, programmable touchscreen control, on-grid operation, and adopts high-efficiency neutral point clamped topology.
Main features
| Category | Details |
| Product Advantages | 1. All-in-one, factory prefabricated design 2. Flexible deployment with plug-and-play functionality 3. Equipped with high-efficient neutral point clamped topology 4. System comprehensive conversion efficiency > 96% 5. Programmable working mode, touch screen control |
| Product Features | 1. Outdoor cabinet-type compact structure, optimized for small C&I loads 2. Integrates battery units, PCS, fire extinguishing system, temperature control system, and EMS 3. On-grid operation, with capacity range of 50kWh–200kWh 4. Adopts air cooling system for temperature regulation 5. Supports multi-energy inputs (utility grid, solar panels, generator) and connects to various loads 6. Coordinates components via RS485/CAN communication protocols 7. Links to a cloud platform for remote monitoring and management |
Specifications
| Model | DMO50-100P | DMO100-200P | |
|
On grid parameter |
Rated power(kW) | 50kW | 100kW |
| Maximum output power | 55kW | 110 kW | |
| Rated AC voltage | AC400V | ||
| AC voltage range | AC3800V(-20%~+15%) | ||
| Rated AC frequency | 50/60±2.5 Hz | ||
| Power factor | -0.99~+0.99 | ||
| THDI | ≤3%(Full loading) | ||
|
Charging and discharging conversion time |
<100 ms | ||
| Isolation method | None isolation | ||
| Connect method | Three phase four wire | ||
|
Battery parameter |
Battery configuration | 1P225S | 1P210S |
| Battery cell type | LFP 150Ah | LFP 300Ah | |
| Nominal voltage | 720V | 672V | |
| Operating woltage | 652.5~798.75V | 609~745.5V | |
| Battery capacity | 108 kwh | 201kwh | |
|
System efficiency |
PCS maximum efficiency | ≥98% | |
| System maximum effciency | >90% | ||
| System maximum efficiency | ≤0.5C | ||
| Protectio | AC input | Yes | |
| PCS AC protection | Yes | ||
| AC output protection | Yes | ||
| Over woltage protection | Yes | ||
| Fire protection | Aerosol/Perfluoro | ||
|
General parameter |
Dimenion(D*W*H) | 1200*1100*2200MM | 1200*1600*2200MM |
| Weight | 1.8t | 2.1t | |
| Incoming line method | Side connection(Bottom connection can be customized) | ||
| Operating temperature range | -20~50℃(De-rating power from 45) | ||
| Temperature humidity | ≤95%,Non-condensing | ||
| Work Altitude | ≤3000(De-rating power from 2000) | ||
| IP grade | IP54(Key Device IP65) | ||
| Cooling method | Industrial air Conditioning(for battery)/Forced air coling(for electrical equipment) | ||
| Communication | Communication interfaces | RS485/Ethernet | |
| Communication Rules | RTU/MODBUS-TCP | ||
