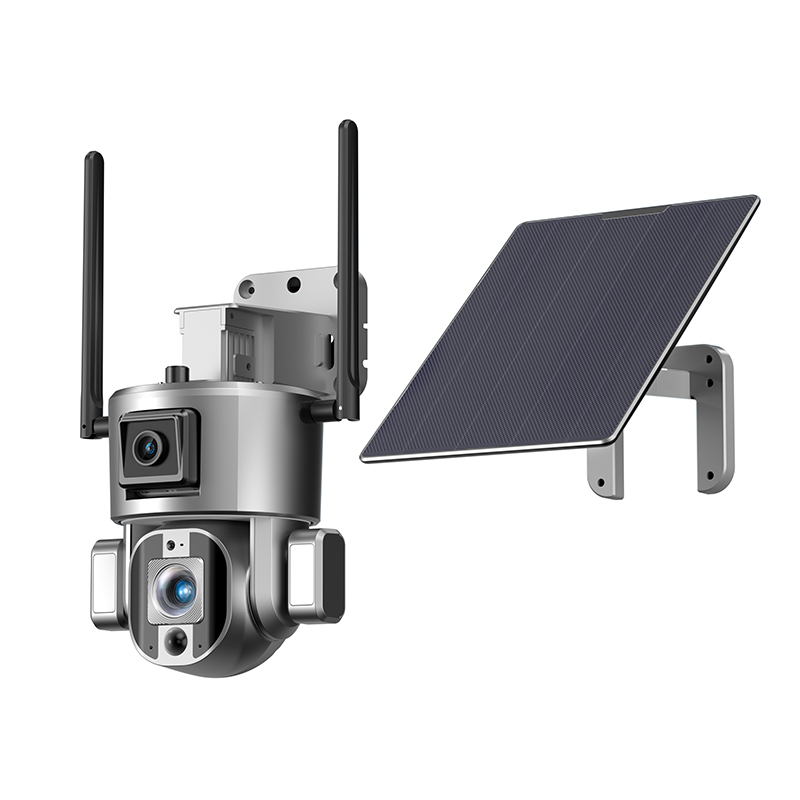

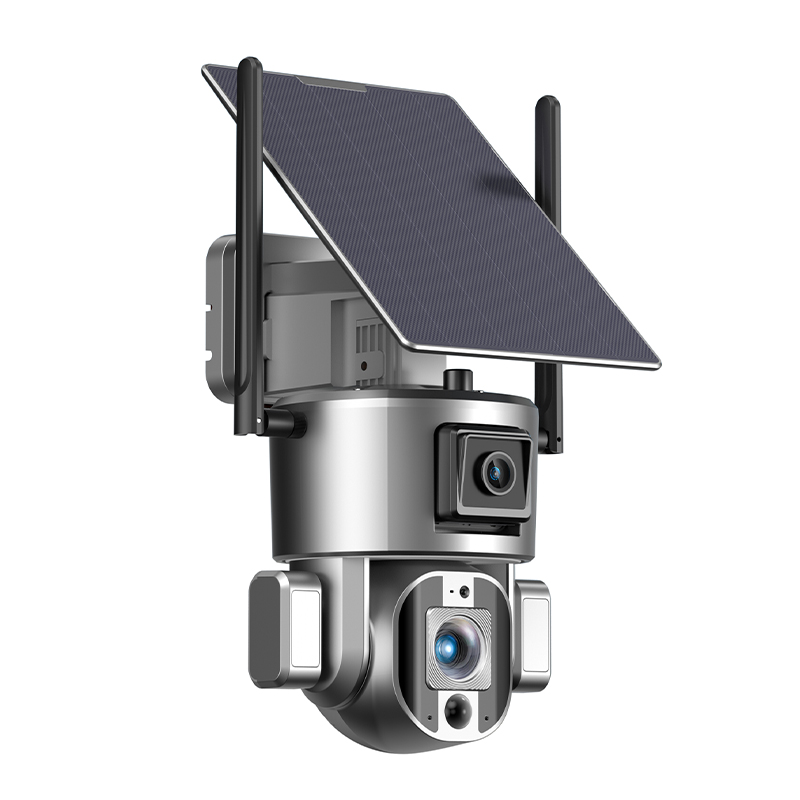

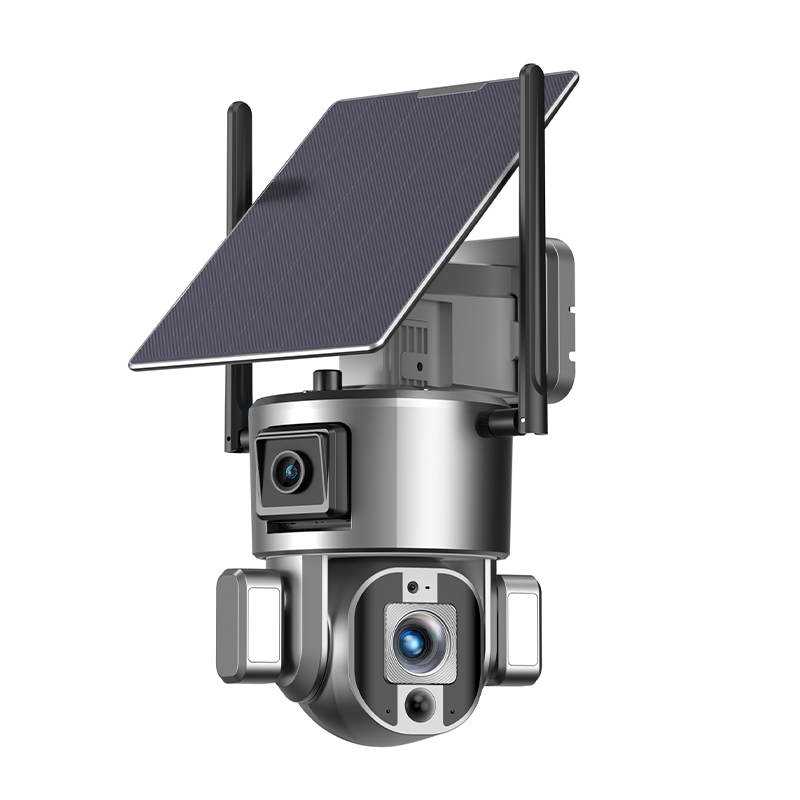

Y5 Solar Camera
Model: Y5
Video resolution: 4 million + 4 million dual high-definition sensors
Infrared night vision distance: 5-40 meters
White light: 50 square
Wide-angle lens: 2.5mm/120° wide-angle lens (manual 180° horizontal rotation/15° vertical rotation)
- Introduction
- Main features
- Specifications
- Recommended
This product is the 48V DC 9000btu-24000btu 100% off-grid solar air conditioner, equipped with Panasonic compressors and motors. It operates on a pure 48V DC system (comprising indoor/outdoor units, solar panels, a battery, and a solar controller) and relies entirely on solar energy:
Solar power is captured by the panels, stored in the battery (via the solar controller), and supplied directly to the air conditioner’s components.
A core operational principle is its use of pure DC 48V parts (including the Panasonic compressor and motor/relay): this eliminates the need for an inverter, avoiding energy loss from AC-DC conversion.
|
Features |
Advantages |
|
- Dual cameras: 2.5mm 120° wide-angle lens (manual 180° horizontal/15° vertical rotation); 6mm PTZ lens (8X hybrid zoom/20X optical zoom)- PTZ auto rotation: 355° horizontal/90° vertical (30°/sec) |
- Dual-view coverage: Wide-angle for global monitoring, PTZ for detail tracking- Full-angle coverage: Manual + auto rotation for nearly 360° dead-angle-free observation |
|
- 4K dual high-definition sensors- 5-40m infrared night vision + 50㎡ fill-in white light- H.265 encoding + all-day/motion-detection recording |
- Clear image quality: 4K resolution + H.265 encoding balances image quality and storage- All-weather visibility: Infrared + white light adapts to day/night/dim environments |
|
- 2T computing power supporting human/vehicle recognition- Motion detection triggering precise alerts |
- Reduced invalid alerts: Only human/vehicle/pet triggers notifications (filters false alarms)- Intelligent monitoring: AI-powered recognition improves alert accuracy |
|

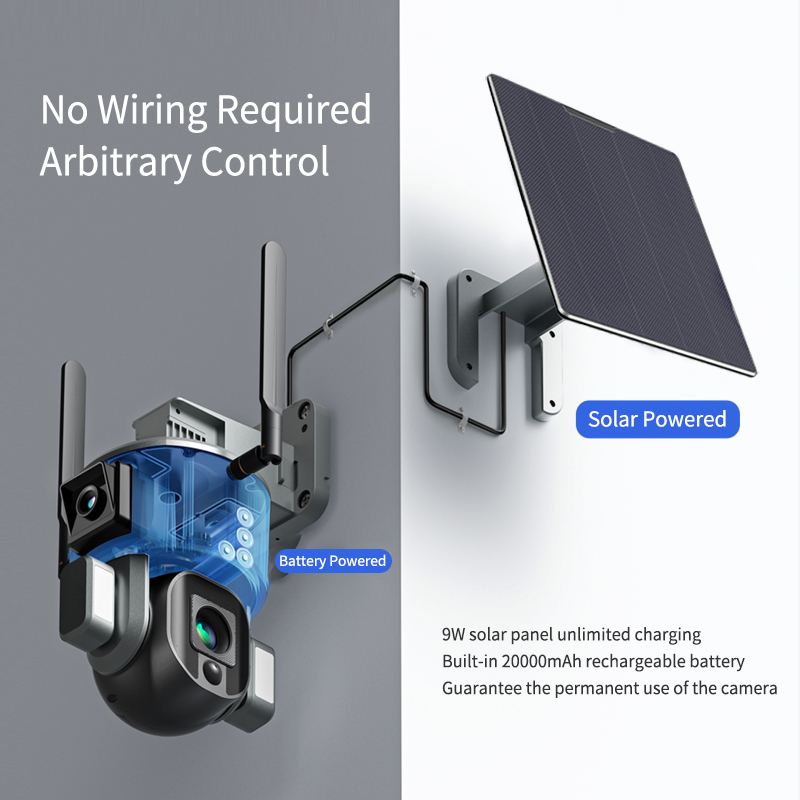

- 20000mAh large-capacity battery- 9W ETFE solar panel |
- Self-sustaining power: Solar + battery enables 24/7 outdoor operation without external power supply- Durable power solution: Solar panel ensures continuous charging in outdoor scenarios |
|
- 4G (LTDFDDWCDMA) + Wi-Fi (2.4GHz 802.11b/g/n) dual-mode connectivity- Two-way audio: Built-in 38db microphone + 8Ω 3W speaker- App support (iOS 7.1+/Android 4.0+) |
- Flexible connectivity: Works in remote (4G) or Wi-Fi-covered areas- Global remote access: Monitor via app anytime, anywhere- Real-time communication: Two-way audio for intercom/alerting |
|
- Local storage (max 128G)- Cloud storage (max 30-day) |
- Secure data backup: Local + cloud storage prevents data loss/theft- Flexible storage options: Choose between local expansion or cloud convenience |
|
- Metallic paint plastic shell- Operating temperature: 15°-55° |
- Durable build: Shell material suits outdoor environmental conditions- Stable operation: Adaptable to typical outdoor temperature ranges |
| model | Y5 |
| Video resolution | 4 million + 4 million dual high-definition sensors |
| Infrared night vision distance | 5-40 meters |
| white light | 50 square |
| Wide-angle lens | 2.5mm/120° wide-angle lens (manual 180° horizontal rotation/15° vertical rotation) |
| PTZ lens | 6mm lens/2.8-12mm 8X Mixing zoom/5-50mm 20X optical Mixing zoom |
| PTZ parameters | Automatic pan rotation 355°/vertical rotation 90°30°/sec |
| Onboard storage | Maximum support 128G |
| cloud storage | Maximum support 30 days storage |
| Insight | 2T computing power supports humanoid vehicle recognition |
| audio input | Built-in 38db microphone |
| Audio output | 8 ohms 3 watts |
| Video mode | All day recording, motion detection recording |
| video encoding | H.265 |
| wireless module | 4G version: LTDFDDWCDMA (refer to the parameters of each version for the specific frequency) |
| WIFI version: 2.4GHz wireless 802.11b/q/n wireless network | |
| System Configuration | IOS7.1 Android 4.0 and above |
| Shell material | Metallic paint plastic |
| Battery | 20000mah(21700-5000mah*4pcs) |
| Solar panels | 9W ETFE |
| Operating temperature | 15°-55° |
| Charger | 5V2A |

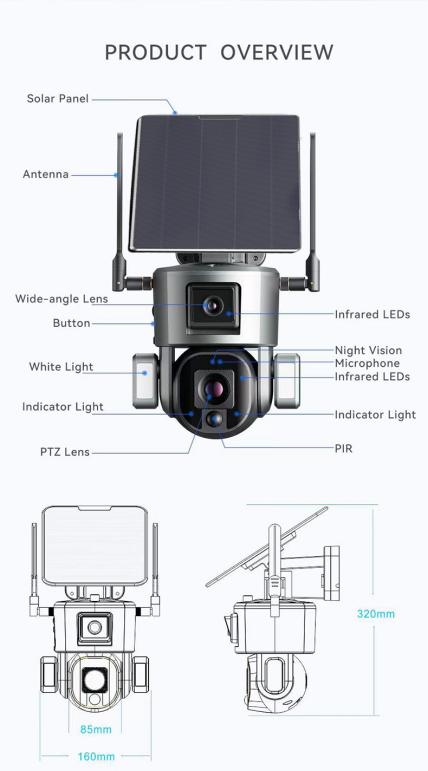

| Box size | 29.5*19.5*18.5CM |
| Box weight | 2.1KG |
| Packing size | 60*50*39CM |
| Packing weight | Approx. 17KG (10PSC) |
