Solar Air Conditioner

Off-grid operation: 100% powered solely by solar energy

System voltage design: Pure 48V DC system (includes indoor & outdoor units)

Energy consumption: Less than 50% of other solar air conditioner models

Working time option: 8 – 36 hours (flexible for different needs)

Cooling capacity range: 9000BTU – 24000BTU

Integrated system components: Includes solar panels, battery, and solar controller

Introduction
Main features
Specifications
Recommended

Product Introduction

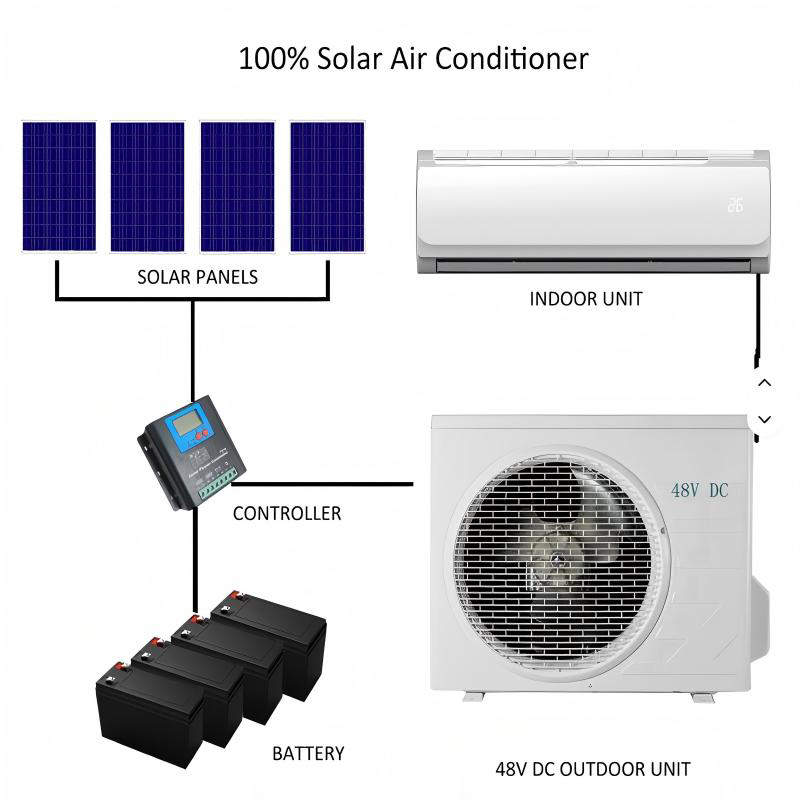

This product is the 48V DC 9000btu-24000btu 100% off-grid solar air conditioner, equipped with Panasonic compressors and motors. It operates on a pure 48V DC system (comprising indoor/outdoor units, solar panels, a battery, and a solar controller) and relies entirely on solar energy:

Solar power is captured by the panels, stored in the battery (via the solar controller), and supplied directly to the air conditioner’s components.

A core operational principle is its use of pure DC 48V parts (including the Panasonic compressor and motor/relay): this eliminates the need for an inverter, avoiding energy loss from AC-DC conversion.

Main features

Features:

Feature	Details
Off-grid operation	100% powered solely by solar energy
System voltage design	Pure 48V DC system (includes indoor & outdoor units)
Compressor configuration	Equipped with Panasonic pure 48V DC compressor (no inverter required)
Auxiliary electronic parts	All components (motor, relay, etc.) are pure 48V DC
Efficiency rating	Ultra-high: up to 6W/W (20.47 Btu/W)
Energy consumption	Less than 50% of other solar air conditioner models
Working time option	8–36 hours (flexible for different needs)
Cooling capacity range	9000BTU – 24000BTU
Integrated system components	Includes solar panels, battery, and solar controller

Advantage:

Advantage	Details
Grid independence	Suitable for off-grid or electricity-deficient areas
No inverter requirement	Reduces equipment cost & avoids AC-DC conversion energy loss
High efficiency	Lowers demand for solar energy input
Low energy consumption	Cuts long-term operational costs
Flexible working duration	Adapts to both short and extended cooling needs
Reliable performance	Uses high-quality Panasonic components
Turnkey solution	All necessary system parts included for convenient deployment

Specifications

Model No.			DM(R)-26GW/DC	DM(R)-35GW/DC	DM(R)-50GW/DC	DM(R)-72GW/DC
			1HP	1.5HP	2HP	3HP
			0.75ton	1ton	1.5ton	2ton
Performance
Capacity	Cooling	Btu/h	9000	12000	18000	24000
	Cooling	W	2600	3500	5200	7200
	Heating	Btu/h	10000	13000	20000	27000
	Heating	W	2800	3700	6000	7900
Noise	Indoor	dB(A)	≤40	≤42	≤43	≤50
Noise	Outdoor	dB(A)	≤50	≤52	≤54	≤58
Air Circulation		m³/h	450	550	650	1050
Suitable Area		m²	10~15	12~25	20~30	30~48
EER		WW	5.78	5.38	6	6
EER		Btu/h/w	19.71	18.37	20.47	20.47
Refrigerant			R-134A	R-134A	R-134A	R-134A
Compressor		DC 48V	DC 48V	DC 48V	DC 48V	DC 48V
Work Temp.		℃	_-15~60	_-15~60	_-15~60	_-15~60
Power Consumption
Power Input		W	450	650	1000	1200
Rated Current		A	9.3	13.5	22	25
Input Power		V	DC 48	DC 48	DC 48	DC 48
Dimension
Indoor Unt	NET	mm	745255195	775260210	1070385265	1070385265
Indoor Unt	Shipping	mm	780240305	840325265	1100400285	1100400285
Outdoor Unit	NET	mm	645245495	790260540	790260540	790260540
Outdoor Unit	Shipping	mm	725320540	910370610	910370610	910370610
Weight
Indoor Unt	Net/Gross	kg	11/13	13/15	15/17	15/17
Outdoor Unit	Net/Gross	kg	38/40	45/48	48/52	48/52
loading qty(W/O solar accessories)	20GP		100	100	75	60
loading qty(W/O solar accessories)	40HQ		235	235	175	150
