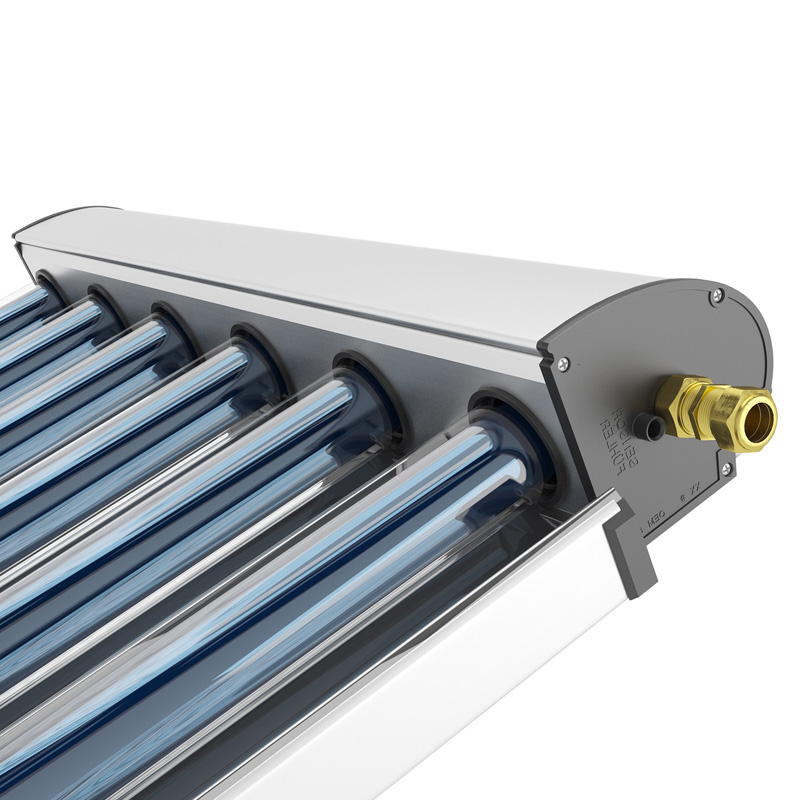

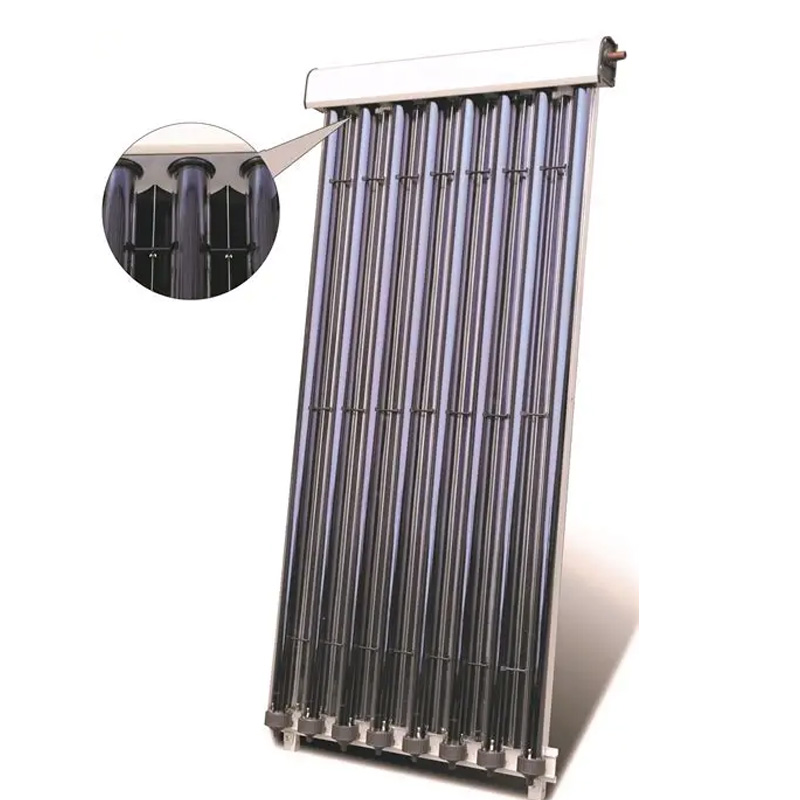

CPC Solar Collector
.Using CPC reflector to enhance the efficiency
.CPC concentrators with fast assembly simplify installation and transportation.
.360°sunlight absorber, hot water in cloudy
.Overheating protection just disassembly the CPC concentrators in summer.
- Introduction
- Main features
- Specifications
- Application
- Recommended
Product Introduction
CPC Solar Collector Working Principle:
CPC (Compound Parabolic Concentrator) Solar Collector is a concentrating device based on the principle of edge optics, which reflects sunlight using a parabolic structure to achieve the maximum theoretical concentration ratio. It has the characteristics of not requiring a tracking system and being able to receive diffuse light.

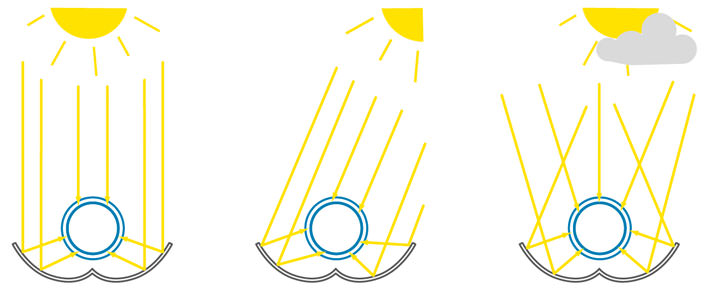

Light Energy Collection
The CPC collector focuses sunlight (including direct and diffuse light) onto the surface of the heat-absorbing tube using a compound parabolic reflector.

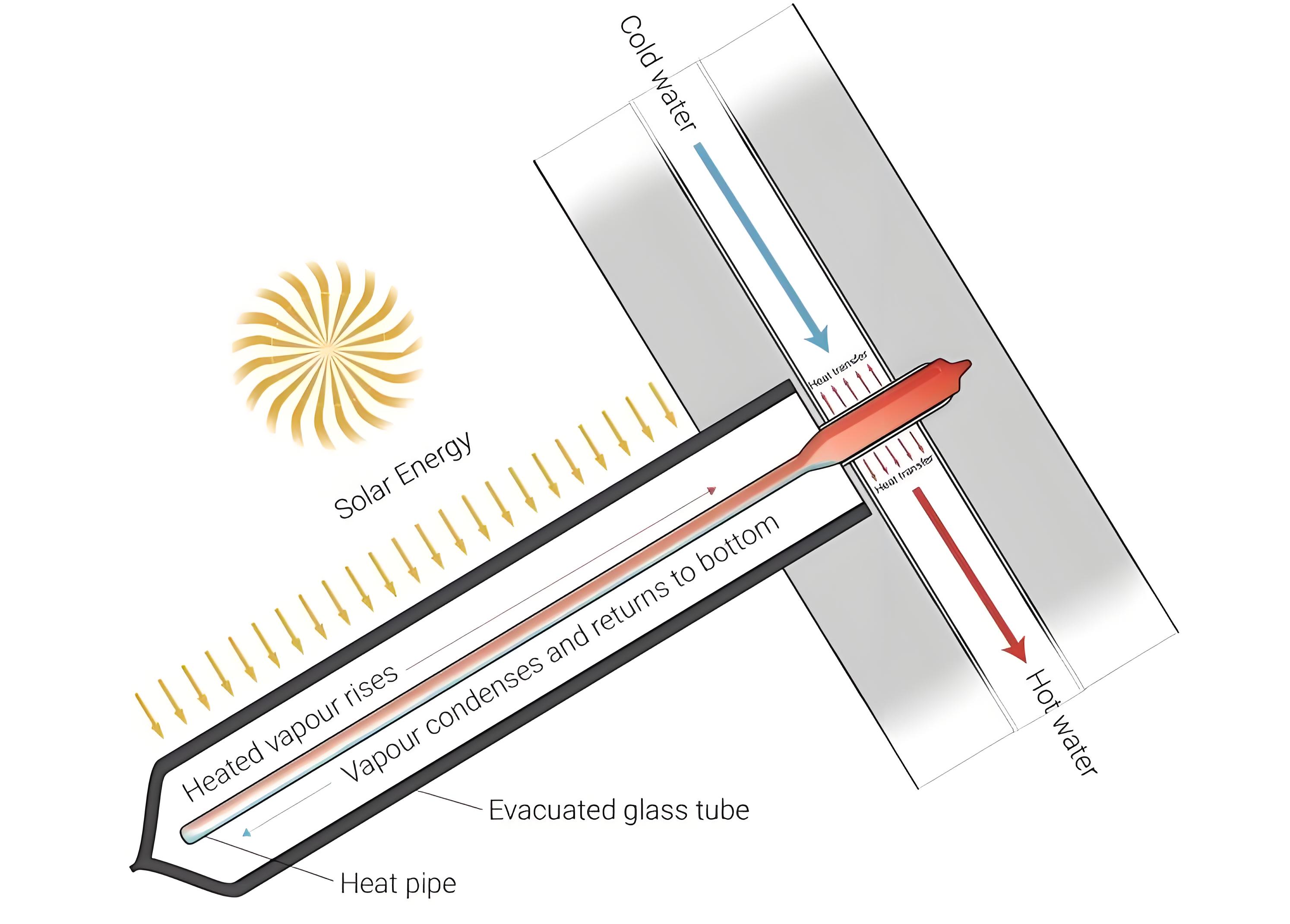

Thermal Energy Conversion and Transfer
The focused light energy is quickly transferred as heat through a heat pipe, while being absorbed by the working fluid (such as water, molten salt, or heat transfer oil) inside the heat-absorbing tube, converting it into thermal energy.
Main features

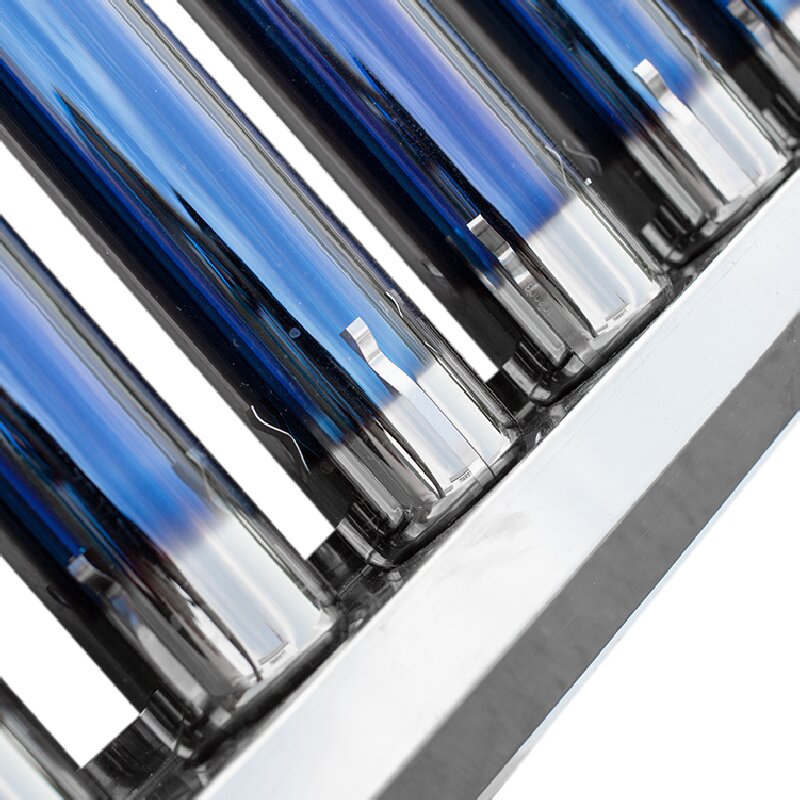

.Using CPC reflector to enhance the efficiency
.CPC concentrators with fast assembly simplify installation and transportation.
.360°sunlight absorber, hot water in cloudy
.Overheating protection just disassembly the CPC concentrators in summer.
.Temperature startup more faster than the normal solar thermal collectors
.More thermal production based on the same aperture area
.EN12975/Solar Keymark
Specifications
| Model | Vacuum Tube | Insulation Material/Thickness | Collector Area (m²) |
40HQ (MOQ) |
||
| QTY(pcs) | Dia./Len.(mm) | Material | ||||
| DM-CPC-8 | 8 | ø58/1800 | High Borosilicate Glass 3.3 | Polyurethane / 40 | 1.4 | 432 |
| DM-CPC-10 | 10 | 1.9 | 375 | |||
| DM-CPC-12 | 12 | 2.2 | 346 | |||
| DM-CPC-15 | 15 | 2.75 | 283 | |||
| DM-CPC-18 | 18 | 3.5 | 235 | |||
| DM-CPC-20 | 20 | 3.8 | 205 | |||

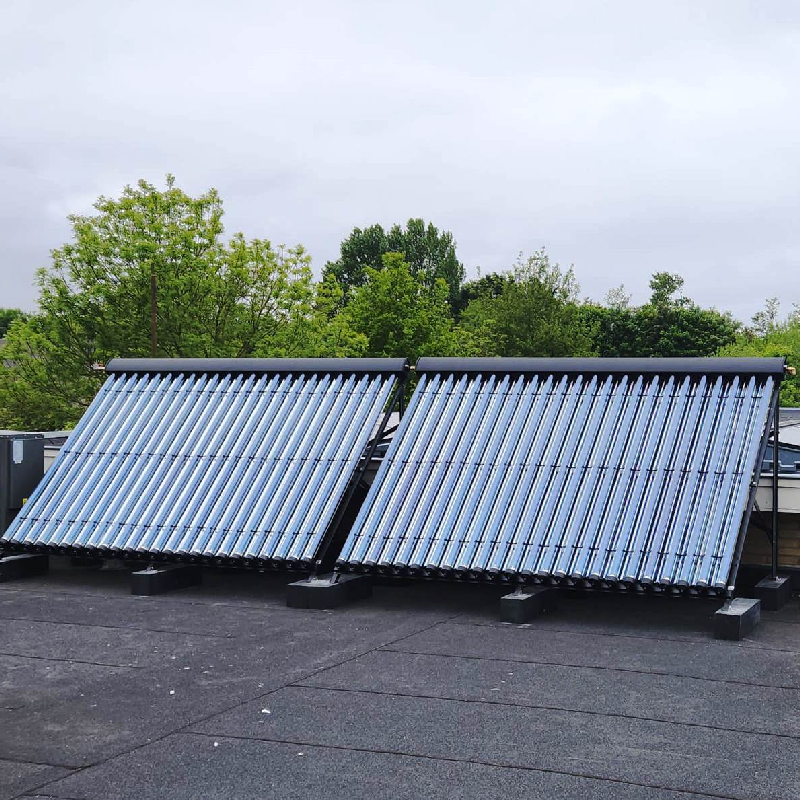

Application
Could be used for high temperature solar thermal applications, heating the water up to 130℃, suitable for the industrial process heating, hotels, hospitals, solar cooling, steam, etc.
