N-Type Solar Panel
High-performance solar panels feature specially engineered silicon wafers, enabling more efficient charge transfer and superior power generation performance;
Boasting exceptional stability, they age slowly and minimize performance degradation even in high-temperature environments;
- Introduction
- Model
- Recommended
High-performance solar panels feature specially engineered silicon wafers, enabling more efficient charge transfer and superior power generation performance；Boasting exceptional stability, they age slowly and minimize performance degradation even in high-temperature environments；Versatile for diverse scenarios, select models support dual-sided power generation. Whether deployed in large-scale photovoltaic power plants, or low-light conditions like cloudy days, they consistently deliver substantial electricity output, meeting a wide range of energy generation needs.
Model：420-445W

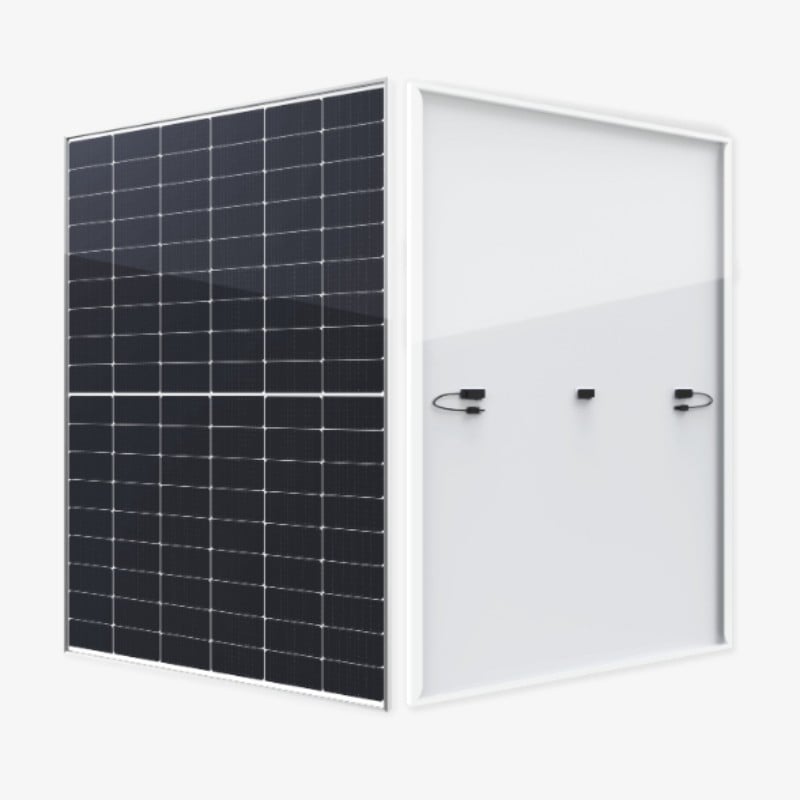

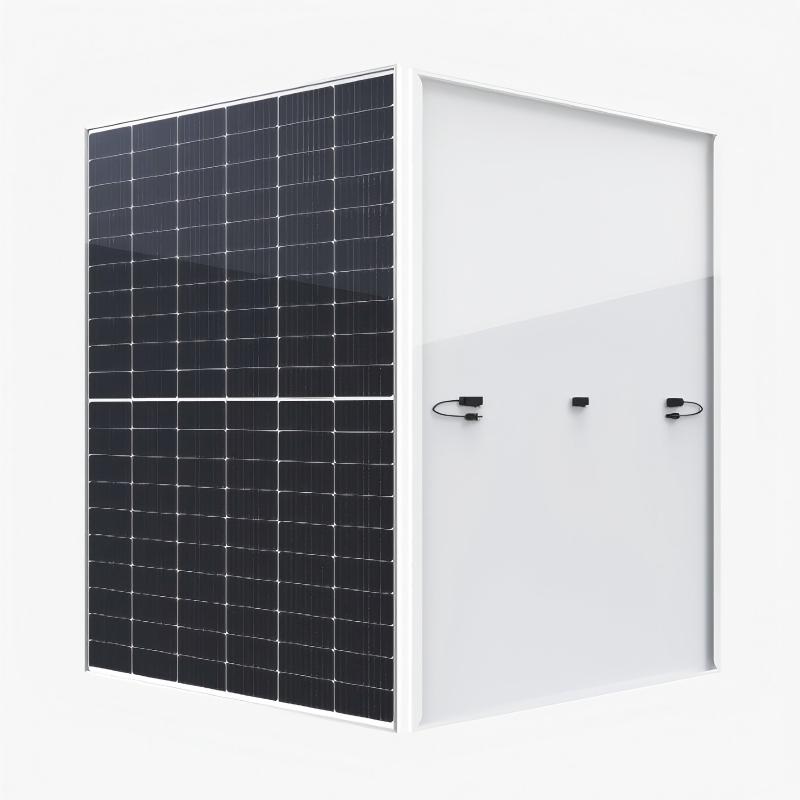

1）182 Mono-Facial module GP10T-(420-445)(108)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal) and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Maximum efficiency |
22.79% |
|
Output power |
420-445W |
|
Cell Type |
N-type 182 Mono-crystalline |
|
No. of cells |
108(6x18) |
|
Dimensions |
1722x1134x30mm |
|
Weight |
20.5kg |
|
Front Glass |
3.2mm, Anti-Reflection Coating, High Transmission,Low Iron, Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm:(+):300mm, (-) : 400mm or Customized Length |
2）182 Mono-Bifacial black GPM10TG-(420-445)(108)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N type 182 Mono-crystalline |
|
|
No. of cells |
108 (6x18) |
|
|
Dimensions |
1722x1134x30mm |
|
|
Weight |
20.5kg |
|
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
|
Frame |
Anodized Aluminium Alloy |
|
|
Junction Box |
IP68 Rated |
|
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
|

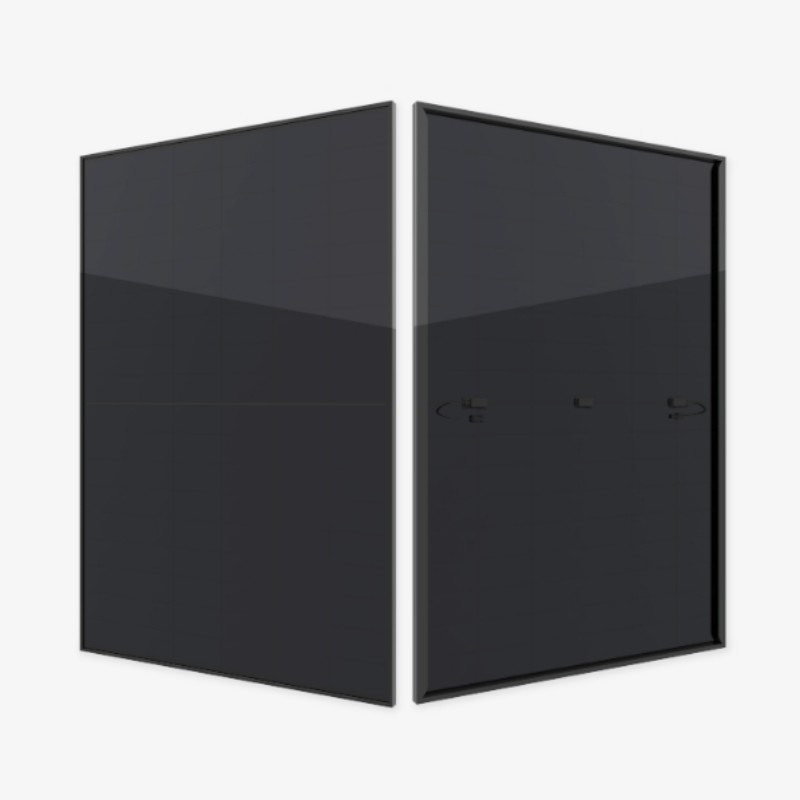

3）182 Mono-Bifacial ultra black module GPM10TG-(420-445)(108)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N type 182 Mono-crystalline |
|
No. of cells |
108 (6x18) |
|
Dimensions |
1722x1134x30mm |
|
Weight |
20.5kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
Model：470-490W
1）182 Mono-Facial moduleGPM10T-(470-490)(120)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N-type 182 Mono-crystalline |
|
No. of cells |
120 (6x20) |
|
Dimensions |
1994x1342x30mm |
|
Weight |
25kg |
|
Front Glass |
3.2mm-Anti-Reflection Coating,High Transmission Low Iron,Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 400mm or Customized Length |
Model ：580-600W
1）182 Mono-Facial module GPM10T-(580-600)(144)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N-type 182 Mono-crystalline |
|
No. of cells |
144 (24x2) |
|
Dimensions |
2278x1342x30mm |
|
Weight |
28kg |
|
Front Glass |
3.2mm-Anti-Reflection Coating,High Transmission Low Iron,Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |

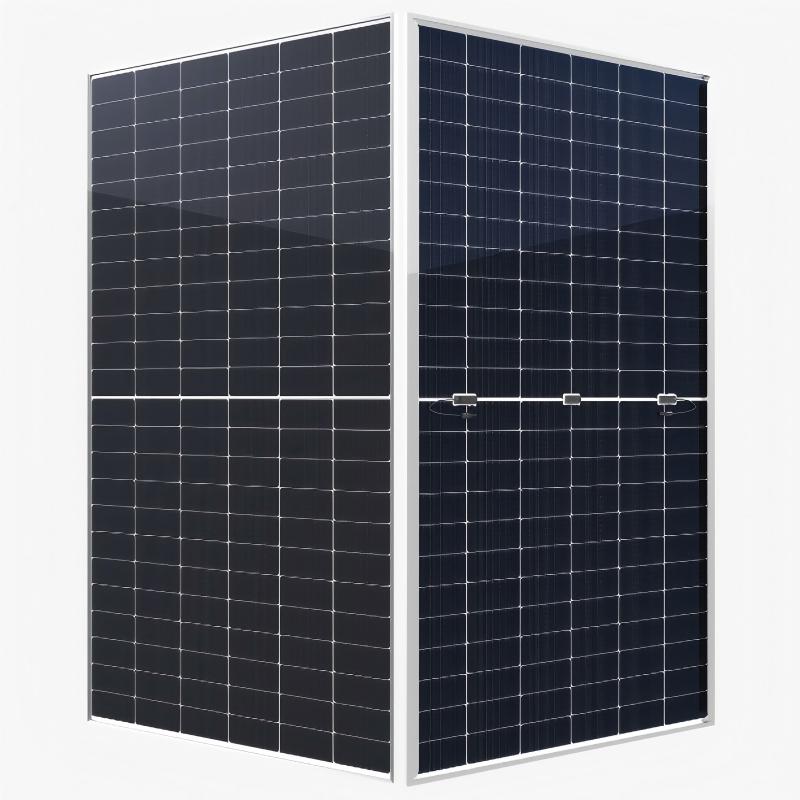

- 182 Mono-Bifacial moduleGPM10TG-(580-600)(144)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N type 182 Mono-crystalline |
|
No. of cells |
144 (24x2) |
|
Dimensions |
2278x1342x30mm |
|
Weight |
30kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
Model ：600-630W

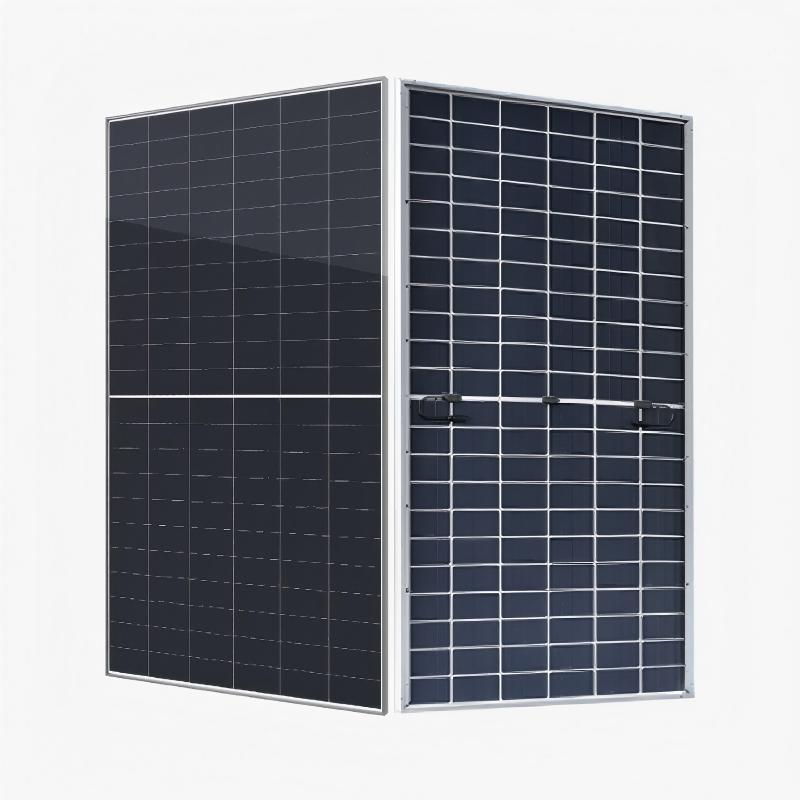

1）182 Mono-Bifacial module GPM12RTG-(610-630)(132)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
Mechanical Parameters：
|
Cell Type |
N type 182 Mono-crystalline |
|
No. of cells |
132 (2x66) |
|
Dimensions |
2382x1342x30mm |
|
Weight |
32.5kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
Model ：620-640W

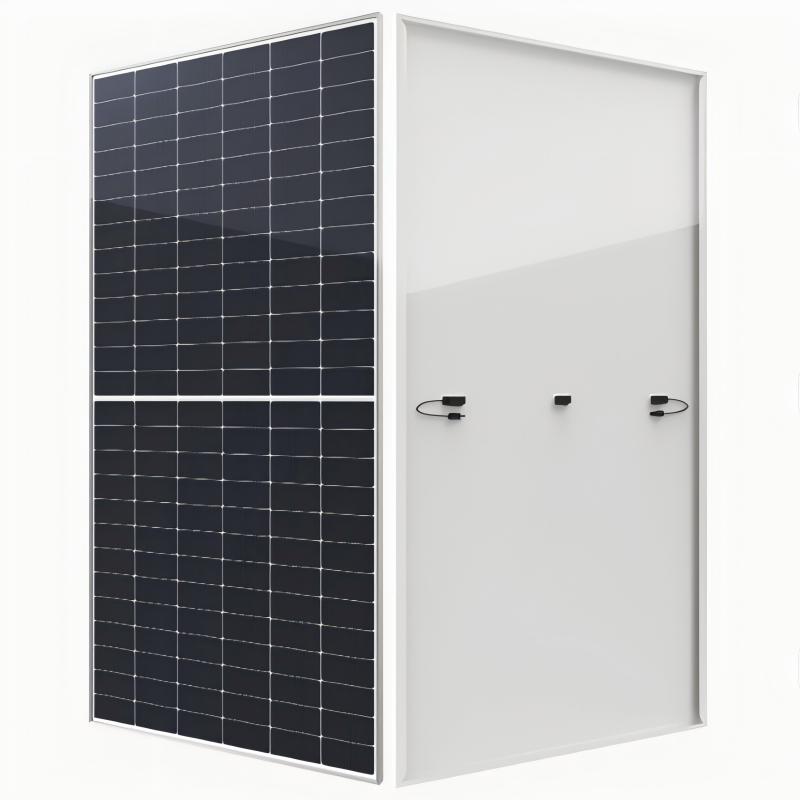

1）182 Mono-Facial module GPM10T-(620-640)(156)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N-type 182 Mono-crystalline |
|
No. of cells |
156 (2x78) |
|
Dimensions |
2465x1342x35mm |
|
Weight |
30.0kg |
|
Front Glass |
3.2mm-Anti-Reflection Coating,High Transmission Low Iron,Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |

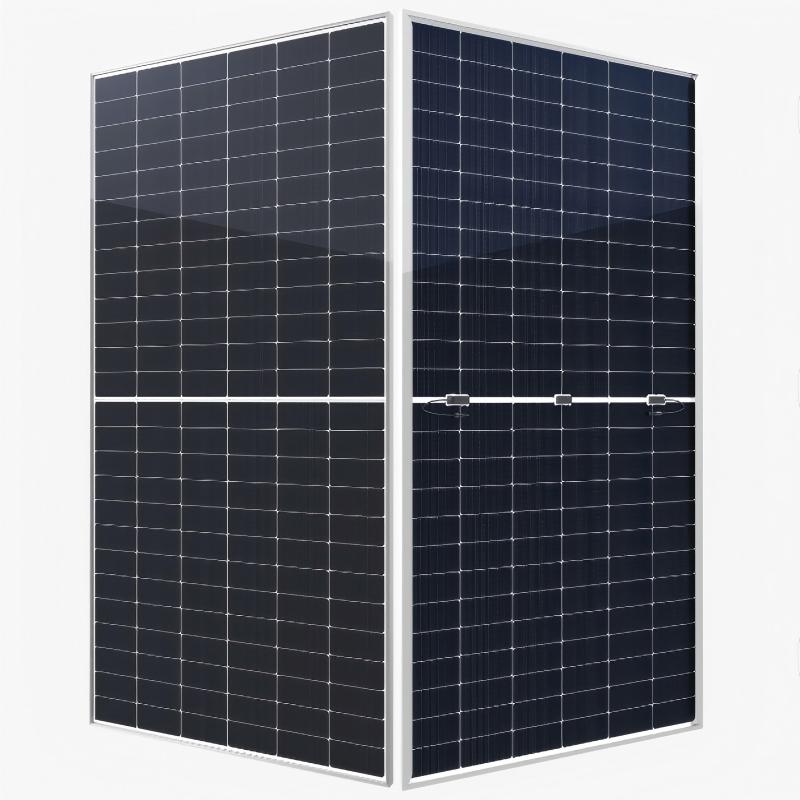

2）182 Mono-Bifacial module GPM10TG-(620-640)(156)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical Load：Certified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
Mechanical Parameters：
|
Cell Type |
N type 182 Mono-crystalline |
|
No. of cells |
156 (2x78) |
|
Dimensions |
2465x1134x30mm |
|
Weight |
33kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
Model ：700-720W

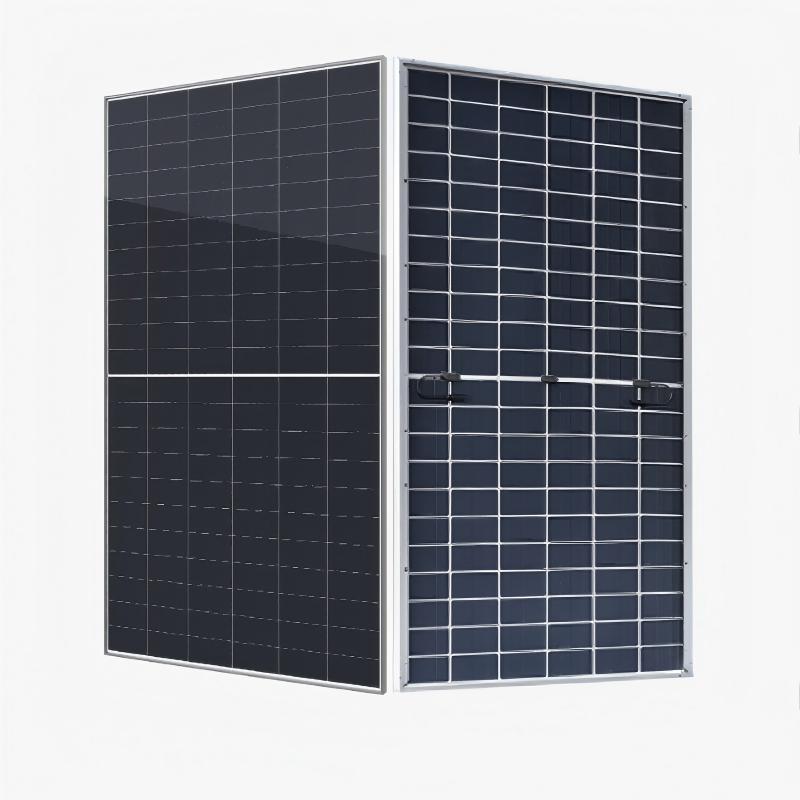

1）210 Mono-Bifacial module GPM12TG-(700-720)(132)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical LoadCertified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N type 210 Mono-crystalline |
|
No. of cells |
112 (2x56) |
|
Dimensions |
2384x1303x33mm |
|
Weight |
37kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |

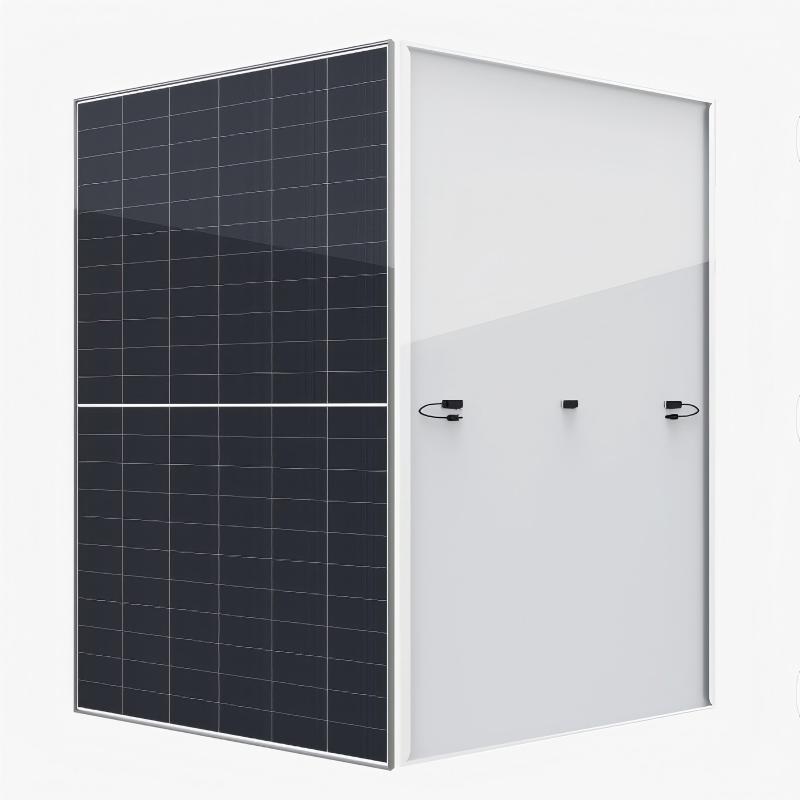

2）210 Mono-Facial module GPM12T-(700-720)(132)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical LoadCertified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N-type 210 Mono-crystalline |
|
No. of cells |
132 (2x66) |
|
Dimensions |
2384x1303x35mm |
|
Front Glass |
3.2mm-Anti-Reflection Coating,High Transmission Low Iron,Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
Model ：715-740W

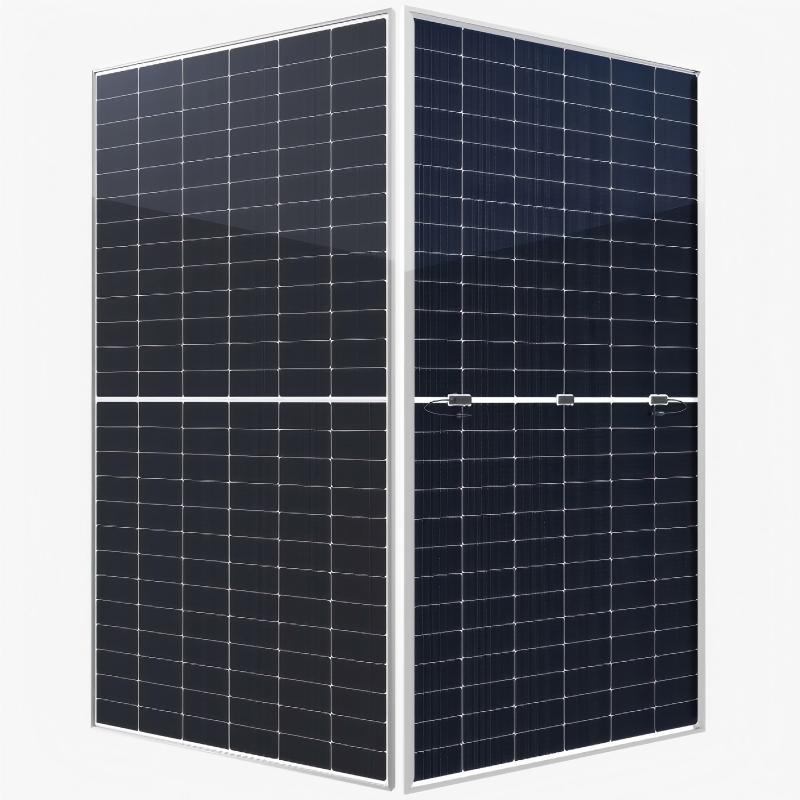

1）210 Mono-Bifacial module GPM12TG-(715-740)(156)
Product Performance：
· SMBB Technology：Better light trapping and current collection to improve module power output and reliability.
· PID Resistance：Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
· Durability Against Extreme Environmental Conditions：High salt mist and ammonia resistance.
· Hot 2.0 Technology：The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
· Enhanced Mechanical LoadCertified to withstand; wind load(2400 Pascal)and snow load(5400 Pascal).
· High Reliability：12 years product warranty; 30 years linear power warranty.
Mechanical Parameters：
|
Cell Type |
N type 210 Mono-crystalline |
|
No. of cells |
156 (2x78) |
|
Dimensions |
2465x1303x35mm |
|
Weight |
38.5kg |
|
Front Glass |
2.0mm-Anti-Reflection Coating |
|
Back Glass |
2.0mm-Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 Rated |
|
Output Cables |
TUV 1x4.0mm² (+) : 300mm, (-) : 300mm or Customized Length |
