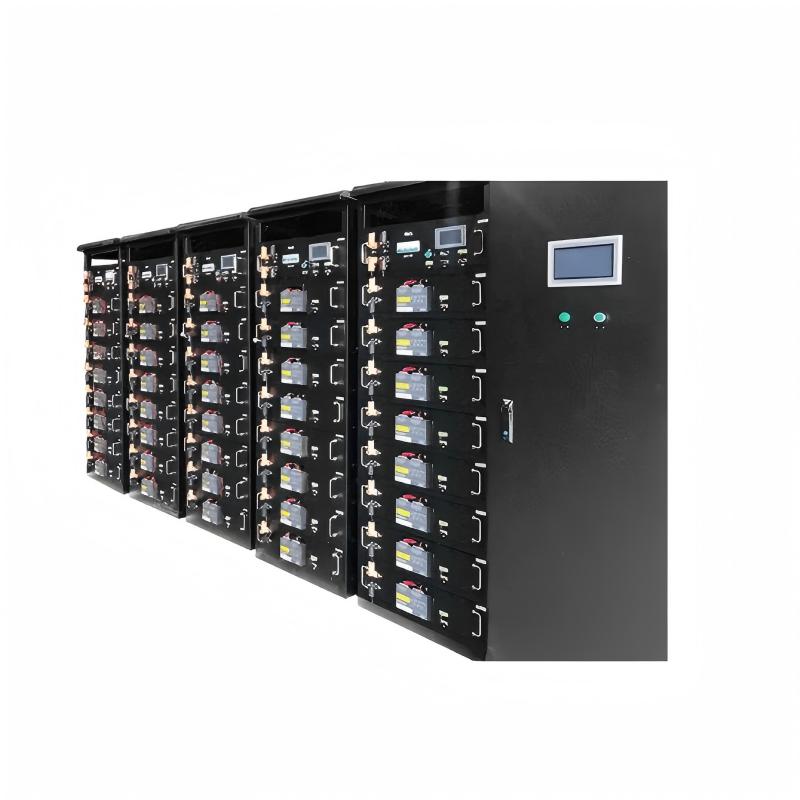

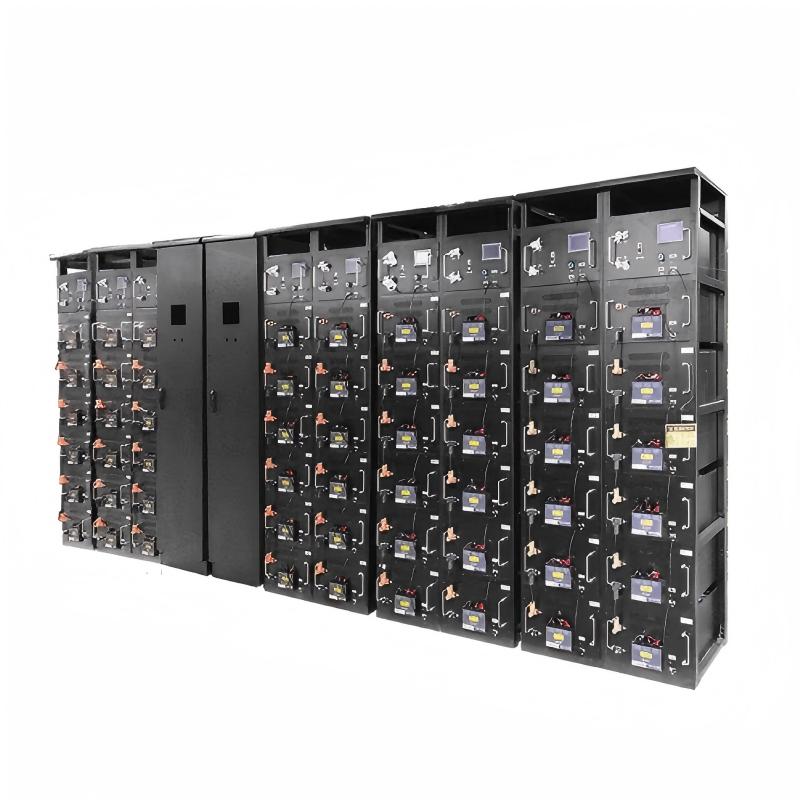

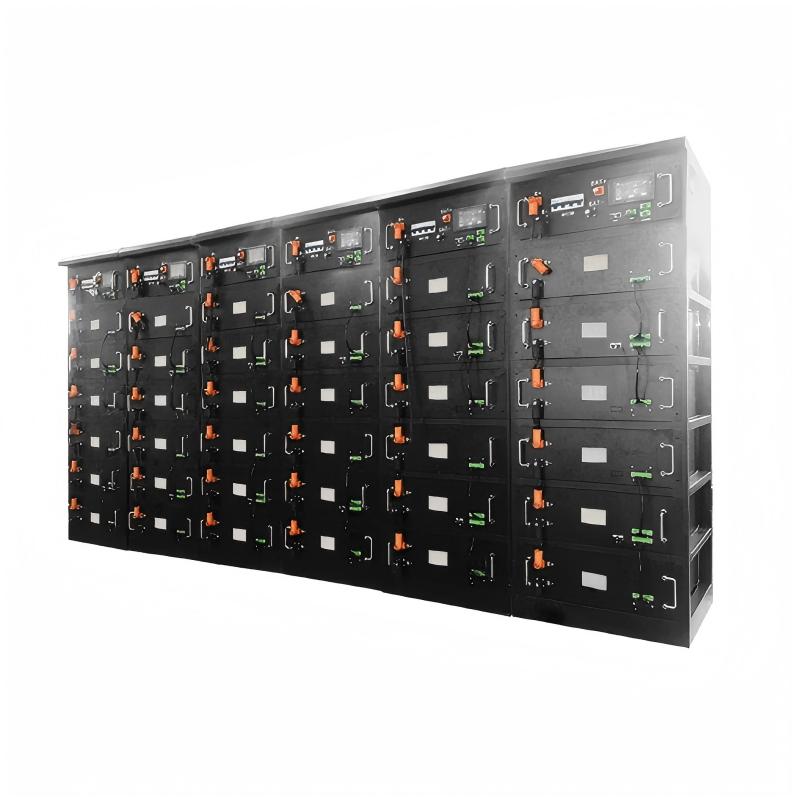

Commercial & Industrial Energy Storage System
1. Voltage: 480V-768V (system); 32/48/96VDC (packs); 96-768V (clusters)
2. Capacity: 52-300Ah (packs); 100/200/300Ah (clusters)
3. Nominal energy (packs): 4-14.4kWh
4. Operating temp: -20~65℃; Protection level: IP205. Recommended cluster charge/discharge current: 50/100/150A
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
The Commercial & Industrial Energy Storage Batteries is a lithium-based system for commercial/industrial scenarios. It works via lithium battery charge-discharge cycles: storing energy in individual packs during low demand, then discharging to power loads or support grids during peaks.
It uses a modular design: single battery packs (with fixed capacity/voltage) are built into scalable clusters to fit diverse needs. It connects seamlessly to grids/PV systems via standard interfaces, and supports customizable remote monitoring for flexible energy management.
Main features
| Category | Details |
| Product Advantages |
1. Modular design (auto ID identification, space-saving) 2. One-button control (easy installation/maintenance) 3. Cluster touch screen (displays operating status) 4. Strong compatibility (connects to grids/PV equipment) 5. Versatile communication interfaces (customizable remote monitoring) |
| Product Features |
1. Voltage: 480V-768V (system); 32/48/96VDC (packs); 96-768V (clusters) 2. Capacity: 52-300Ah (packs); 100/200/300Ah (clusters) 3. Nominal energy (packs): 4-14.4kWh 4. Operating temp: -20~65℃; Protection level: IP205. Recommended cluster charge/discharge current: 50/100/150A |
Specifications
Lithium battery pack parameter table
| MODEL | DM9650 | DM48100 | DM32150 | DM96100 | DM48200 | DM32300 | DM48300 | |||
| Cell Type | 52Ah | 100Ah | 52Ah | 100Ah | 100Ah | 100/300Ah | 100/300Ah | |||
| Nominal energy | 5kWh | 4.8kWh | 4kWh | 9.6kWh | 9.6kWh | 9.6kWh | 14.4kWh | |||
| Nominal capacity | 52Ah | 100Ah | 156Ah | 100Ah | 200Ah | 300Ah | 300Ah | |||
| Nominal voltage | 96VDC | 48VDC | 32VDC | 96VDC | 48VDC | 32VDC | 48VDC | |||
| Operating voltage range | 87～106.5VDC | 43.5~53.2VDC | 29～35.5VDC | 87～106.5VDC | 43.5~53.2VDC | 29～35.5VDC | 43.5～53.2VDC | |||
| Working temperature | -20～65℃ | |||||||||
| Protection level | IP20 | |||||||||
| Reference weight | 47.1kg | 86.6kg | 153kg | |||||||
| Reference size(D**H) | 630*475*162mm | 640*510*252mm | 510*904*252 | |||||||
Lithium battery cluster voltage platform parameter table
| MODEL | Nominal voltage | Nominalcapacity |
Operating voltage range |
Recommended charge and discharge current |
|||||
| DM 96100/200/300 | 96V | 100/200/300Ah | 87~106.5VDC | 50/100/150A | |||||
| DM 192100/200/300 | 192V | 174~213VDC | |||||||
| DM 220100/200/300 | 220V | 200~245VDC | |||||||
| DM 288100/200/300 | 288V | 260~319.5VDC | |||||||
| DM 360100/200/300 | 360V | 325~400VDC | |||||||
| DM 384100/200/300 | 384V | 348~426VDC | |||||||
| DM 480100/200/300 | 480V | 435~532VDC | |||||||
| DM 512100/200/300 | 512V | 464~568VDC | |||||||
| DM 576100/200/300 | 576V | 522~639VDC | |||||||
| DM 672100/200/300 | 672V | 609~745.5VDC | |||||||
