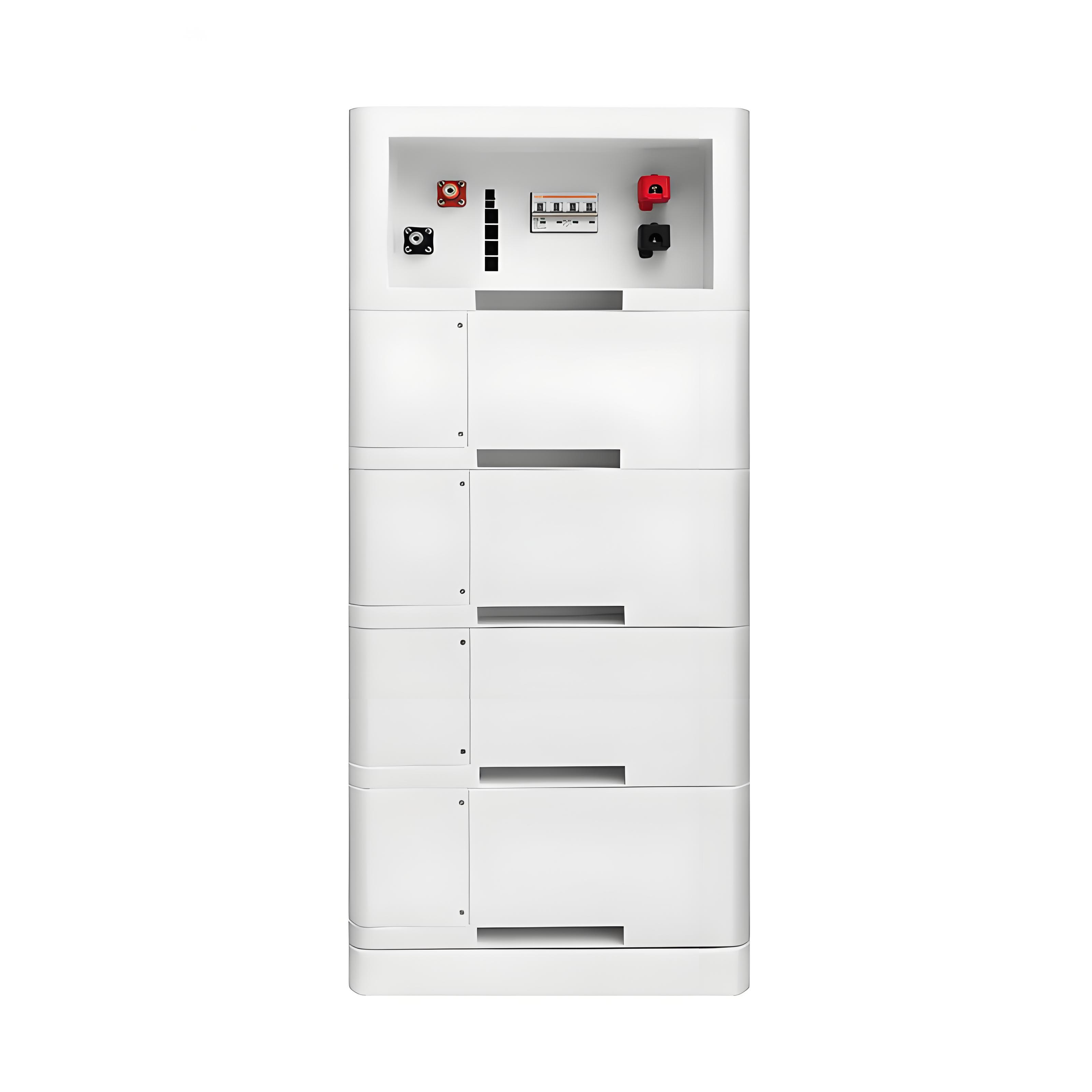

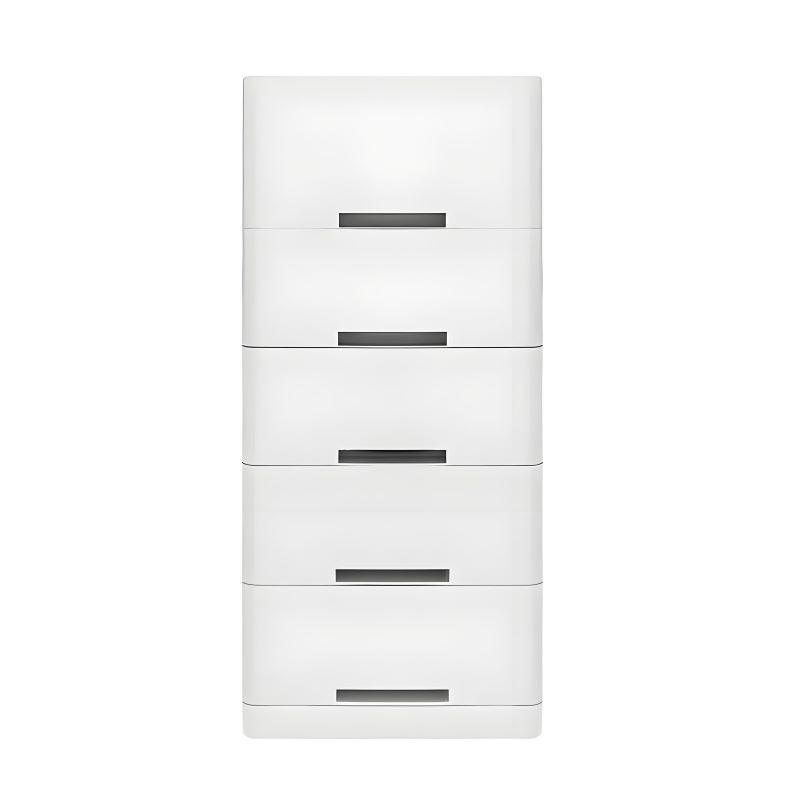

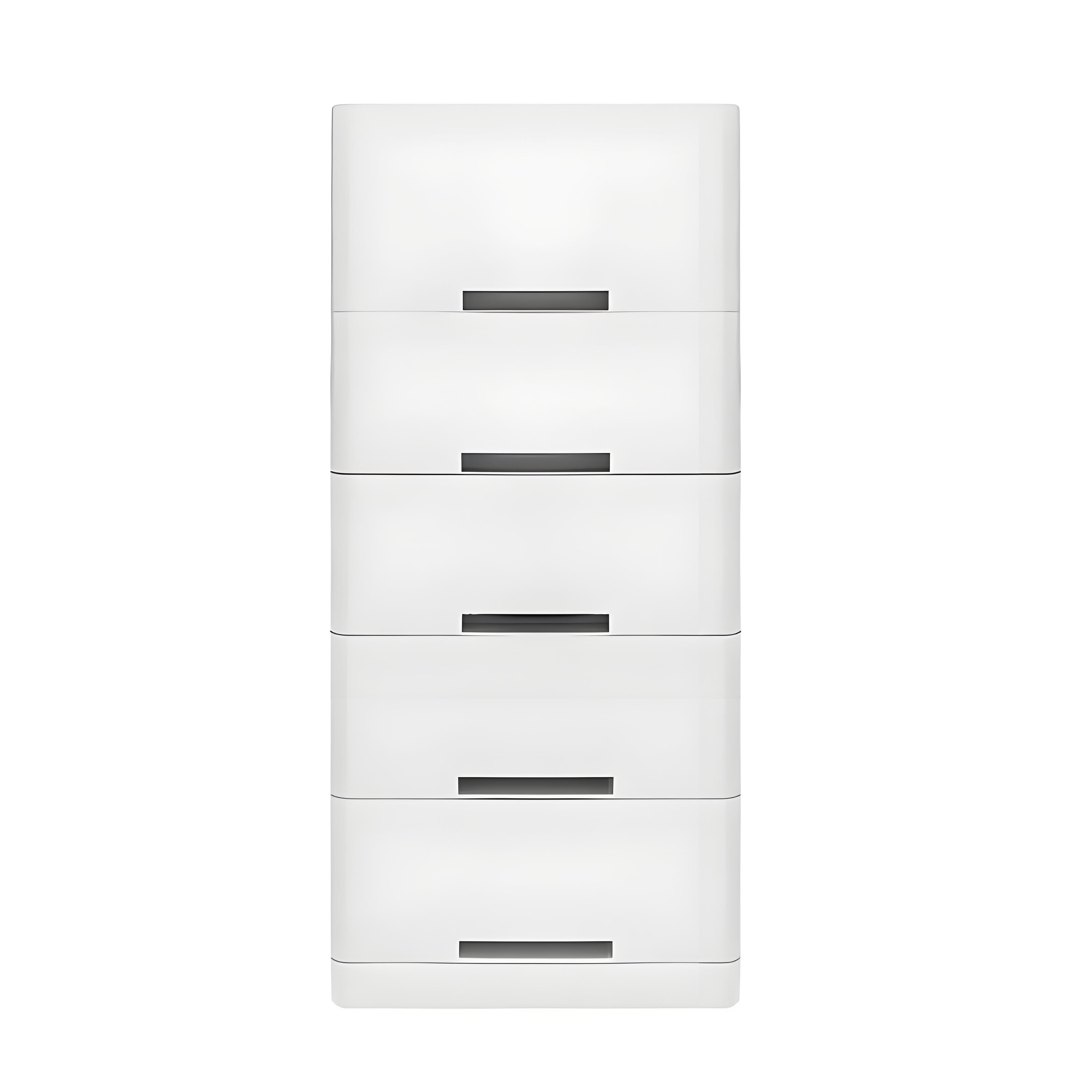

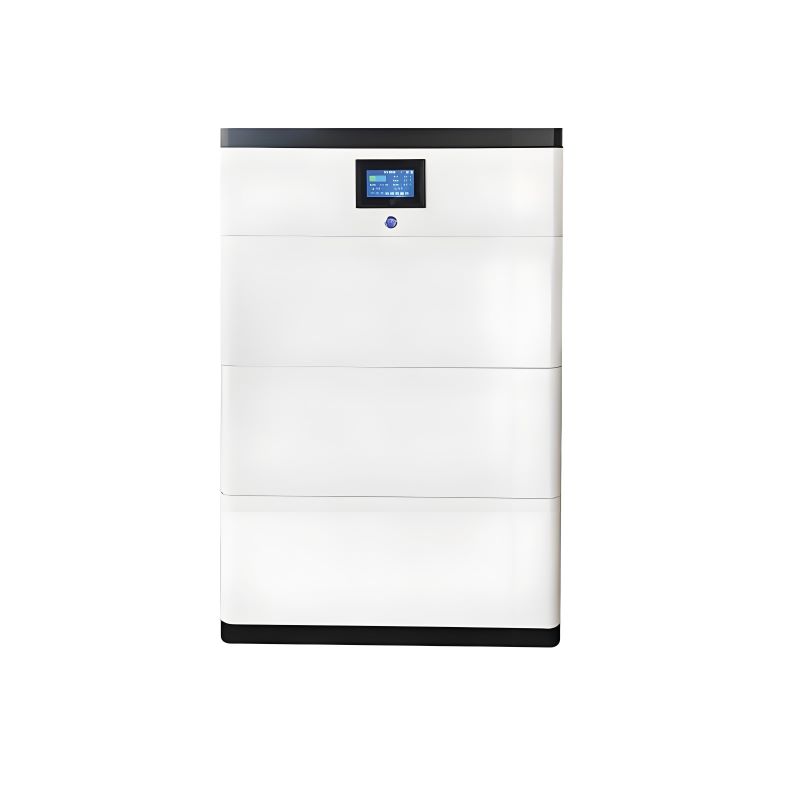

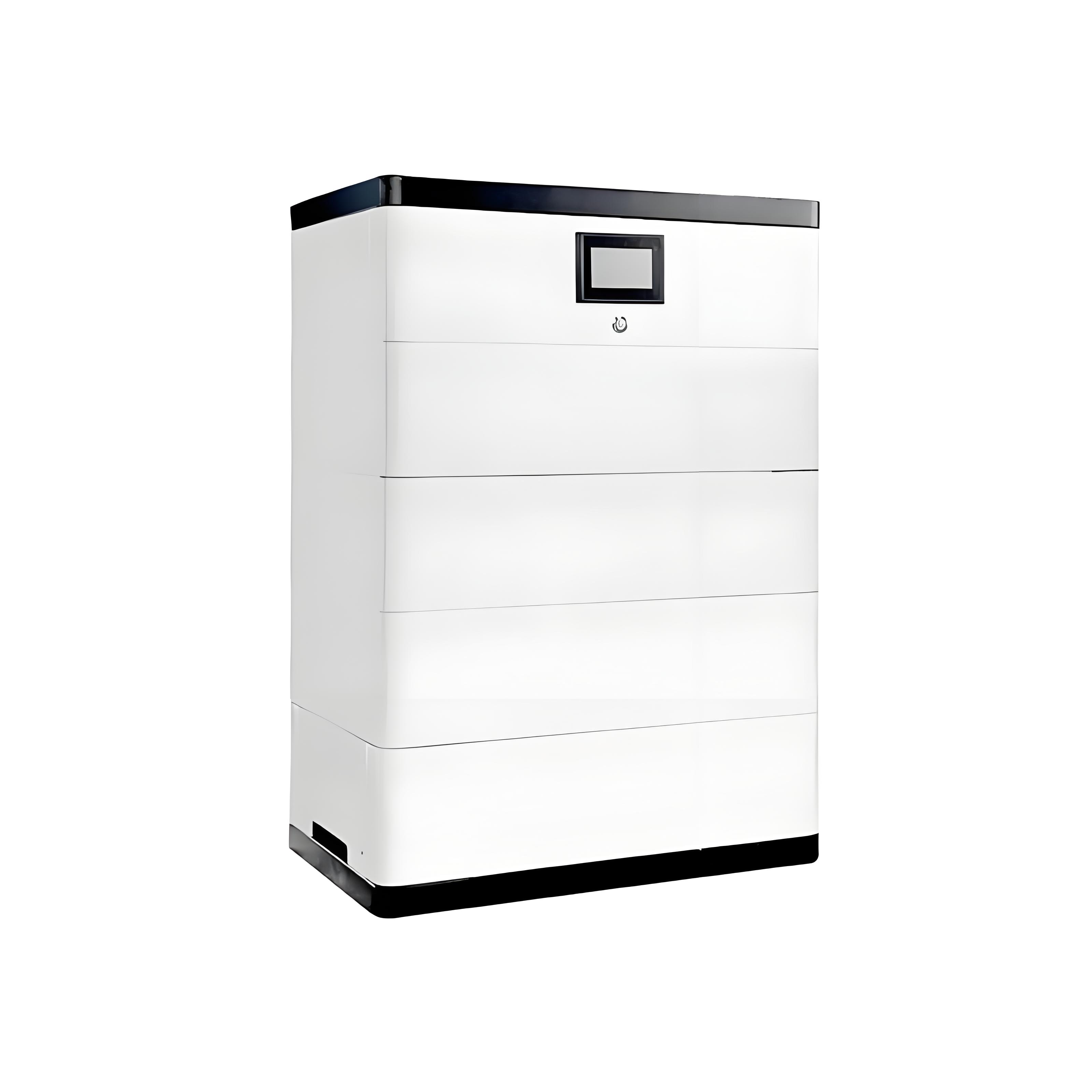

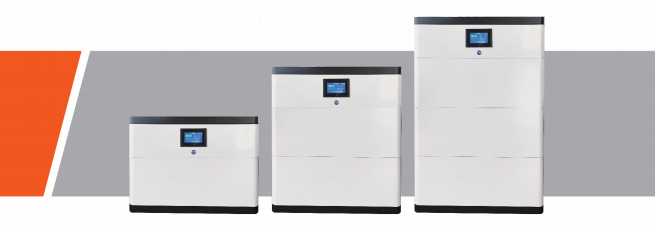

Stacked Low Voltage Home Energy Storage
GLV2-P40
Battery Module Model: 48200Battery Module Nominal Energy(kWh): 9.6
Rated Voltage(V): 48
Number of Cell Modules in Single Cluster: 4
Single Cluster Battery Energy (kWh): 38.4
Maximum Number of Cluster in Parellel: 8
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
GLV2-P40
Main features
• Chinese and English display summary of all PACK information
• Screen direct selection inverter communication protocol
• Summary switch, to achieve a key switch
• Stack design allows flexible battery expansion
• Multiple clusters are parallel. A maximum of eight battery packs can be connected in parallel

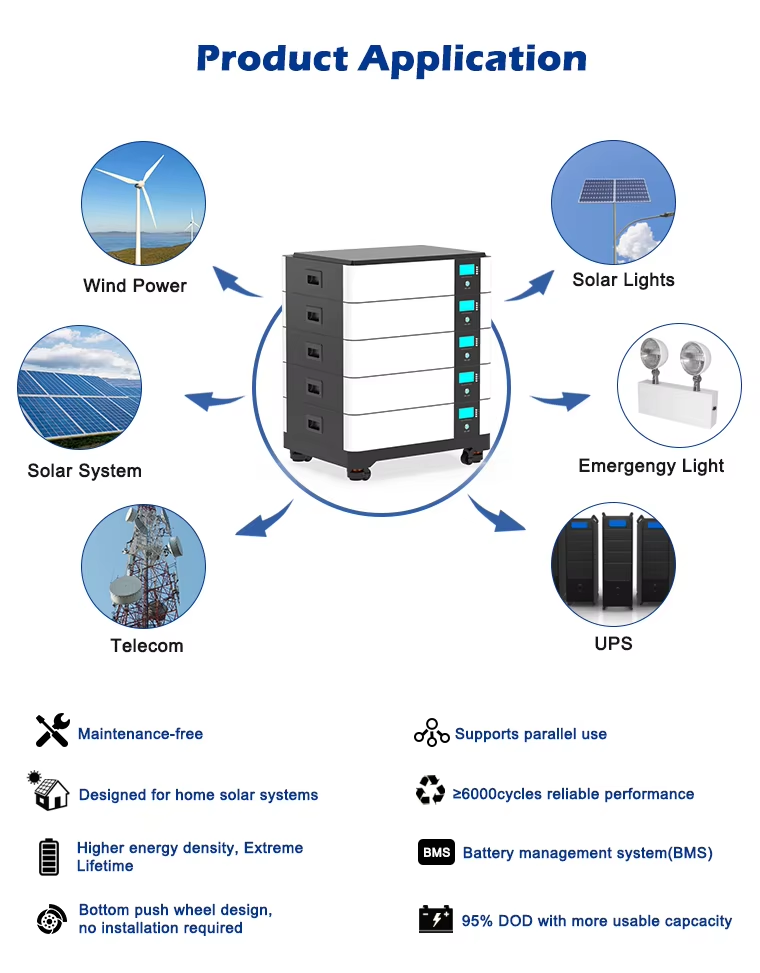

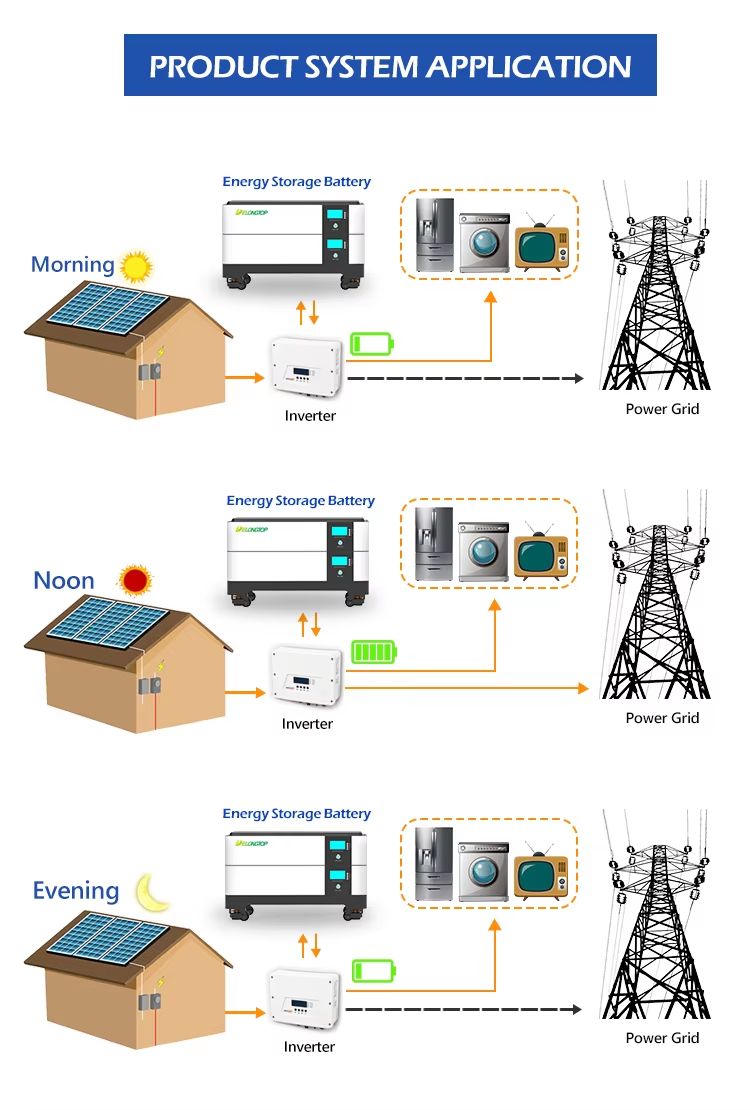

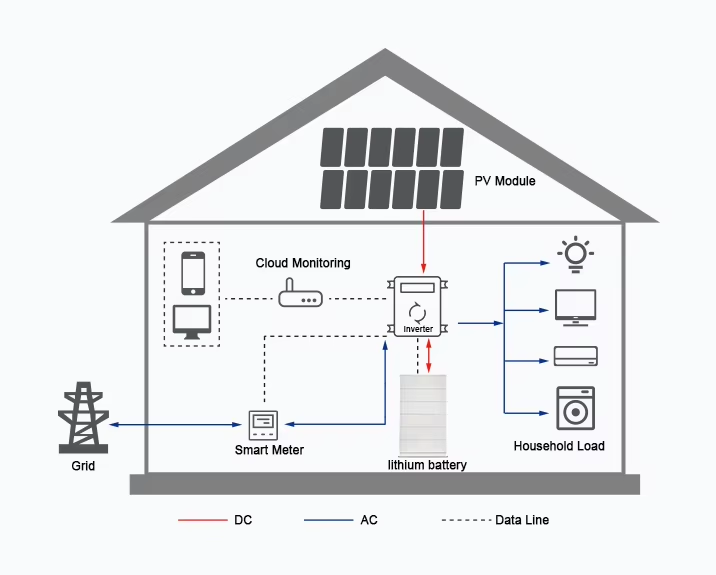

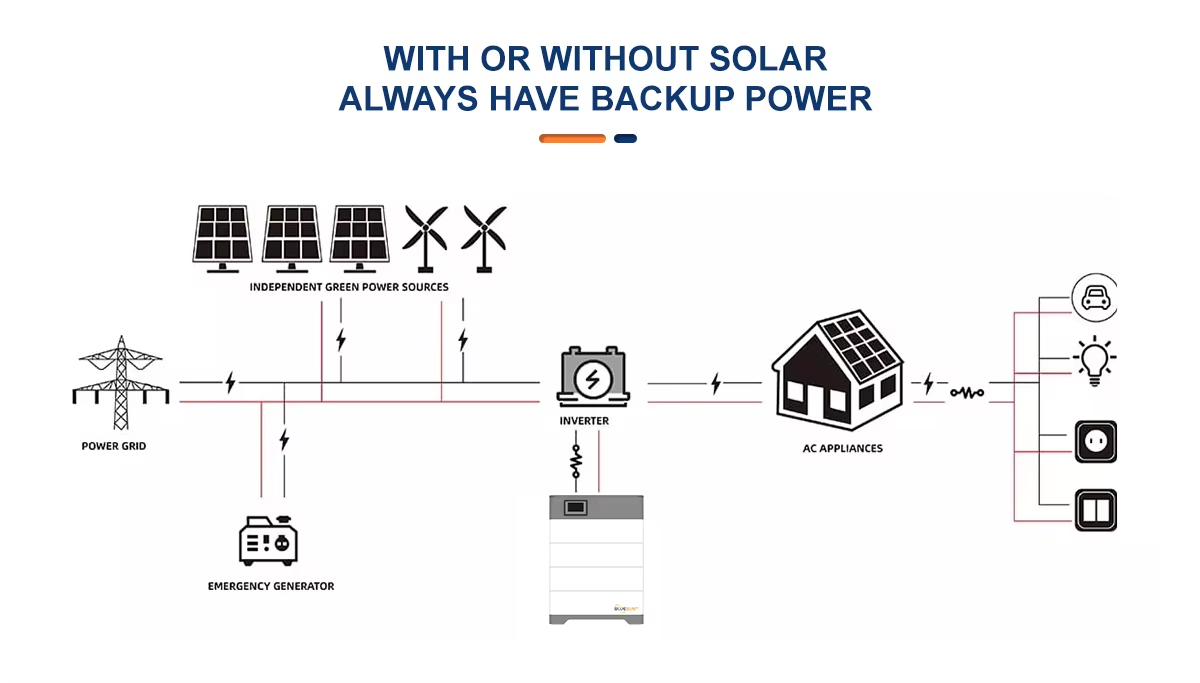

Application
Specifications
| Model | DMLV1-P10 | DMLV1-P15 | DMLV1-P20 | DMLV2-P20 | DMLV2-P30 | DMLV2-P40 |
| Battery Module Model | 48100 | 48200 | ||||
| Battery Module Nominal Energy（kWh） | 4.8 | 9.6 | ||||
| Rated Voltage(V) | 48 | |||||
| Number of Cell Modules in Single Cluster | 2 | 3 | 4 | 2 | 3 | 4 |
| Single Cluster Battery Energy (kWh) | 9.6 | 14.4 | 19.2 | 19.2 | 28.8 | 38.4 |
| Maximum Number of Cluster in Parellel | 8 | |||||
| Operating Voltage Range (V) | 42~54.75 | |||||
| Recommended Charge Voltage (V) | 51.75 | |||||
| Recommended discharge Cut-Off Voltage (V) | 45 | |||||
| Maximum Charge Current (A) | 0.5C | |||||
| Maximum Discharge Current (A) | 0.5C | |||||
| Unit Cluster Size (D*W*H)mm | 700*425*672 | 700*425*964 | 700*425*1056 | 700*479*848 | 700*479*1128 | 700*479*1408 |
| Unit Cluster Weight (kg) | 145 | 199 | 254 | 228 | 324 | 420 |
| Communication Mode | CAN/485/blue tooth | |||||
| Proper Temperature (°C) | -30~60(Recommend10~35) | |||||
| Storage Temperature (°C) | -20~65(Recommend10~35) | |||||
| Humidity (%RH) | <85 | |||||
| Protection Level | IP20 | |||||
| Cooling Method | Natural Cooling | |||||
| Number of Cycles | ≥5000 | |||||
| Standard of Security | CE, UN38.3,MSDS | |||||
| Model | DMLV2-P40 | |||||
| Battery Module Model | 48200 | |||||
| Battery Module Nominal Energy（kWh） | 9.6 | |||||
| Rated Voltage(V) | 48 | |||||
| Number of Cell Modules in Single Cluster | 4 | |||||
| Single Cluster Battery Energy (kWh) | 38.4 | |||||
| Maximum Number of Cluster in Parellel | 8 | |||||
| Operating Voltage Range (V) | 42~54.75 | |||||
| Recommended Charge Voltage (V) | 51.75 | |||||
| Recommended discharge Cut-Off Voltage (V) | 45 | |||||
| Maximum Charge Current (A) | 0.5C | |||||
| Maximum Discharge Current (A) | 0.5C | |||||
| Unit Cluster Size (D*W*H)mm | 700*479*1408 | |||||
| Unit Cluster Weight (kg) | 420 | |||||
| Communication Mode | CAN/485/blue tooth | |||||
| Proper Temperature (°C) | -30~60(Recommend10~35) | |||||
| Storage Temperature (°C) | -20~65(Recommend10~35) | |||||
| Humidity (%RH) | <85 | |||||
| Protection Level | IP20 | |||||
| Cooling Method | Natural Cooling | |||||
| Number of Cycles | ≥5000 | |||||
| Standard of Security | CE, UN38.3,MSDS | |||||
