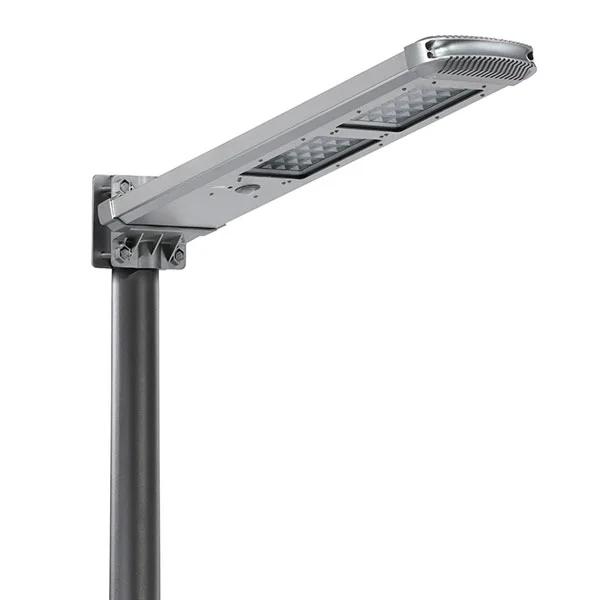

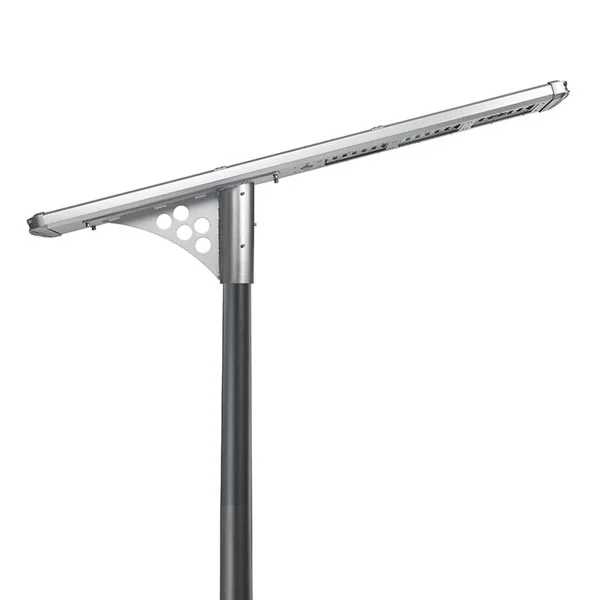

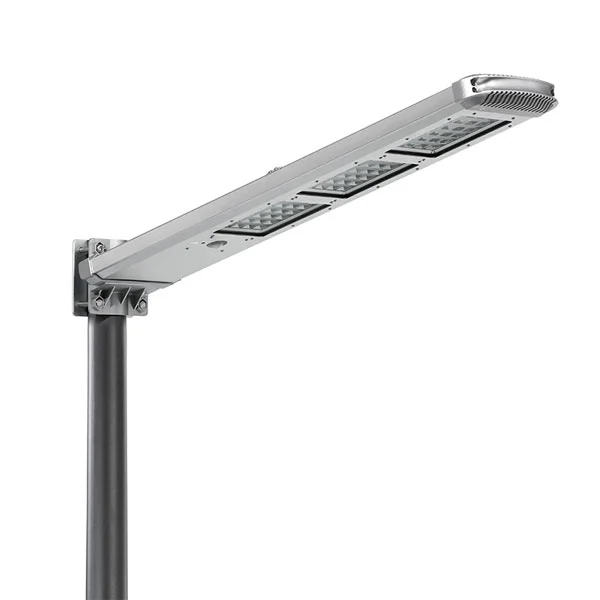

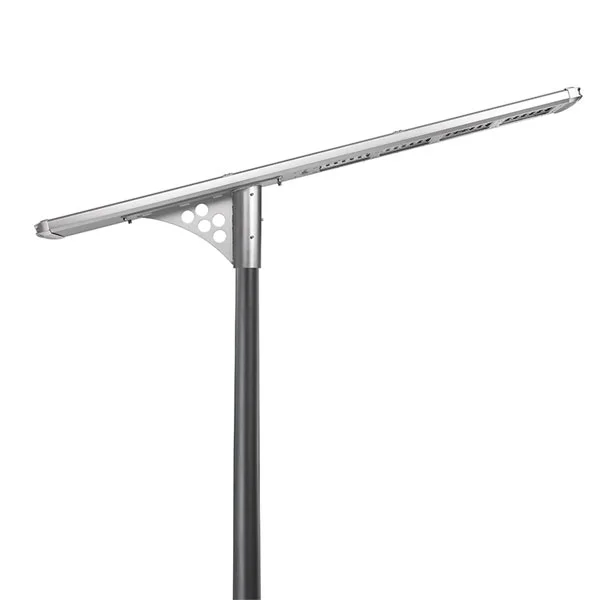

Technical Data of JKC - G Series All In One Solar Street Light
JKC-G Series All In One Solar Street Light is an integrated OEM solar street light.It is slim and suitable for use in scenes with small area, and can meet the unique needs of small customers.
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
JKC-G Series All In One Solar Street Light is an integrated OEM solar street light.It is slim and suitable for use in scenes with small area, and can meet the unique needs of small customers.
Main features
Features:
● 120° view angle.
● Over 3 nights lighting after full charge.
● Easy to install, Auto on/off.
Specifications
| Technical Data of JKC-G Series All In One Solar Street Light | |||||
| MODEL | JKC-G10 | JKC-G20 | JKC-G30 | JKC-G50 | JKC-G80 |
| LED | 10W | 20W | 30W | 50W | 80W |
| Lumen(LM) | 1000LM | 2000LM | 3000LM | 5000LM | 8000LM |
| Colour Temperature | 2000-7000K(customized available) | ||||
| Battery | 12.8V 153.6WH | 12.8V 153.6WH | 12.8V 230.4WH | 12.8V 384WH | 12.8V 460.8WH |
| Solar Panel | 18V 12W | 18V 25W | 18V 35W | 18V 60W | 18V 80W |
| Mounting Height | 3-4m | 4-5m | 5-6m | 6-7m | 7-8m |
| Cloudy/Rainy days | 3 Cloudy/Rainy days | ||||
| Material | Aluminium alloy + Toughened glass | ||||
| Working Temperature | -25℃－+65℃ | ||||
| Application | Courtyard/Garden/Park/Street/Roadway/pathway/ParkingLot | ||||
| Certificates | CE, ROHS, IP65, | ||||
| Warranty | 3 Years | ||||
| Product size | 530*235*150mm | 840*235*150mm | 1100*235*150mm | 1630*435*234mm | 2000*435*234mm |
| Net weight | 4.2 KG | 6.5 KG | 8.5 KG | 10.7 KG | 12.6 KG |
| Lighting mode | Light Control + Time Control + Motion Sensor + Remote Control | ||||
