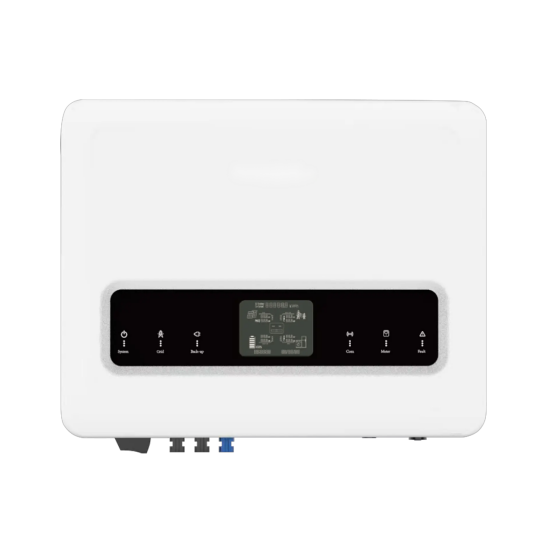

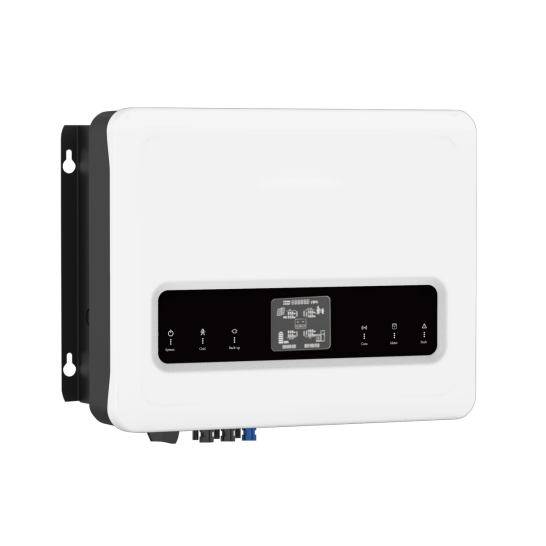

Three Phase Hybrid Inverter -EPH Series（4-12kW）
EPH series 4kw to 12kw solar hybrid inverter is an ideal solution for solar energy storage, it boasts of top industrial level asymmetric three phase output, accurate power export limit and extremely low self power consumption. It is advantageously with clear display view from the big LCD screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
EPH series 4kw to 12kw solar hybrid inverter is an ideal solution for solar energy storage, it boasts of top industrial level asymmetric three phase output, accurate power export limit and extremely low self power consumption. It is advantageously with clear display view from the big LCD screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
EPH series 4kw to 12kw solar hybrid inverter is an ideal solution for solar energy storage, it boasts of top industrial level asymmetric three phase output, accurate power export limit and extremely low self power consumption. It is advantageously with clear display view from the big LCD screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
 |
Load consumption monitoring |  |
Big LCD display |
 |
Power export limit |  |
IP65 protection |
Main features
Smart Control Monitoring:
Users can check 24-hour load consumption enabled Demax monitoring solution . And built-in anti-back flow limit is available to control export power.
 |
24hours loads consumption monitoring |
 |
Power export limit |
Specifications
| Three Phase Hybrid Inverter-EPH Series（4-12kW） | ||||||
| Model No | EPH4000TL | EPH5000TL | EPH6000TL | EPH8000TL | EPH10KTL | EPH12KTL |
| Input（DC） | ||||||
| Max DC Power (W) | 6000W | 7500W | 9000W | 12000W | 15000W | 15000W |
| Max DC Voltage (Vdc) | 1000 | |||||
| MPPT Voltage range (Vdc) | 200~850 | |||||
| Max Input current (A) | 13A/13A | |||||
| Max Input short circuit per MPPT | 18A/18A | |||||
| Number of MPP trackers | 2 | |||||
| Strings per MPP tracker | 1 | |||||
| BATTERY INPUT | ||||||
| Battery Type | Li-ion | |||||
| Battery voltage range(V) | 130-700V | |||||
| Max. charge current(A) | 25 | |||||
| Max. discharge current(A) | 25 | |||||
| Charging stratege for Li-ion Battery | Self-adaption to BMS | |||||
| Output(AC) | ||||||
| Rated AC output Active power (W) | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Maximum AC output Active power (VA) | 5000 | 5500 | 7000 | 8800 | 11000 | 13200 |
| Nominal AC output Current (A) | 8 | 10 | 12 | 15 | 17 | 20 |
| Harmonics | <3% | |||||
| Power factor adjustment range | 0.8 leading to 0.8 lagging | |||||
| Output Frequency and voltage | 50/60Hz; 280/490Vac | |||||
| Grid type | 3W/N/PE | |||||
| Three-phase unbalance output | 100% | 80% | ||||
| AC Output (Back up) | \ | |||||
| Max. AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
| Norminal output voltage | 400/380V | |||||
| Norminal output frequency | 50/60Hz | |||||
| Output THDV(@Liuear Load) | <3% | |||||
| Efficiency | ||||||
| Maximum conversion efficiency | 98.0% | 98.0% | 98.2% | 98.2% | 98.2% | 98.2% |
| European efficiency | 97.3% | 97.3% | 97.5% | 97.5% | 97.5% | 97.5% |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Safety and Protection | ||||||
| DC reverse-polarity protection | Yes | |||||
| DC breaker | Yes | |||||
| DC/AC SPD | Yes | |||||
| Leakage current protection | Yes | |||||
| Insulation impedance Dectection | Yes | |||||
| Residual current protection | Yes | |||||
| Output short circuit protection | Yes | |||||
| Battery reverse connection protection | Yes | |||||
| General Parameters | ||||||
| Dimension(W/H/D)(mm) | 516*427*184 | |||||
| Weight(kg) | 26 | |||||
| Protection degree | IP65 according to IEC60529 | |||||
| Operation temperature (°C) | -25 ~ +60 | |||||
| Cooling concept | Natural convection | |||||
| Topology | Transformerless | |||||
| Display | LCD | |||||
| Humidity | 0~95%，no condensation | |||||
| Communication | Standard WiFi; GPRS/LAN(optional) | |||||
| Communication with BMS | RS485;CAN | |||||
| Meter communication | RS485 | |||||
| Warranty | Standard 5 years; 7/10 years optional | |||||
| Certificates and Approvals | ||||||
| CQC,VDE-AR-N4105,IEC61727,IEC62116,VDE0124-AR-N0124,EN50549,IEC62109.IEC62477 | ||||||
