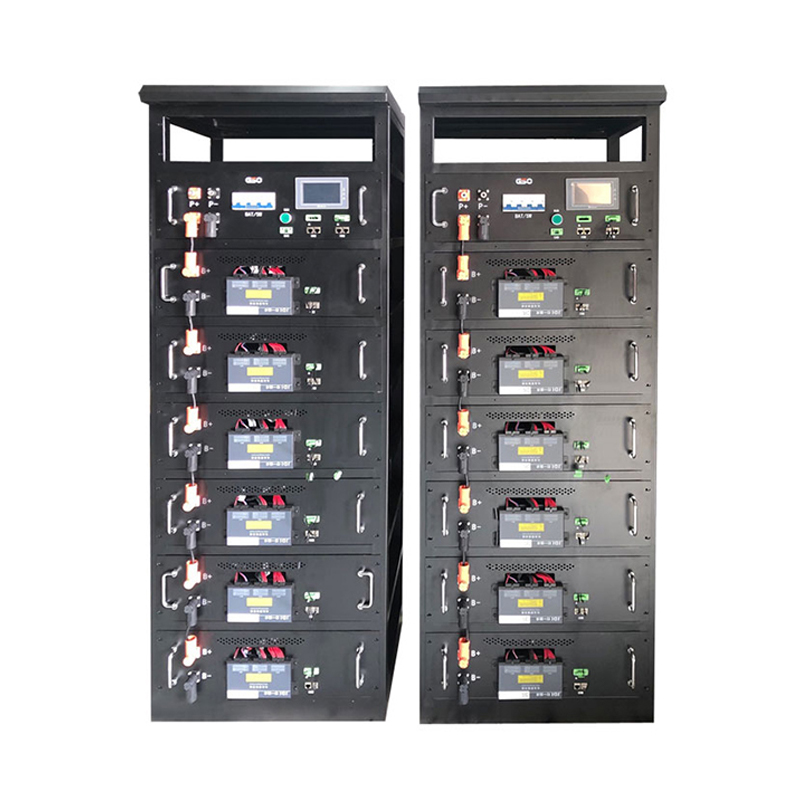

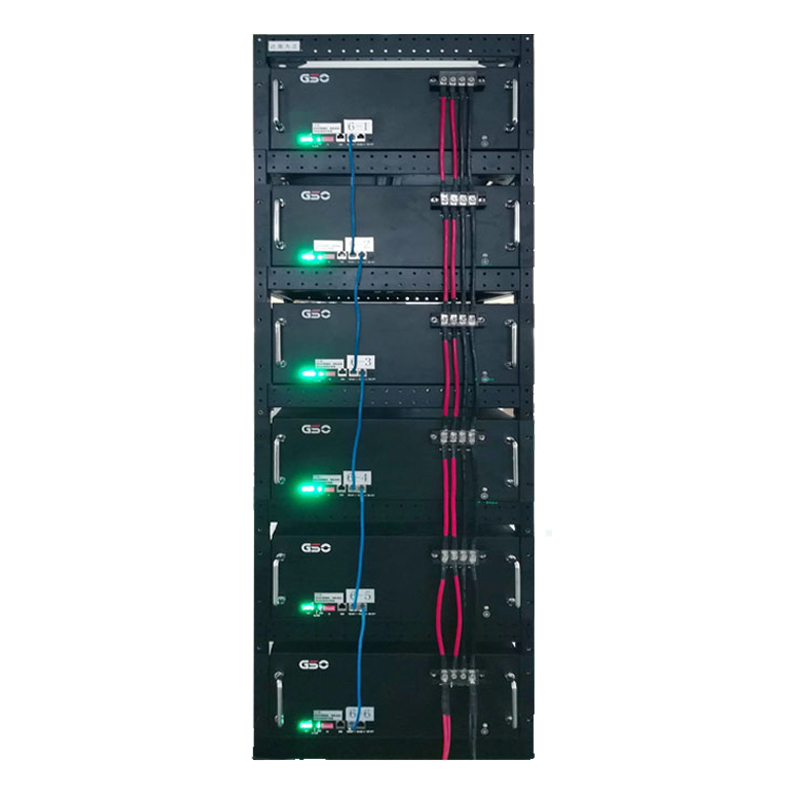

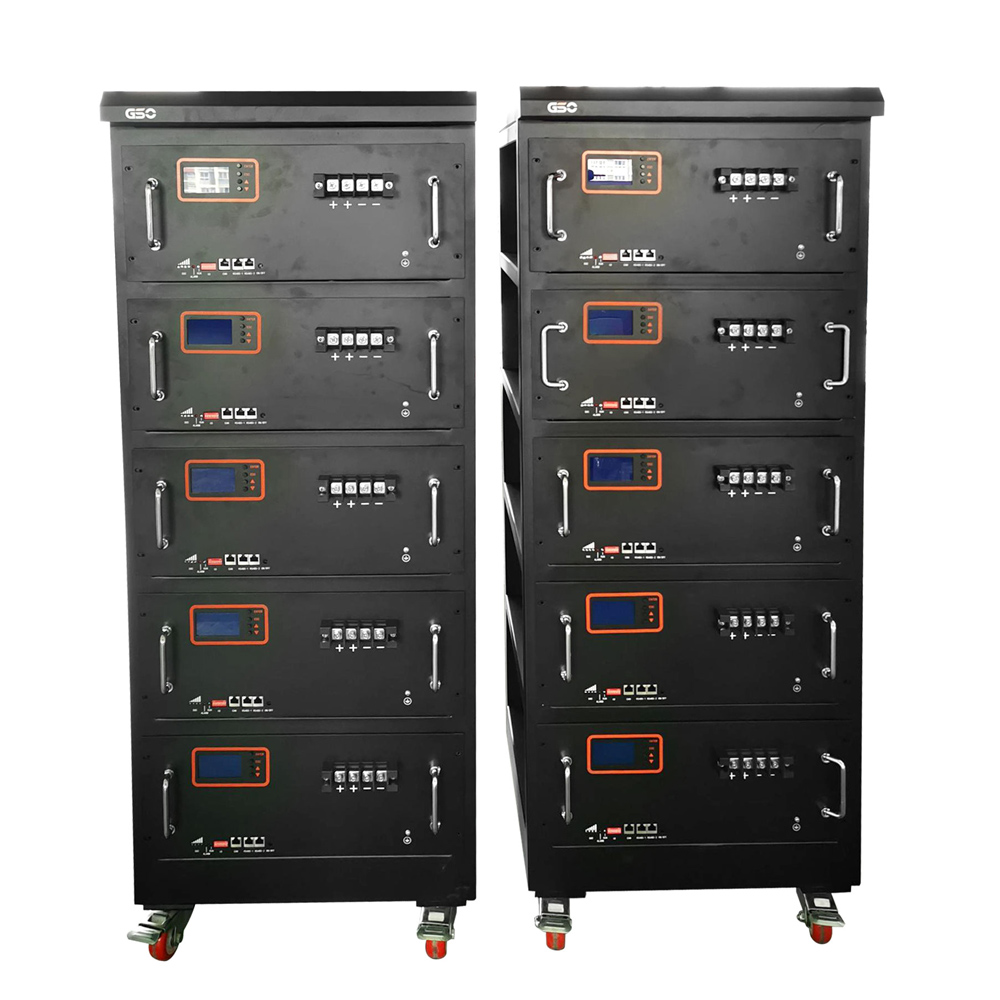

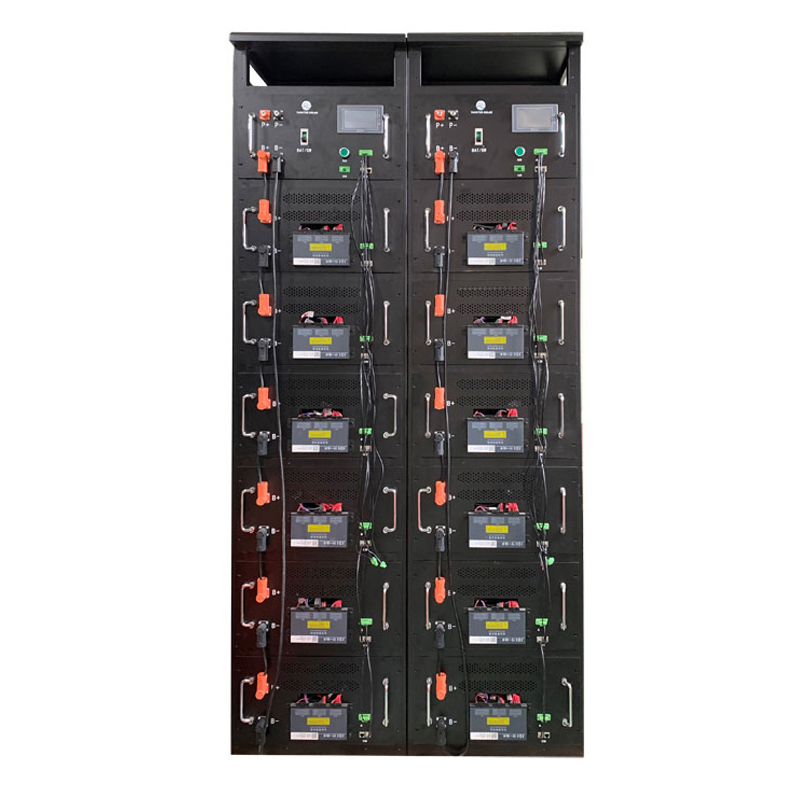

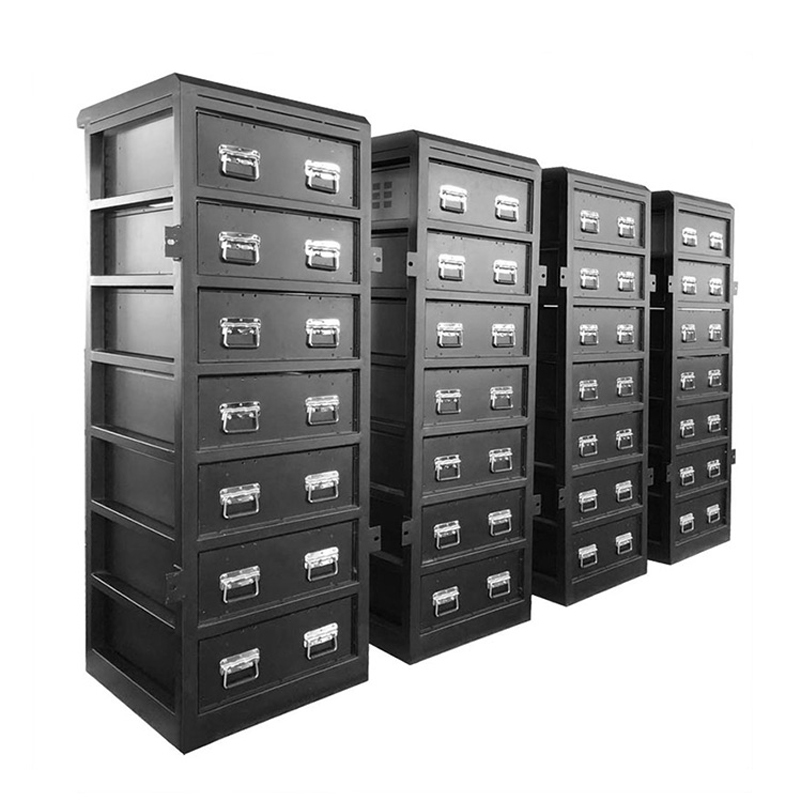

Lithium Battery Cluster Energy Storage System
DMP-H2
Working Temperature(°C): -20~65
Protection Level: IP20
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

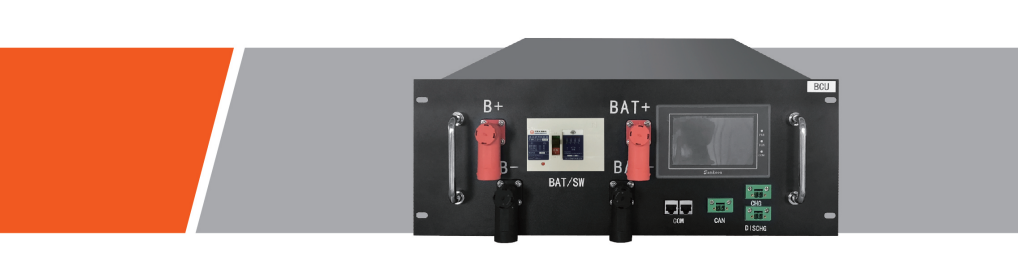

DMP-H2




Main features
• Modular design, automatic identification of ID code, saving installation space;
• One-button power on and off, convenient installation and maintenance, easy operation;
• Each cluster is equipped with a touch screen to intuitively display the operating status;
• Strong compatibility, can be seamlessly connected with UPS, photovoltaic power generation and other main equipment;
• The communication interface is diversified, CAN/RS485/dry contact, etc. can match various inverters, and can also be customized according to customer needs to facilitate remote monitoring of the system.

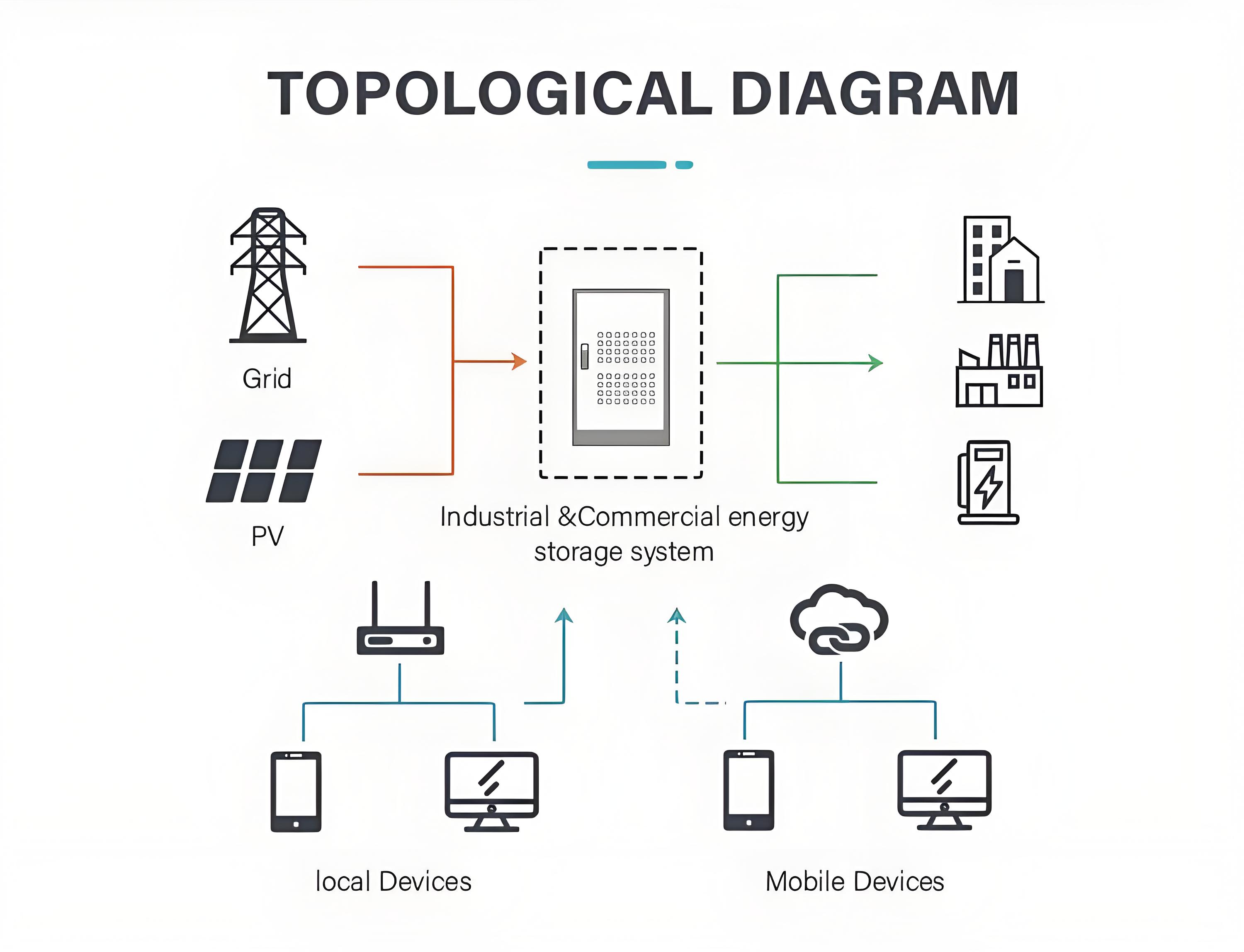

Application
Specifications
Lithium battery pack parameter table
| Model | DMBP9650 | DMBP48100 | DMBP32150 | DMBP96100 | DMBP48200 | DMBP32300 | DMBP48300 |
| Cell Type(Ah) | 52 | 100 | 52 | 100 | 100/300 | ||
| Nominal Energy(kWh) | 5 | 4.8 | 4 | 9.6 | 14.4 | ||
| Nominal Capacity (Ah) | 52 | 100 | 156 | 100 | 200 | 300 | 300 |
| Nominal Voltage (VDC) | 96 | 48 | 32 | 96 | 48 | 32 | 48 |
| Operating Voltage Range (V) | 87~106.5 | 43.5~53.2 | 29~35.5 | 87~106.5 | 43.5~53.2 | 29~35.5 | 43.5~53.2 |
| Working Temperature (°C) | -20~65 | ||||||
| Protection Level | IP20 | ||||||
| Reference Weight (kg) | 47.1 | 86.6 | 153 | ||||
| Reference Size (D*W*H)mm | 630*475*162 | 640*510*252 | 510*904*252 | ||||
Lithium battery cluster voltage platform parameter table
| Model | Nominal Voltage (V) | Nominal Capatity (Ah) | Operating Voltage Range (VDC) |
Recommended Charge and discharge current (A) |
| DMP 96100/200/300 | 96 | 100/200/300 | 87~106.5 | 50/100/150 |
| DMP 192100/200/300 | 192 | 174~213 | ||
| DMP 220100/200/300 | 220 | 200~245 | ||
| DMP 288100/200/300 | 288 | 260~319.5 | ||
| DMP 360100/200/300 | 360 | 325~400 | ||
| DMP 384100/200/300 | 384 | 348~426 | ||
| DMP 480100/200/300 | 480 | 435~532 | ||
| DMP 512100/200/300 | 512 | 464~568 | ||
| DMP 576100/200/300 | 576 | 522~639 | ||
| DMP 672100/200/300 | 672 | 609~745.5 | ||
| DMP 768100/200/300 | 768 | 696~852 |
