Split Pressurized Solar Water Heater Controller
Model: TK-SC8
Dimensions: 20.5x14.5x4.5cm
Display dimension: 12x12x1.8cm
Use power supply: 220VAC±10%
Self power consumption: <3W
- Introduction
- Product Functions
- Specifications
- Recommended
Product Introduction
Product Functions
• Time display: 24hours display time clock

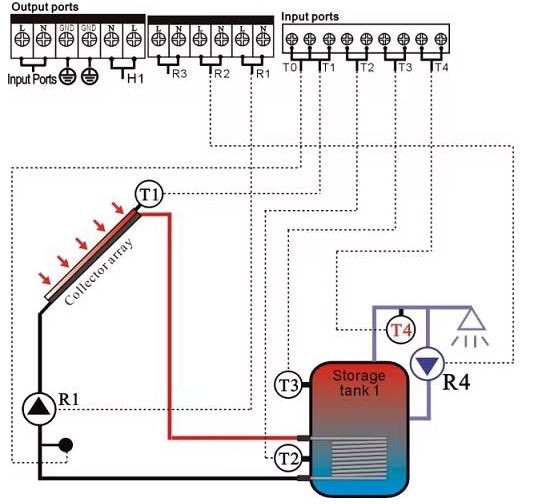

• Temperature display: displayT1、T2、T3、T4
• Temperature difference controlled circulation on/off
• Temperature controlled auxiliary heating during three time section
• Time controlled hot water circulation pump
• Frost protection
• Protection of tank at high temperature(1)
• Protection of tank at high temperature(2)
• “℃/F" conversion display
• Memory protection when power is failure
• Sterilization function
• Holiday function
• Economic model
Specifications
• Dimensions: 20.5x14.5x4.5cm
• Display dimension: 12x12x1.8cm
• Use power supply: 220VAC±10%
• Self power consumption:<3W
• Measuring accuracy of temperature:+ 2℃
• Temperature range of measurement: 0~120℃
• Suitable power of pump: ≤600W
• Power of auxiliary electrical booster:s2000W
• Water protection grade: IP41
