Parabolic Trough Solar Collector
1）Aperture width: 2.55m
2）Concentration ratio: 62.5x
3）Working medium: Heat transfer oil
4）Support: Torsion tube type
5）Drive method: Gearbox/hydraulic
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

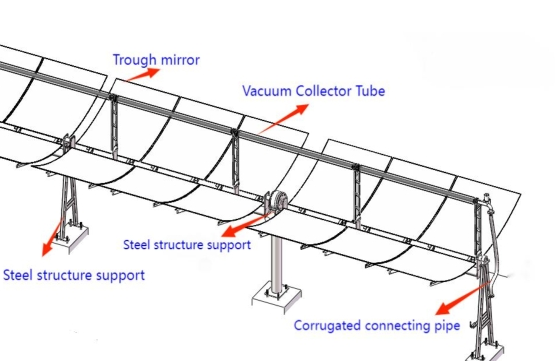

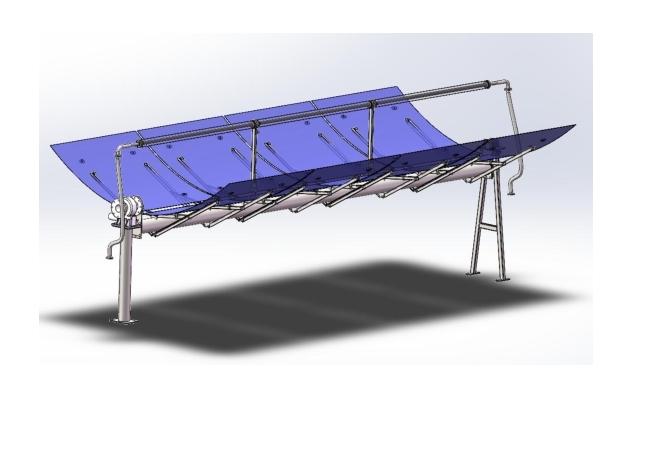

A parabolic trough solar collector is a highly efficient linear focusing solar thermal collection device, mainly composed of a reflector, high-temperature collector tubes, a support system, a tracking system, a transmission system, and a control system. The reflector rotates with the sunlight, and the trough collector directly converts solar energy into thermal energy. It has advantages such as mature technology, stable structure, and ease of control. It is widely used in various energy-saving fields, including industrial energy conservation, heating and cooling, seawater desalination, and oil extraction.
Main features
1） High collector operating temperature <300°C.
2）High photothermal conversion efficiency of 63.5%, compared to 40% for traditional solar energy.
3）Automated operation year-round, high performance stability, and good pressure resistance of the collector tubes.
4）Rapid temperature rise, 62.5 times linear focusing, raising temperature from room temperature to 1550°C within 15 minutes.
5）Pure green energy, derived from the sun, with low operating costs.

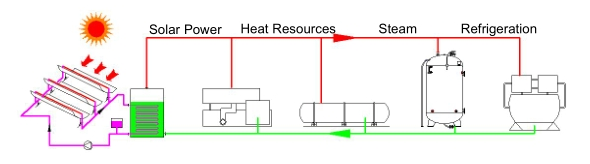

Flat plate solar collector application
1）Solar heating system engineering
2）Solar steam boiler system engineering
3）Solar refrigeration system engineering
4）Solar drying system engineering
5）Solar seawater desalination system engineering
6）Solar oil extraction heating system engineering
Specifications
1）Aperture width: 2.55m
2）Concentration ratio: 62.5x
3）Working medium: Heat transfer oil
4）Solar collector tube: 2000mm/4060mm in length, glass-metal fusion sealing technology, anti-reflective coating on the outer tube
5）Reflector: Original glass made of imported ultra-clear float glass, 4% of 1500mg/m2
6）Support: Torsion tube type
7）Drive method: Gearbox/hydraulic
8）Tracking method: Time-controlled
9）Service life: ≥20 years
| Application Fields | Application | Temperature |
| Residential buildings | Solar Building Heating | 50-160°C |
| LiBr Absorption Refrigeration | 90-200°C | |
| Domestic Hot Water Systems | 120-160°C | |
|
Industrial applications |
Food Processing | 80-240°C |
| Chemical Industry | 150-180°C | |
| Paper Industry | 150-180°C | |
| Woodworking Industry | 80-200°C | |
| Textile Industry | 80-140°C | |
| Tobacco industry | 150-200°C | |
| Synthetic Rubber Industry | 130°C | |
| Others | Etc. Applications | -- |

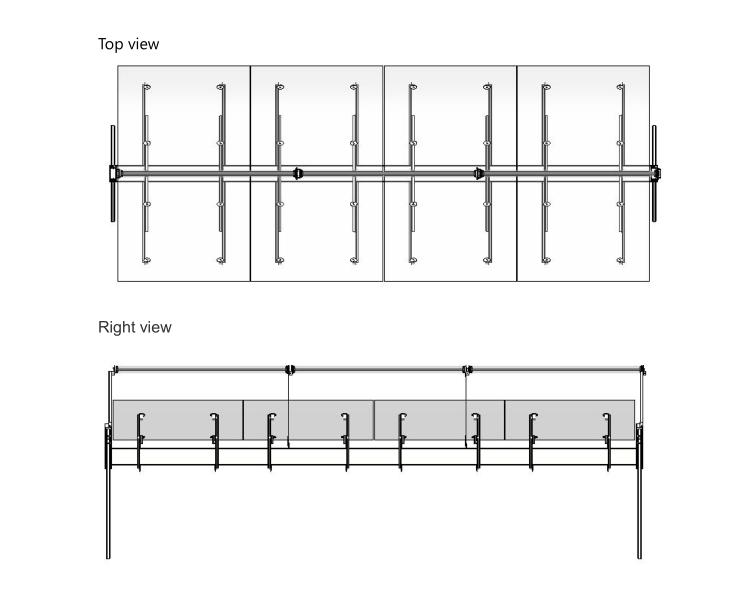

| Trough Details | |
| Module Length: | 6 m |
| Aperture Width: | 3.20 m |
| Gross Aperture Area of 1 module: | 19.2 m2 |
| Collector Length: | 37 m |
| No. of segments in one set: | 6 unit |
| Focal Length: | 1.21m |
| Rim Angle: | 67° |
| Concentration factor: | 64:01:00 |
| Deviation from ideal parabola – RMS: | <1.2 mrad |
| Operation parameters | |
| Application | Thermal Power |
| Working temperature | <250 °C (Recommend) |
| Maximum operation temperature | <300 °C |
| Geometry effects | 0.98 |
| Collector tilt | <1% |
| Collector efficiency (On summer solstice day) | 62.80% |
| Maximum operating windspeed: | 60 kmph |
| Maximum survival windspeed: | 120 km/h |
| Heat collector elment (receiver) | |
| Length: | 3000mm |
| Working temperature: | <300 °C |
| Inner metal tube: | Absorptance:95% |
| Emissivity:≤10% | |
| Outer diameter/Thickness:50mm/2mm | |
| Outer glass tube: | transmissivity ≥93% |
| Outer diameter/Thickness:90mm/2mm | |
| Vacuum degree: | 3.0×10-4Pa (at 200°C) |
| Driver | |
| Type: | Mechanical |
| Range of collector rotation: | ± 90° |
| Tracking movement accuracy: | ± 0.1 ° |
| Stow position (on both horizons): | 30° below both horizons |
| Mirror | |
| Material: | Silver tempered glass |
| Solar weighted Specular Reflectance: | >92 % |
| Thickness (mm): | 4 mm |
| Heat Transfer Fluid | |
| Type: | HTF oil |
| Maximum Pressure: | -- |
| Maximum temperature: | Up to 300 °C |
