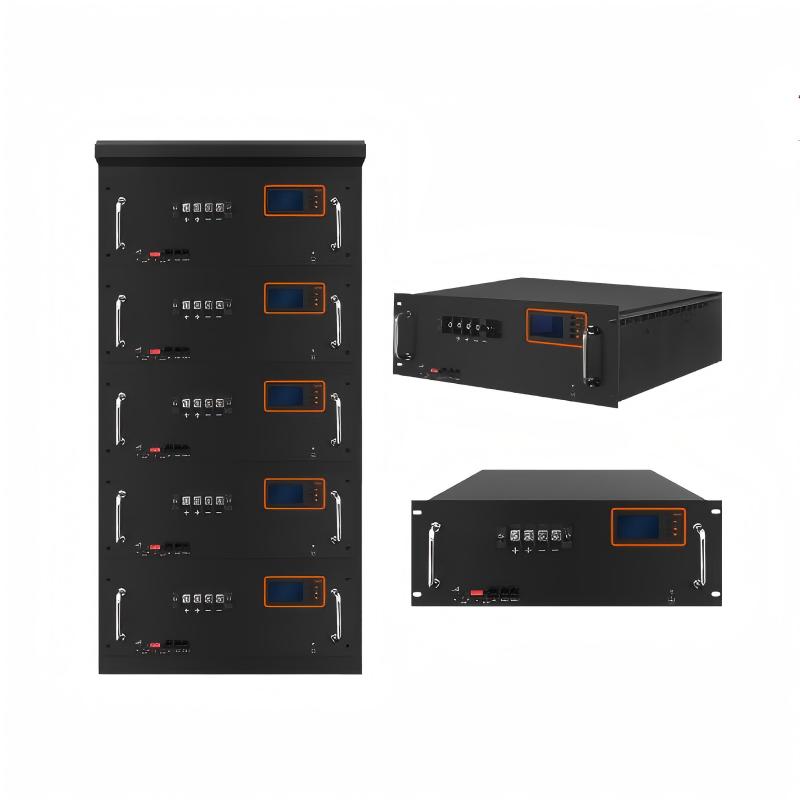

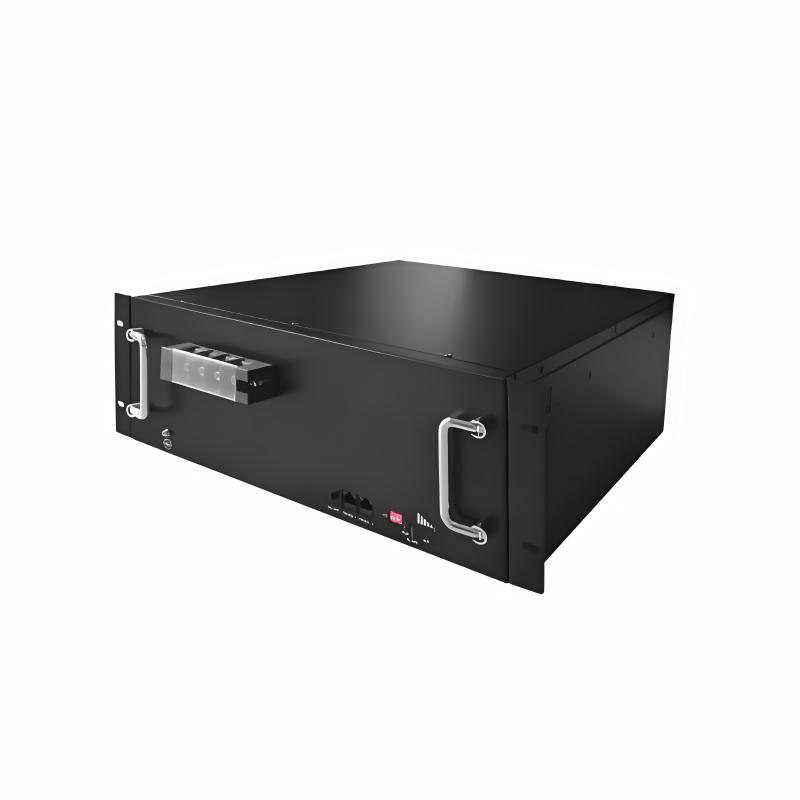

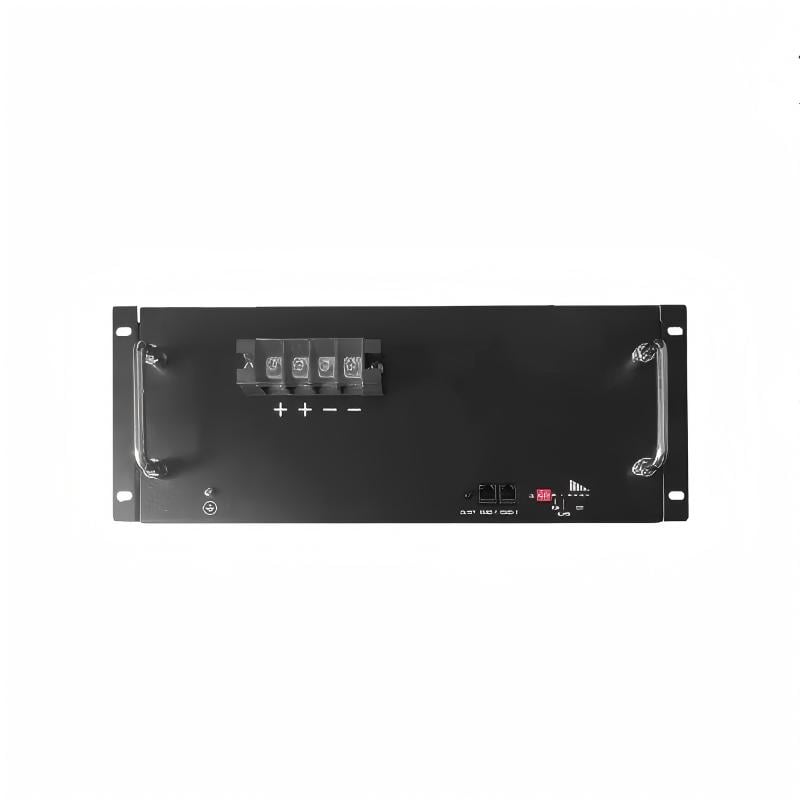

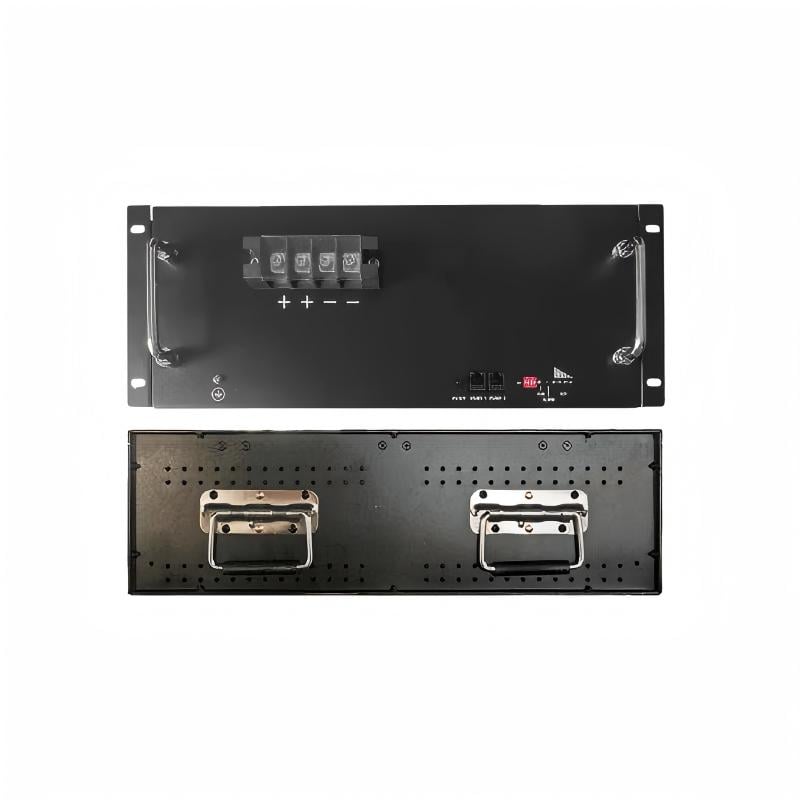

Rack Mouted High-Voltage ESS

Cycle Life: Rechargeable with deep cycles > 5000 times; top-grade A cells last over 10 years, achieving 6000+ cycles

Cell Quality: Uses high-quality, high-efficient COTION brand A-grade battery cells

Installation & Maintenance: Easy to install and maintain

Customization: Accepts OEM/ODM for personalized solutions

Introduction
Main features
Specifications
Recommended

Product Introduction

This Rack Type Solar Deep Cycle Battery (Model: DM48-200R) is a LiFePO4 (Lithium Iron Phosphate) battery tailored for solar energy storage systems. Its working principle revolves around storing surplus electricity generated by photovoltaic (PV) systems during periods of sufficient sunlight (e.g., daytime, sunny conditions) and discharging it when solar power output is intermittent (e.g., nighttime, cloudy days). It relies on the electrochemical reactions of lithium iron phosphate cells to enable repeated charge-discharge cycles, thereby solving the intermittency issue of solar energy and ensuring stable energy supply.
Rack Mouted High-Voltage ESS1.jpg

Main features

Feature	Details
Cycle Life	Rechargeable with deep cycles > 5000 times; top-grade A cells last over 10 years, achieving 6000+ cycles
Cell Quality	Uses high-quality, high-efficient COTION brand A-grade battery cells
Installation & Maintenance	Easy to install and maintain
Energy & Environmental Performance	Energy saving and environmental protection by optimizing solar energy utilization
Protection Level	IP20 protection level
Battery Management System (BMS)	Built-in battery manager system for intelligent monitoring and protection
Customization	Accepts OEM/ODM for personalized solutions
Safety Functions	Over-temperature alarm protection; over-charge and over-discharge protection; short-circuit protection
Compatibility	Seamless connection with UPS, photovoltaic systems, and most market inverters (compatible with brands like GoodWe, Victron Energy, Deye, Sofar, Growatt, etc., with more brands coming)
Additional Advantages	Grade A cell assurance; VAT Free procurement option

Specifications

MODEL	DM24-100R	DM24-200R	DM48-100R	DM48-200R	DM51.2-100R	DM51.2-200R
Nominal voltage	25.6V		48V		51.2V
Nominal capacity	100Ah	200Ah	100Ah	200Ah	100Ah	200Ah
Nominal energy capacity	2.56kWh	5.12kWh	4.8kWh	9.6kWh	5.12kWh	10.24kWh
Operating voltage range	22.4-29.2V		42-54.75V		44.8-58.4V
Recommended charging voltage	27.6V		51.75V		55.2
Recommended discharge cut-off voltage	24V		45V		48V
Standard charging /discharging current	0.5C
Maximum continuous charging/ discharging current	1C(Customizable)
Applicable temperature	-30～60℃(Recommended10～35)
Permissible humidity range	≤85%RH
Storage temperature	-20～65℃(Recommended10～35)
Protection level	IP20
Cooling method	Natural air cooling/intelligent fan
Maximum size(D**H)	689495162mm			682510246mm	689495162mm	682510246mm
Weight	28kg	49kg	46kg	89kg	49kg	93kg
