Solar Pump Station SR962S

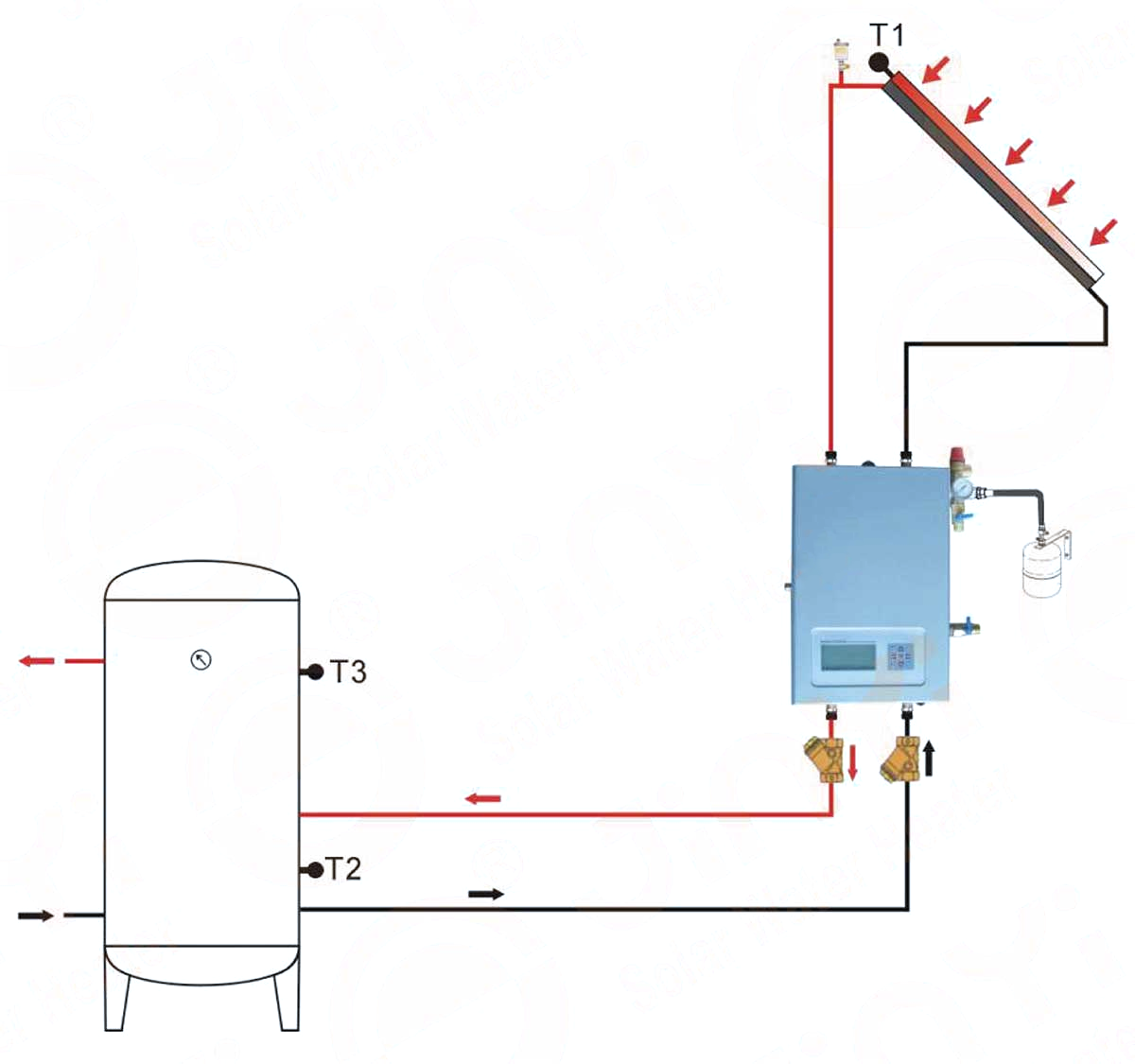

The Demax SR962S is a preassembled, leak-tested double-pipeline solar pump station designed to transfer heat from solar collectors to storage tanks. It operates via a dual-pipeline layout (flow/return) with integrated valves (ball/check) to prevent gravity-driven circulation. Temperature sensors and a controller manage heat transfer by activating circulation pumps based on collector-tank temperature differences (ΔT). The system includes monitoring components (flow rate checker, manometer) and safety devices (safety valve), while its controller supports user/engineer-grade parameter setup to automate functions (e.g., pump speed control, frost protection) and optimize thermal efficiency.
- Introduction
- Main features
- Specifications
- Recommended
|
Key Features |
Core Functions |
|
Double-pipeline (flow/return) layout |
Pump Support1. Compatible with Normal Pumps2. Compatible with High Efficiency Pumps |
|
Preassembled & leak-tested assembly |
User-Grade Operation/Setup1. THET: Timing heating2. CIR: DHW water circulation function3. ICYC: Temperature or time setting for DHW pump (3 time sections) |
|
Integrated components: Ball/check valves, flow rate checker, manometer, safety valve, flushing/filling unit |
Engineer-Grade Operation/Setup1. DIT: Temperature difference for solar circuit pump2. EMQF: Maximum switch-off temperature of collector (emergency close)3. CMX: Maximum limited temperature of collector (cooling function)4. CMN: Low temperature protection of collector5. CFR: Frost protection temperature of collector6. SMX: Maximum temperature of tank7. REC: Re-cooling temperature of tank8. C_F: Switch between Celsius and Fahrenheit |
|
Supports dual-pump operation & RPM speed control |
Auxiliary Functions1. DVWG: Anti-Legionella function2. P1: Pump P1 operation mode selection3. nM1N: Pump speed adjustment (RPM control)4. DTS: Standard temperature difference of pump (speed adjustment)5. RIS: Gain for circulation pump (speed adjustment)6. P2: Pump P2 operation mode selection7. FTYP: Flow meter type selection8. OHM: Thermal energy measuring9. FMAX: Flow rate10. MEDT: Type of heat transfer liquid11. MED%: Concentration of heat transfer liquid12. INTV: Pump intermission function13. ISTR: Pump interval run-on time14. IRUN: Pump interval run-on time15. AOH: AHF automatic thermostat function16. COOL: Tank cooling function17. BYPR: Bypass function (high temperature)18. HND: Manual control19. PASS: Password set20. LOAD: Recovery to factory set21. HON/OFF: Controller switch on/off button22. Holiday function23. Manual heating24. Manually control DHW pump25. Temperature checking function26. Protection function27. Memory protection28. Screen protection29. Pump dry running protection30. Trouble shooting31. Trouble protection32. Trouble checking |
|
Category |
Details |
|
Pipeline Type |
Double pipeline (flow + return) |
|
Core Components |
Ball valves (flow/return), check valves (anti-gravity circulation), flow rate checker, manometer, safety valve, flushing & filling unit |
|
Pump Compatibility |
Supports Normal Pumps; Supports High Efficiency Pumps |
|
Operation Grades |
1. User grade (basic setup/functions)2. Engineer grade (advanced setup/functions) |
|
Temperature-Related Functions |
- Temperature difference control (solar circuit pump)- Collector emergency shut-off (max temp)- Collector cooling (max limited temp)- Collector low temp protection- Collector frost protection- Tank max temp control- Tank re-cooling |
|
Auxiliary Functional Parameters |
- Anti-Legionella function- Pump speed adjustment (RPM control)- Thermal energy measuring- Heat transfer liquid type/concentration setup- Pump intermission/run-on time control- Tank cooling function- High-temperature bypass function |
