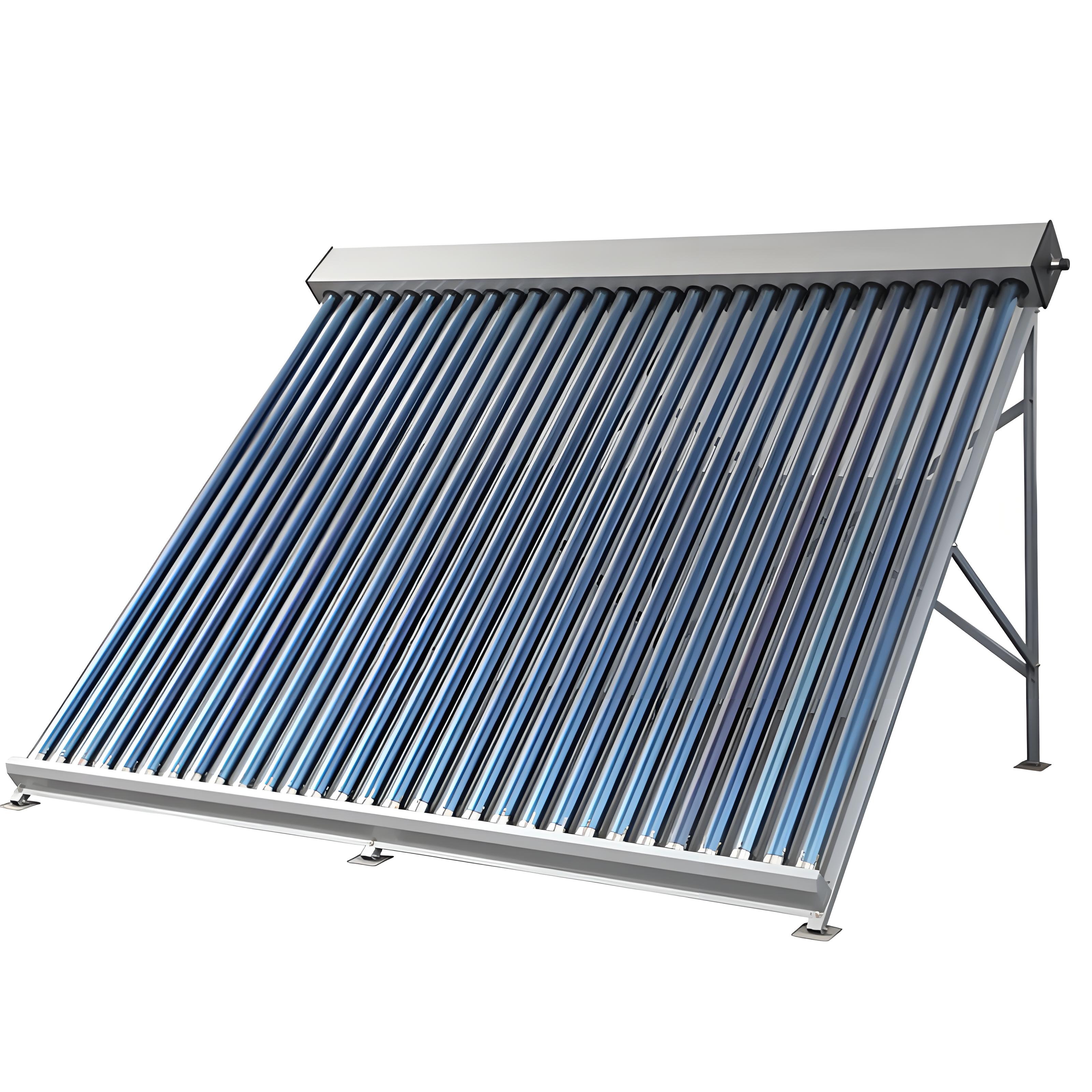

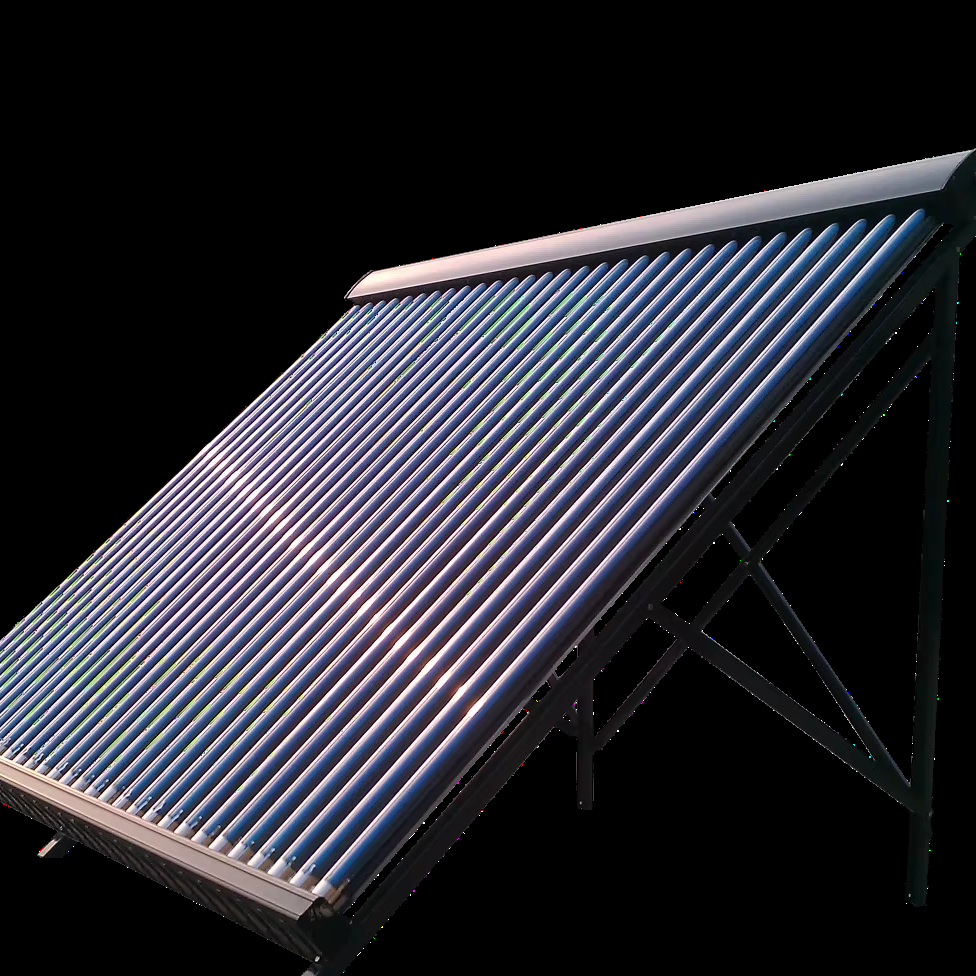

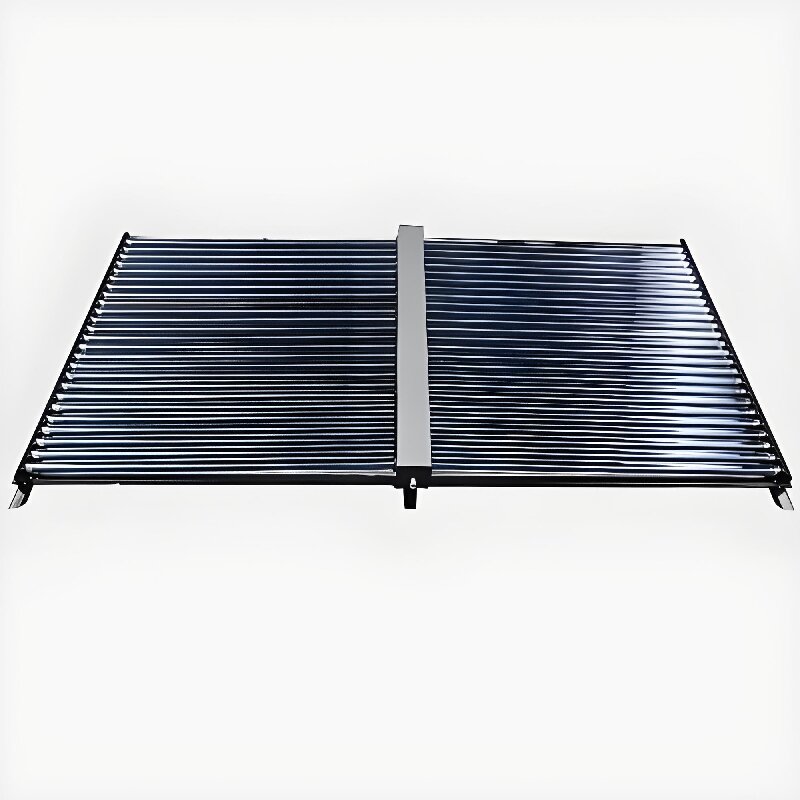

Non-Pressurized Solar Collector
1. Vacuum tube: High Borosilicate Glass 3.3, Φ58×1800mm
2. Outer shell: Color steel / stainless steel
3. Inner shell: Stainless steel ss304-2B
4. Insulation layer: Polyurethane foam
6. Support: Galvanized steel / stainless steel
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

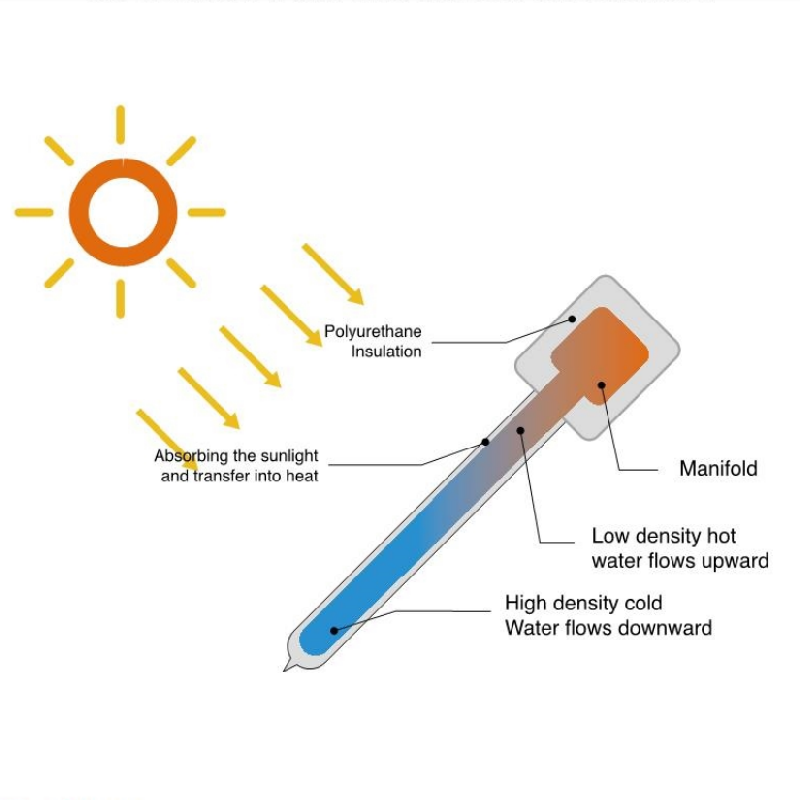

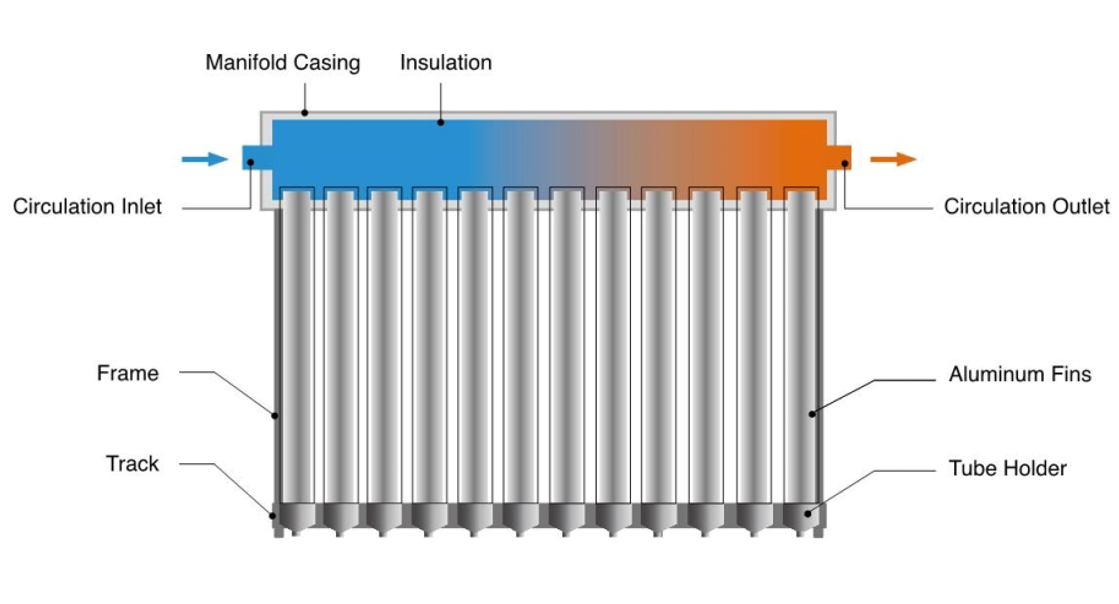

The working principle of non-pressure vacuum tube collectors is primarily based on solar thermal utilization and natural convection circulation.
Absorption Process:
Sunlight passes through the outer glass tube and strikes the selective absorption coating on the outer surface of the inner tube. The coating converts solar energy into heat, warming the water inside the inner tube.
Natural Convection Circulation:
The heated water, now at a higher temperature and lower density, rises to the water tank due to buoyancy. Meanwhile, cooler, denser water in the tank naturally sinks to the bottom of the vacuum tubes, forming a natural convection cycle that continuously heats the water in the tank.
Vacuum Insulation:
The vacuum layer effectively blocks heat conduction and convection, minimizing heat loss and improving solar collection efficiency.
Main features
The characteristic:
1.Unpressurized, can be used for natural circulation system, large collector area,easy to assemble and install.
2.Polyurethane insulation, high pressure foaming process, small heat conductivity coefficient, not easy toloss heat.
3. High efficient all glass vacuum tube, high collect thermal efficiency, high heat preservation efficiency.
4. Available in 15, 20, 25, 30, 50 and 60 tubes model, flexible combination, meeting customers' different requirement.
5. Environmentally friendly, small investment with big payback.
6. Low maintenance.
Specifications
Non-pressure solar collector specification:
1. Vacuum tube: High Borosilicate Glass 3.3, Φ58×1800mm
2. Outer shell: Color steel / stainless steel
3. Inner shell: Stainless steel ss304-2B
4. Insulation layer: Polyurethane foam
5. Support: Galvanized steel / stainless steel
| Model | Vacuum Tube | Insulation Material/Thickness |
Collector Area (m²) |
40HQ (MOQ) |
||
| QTY(pcs) | Dia./Len.(mm) | Material | ||||
| DM-NPSC-15 | 15 | ø58/1800 | High Borosilicate Glass 3.3 | Polyurethane / 40 | 1.4 | 292 |
| DM-NPSC-20 | 20 | 1.9 | 250 | |||
| DM-NPSC-25 | 25 | 2.4 | 208 | |||
| DM-NPSC-30 | 30 | 2.9 | 165 | |||
| DM-NPSC-50 | 50 | 4.8 | 125 | |||
| DM-NPSC-60 | 60 | 5.8 | 100 | |||

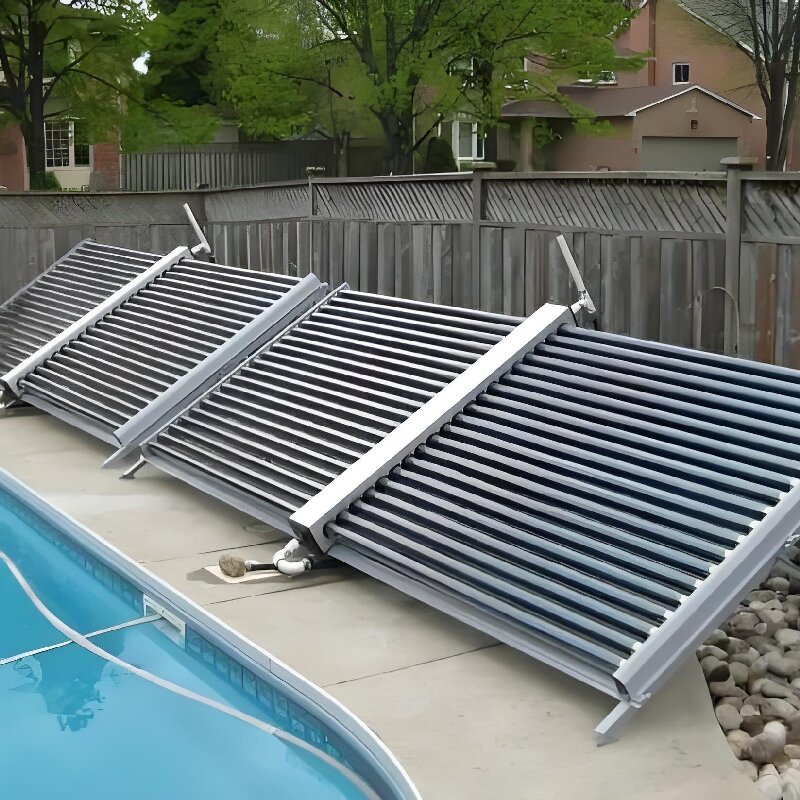

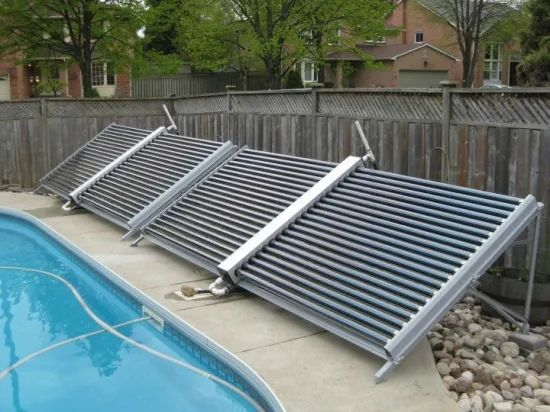

Non-pressure solar collector application:

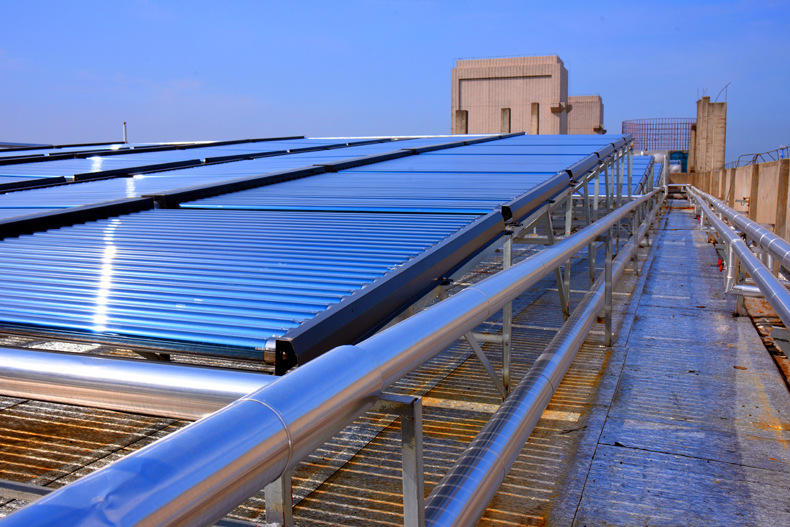

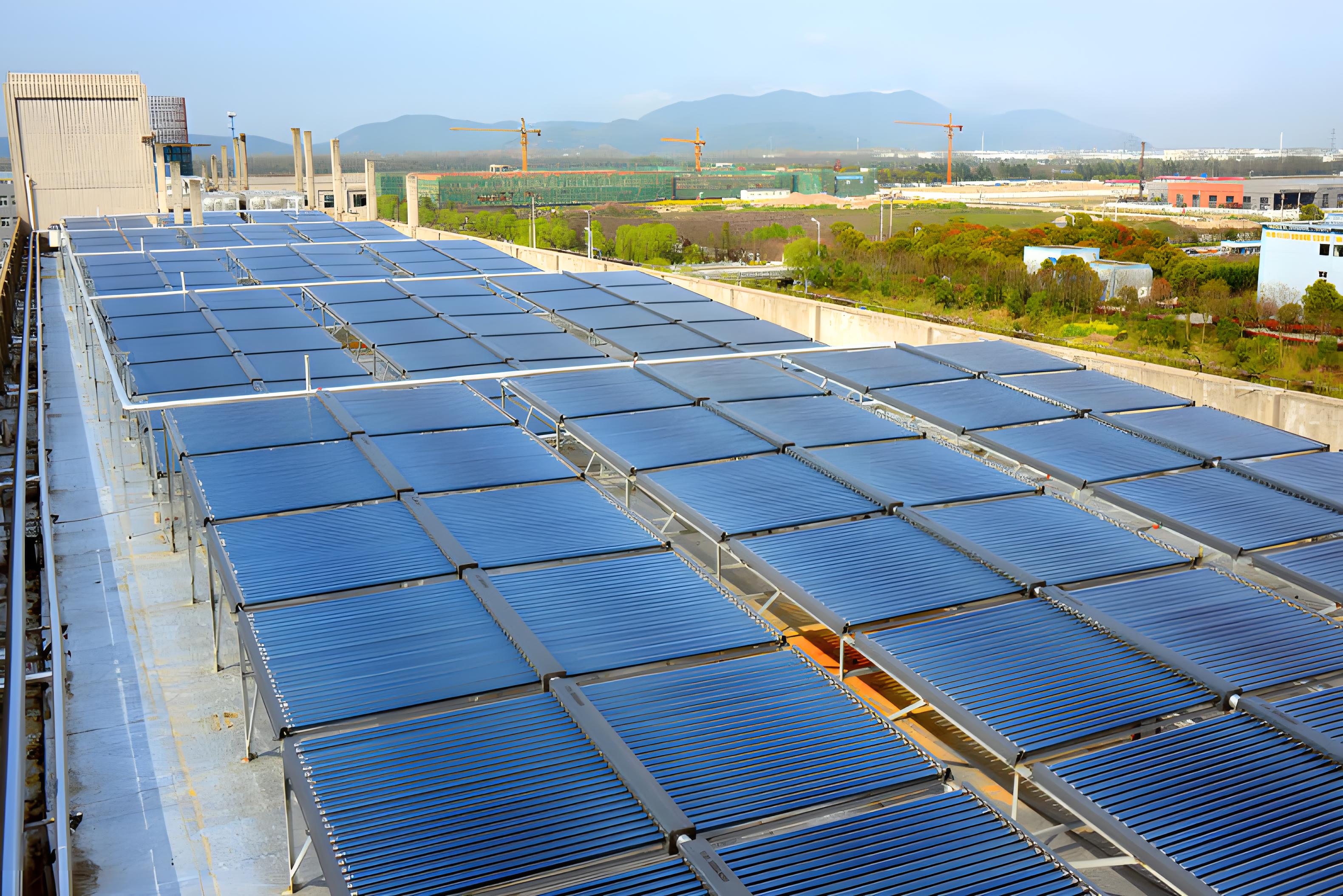

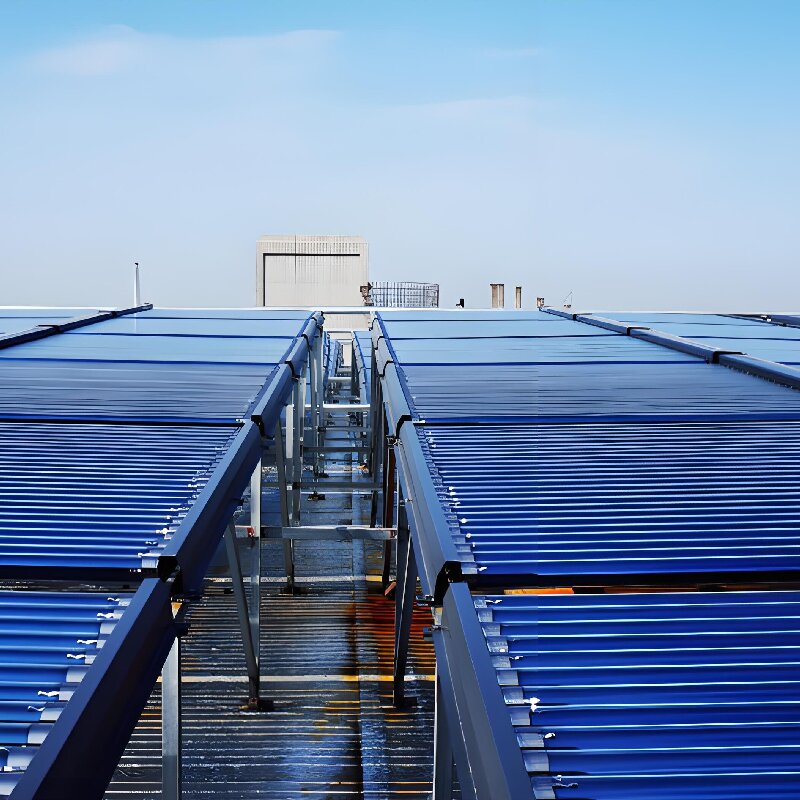

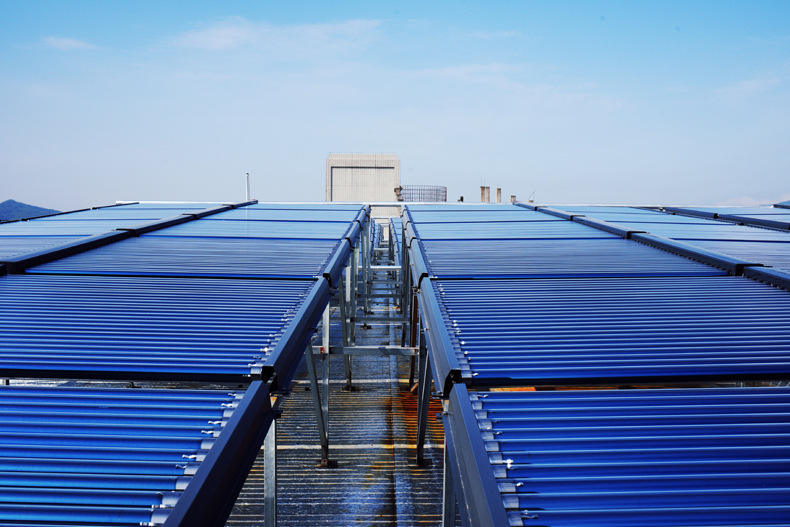

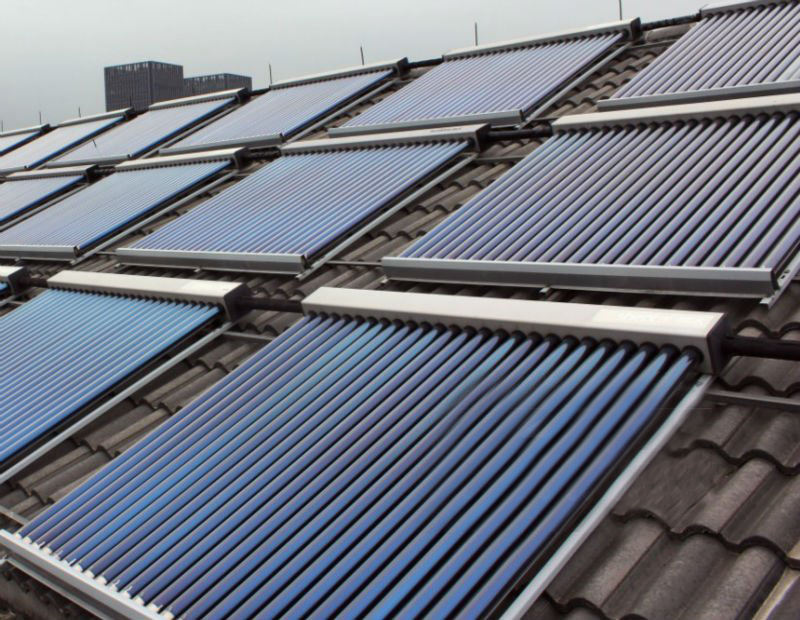

1) Designed for commercial buildings, Suitable for schools, dormitories, hotel, bath center, factory and other public construction.
2)Hot climate area: all year round operation.
Cold climate area: seasonal operation, for example April-October month use.
