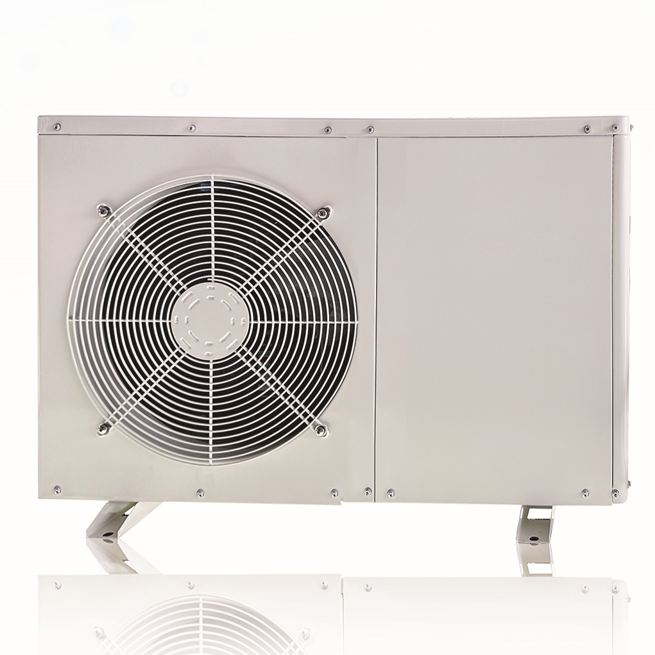

Household Water Circulation Heat Pump
The main unit has a built-in water pump circulation system, no need for heating, safe and convenient. The main unit can be directly connected to the customer's water tank, and it can be used by simply connecting the power supply. It can be installed by anyone familiar with plumbing.
- Introduction
- Recommended
Product Introduction
The main unit has a built-in water pump circulation system, no need for heating, safe and convenient. The main unit can be directly connected to the customer's water tank, and it can be used by simply connecting the power supply. It can be installed by anyone familiar with plumbing.
| R410A Water Circulation Heat Pump Water Heaters | ||||
| Model | JDLKF80X-PS3 | JDLKF110X-PS3 | JDLKF150X-PS3 | JDLKF180X-PS3 |
| Working Temp. | -7°C~43°C | -7°C~43°C | -7°C~43°C | -7°C~43°C |
| Power supply | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz |
| Rated heating Capacity(KW) | 3.5 | 5 | 7 | 9 |
| Rated input power(KW) | 0.85 | 1.21 | 1.65 | 2.19 |
| Rated Working Current（A） | 4.1 | 5.8 | 8 | 9.5 |
| Maximum input power(KW) | 1.3 | 1.8 | 2.6 | 3.1 |
| Maximum working current(A) | 6.5 | 8.6 | 12.5 | 15.5 |
| COP | 4.12 | 4.13 | 4.24 | 4.11 |
| Maximum water temperature | 60°C | 60°C | 60°C | 60°C |
| Hot Water yield(L/H) | 75 | 107 | 150 | 193 |
| Circulating pipe diameter | DN20 | DN20 | DN20 | DN20 |
| Rated circulating water flow(m³/h） | 0.7 | 0.9 | 1.2 | 1.5 |
| Water Pressure loss | 35 | 40 | 50 | 50 |
| Compressor | 5PS108EAA22 | 5PS146EAA21 | 5KS205EAB21 | 5VS270EAA21 |
| Water pump | Shinhoo | |||
| Noise | ≤53dB(A) | ≤53dB(A) | ≤55dB(A) | ≤55dB(A) |
| Refrigerant R410A capacity(kg) | 0.6 | 0.7 | 0.8 | 1.05 |
| Weight (kg) | 43 | 45 | 55 | 60 |
| Net Dimension(L*W*H)host/tank | 930*280*550 | 930*280*550 | 930*280*590 | 980*280*590 |
| Testing condition: 1、Heating: Ambient temp .(DB/WB):20°C/15℃, water temp.(input/output):15℃/55℃ 2、 Due to product improvement, the parameters in the table are subject to be changed without prior notice | ||||
