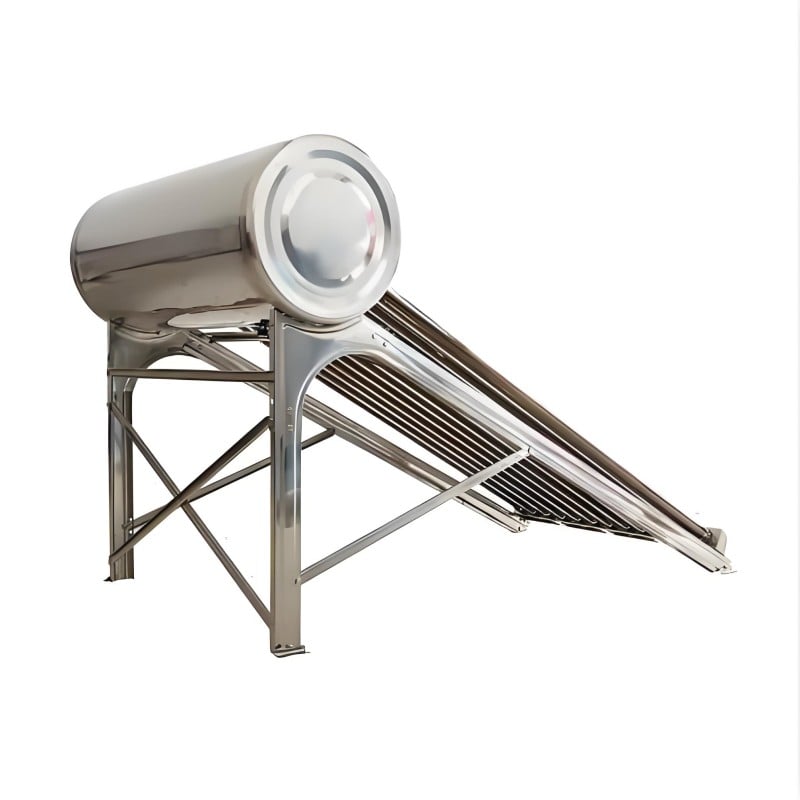

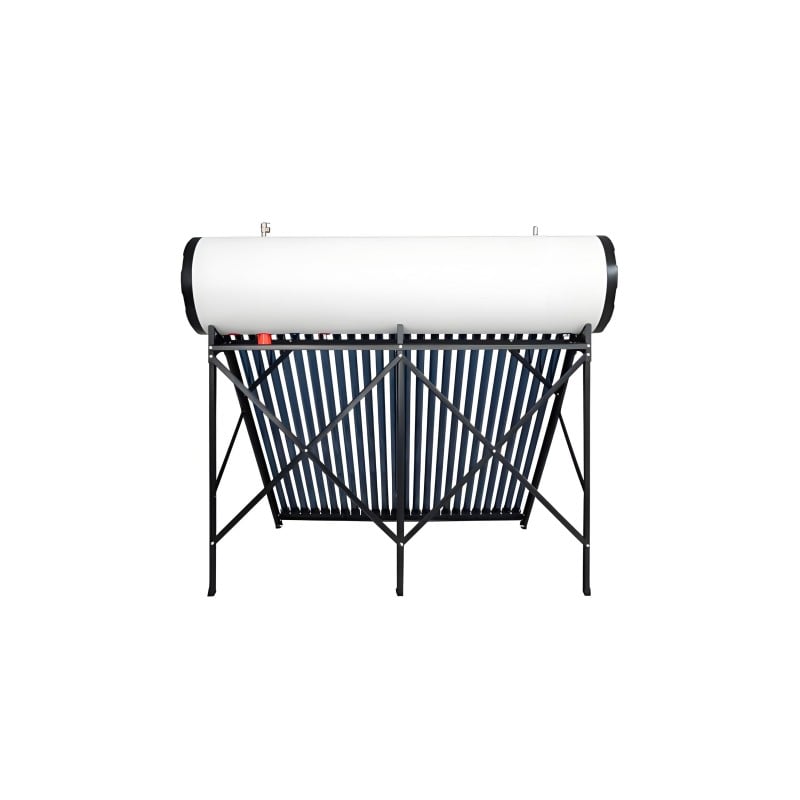

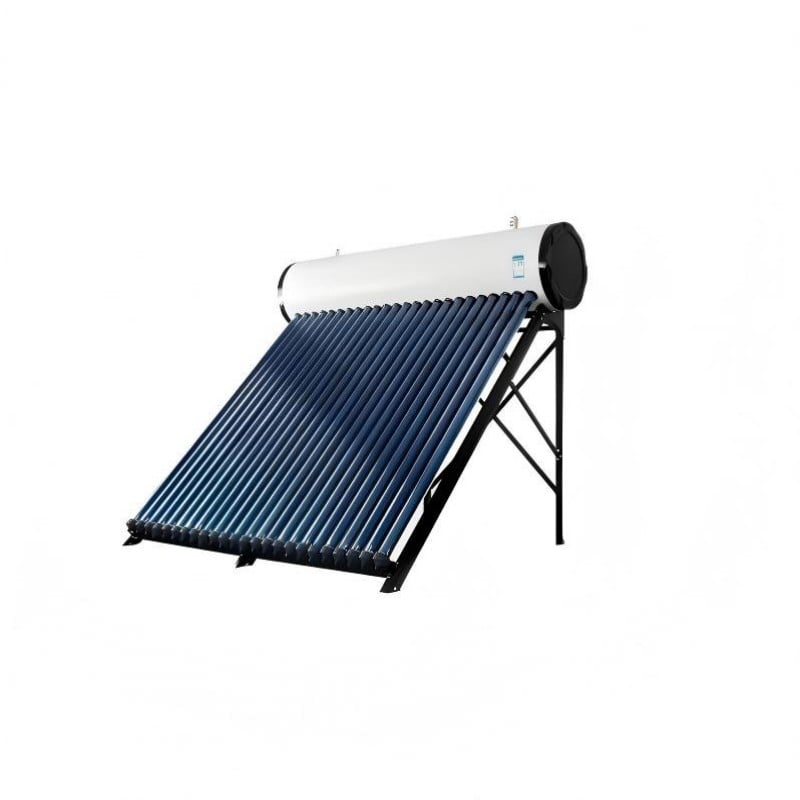

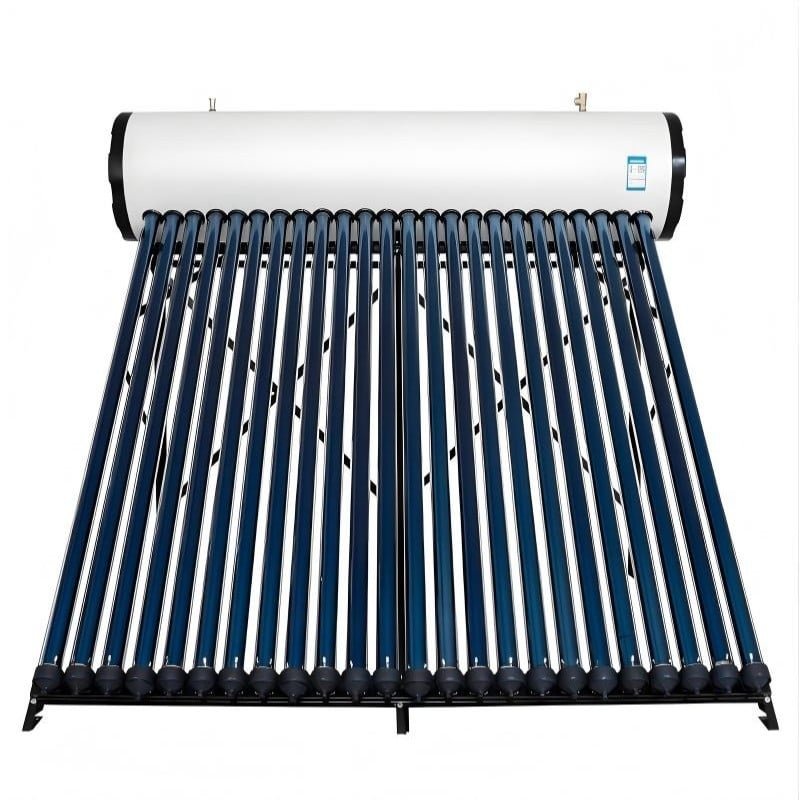

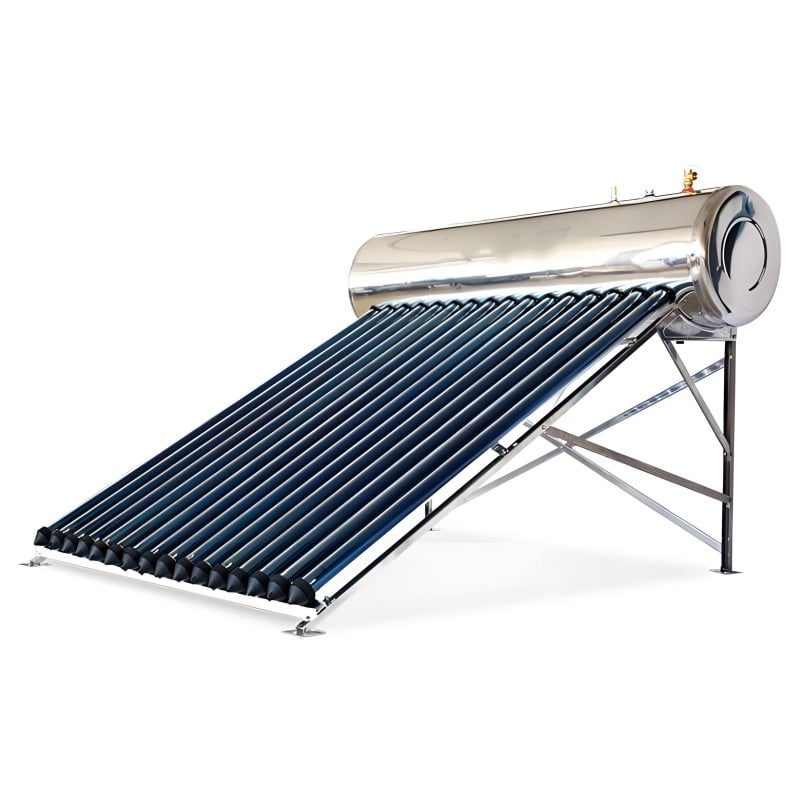

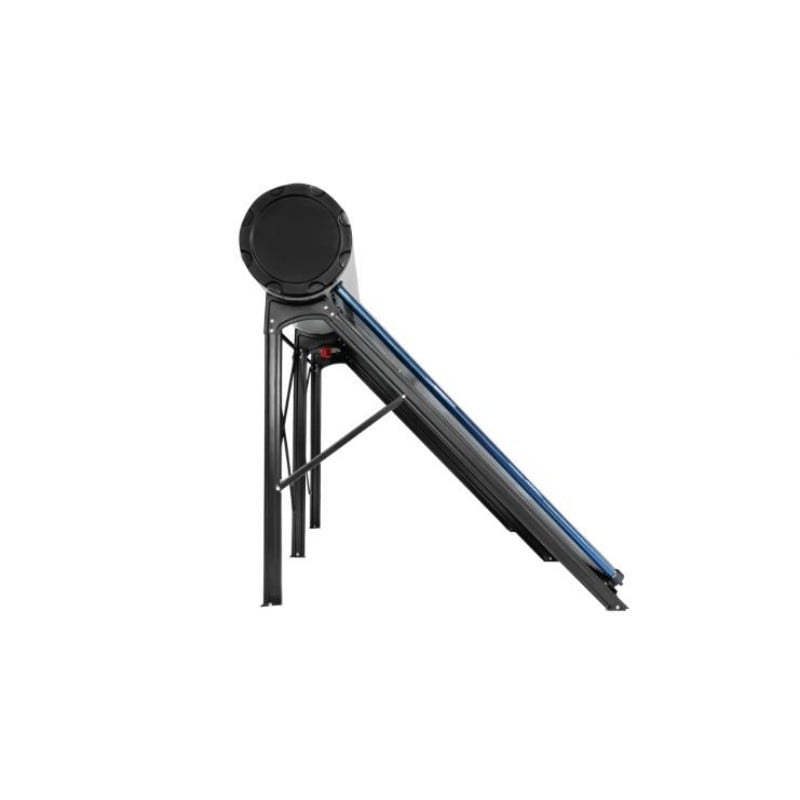

Heat Pipe Pressurized Solar Water Heater
Material: Borosilicate glass 3.3
Size (Diameter x Length): Φ58mm×1800mm
Inner Tank Material: Food-grade SUS304-2B /SUS316L stainless steel
Outer Tank Material(Optional): Color steel / Stainless steel/ PVDF
- Introduction
- Main features
- Specifications
- Accessories
- Recommended
Product Introduction

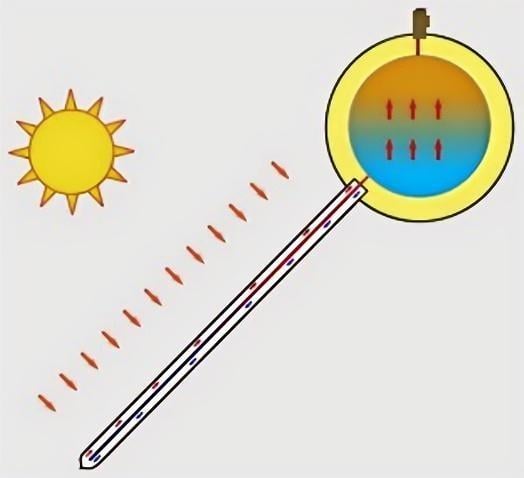

The heat pipe solar collector always connected with existing water heating device. The selective absorber coating on the inner cover of vacuum tubes absorb solar energy, then convert solar energy into thermal energy and transfer thermal energy to heat pipe by aluminum fin. The heated liquid inside heat pipe change into vapor which rises to the top condenser, then thermal energy heat transfer liquid pass through heat exchanger and the cooled vapor becomes liquid, returning to the base of heat pipe.
The thermal energy conducts to transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.
Main features
Specifications
| Model | Absorbing Area (m²) | Vacuum tube (Heat Pipe) | Tank Capacity | Loading Qty (sets) | |||
| Diameter (mm) | Length (mm) | NO: (pcs) | (Liter) | 40HQ | 20GP | ||
| DM-CPT100 | 0.8 | 58 | 1800 | 10 | 100 | 178 | 70 |
| DM-CPT120 | 0.96 | 58 | 1800 | 12 | 120 | 158 | 62 |
| DM-CPT150 | 1.2 | 58 | 1800 | 15 | 150 | 128 | 51 |
| DM-CPT200 | 1.6 | 58 | 1800 | 20 | 200 | 98 | 39 |
| DM-CPT240 | 1.92 | 58 | 1800 | 24 | 240 | 80 | 32 |
| DM-CPT300 | 2.4 | 58 | 1800 | 30 | 300 | 68 | 27 |
| Category/Item | Details |
|---|---|
| 1. Solar Vacuum Tube | |
| - Material | Borosilicate glass 3.3 |
| - Size (Diameter × Length) | Φ58mm × 1800mm |
| - Absorption Coating | ALN/AlN-SS/Cu selective absorption coating |
| - Absorptance (α) | 0.93-0.96 (AM1.5) |
| - Emissivity (Σ) | 0.04-0.06 (80℃±5℃) |
| 2. Pressurized Water Tank | |
| - Inner Tank Material | Food-grade SUS304-2B / SUS316L stainless steel |
| - Outer Tank Material(Optional) | Color steel / Stainless steel/ PVDF |
| - Insulation Layer Material | High-density Polyurethane foam (High-density PU foam) |
| - Heat Retention Duration | ≥72 hours |
| - Working Pressure | ≤7bar |
| - Safety Accessories | T/P safety valve (prevents overpressure and overtemperature), magnesium rod (prevents scale buildup) |
| 3. Support Frame | |
| - Material (Optional) | Galvanized steel / Aluminum alloy / Stainless steel |
| - Functional Features | Rust-proof, suitable for outdoor installation |
| Low-temperature Resistance | Normal operation at -50℃ |
| Service Life | ≥15 years |
| Core Application Scenarios | 1. Residential: Family showers, daily hot water supply 2. Small commercial: Convenience stores, small hotels 3. Priority adaptation: Areas requiring stable high-pressure hot water and low-temperature adaptability |
Accessories

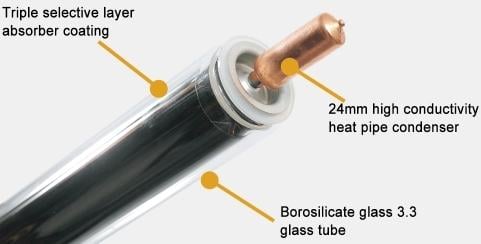

Vacuum Tube: Borosilicate glass 3.3 (high temp resistance, low thermal expansion), Φ58mm×1800mm. ALN/AIN-SS/Cu selective absorption coating (α=0.93-0.96, Σ=0.04-0.06). Equipped with 14-1700mm red copper heat pipe + aluminum heat-conducting fins for rapid heat transfer.

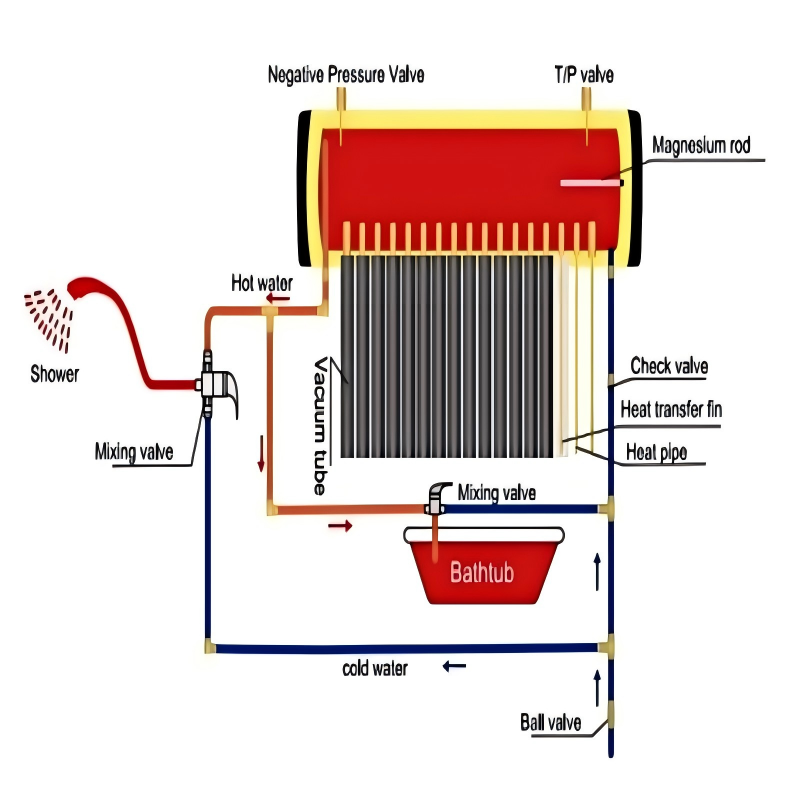

Pressurized Water Tank:
Inner tank: food-grade SUS304-2B/SUS316L stainless steel (corrosion-resistant, water quality guaranteed).
Inner tank: food-grade SUS304-2B/SUS316L stainless steel (corrosion-resistant, water quality guaranteed).
Outer tank: optional color steel/stainless steel/PVDF (outdoor aging-resistant). High-density PU insulation layer (heat loss reduction, insulation ≥72h). Working pressure ≤7bar, with T/P safety valve (overpressure/overtemp prevention) and magnesium rod (scale prevention).
Support: Galvanized steel/aluminum alloy/stainless steel (rust-proof, suitable for outdoor installation).
