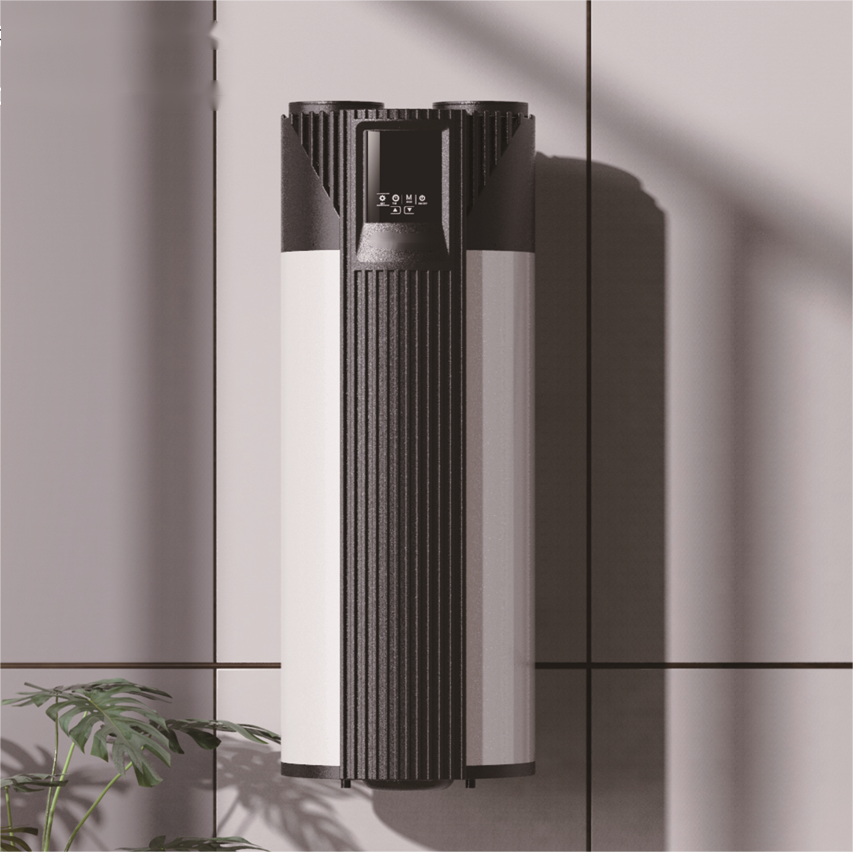

R290“Stella” Wall-Mounted All-in-One Heat Pump
The specification are based on the folowing conditions: DB/WB 20°C/15℃, Water temperature from 15°C to 55℃, Appicable ambient temperalure -7-43°C
- Introduction
- Recommended
Product Introduction
| R290“Stella” Wall-Mounted All-in-One Heat Pump | ||||
| Model | JHR09-85LD/YT/B | JHR09-100LD/YT/B | JHR09-120LD/YT/B | JHR09-150LD/YT/B |
| Product Dimensions | φ470*1270mm | φ470*1455mm | φ470*1640mm | φ470*1920mm |
| Power supply | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz |
| Tank volume | 85L | 100L | 120L | 150L |
| Heating capacity | 930W | 930W | 930W | 930W |
| Rated input power | 215W | 215W | 215W | 215W |
| Auxiliary electric heating | 1500W | 1500W | 1500W | 1500W |
| Maximum input power (include electric heating) |
1875W | 1875W | 1875W | 1875W |
| Maximum current | 8.8A | 8.8A | 8.8A | 8.8A |
| COP | 4.33 | 4.33 | 4.33 | 4.33 |
| Refrigerant | R290 | R290 | R290 | R290 |
| Compressor | HIGHLY | HIGHLY | HIGHLY | HIGHLY |
| Four-way valve | DSF-3 | DSF-3 | DSF-3 | DSF-3 |
| Throttling device | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve | Electronic expansion valve |
| Evaporator | Hydrophilic aluminum foil and copper pipe |
Hydrophilic aluminum foil and copper pipe |
Hydrophilic aluminum foil and copper pipe |
Hydrophilic aluminum foil and copper pipe |
| Fan Motor | RD45HK2 | RD45HK2 | RD45HK2 | RD45HK2 |
| Fan | φ190 | φ190 | φ190 | φ190 |
| Wire controller | Digital screen， touch buttons | Digital screen， touch buttons | Digital screen， touch buttons | Digital screen， touch buttons |
| High/low pressure switch | 3.2~2.6/0.02-0.1 Mpa | 3.2~2.6/0.02-0.1 Mpa | 3.2~2.6/0.02-0.1 Mpa | 3.2~2.6/0.02-0.1 Mpa |
| Power cord specifications | 3m*1.5mm² | 3m*1.5mm² | 3m*1.5mm² | 3m*1.5mm² |
| Heating rate | 20L/h | 20L/h | 20L/h | 20L/h |
| Max. outlet water temperature | 75°C | 75°C | 75°C | 75°C |
| Max. outlet water temperature (heat pump mode) |
65°C | 65°C | 65°C | 65°C |
| Rated outlet water temp. | 55°C | 55°C | 55°C | 55°C |
| Ambient temp. | -7~43°C | -7~43°C | -7~43°C | -7~43°C |
| Waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
| Sound Power level | ≤50dB(A) | ≤50dB(A) | ≤50dB(A) | ≤50dB(A) |
| Housing Material | Powder coated galvanized steel | Powder coated galvanized steel | Powder coated galvanized steel | Powder coated galvanized steel |
| Water tank | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Water connection size | G1/2" | G1/2" | G1/2" | G1/2" |
| Heat excharger type | Microchannel heat exchanger | Microchannel heat exchanger | Microchannel heat exchanger | Microchannel heat exchanger |
| Built-in pressure protection | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa |
| Accessory Bag | one G1/2 relief valve/Manuals | one G1/2 relief valve/Manuals | one G1/2 relief valve/Manuals | one G1/2 relief valve/Manuals |
| Packing Dimensions(L*W*H) (carton and pallet) |
540*540*(1300+95)mm | 540*540*(1485+95)mm | 540*540*(1675+95)mm | 540*540*(1955+95)mm |
| Net Weight | 57kg | 61kg | 67kg | 76kg |
| Operating ambient temp. | -7~43°C | -7~43°C | -7~43°C | -7~43°C |
| Notice: 1.The specification are based on the folowing conditions: DB/WB 20°C/15℃, Water temperature from 15°C to 55℃, Appicable ambient temperalure -7-43°C 2.The data above is for reference only. The specific parameters are subject to product nameplate. | ||||
