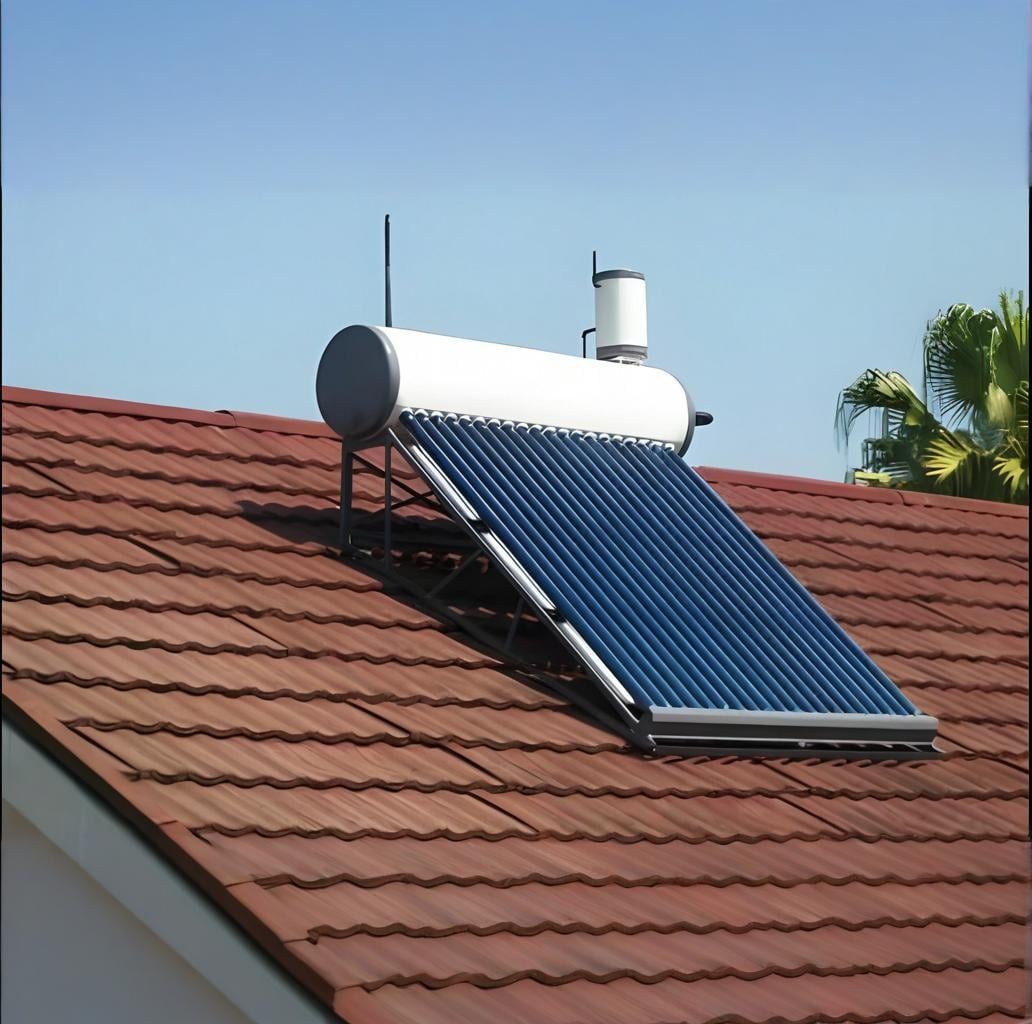

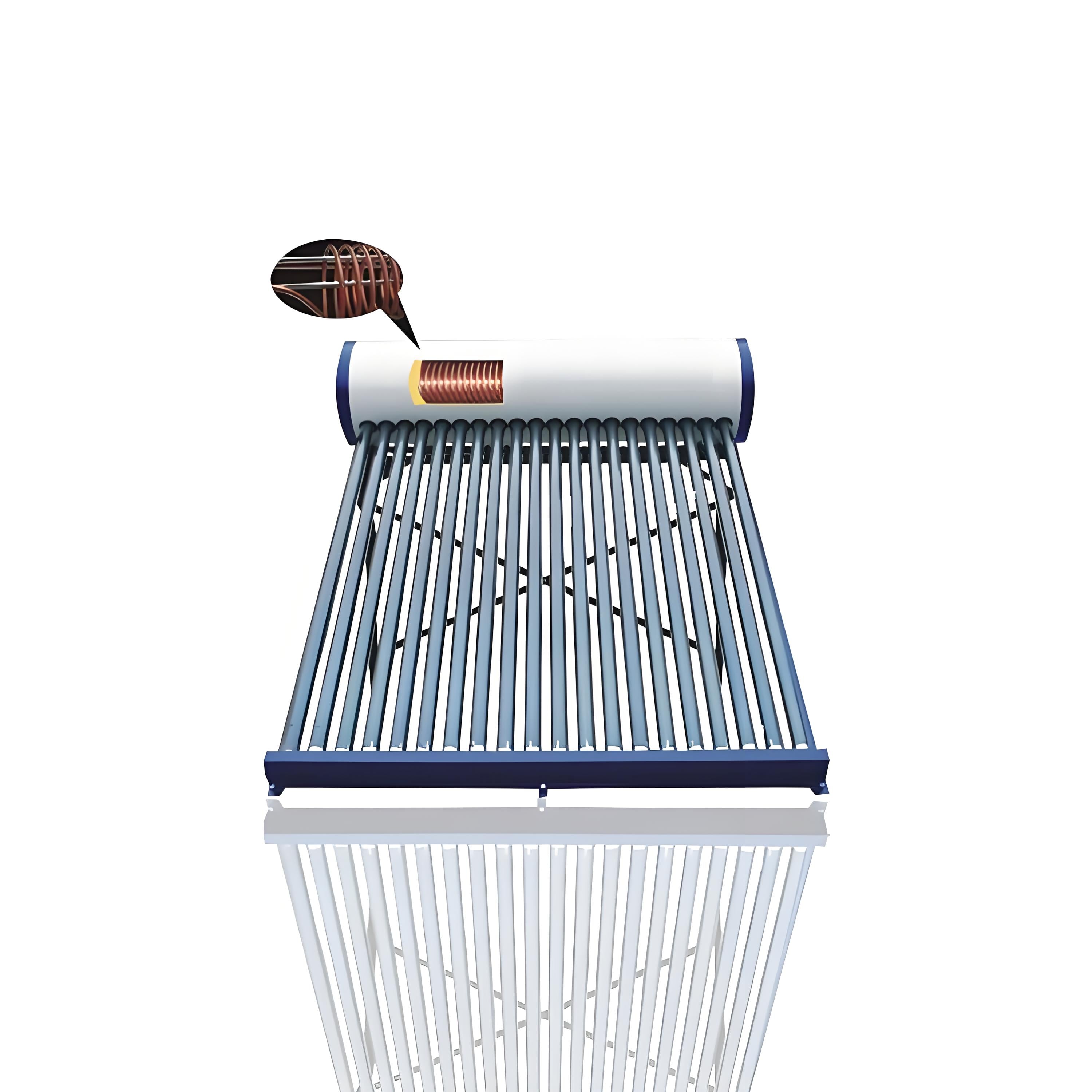

Vacuum Tube Pre-Heated Solar Water Heater
Inner tank: SUS304-2B stainless steel
Out tank: Stainless steel /Color steel
Insulation: PU foam (high pressure foaming)
Vacuum tube: Borosilicate glass 3.3 ø58-1800mm, ALN/AIN-SS/CU coating
Support Frame: galvanized steel /aluminum alloy / stainless steel
- Introduction
- Main features
- Specifications
- Accessories
- Recommended
Product Introduction

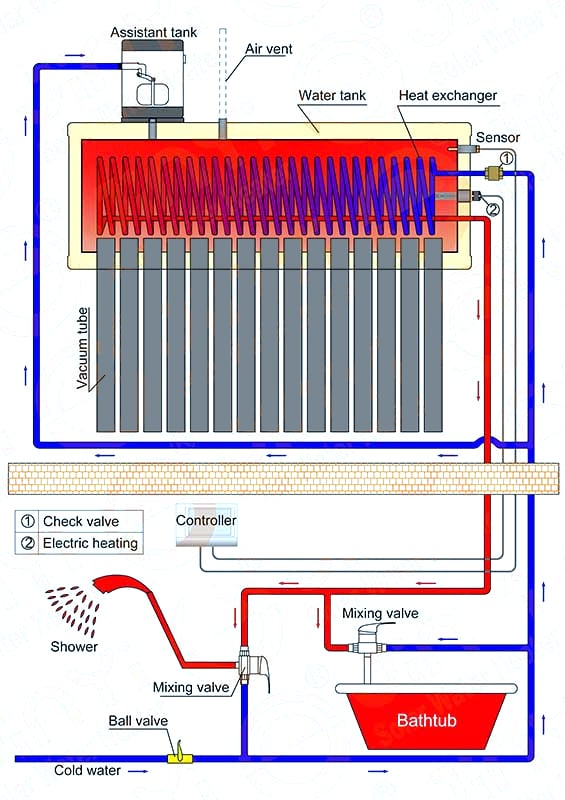

The working principle of preheating solar water heaters is primarily based on solar collectors absorbing solar radiation energy, transferring heat to water through heat exchange, and utilizing natural circulation or forced circulation to achieve continuous hot water supply.
Demax Solar offers a range of high quality tanks designed especially for "Pre-heating". These tanks can be used in combination with existing electric/gas mains pressure water heaters, or even as stand alone low pressure hot water systems with the addition of electric elements or external gas boosting.
Ideal for use as low pressure thermal stores, the pre-heating solar hot water heater is available with the addition internal coil heat exchanger.
Main features
The features of Vacuum Tube Pre-Heated Solar Water Heater:
Fresh hot water: the hot water are aways fresh. do not use the storage water.
Pressurized System: water flows out with pressure
Pressure endurance: Heat exchange coil can withstand 6-12 bar.
Pre-heated system can supply instant hot water: overcome the disadvantage of traditional system, such as slow heating, long time waiting.
High Efficiency: high efficient solar vacuum tube
More affordable: Compare to heat pipe pressure system, it has a more affordable price.
Eco-Friendly: renewable solar energy to heat water
Specifications
Inner tank: SUS304-2B stainless steel
Out tank: Stainless steel /Color steel
Insulation: PU foam (high pressure foaming)
Vacuum tube: Borosilicate glass 3.3 ø58-1800mm, ALN/AIN-SS/CU coating
Support Frame: galvanized steel /aluminum alloy / stainless steel
Heat exchanger: stainless steel flexible pipe / copper pipe
Assistant tank: 5L/8L/20L
Capacity: 150-300 Liters are available
| Model |
Absorbing Area (m²) |
Vacuum Tube |
Tank Capacity （Liter） |
40HQ (MOQ) |
||
|
Diameter (mm) |
Length (mm) |
No. （pcs） |
||||
| DM-PHP120 | 0.96 | 58 | 1800 | 12 | 120 | 170 |
| DM-PHP150 | 1.2 | 58 | 1800 | 15 | 150 | 141 |
| DM-PHP180 | 1.44 | 58 | 1800 | 18 | 180 | 118 |
| DM-PHP200 | 1.6 | 58 | 1800 | 20 | 200 | 108 |
| DM-PHP240 | 1.92 | 58 | 1800 | 24 | 240 | 90 |
| DM-PHP300 | 2.4 | 58 | 1800 | 30 | 300 | 72 |
Accessories

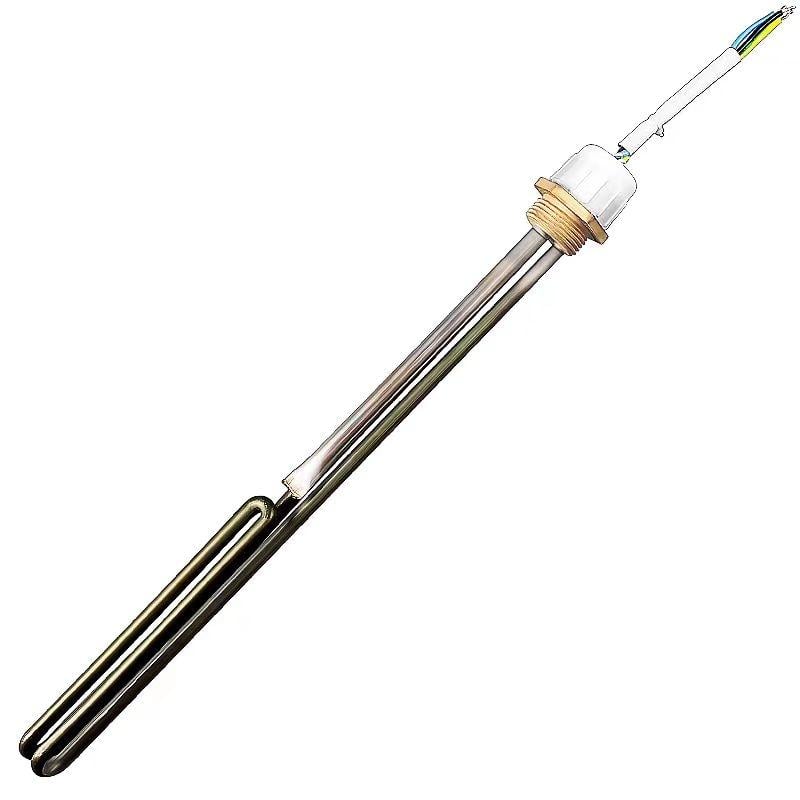

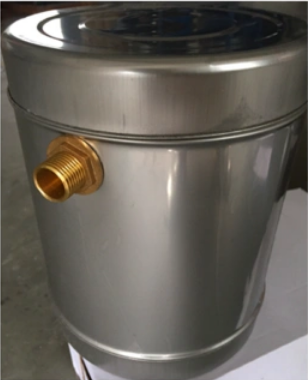

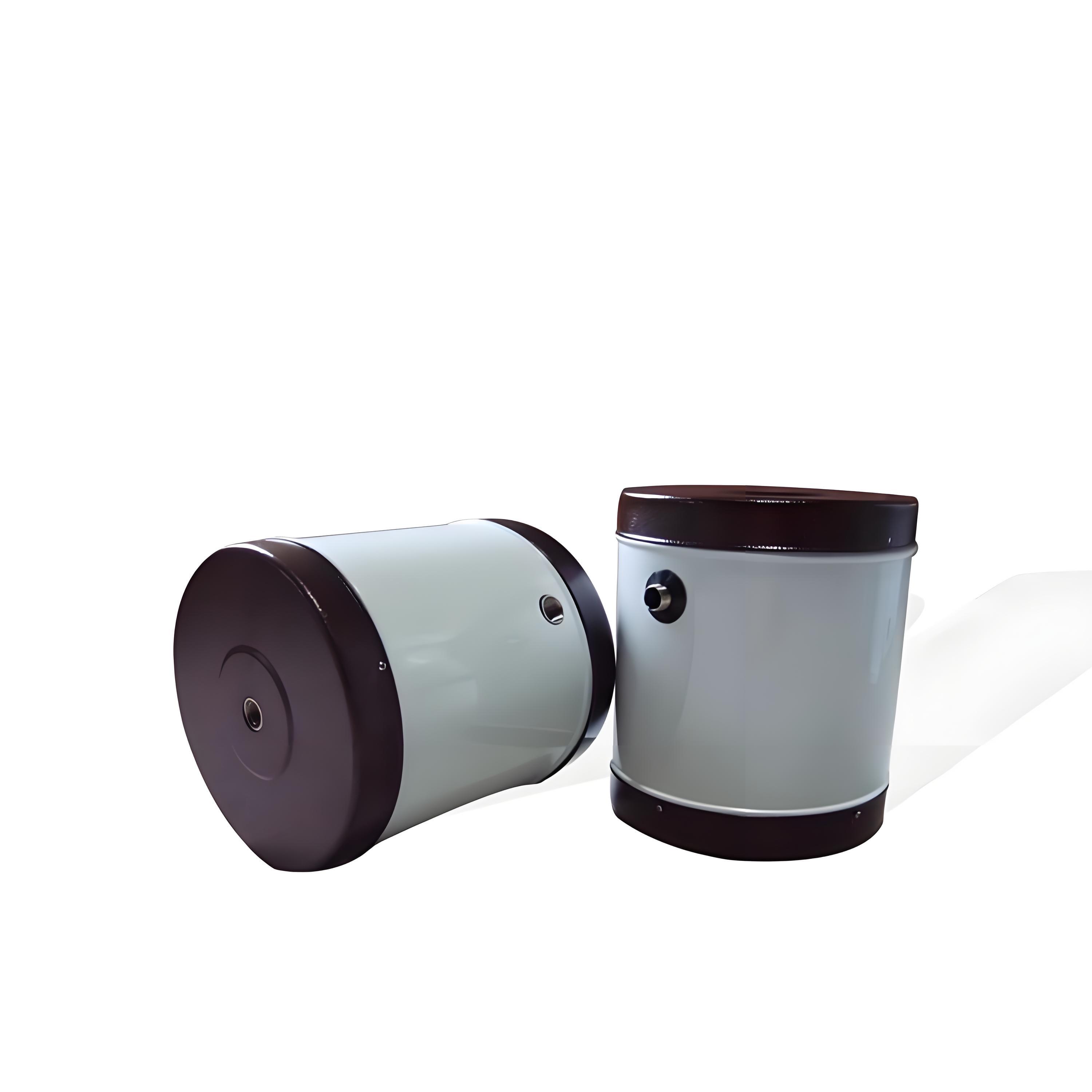

| Feeder SS | Assistant Tank | Incoloy 800/316L | Electric Heater |
 |
Capacity: 5L-20L Application: Non-pressurized solar water heater Pre-heated solar water heater |
 |
Reted Voltage: 220V Rated Power: 1500W,2500W Connection Size: 1 inch Material: Incoloy 800/316L |

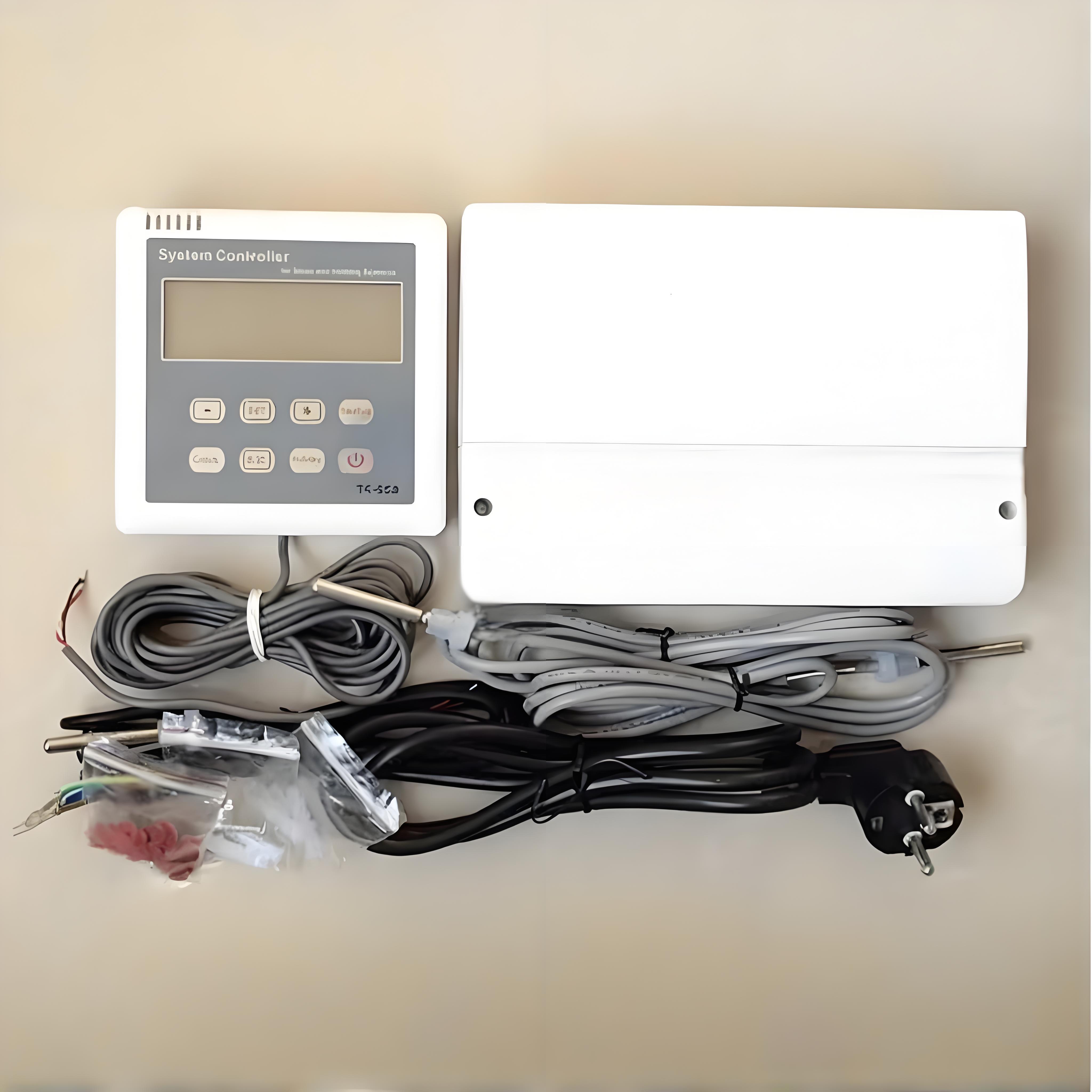

| TK-SC8 | Intelligent Controller | ||
 |
Power supply: 110V/220V Suitable power of elecirical heater, ≤ 2000W Temperature range of measurement: 0~99°C Electromagnetic valve: DC12V/AC220V， Main functions: 1. Water temperalure'water level display； 2. Water level pre-set； 3. Manual wwater loading； 4. Timing heating； Application: Non-pressurized solar water heater |
/ | / |
