Technical Data of JKC Series All In Two Solar Street Light
JKCSOLAR street light is a split-type solar street light. Its small size, unique design and ceramic technology are different from the common street lamps of the public, which meet the aesthetic needs of customers with specific needs.
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction

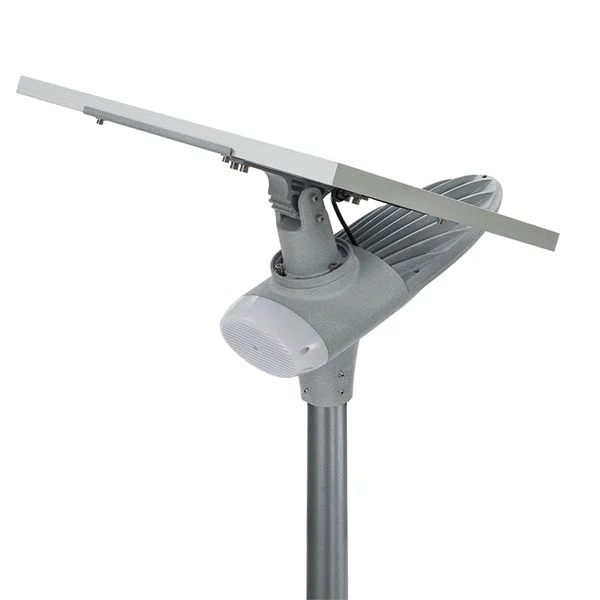

JKCSOLAR street light is a split-type solar street light. Its small size, unique design and ceramic technology are different from the common street lamps of the public, which meet the aesthetic needs of customers with specific needs.
Main features
Features:
● These China street solar led lights are with imitation-marble aluminum alloy appearance, sturdy and durable, strong corrosion resistance.
● 360° adjustable angle solar panel bracket, can be adjusted to the direction of sunlight on various roads.
● Super brightness branded Bridge Lux led chip, 210lm/w. professional optical, and transmittance rate 95%.
● Integrate microwave motion sensor + magnetic switch + smart controller in one box, with working status indicator and battery power indicator.
Specifications
| Technical Data of JKC Series All In Two Solar Street Light | ||||||
| MODEL | JKC-4000LM | JKC-5000LM | JKC-6000LM | JKC-8000LM | JKC-10000LM | JKC-12000LM |
| Color temperature | 2000-7000K(customized available) | |||||
| Material | High-end aluminum alloy+ marble matte | |||||
| Battery | 12.8V 24AH | 12.8V 36AH | 11.1V 52.8AH | 11.1V 59.4AH | 11.1V 79.2AH | 11.1V 90AH |
| Solar panel | 18V 50W | 18V 65W | 18V 80W | 18V 100W | 18V 130W | 18V 160W |
| LED | 4000LM-6000LM :Bridgelux 3030 8000LM-12000LM: Bridgelux 5050 | |||||
| Waterproof IP grade | IP65 | |||||
| Discharge time | Lighting 12 hours/day, support 5-7 rainy and cloudy days（with motion sensor） | |||||
| Charge time | 5-6 hours（bright sunshine） | |||||
| Installation diameter | 60-65mm | |||||
| Product size | 598*230*261mm | |||||
| Solar PaneL Size | 80*40*3CM | 89*40*3CM | 79*58*3CM | 88*58*3CM | 116*58*3CM | 116*76*3CM |
| All Product weight | 18.3KG | 19.5KG | 22.5KG | 23KG | 31KG | 36KG |
| Working temperature | -25℃－+65℃ | |||||
| Certificate | CE ROHS IP65 | |||||
| Warranty | 3 Years | |||||
| Remote control | Light Control + Time Control + Motion Sensor + Remote Control | |||||
