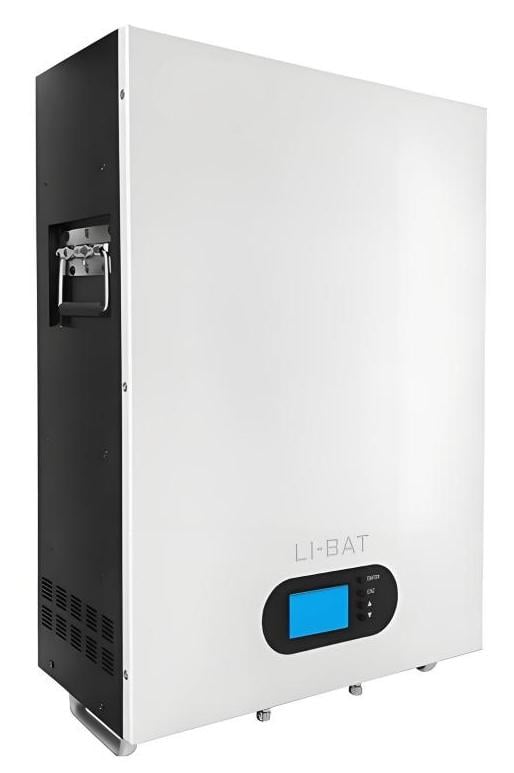

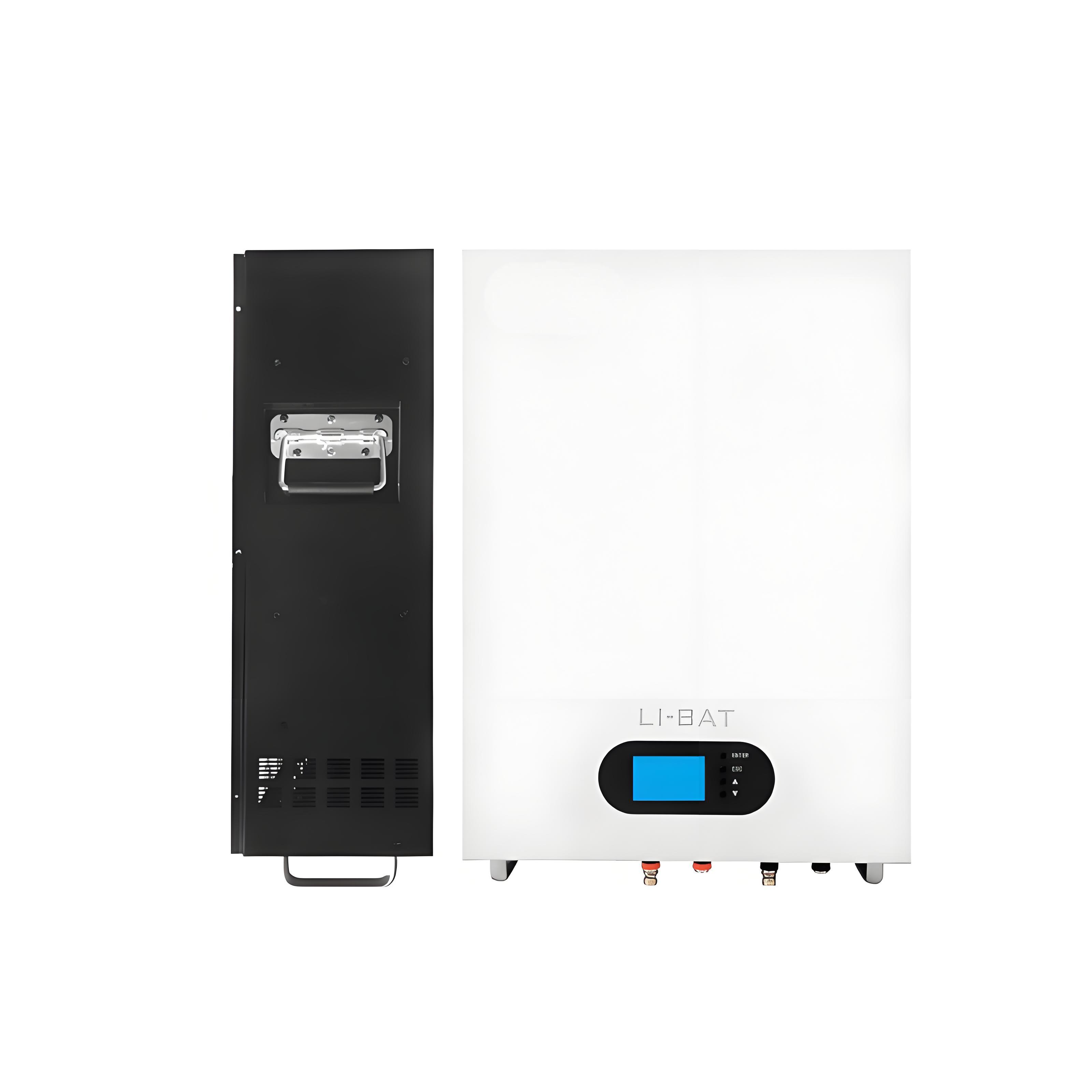

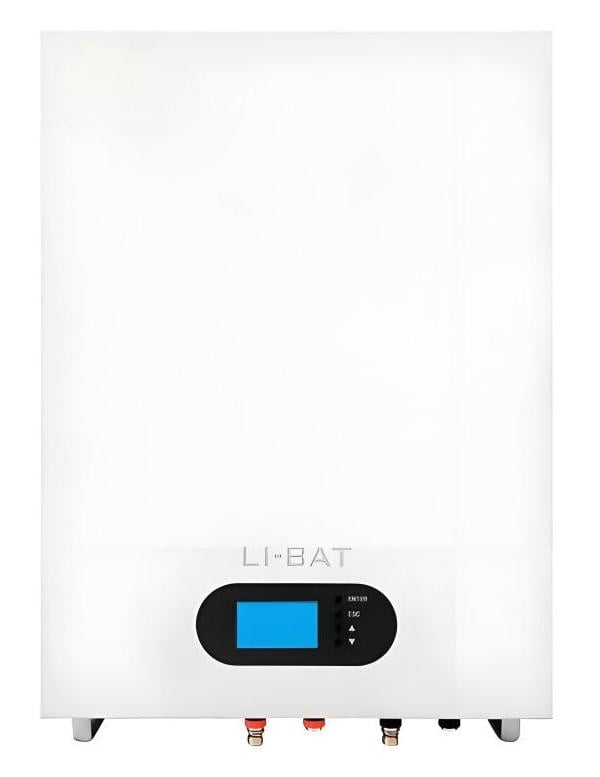

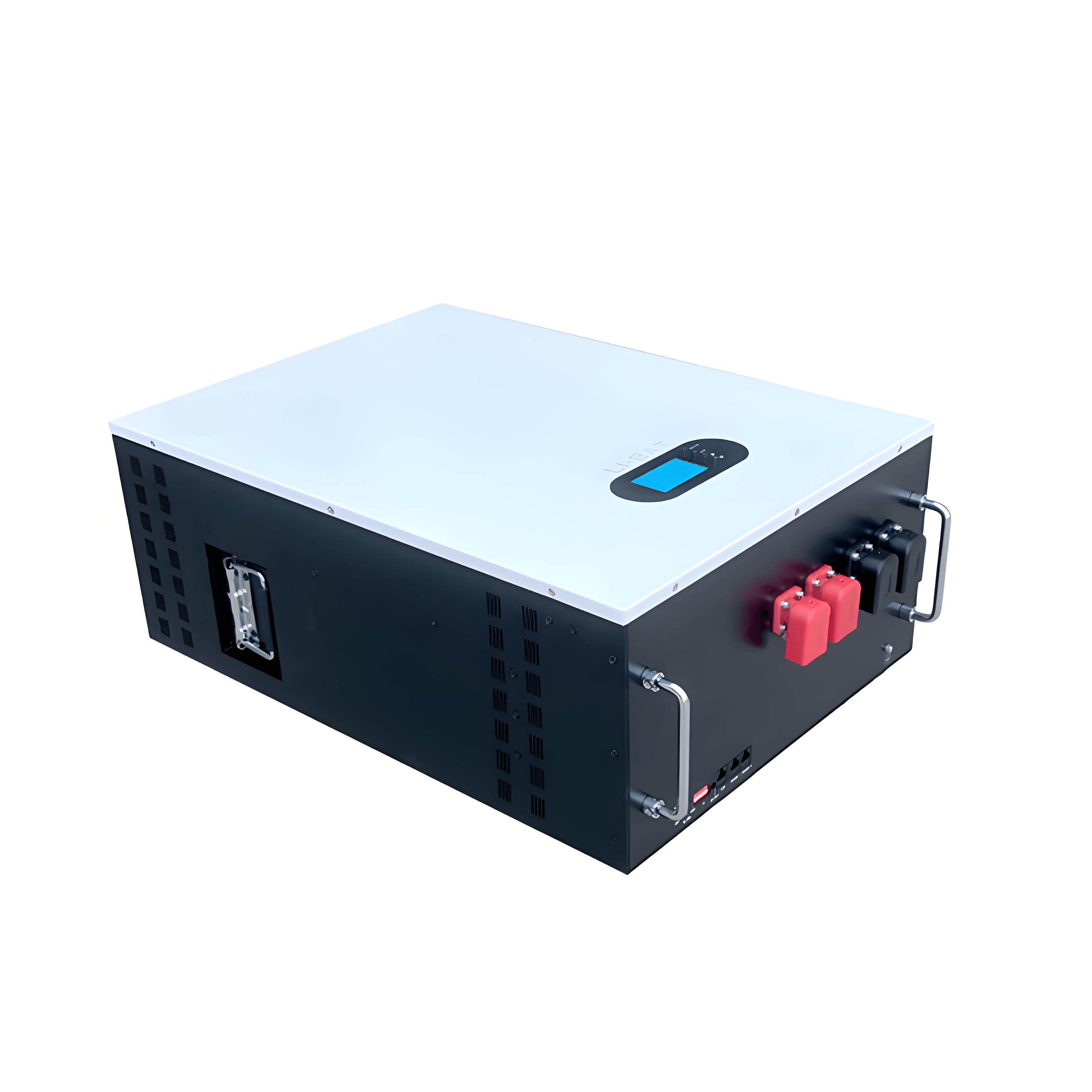

Product Introduction
Main features
• High Safety: excellent thermal stability, is less prone to thermal runaway
• Rechargeable and deep cycle:more than 5000+Times cycles

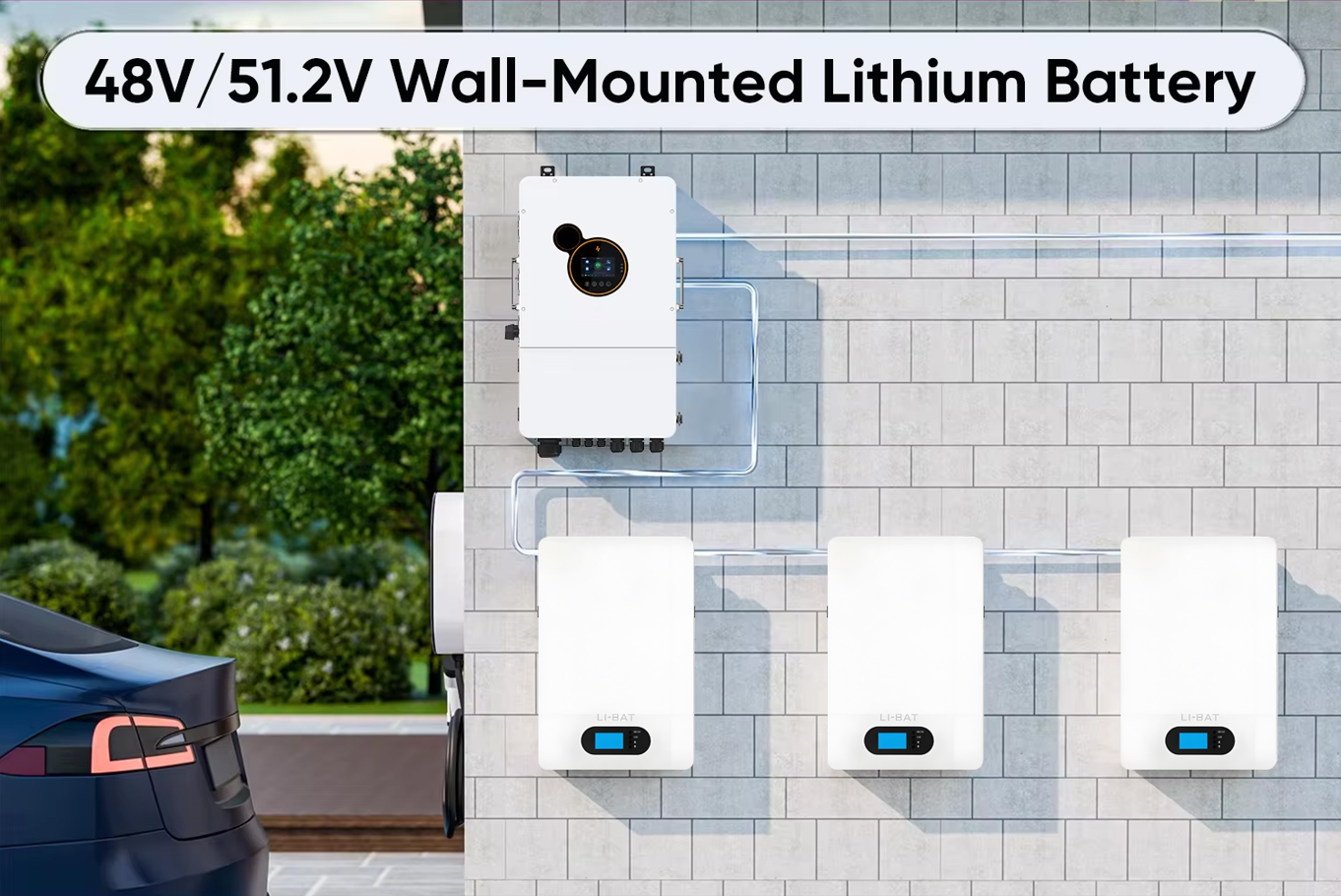

• High Space Utilization: The wall-mounted design saves floor space
• Easy to install and maintain
• Energy saving and environmental protection
• Protection level IP20
• Battery manager system build-in
• Accept OEM/ODM

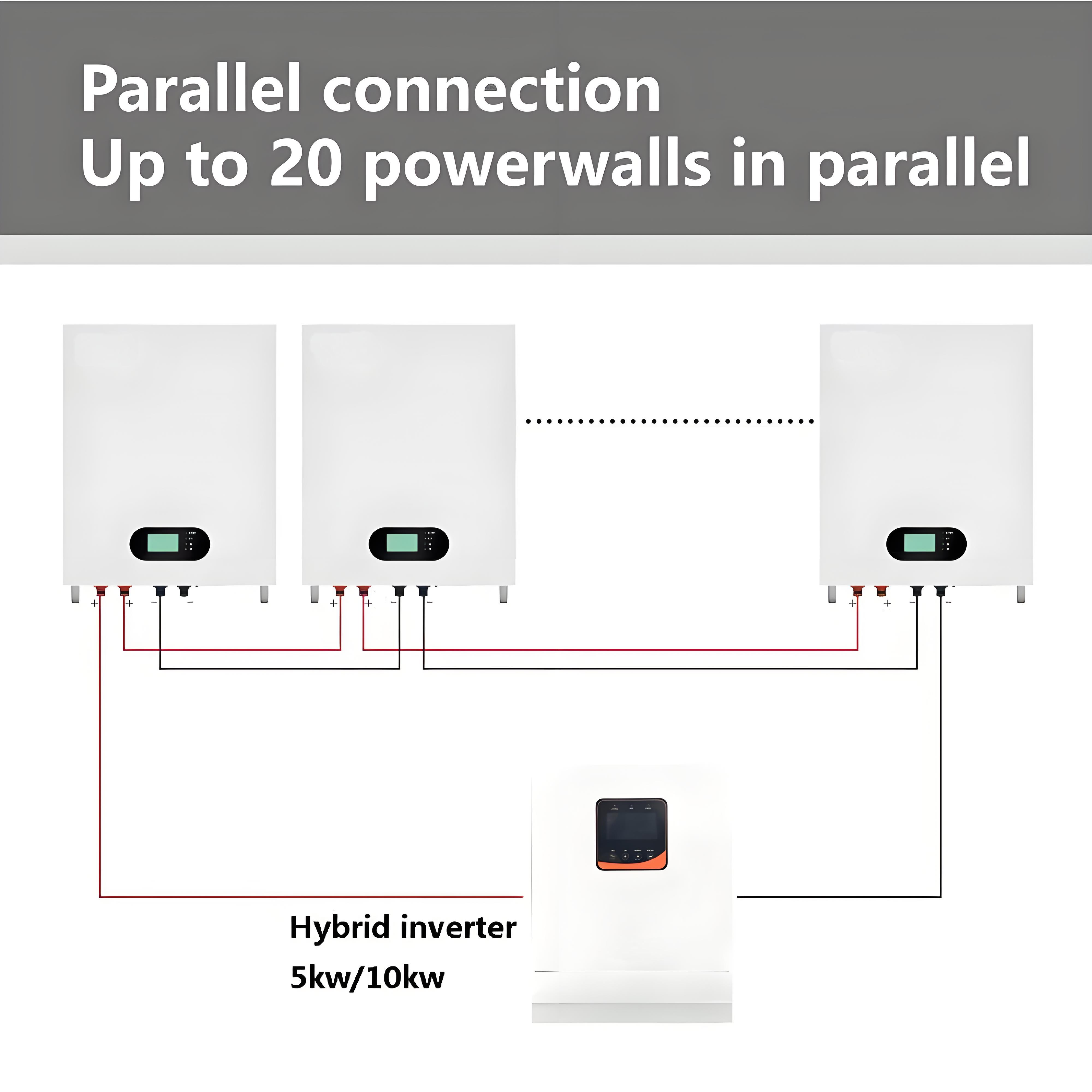

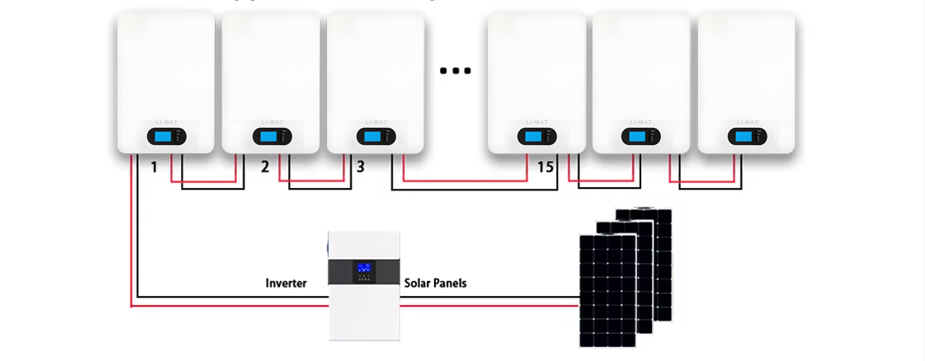

Support 20 Units in Parallel
Specifications
| Model | DMBP24-100W | DMBP24-200W | DMBP48-100W | DMBP48-200W | DMBP51.2-100W | DMBP51.2-200W |
| Nominal Voltage （V） | 25.6 | 48 | 51.2 | |||
| Nominal Capacity （Ah） | 100 | 200 | 100 | 200 | 100 | 200 |
| Nominal Energy Capacity （kWh） | 2.56 | 5.12 | 4.8 | 9.6 | 5.12 | 10.24 |
| Operating Voltage Range (V) | 22.4~29.2 | 42~54.75 | 44.8~58.4 | |||
| Recommended Charging Voltage (V) | 27.6 | 51.75 | 55.2 | |||
| Recommended Discharg Cut-Off Voltage (V) |
24 | 45 | 48 | |||
| Standard Charging / Discharging Current (A) |
0.5C | |||||
| Maximum Continous Charging / discharging Current (A) |
1C(Customizable) | |||||
| Applicable Temperature (°C) | -30~60(Recommended10~35) | |||||
| Permissible Humidity Range (%RH) | <85 | |||||
| Storage Temperature (°C) | -20~65(Recommended10~35) | |||||
| Protection Level | IP20 | |||||
| Cooling Method | Natural Air Cooling / Intelligent Fan | |||||
| Maximum Size (D*W*H)mm | 687*450*186 | 682*465*276 | 687*450*186 | 682*465*276 | ||
| Weight (kg) | 28 | 49 | 46 | 89 | 49 | 93 |
| Model | DMBP48-200W | |||||
| Nominal Voltage （V） | 48 | |||||
| Nominal Capacity （Ah） | 200 | |||||
| Nominal Energy Capacity （kWh） | 9.6 | |||||
| Operating Voltage Range (V) | 42~54.75 | |||||
| Recommended Charging Voltage (V) | 51.75 | |||||
| Recommended Discharg Cut-Off Voltage (V) |
45 | |||||
| Standard Charging / Discharging Current (A) |
0.5C | |||||
| Maximum Continous Charging / discharging Current (A) |
1C(Customizable) | |||||
| Applicable Temperature (°C) | -30~60(Recommended10~35) | |||||
| Permissible Humidity Range (%RH) | <85 | |||||
| Storage Temperature (°C) | -20~65(Recommended10~35) | |||||
| Protection Level | IP20 | |||||
| Cooling Method | Natural Air Cooling / Intelligent Fan | |||||
| Maximum Size (D*W*H)mm | 682*465*276 | |||||
| Weight (kg) | 89 | |||||
