Solar Refrigerator
Model range: DM90/138/188/238/318 (90L–318L capacities)
Input voltage: DC12V/24V
Power consumption: 60W–80W
Fully hermetic compressor (Wanco/SECOP) + integrated control electronics
60mm PU CFC-free insulation wall
- Introduction
- Main features
- Specifications
- Recommended

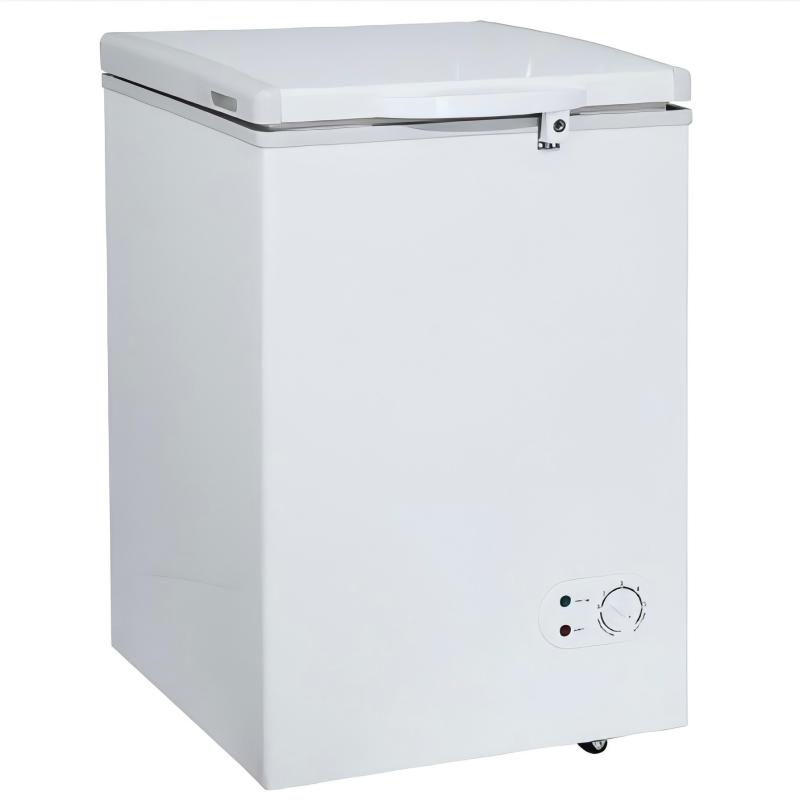

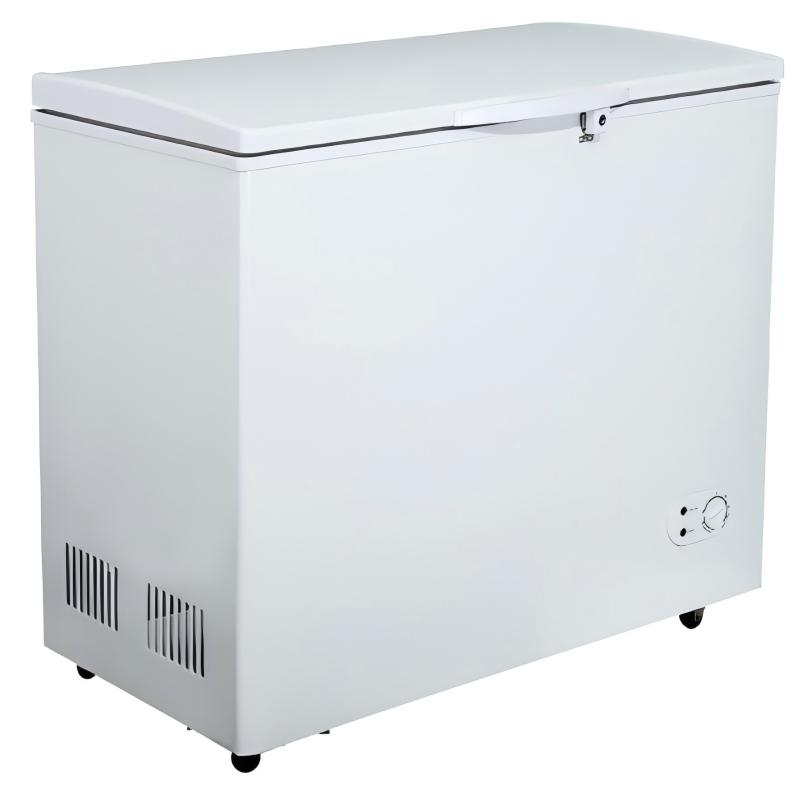

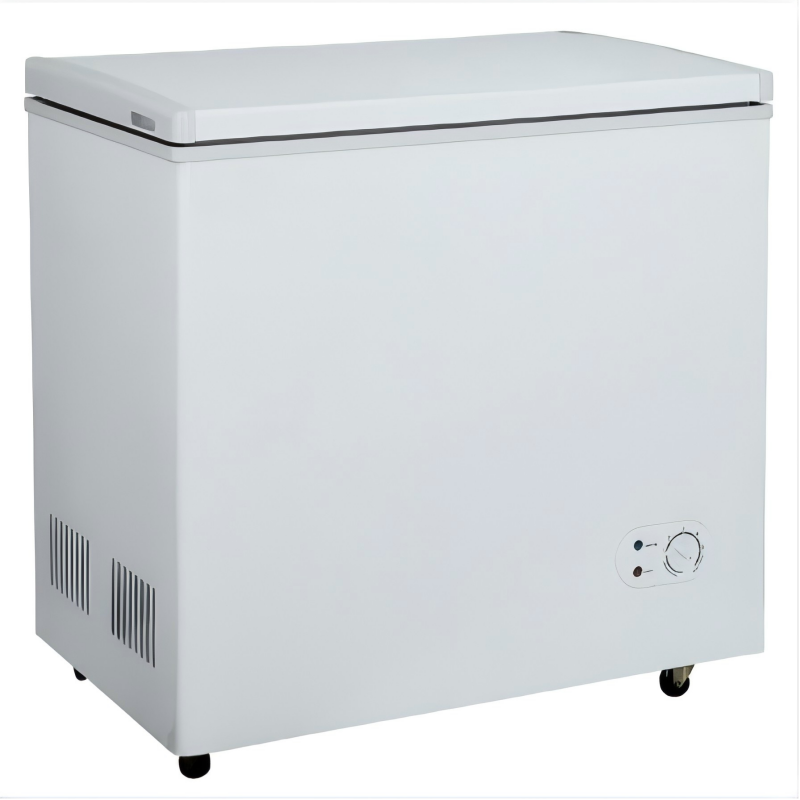

The Demax DM series (models: DM90/138/188/238/318) is a line of DC 12V/24V freezers (90L–318L capacities) tailored for solar/battery power scenarios.

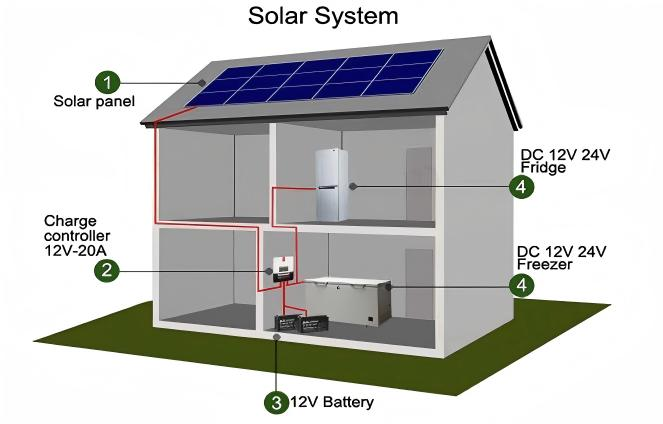

Equipped with fully hermetic Wanco/SECOP compressors, 60mm CFC-free PU insulation, and R134A refrigerant, these units cool to -18°C (at 30°C ambient) with high-temperature resistance and energy-saving design. They connect directly to DC sources (e.g., solar) or AC via optional adapters, plus low-voltage auto-shutdown for protection.
Features include single top doors with locks, CE/ROHS certification, and compact-to-mid-sized builds (535–1260mm L). Ideal for off-grid/rural areas, small businesses, or flexible-power storage needs, the series balances efficiency, durability, and versatile compatibility across capacity options.
|
Features |
Advantages |
Applications |
|
1. Model range: DM90/138/188/238/318 (90L–318L capacities) |
1. Covers diverse storage needs (small personal to mid-commercial) |
1. Off-grid/rural areas (solar/battery-powered setups) |
|
2. Input voltage: DC12V/24V |
2. Compatible with solar/battery systems; flexible power adaptability |
2. Small businesses (grocery, dairy storage) |
|
3. Power consumption: 60W–80W |
3. Energy-saving; reduces long-term operating costs |
3. Remote locations (camps, field stations) |
|
4. Fully hermetic compressor (Wanco/SECOP) + integrated control electronics |
4. Stable, reliable cooling performance; long service life |
4. Backup cold storage (power outage resilience) |
|
5. 60mm PU CFC-free insulation wall |
5. Efficient cold retention; minimizes energy loss |
5. Household/off-grid residential use |
|
6. Refrigerant: R134A |
6. Environmentally friendly; meets CE/ROHS standards |
|
|
7. Cooling performance: Max -18°C (at 30°C ambient) |
7. Effective frozen storage for food/items |
|
|
8. Low input voltage auto-shutdown |
8. Protects device/battery from damage; enhances safety |
|
|
9. Single top door + door lock |
9. Secure storage; reduces cold leakage |
|
|
10. Optional AC/DC adapter |
10. Supports AC power (via adapter) for dual-power flexibility |
|
|
11. High temperature resistance design |
11. Suitable for warm/ tropical environments |
|
|
12. Compact product sizes (535mm–1260mm L) |
12. Fits limited-space locations |
| Model No | DM90 | DM238 | DM188 | DM138 | DM318 |
| Capacity | 90L | 238L | 188L | 138L | 318L |
| Input voltage | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V | DC12V/24V |
| Power consumption Rate | 60W | 75W | 72W | 72W | 80W |

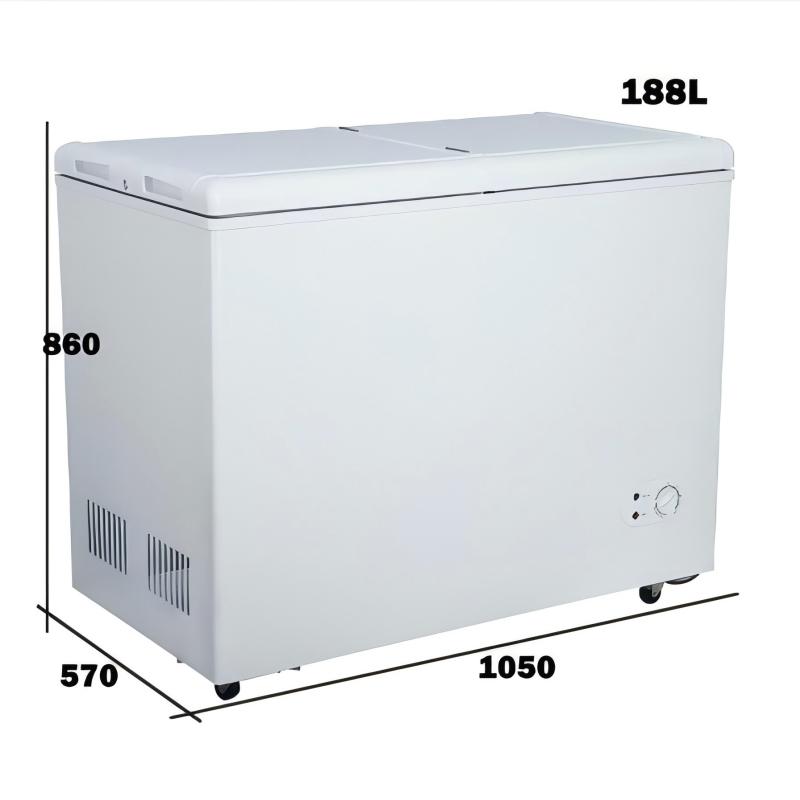

| Product size(mm) | 535(L)*575(W*835(H) | 1050(L)*660(W)*940(H) | 1050(L)*570(W)*855(H) | 870(L)*570(W)*840(H) | 1260(L)*670(W)*930(H) |
| Carton size(mm) | 577(L)*600(W)*865(H) | 1106(L)*672(W*980(H) | 1106(L)*626(W)*900(H) | 912(L)*600(W)*870(H) 32/35 54PCS/20GP 138PCS/40HQ Max - 18°C DC cable, AC/DC adaptor(optional) 60mm,PU CFC Free R134A CE ROHS DWanco or SECOP |
1333(L)*703(W)*980(H) |
| N.W./G.W(KG) | 25/28 | 40/44 | 38/41 | 32/35 | 45/49 |
| Loading quantity | 99PCS/20GP 240PCS/40HQ | 32PCS/20GP92PCS/40HQ | 36PCS/20GP 240PCS/40HQ | 54PCS/20GP 138PCS/40HQ | 99PCS/20GP 240PCS/40HQ |
| Cooling performance | Max-18℃ | Max-18℃ | Max-18℃ | Max - 18°C | Max - 18°C |
| Accessoryloptional) | DC cable,AC/DC adaptor(optional) | DC cable,AC/DC adaptor(optlonal) | DC cable,AC/DC adaptor(optional | DC cable, AC/DC adaptor(optional) | DC cable, AC/DC adaptor(optional) |
| Insulation wall | 60mm,PU CFC Free | 60mm,PU CFC Free | 60mm,PU CFC Free | 60mm,PU CFC Free | 60mm,PU CFC Free |
| Refrigerant | R134A | R134A | R134A | R134A | R134A |
| Certificate | CE ROHS | CE ROHS | CE ROHS | CE ROHS | CE ROHS |
| Compressor | DWanco or SECOP | □Wanco or SECOP | □Wanco or SECOP | □Wanco or SECOP | □Wanco or SECOP |
