● Super brightness branded Bridge Lux led chip, 210lm/w. professional optical, and transmittance rate 95%.
● Anodized Die-casting aluminum alloy appearance, sturdy and durable, strong corrosion resistance.
Technical Data of PAD Series All In One Solar Street Light

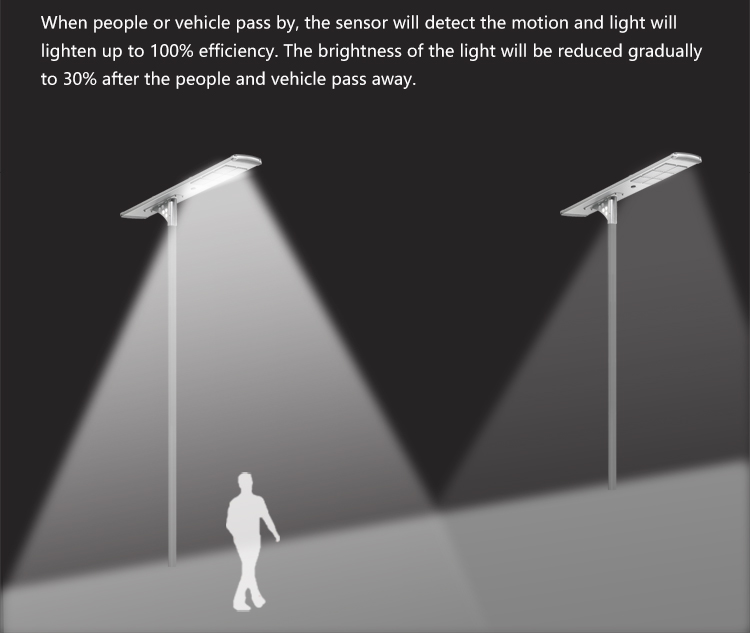

PAD solar street light is an integrated solar street lamp. It supports remote control of infrared induction energy saving and environmental protection lighting for up to 12 hours. It is a China all in one LED solar street light that combines cost performance and beauty.
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
PAD solar street light is an integrated solar street lamp. It supports remote control of infrared induction energy saving and environmental protection lighting for up to 12 hours. It is a China all in one LED solar street light that combines cost performance and beauty.
PAD solar street light is an integrated solar street lamp. It supports remote control of infrared induction energy saving and environmental protection lighting for up to 12 hours. It is a China all in one LED solar street light that combines cost performance and beauty.
Main features
Features:
● Super brightness branded Bridge Lux led chip, 210lm/w. professional optical, and transmittance rate 95%.
● Anodized Die-casting aluminum alloy appearance, sturdy and durable, strong corrosion resistance.
Specifications
| Technical Data of PAD Series All In One Solar Street Light | |||||||
| MODEL | JKC-PD-30W | JKC-PD-40W | JKC-PD-50W | JKC-PD-60W | JKC-PD-80W | JKC-PD-100W | JKC-PD-120W |
| Real set up power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Lumen | 5100LM | 6800LM | 8500LM | 10200LM | 13600LM | 17000LM | 20400LM |
| Color temperature | 2000-7000K(customized available) | ||||||
| Material | High class aluminium alloy + Surface blasting+ Anodizing | ||||||
| Battery | 12.8V 30AH | 12.8V 36AH | 12.8V 48AH | 12.8V 54AH | 12.8V 66AH | 12.8V 84AH | 12.8V 90AH |

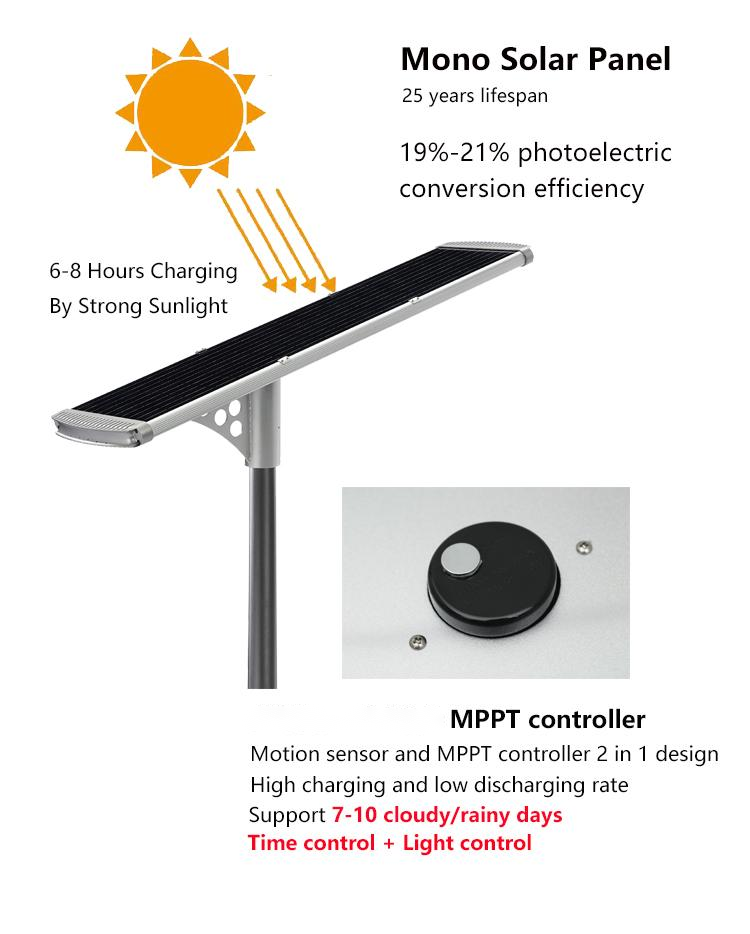

| Solar panel | 18V 50W | 18V 65W | 18V 70W | 18V 80W | 18V 100W | 18V 130W | 18V 140W |
| LED | USD Bridgelux 3030 | ||||||
| IP grade | IP65 | ||||||
| Discharge time | Lighting 12 hours/day，support 5-7 rainy and cloudy days（with motion sensor） | ||||||
| Charge time | 5-6 hours（bright sunshine） | ||||||
| Installation diameter | 70-76mm | ||||||

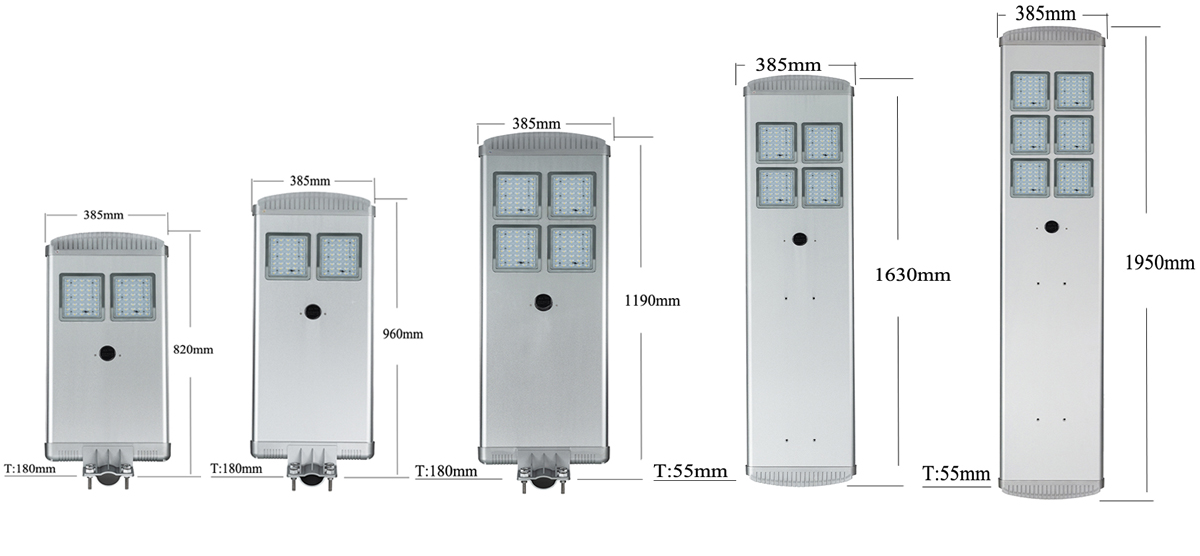

| Product size | 820*385*180mm | 960*385*180mm | 1190*385*180mm | 1190*385*180mm | 1630*385*55mm | 1950*385*55mm | 1950*385*55mm |
| Product Weight | 11KG | 12KG | 14.8KG | 15.4KG | 18.2KG | 22.5KG | 23.2KG |
| Working temperature | -25℃－+65℃ | ||||||
| Certificate | CE ROHS IP65 | ||||||
| Warranty | 3 years | ||||||
| Remote control | Light Control + Time Control + Motion Sensor + Remote Control | ||||||
