Balcony Solar Power System

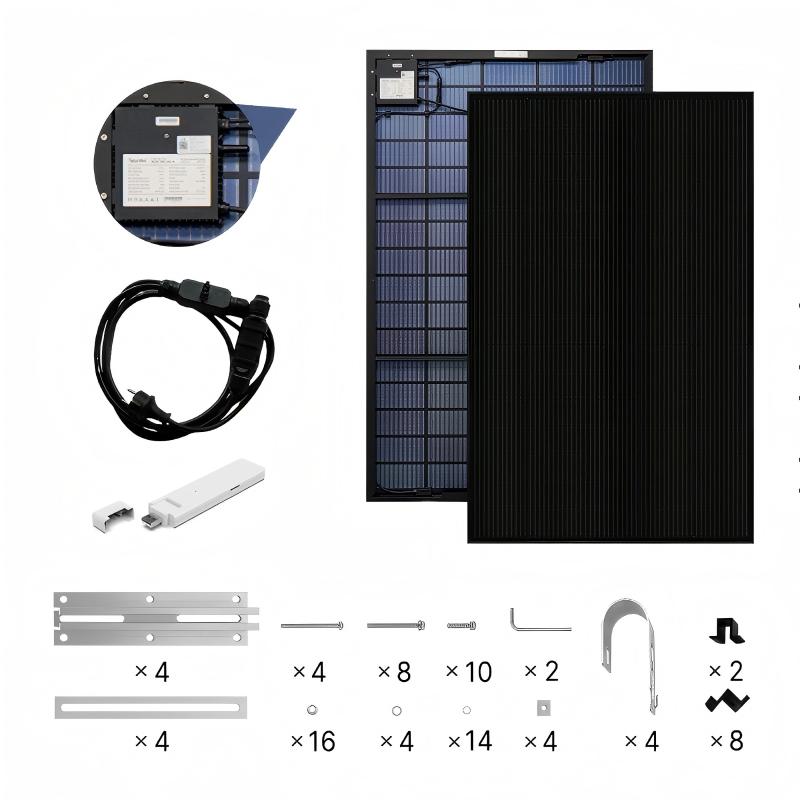

- Solar Panel Mounting: X-Hooks, Side Clamps, Center Clamp, Support Components, Sliders, Fasteners
- AC Cable Accessories: T-Connectors, Sealing, 5m Cable (cross-sectional area 4mm²), European Standard Plug
- Optional: Data Transmission Unit
- Product Warranty: 12 years
- DTU Warranty: 2 years
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
This balcony photovoltaic product is a solar power generation system. Its core principle is to convert solar energy into direct current (DC) through solar panels, and then convert the DC into alternating current (AC) that can be used domestically or fed into the grid via micro-inverters, thus realizing the conversion and utilization of solar energy into electrical energy. The system is designed for “plug-and-play” installation, allowing users to set it up independently and convert solar resources on balconies into usable electricity.
Main features
1)Dual Solar Panel Designs for Versatility
- Lightweight: 14kg weight, bifacial power generation, 9A low-current design, reinforced frame with MOS bypass switches for shadow resistance.
- Standard: 21kg weight, cost-effective 9A low-current configuration, advanced MOS bypass switches for efficiency.
2)Plug-and-Play Installation Ease
Pre-assembled components (inverters, T-connectors) and step-by-step guides enable independent setup. Full installation kit includes mounts, cables, and hardware for wall/balcony applications.
3)High Efficiency & Safety Compliance
Panels achieve 21% efficiency; inverters meet European safety standards (VDE-AR-N 4105, EN 50549-1). Low-current design minimizes power loss and safety risks.
4)Comprehensive System & Data Security
The system integrates all necessary components (panels, inverters, cables, mounts). Optional DTU provides remote monitoring with data stored in Frankfurt, Germany, ensuring confidentiality.
5)Strong ROI & Long-Term Reliability
Claimed >100% return on investment in the first year, backed by a 12-year product warranty (2 years for DTU).
Specifications
| Category | Detailed Specifications |
| Solar Panels ( 410W Series) |
- Power: 410W each, total system power 800W - Efficiency: 21% - Dimensions: 1775mm×1098mm×35mm - Weight: 14kg (Venusun S, bifacial) / 21kg (Venusun, standard) - Max Operating Voltage: 44V - Max Operating Current: 9.32A - Connector: MC4 Compatible |
| Micro Inverter (DM-400-1A) |
- Output Power: 400W each, 2 units per system - Net Weight: 1.71KG - Dimensions: 184.5mm×204.5mm×26mm - Max Input Current: 14A - Max Short-Circuit Current: 25A - Compliance: VDE-AR-N 4105, EN 50549-1 |
| Installation & Accessories |
- Solar Panel Mounting: X-Hooks, Side Clamps, Center Clamp, Support Components, Sliders, Fasteners - AC Cable Accessories: T-Connectors, Sealing, 5m Cable (cross-sectional area 4mm²), European Standard Plug - Optional: Data Transmission Unit |
| Warranty | - Product Warranty: 12 years - DTU Warranty: 2 years |
