HIGH/LOW VOLTAGE PREFABRICATED SUBSTATION
This product fully complies with GB17467 'High and Low Voltage Prefabricated Substation' standards. It is suitable for urban public distribution, streetlight distribution, industrial and mining enterprises, urban buildings, residential communities, oilfield docks, hotels, parks, and construction sites, and can achieve ring network or terminal power supply modes.
- Introduction

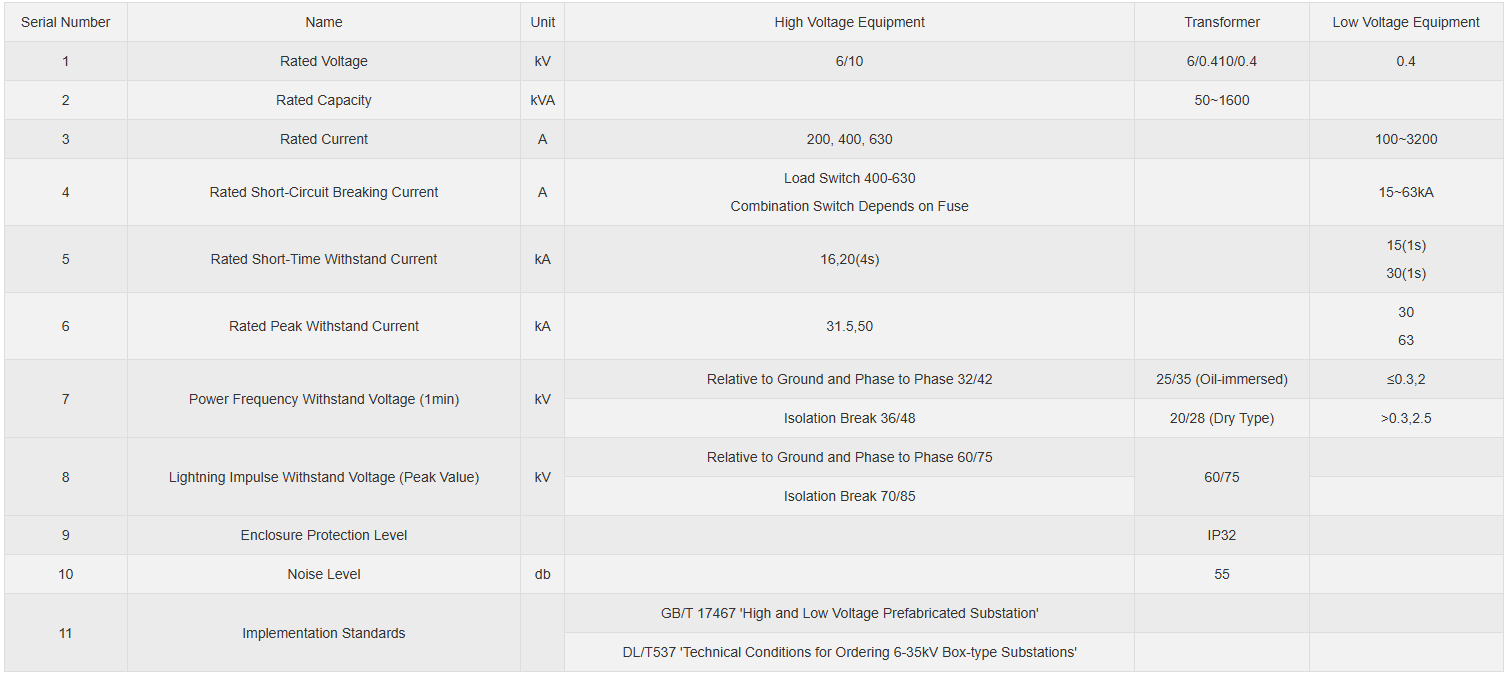

- Technical Parameters
- Recommended
Product Introduction
This product fully complies with GB17467 'High and Low Voltage Prefabricated Substation' standards. It is suitable for urban public distribution, streetlight distribution, industrial and mining enterprises, urban buildings, residential communities, oilfield docks, hotels, parks, and construction sites, and can achieve ring network or terminal power supply modes.
Product Features
Diversity: High and low voltage prefabricated substations can be designed according to different high and low voltage layout methods, such as 'grid' structure and '品' structure, to adapt to different application environments and needs.
Safety: The overall structure is compact and small in size, while the disassembly and installation of various components are convenient, ensuring safe and reliable operation with simple maintenance.
Protection: The product features complete high and low voltage protection, effectively ensuring the safe operation of the power grid.
Reliability: Prefabricated substations can select different structural forms and materials according to different usage environments and conditions to meet various usage requirements and ensure the normal operation of the substation.
Stability: The product is designed for outdoor use, capable of adapting to various outdoor environments, such as harsh climatic conditions and high-altitude areas, thus ensuring a long service life.
Energy Saving: The transformer room of the prefabricated substation has very low no-load loss, showing significant energy-saving effects, while emitting low harmful gases, resulting in low atmospheric pollution.
Usage Environmental Conditions
>Altitude: ≤1000m;
>Ambient Temperature: -25℃~+40℃;
>Relative Humidity: Daily average not exceeding 95%, monthly average not exceeding 90%;
>Seismic Level: Horizontal acceleration 0.4m/s², vertical acceleration 0.15m/s²;
>Installation site free from severe impact, serious pollution and chemical corrosion, conductive dust, and explosion hazards. If normal usage conditions cannot be met, please consult our company for solutions.
