Demax Solar Hybrid Panel PVT Electricity/Hot Water

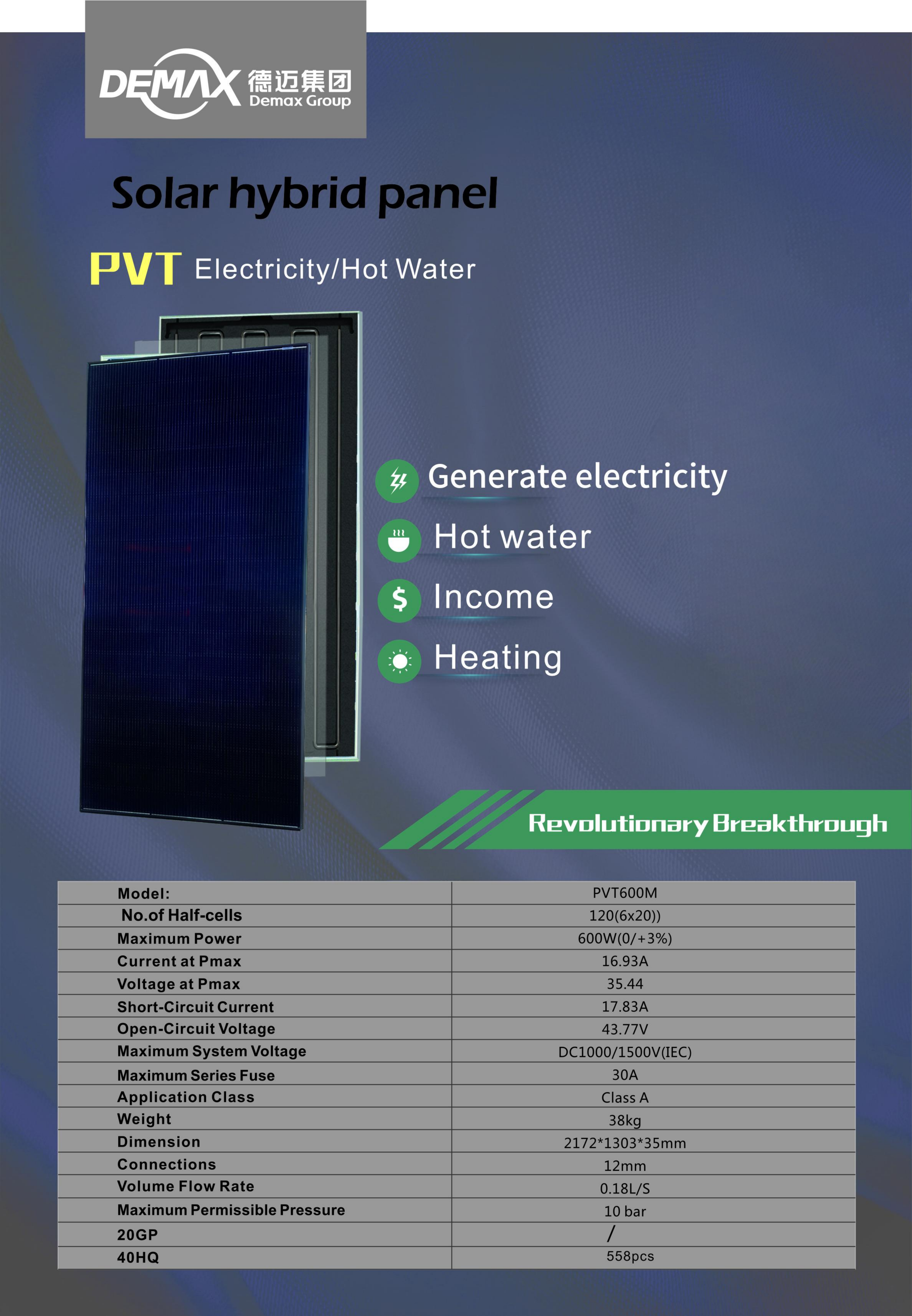

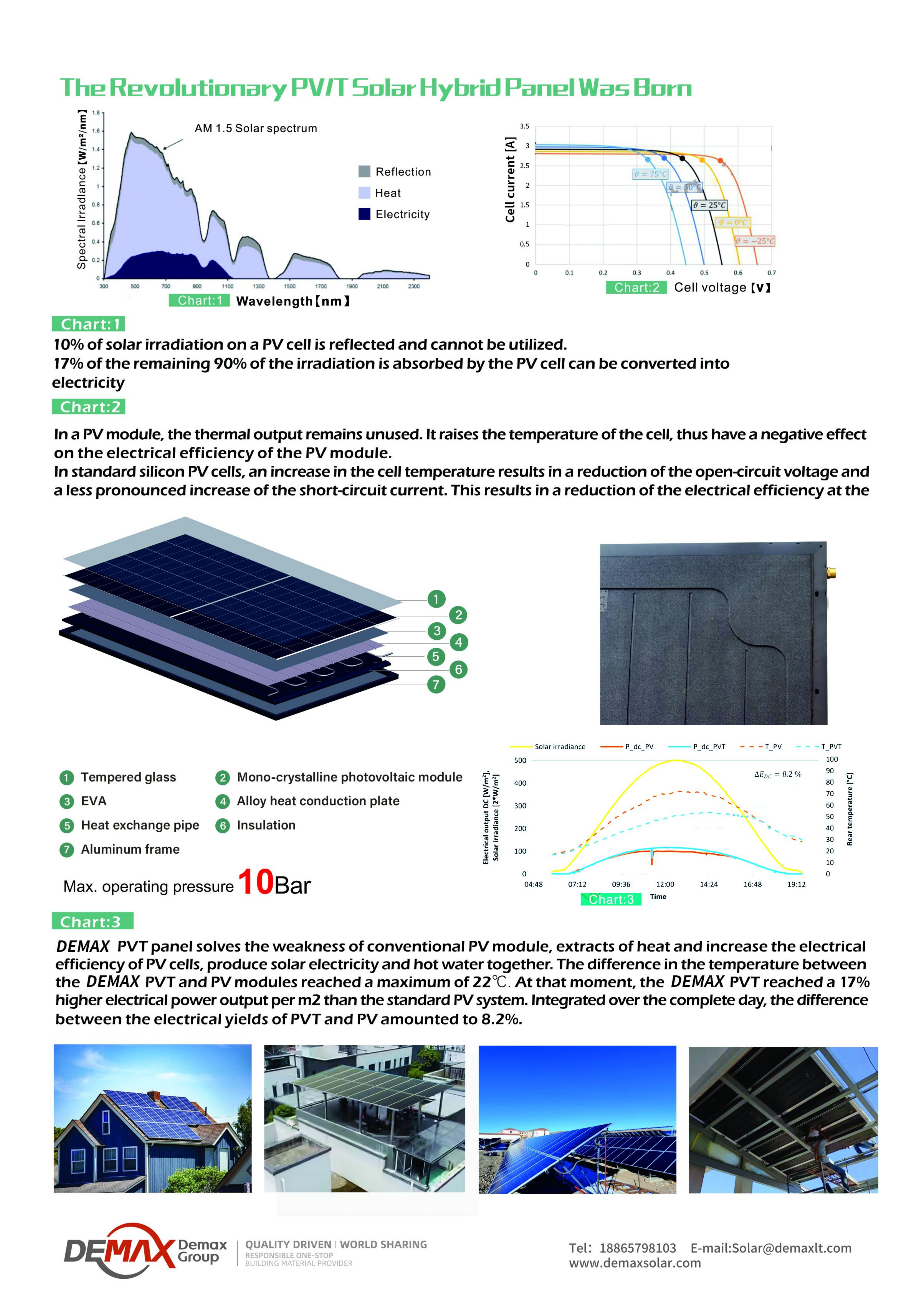

Demax PVT600M is a high-performance hybrid photovoltaic-thermal solar collector that ingeniously combines photovoltaic power generation and solar thermal collection technologies. Different from traditional standalone solar panels, this product captures both electricity and usable heat from solar radiation simultaneously. During operation, the built-in copper heat exchange pipes continuously absorb the waste heat generated by PV cells while producing hot water, which effectively lowers the operating temperature of solar cells. This optimized design improves the overall electrical efficiency by 8.2% compared with conventional PV modules and avoids power attenuation caused by overheating, achieving dual utilization of solar energy and maximizing energy output per unit area.

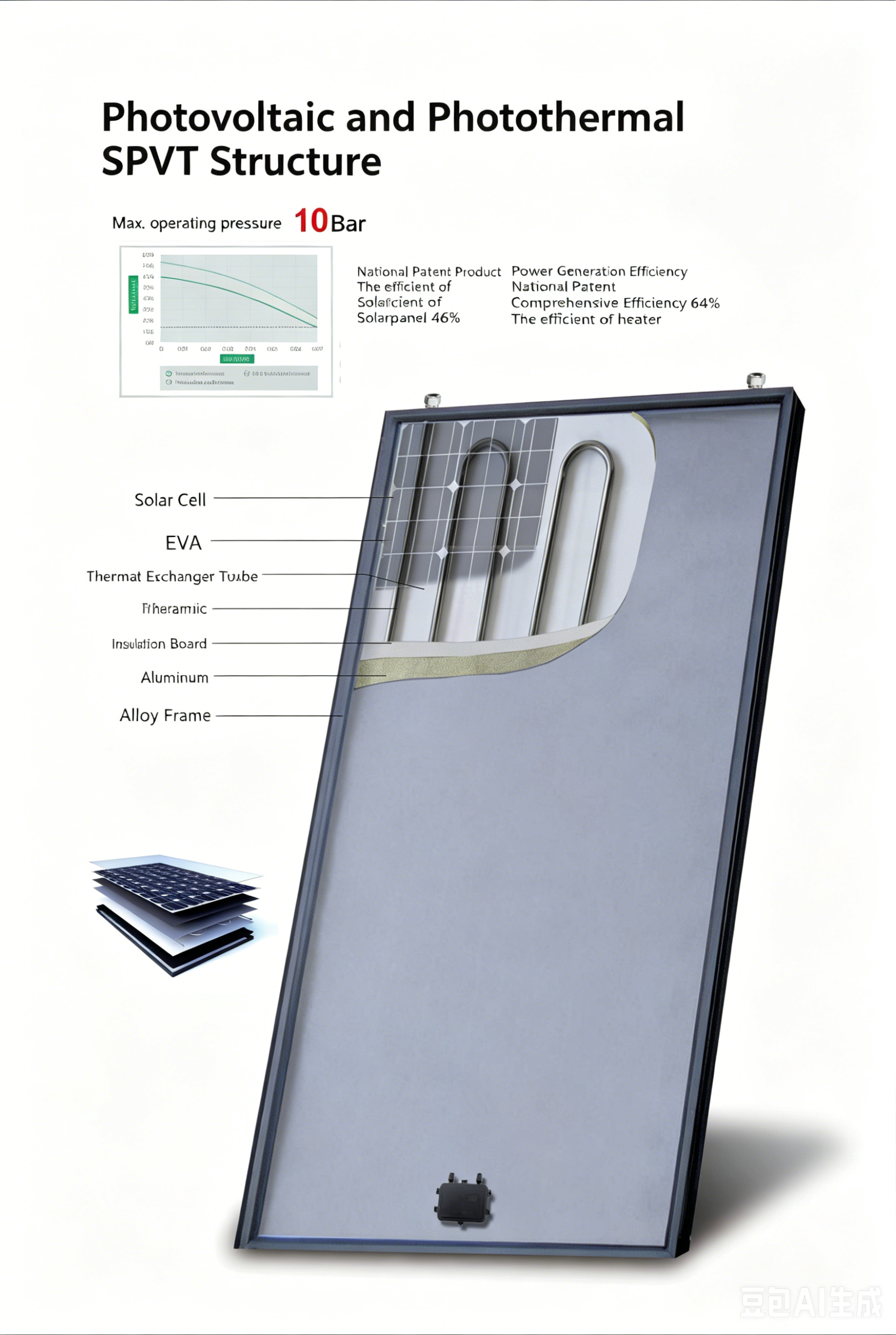

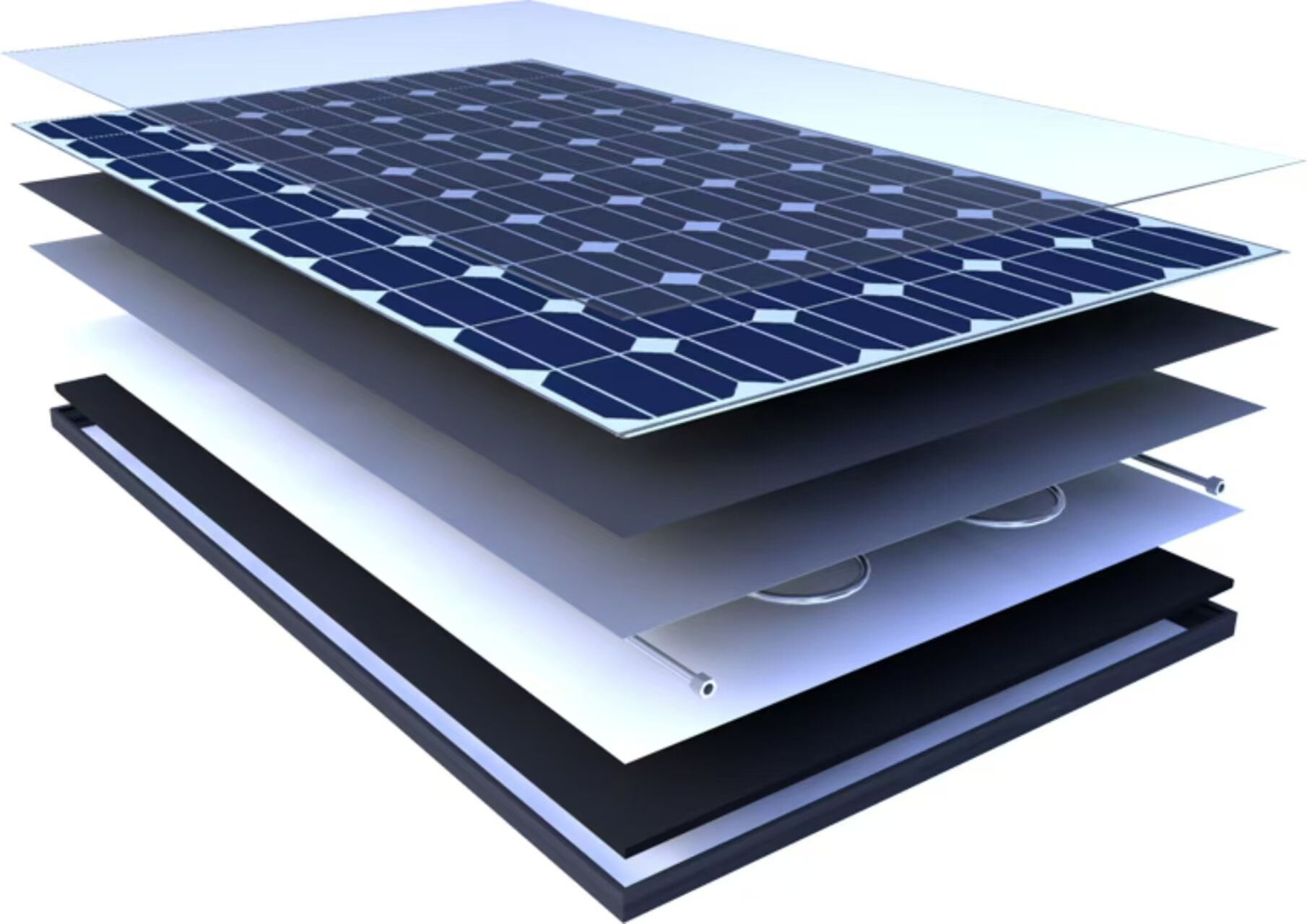

Crafted with premium materials including tempered glass, aluminium alloy frame, high-efficiency absorber coating and EPP foam insulation, the collector delivers outstanding durability and thermal performance. It has obtained authoritative Solar Keymark certification (valid until October 31, 2029), and fully complies with DIN EN 12975:2022, ISO 9806:2018, IEC 61215 and IEC 61730 international standards after strict testing by Intertek and TÜV Rheinland. The product features a gross area of 2.83 m² with a peak electrical power of 600 Wmpp. It supports a maximum operating pressure of 600 kPa and a standard stagnation temperature up to 90°C. With excellent environmental adaptability, it passes rigorous tests including ±1000 Pa wind pressure load, 1.2 m hail impact, thermal shock, rain penetration and long-term outdoor exposure, classified as Climate Class B to adapt to various complex outdoor climates worldwide. Water or water-glycol antifreeze fluid can be used as the heat transfer medium, ensuring stable operation even in cold regions.

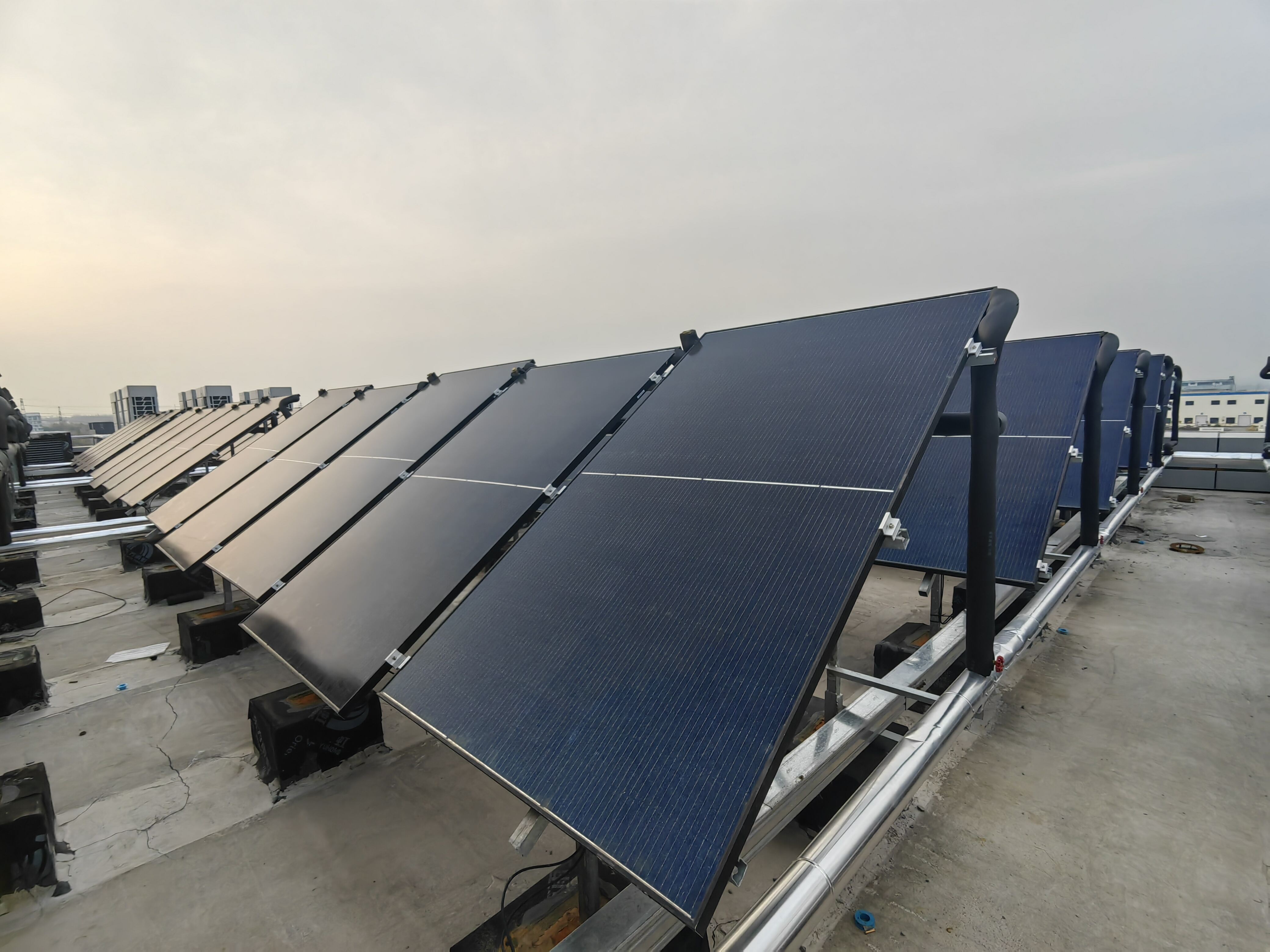

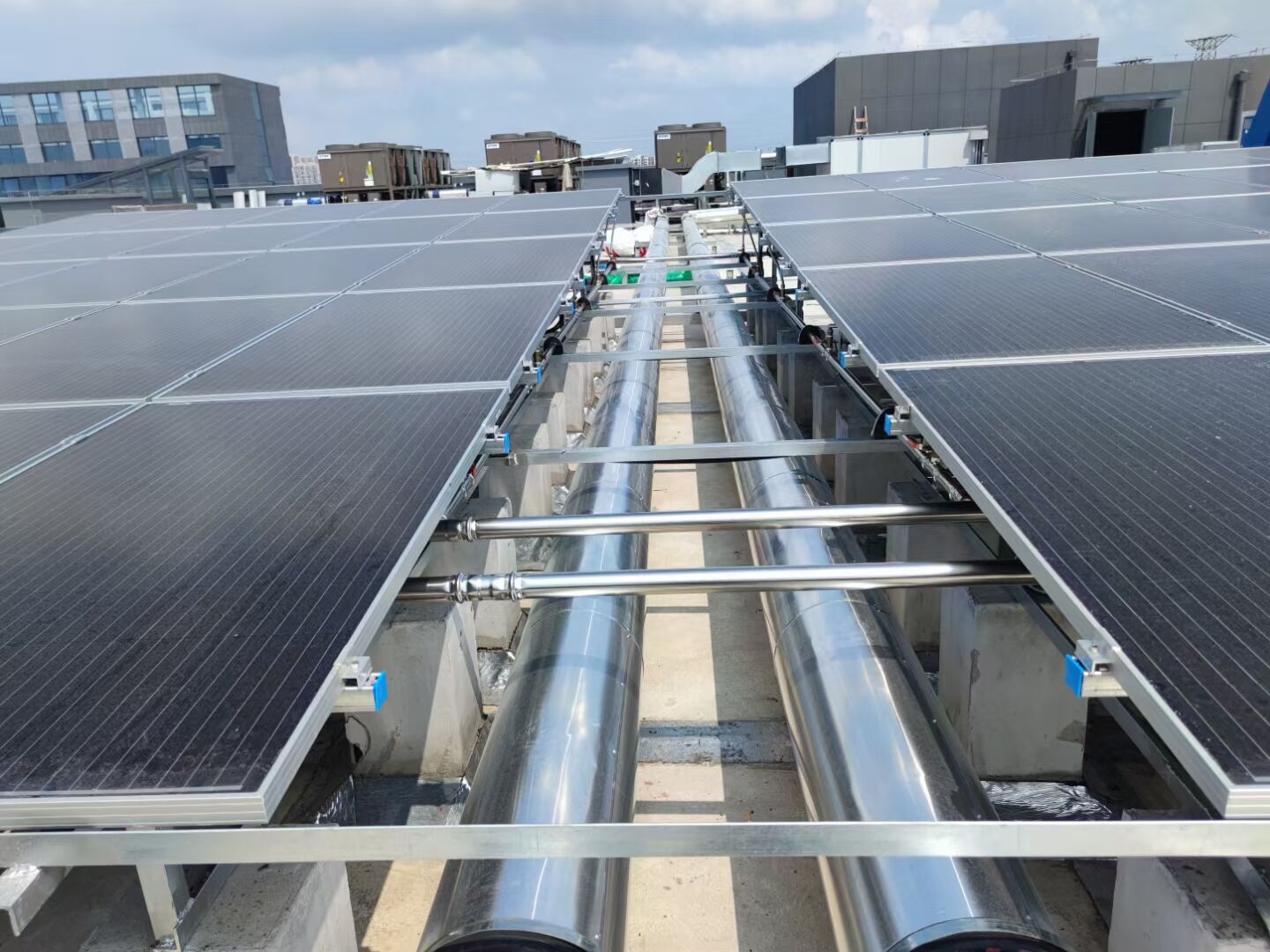

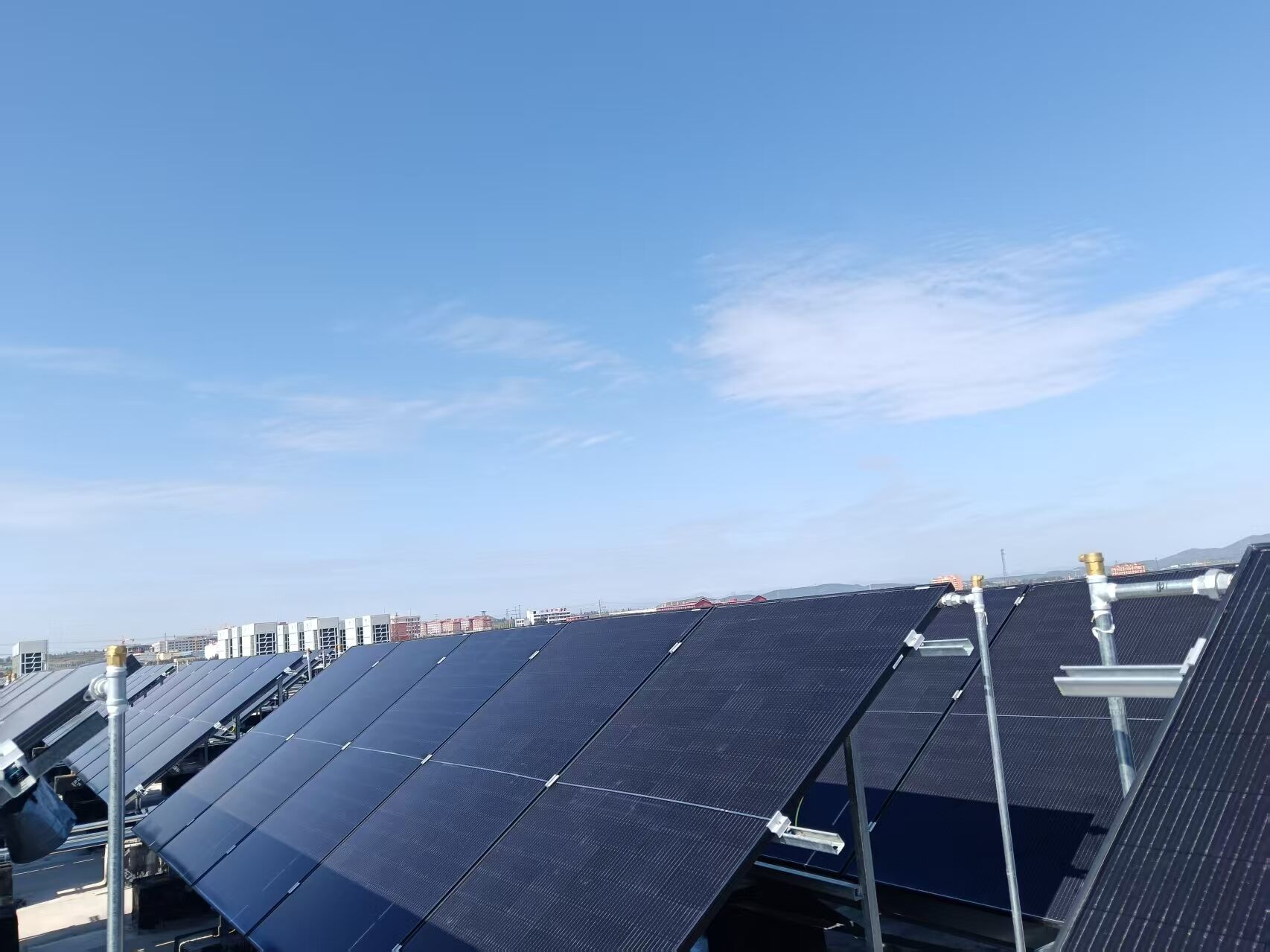

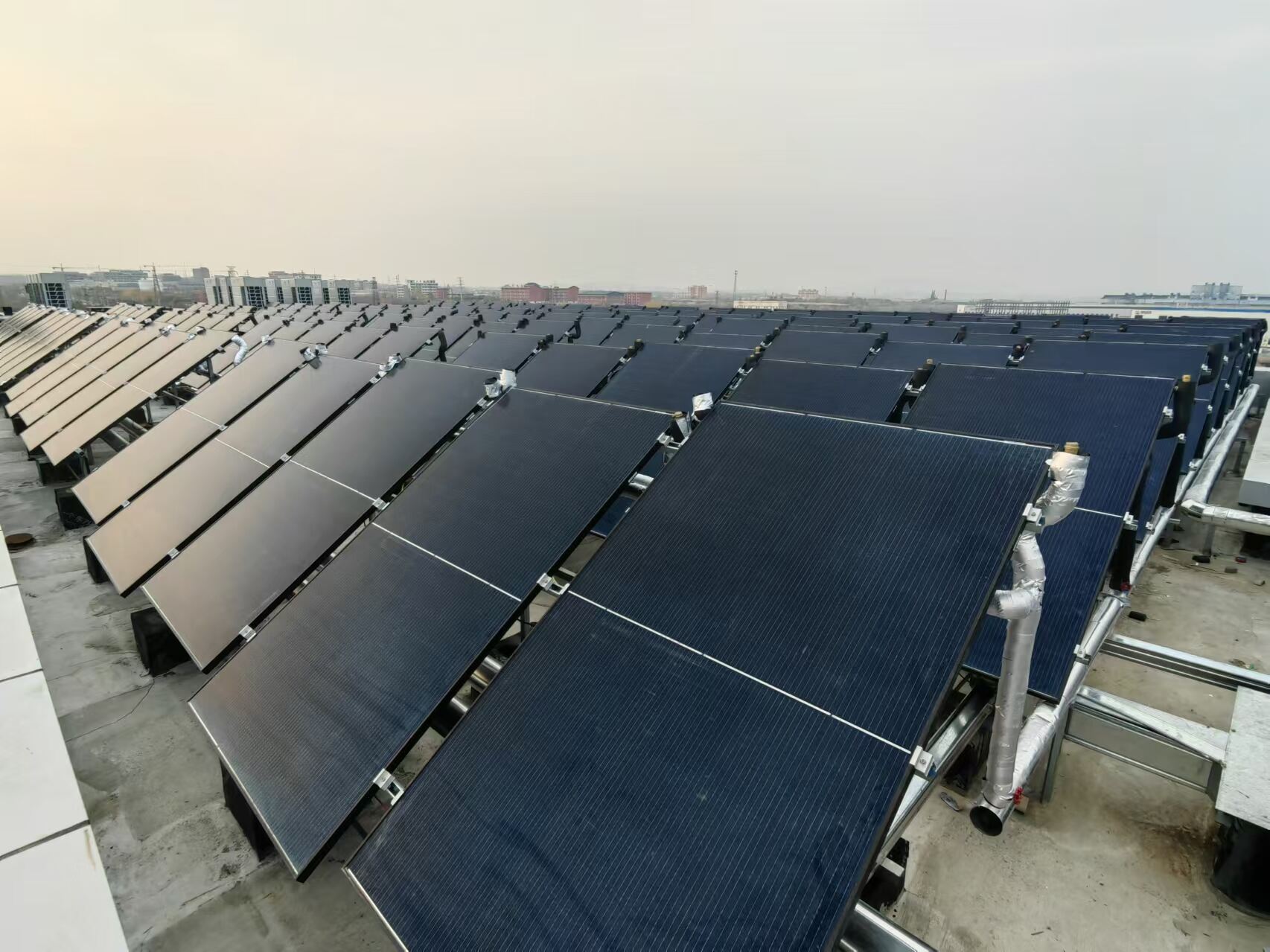

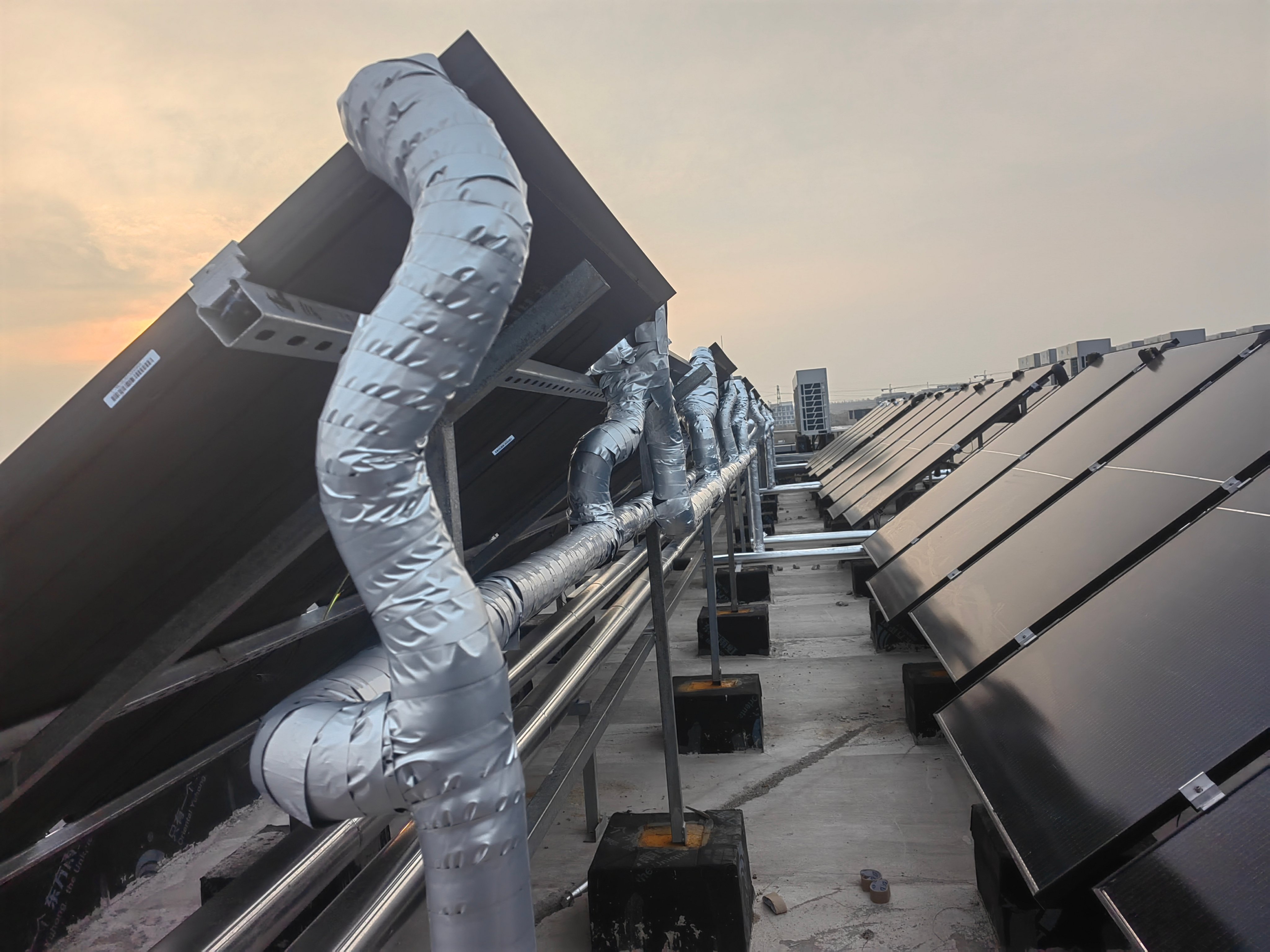

Flexible in installation, Demax PVT600W is applicable for rooftop, in-roof and facade mounting, with the optimal installation orientation facing due south at a tilt angle of local latitude minus 15 degrees. It is an ideal energy solution for diversified scenarios, covering residential buildings, hotels, schools, factories and other commercial facilities. The system can stably supply on-site electricity, domestic hot water, floor heating and industrial process hot water, helping users reduce electricity and gas consumption, cut energy costs and realize eco-friendly and sustainable energy utilization. With reliable quality and long service life, our PVT collector is a cost-effective choice for global solar energy projects.
- Introduction
- FAQ
- Recommended
1.What is the core function and rated power of Demax PVT600W?
Demax PVT600W is a high-efficiency hybrid photovoltaic-thermal (PVT) collector that generates electricity and heat simultaneously. Its maximum electrical power output reaches 600 Wmpp. The integrated heat exchange structure cools down PV cells effectively, boosting overall electrical efficiency by about 8.2% compared with conventional standalone PV panels, realizing dual energy output for power and hot water supply.
2.What certifications does Demax PVT600W obtain for global sales?
This model holds authoritative Solar Keymark Certificate (Valid until 2029-10-31) and fully complies with DIN EN 12975:2022 and ISO 9806:2018 standards. It also passes TUV Rheinland IEC 61215 & IEC 61730 PV safety certifications and Intertek full performance testing (Test Report No. 231031212GZU-001), meeting market access requirements for Europe and most international regions.
3.What are the key size and structural parameters of PVT600W?

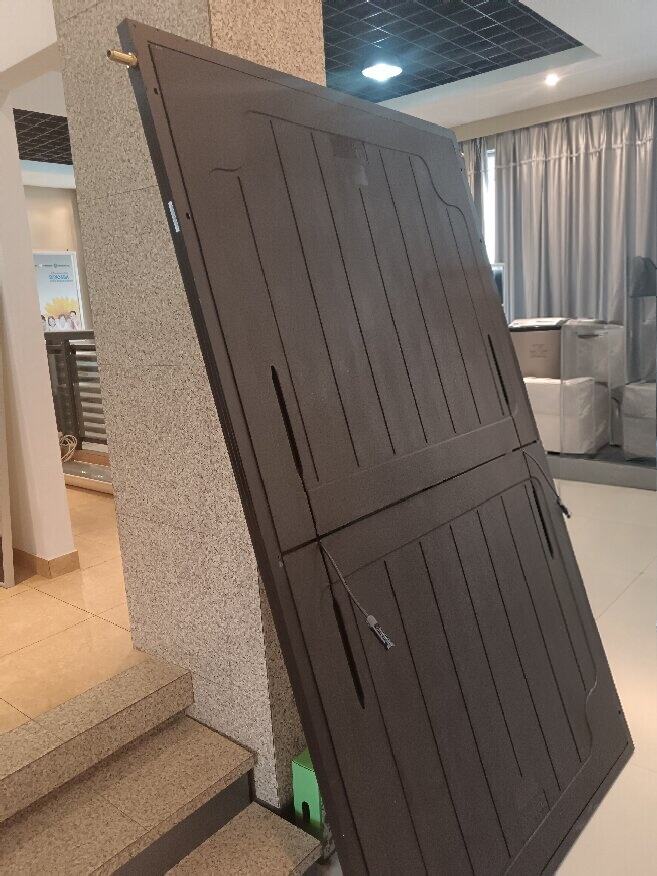

The gross area is 2.83 m², aperture area 2.69 m². Overall dimensions: length 2172 mm, width 1303 mm, thickness 35 mm. The net weight is 39.3 kg, with fluid volume of 1.60 L. It adopts aluminum alloy frame, tempered glass and copper heat exchange pipes, featuring sturdy structure and easy installation for rooftop, in-roof and facade mounting.
4.What are the working temperature and pressure limits of PVT600W?
The maximum standard stagnation temperature is 90 °C (under 1000 W/m² irradiance and 30 °C ambient temperature). The maximum operating temperature is 50 °C, and the maximum operating pressure reaches 600 kPa. It has passed 900 kPa internal pressure durability test, adapting to most conventional solar water heating systems.
5.How about the durability and environmental resistance of PVT600W?
It belongs to Climate Class B and passes strict reliability tests: withstands ±1000 Pa positive/negative wind pressure load, 1.2 m height hail impact test with 150g steel ball, long-term outdoor exposure, thermal shock and rain penetration tests. All components remain intact after tests, suitable for complex outdoor environments.
6.What heat transfer medium is recommended for PVT600W and what is the flow rate?
The recommended heat transfer medium is water or water-glycol antifreeze fluid, which supports normal operation in low-temperature areas. The standard test flow rate is 0.020 kg/(sm²) per gross area. The product has stable hydraulic performance and low pressure drop, compatible with mainstream solar circulating pump systems.
7.What are the application scenarios of Demax PVT600W?
Widely used for residential houses, hotels, schools, factories and other commercial buildings. It can supply electricity for daily use and produce domestic hot water, floor heating or process hot water. The collector is designed for fixed installation with the optimal tilt angle set as local latitude minus 15°, facing due south for maximum energy yield.
8.What is the service life and after-sales support for PVT600W?
Designed for a long service life over 25 years, same as premium solar PV modules. We provide complete English installation manuals, technical drawings and test reports. We offer professional remote technical guidance and sufficient spare parts supply for global partners, helping you complete project installation and after-sales maintenance efficiently.
