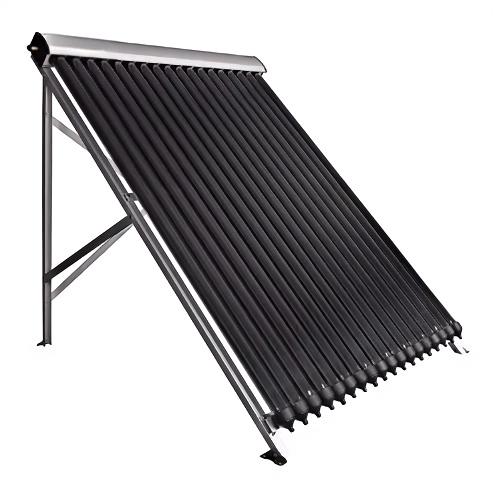

Heat Pipe Solar Collector

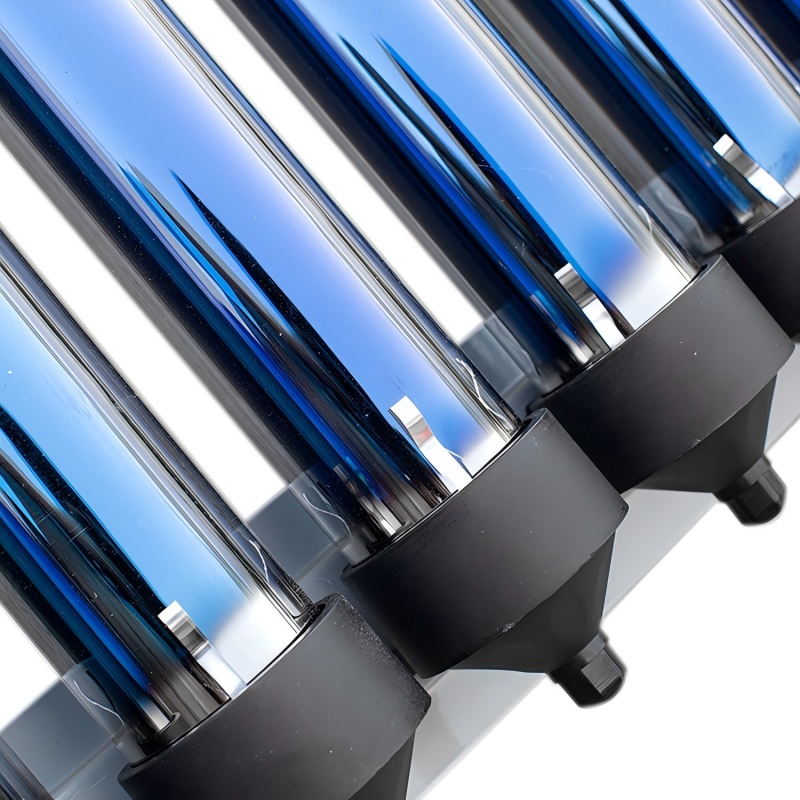

The heat pipe solar collector always connected with existing water heating device. The selective absorber coating on the inner cover of vacuum tubes absorb solar energy, then convert solar energy into thermal energy and transfer thermal energy to heat pipe by aluminum fin. The heated liquid inside heat pipe change into vapor which rises to the top condenser, then thermal energy heat transfer liquid pass through heat exchanger and the cooled vapor becomes liquid, returning to the base of heat pipe.

Introduction
Main features
Specifications
Recommended

Product Introduction

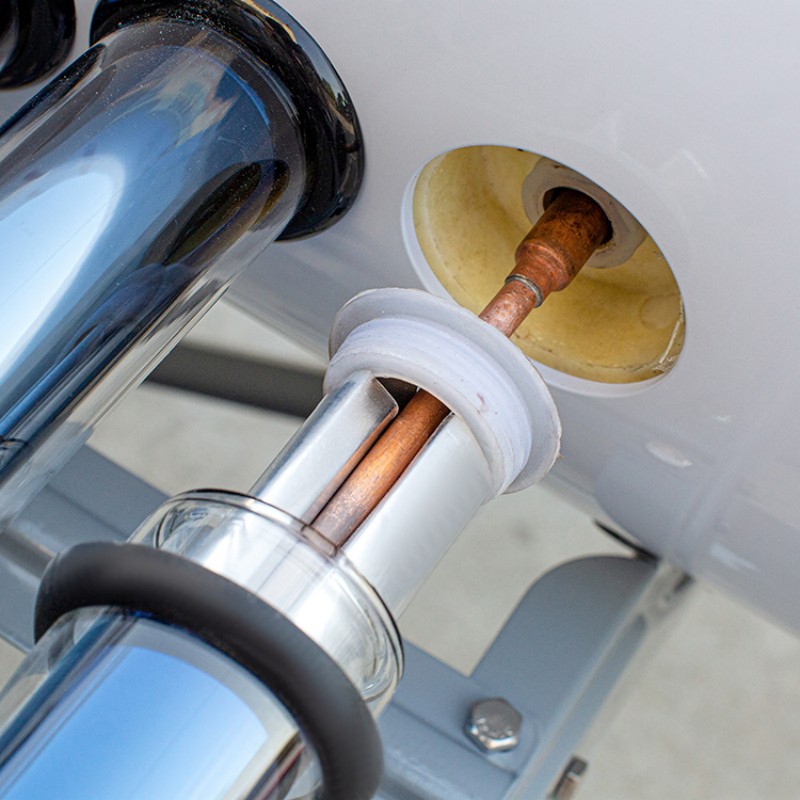

The thermal energy conducts to transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

Main features

1) Solarkeymark certified

2) High efficiency

3) Low heat loss due to vacuum tube design

4) Suitable for cold weather, can opperate efficiently even in50°C

5) Material resistant to corrosion in all types of climates

6) Comprehensive life time more than 15 years

7) Maintenance free

8)Solar Keymark(EN12975) certified

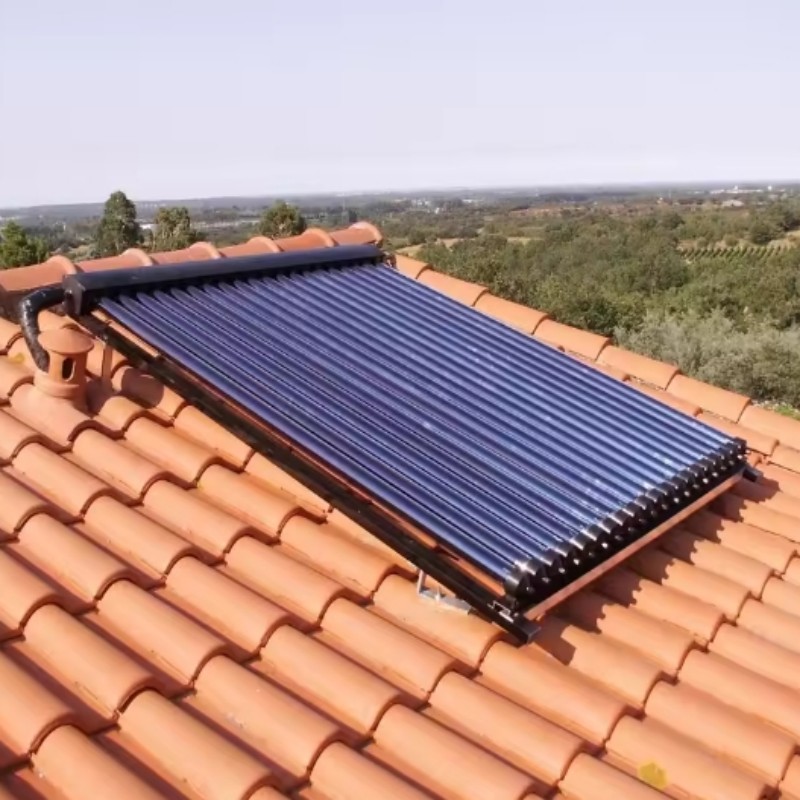

Heat pipe solar collector application:

1) Domestic water heating, such as shower, kitchen washing.etc

2) Room heating, such as under floor and radiator heating.

3) Old heating equipment/system retrofit;

4) Large scale commercial solar water heating system, such as hotel, apartment, school, hospital.etc

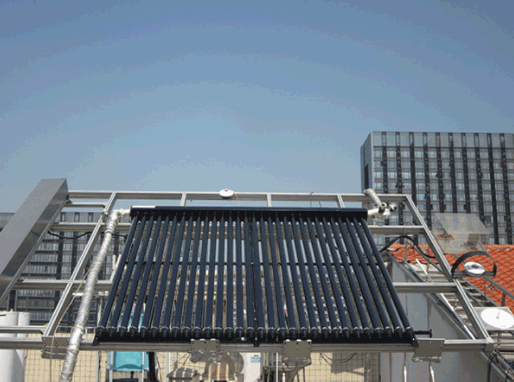

Heat Pipe Solar Collector.png

Specifications

1) Vacuum tube material: Borosilicate glass 3.3

2) Manifold pipe material: Red copper

3) Heat pipe material: Red copper

4) Manifold casing material: Aluminum alloy

5) Insulation: High-density rockwool

6) Frame material: Aluminium alloy

7) Heat transfer fin material: Aluminum sheet

8) Working Pressure: 6 bars

Item	Specification
Vacuum tube material	Borosilicate glass 3.3
Manifold pipe material	Red copper
Heat pipe material	Red copper
Manifold casing material	Aluminum alloy
Insulation	High-density rockwool
Frame material	Aluminium alloy
Heat transfer fin material	Aluminum sheet
Working Pressure	6 bars

Model	Dia	Length	Coating	Qty	Condenser	20GP	40GP	40GP	Daily Output (50–90℃)
HSC-10	Φ58	1800	ALN/AlN-SS/Cu	10	Φ14	165	330	380	100L
HSC-12	Φ58	1800	ALN/AlN-SS/Cu	12	Φ14	145	300	340	120L
HSC-15	Φ58	1800	ALN/AlN-SS/Cu	15	Φ14	130	265	310	150L
HSC-18	Φ58	1800	ALN/AlN-SS/Cu	18	Φ14	105	215	250	180L
HSC-20	Φ58	1800	ALN/AlN-SS/Cu	20	Φ14	100	205	235	200L
HSC-24	Φ58	1800	ALN/AlN-SS/Cu	24	Φ14	92	190	220	240L
HSC-25	Φ58	1800	ALN/AlN-SS/Cu	25	Φ14	88	180	210	250L
HSC-30	Φ58	1800	ALN/AlN-SS/Cu	30	Φ14	85	175	205	300L
