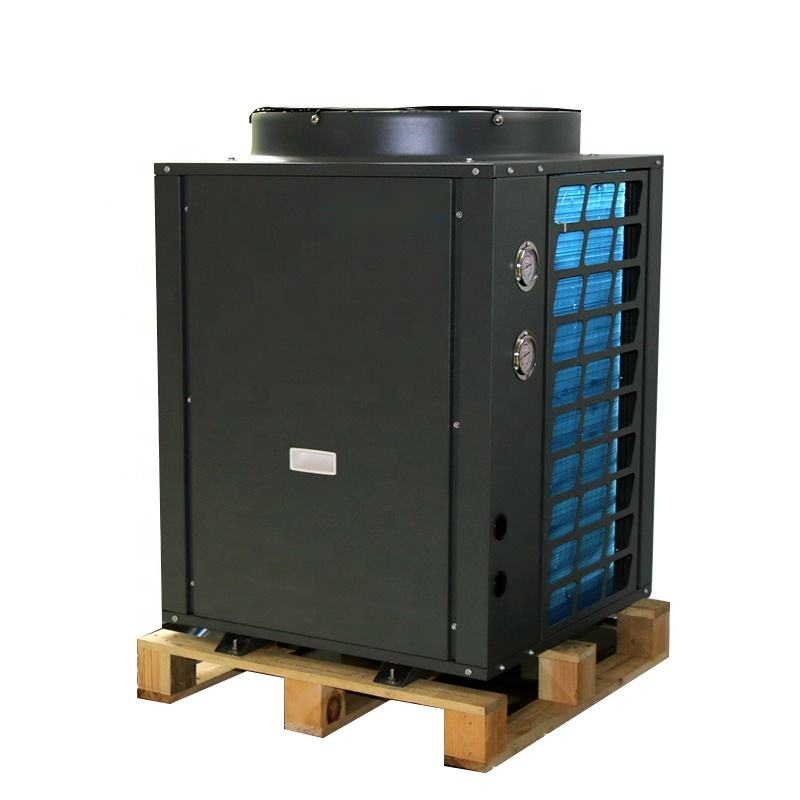

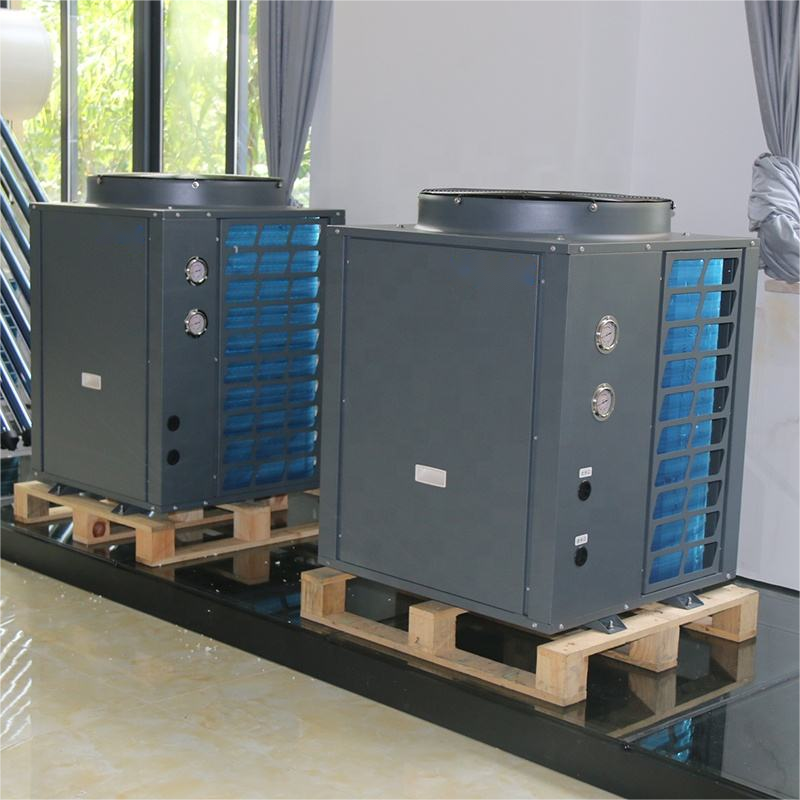

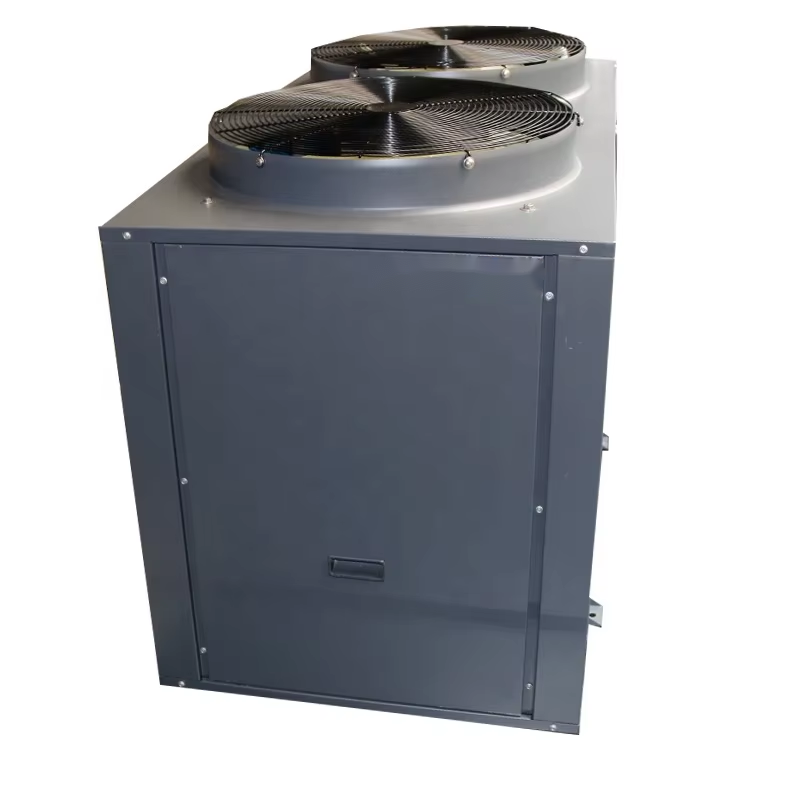

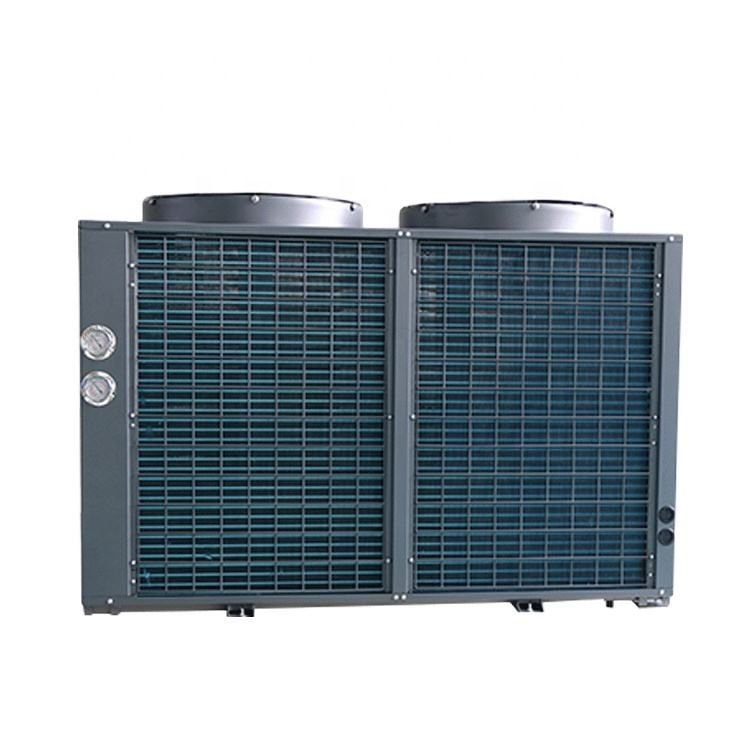

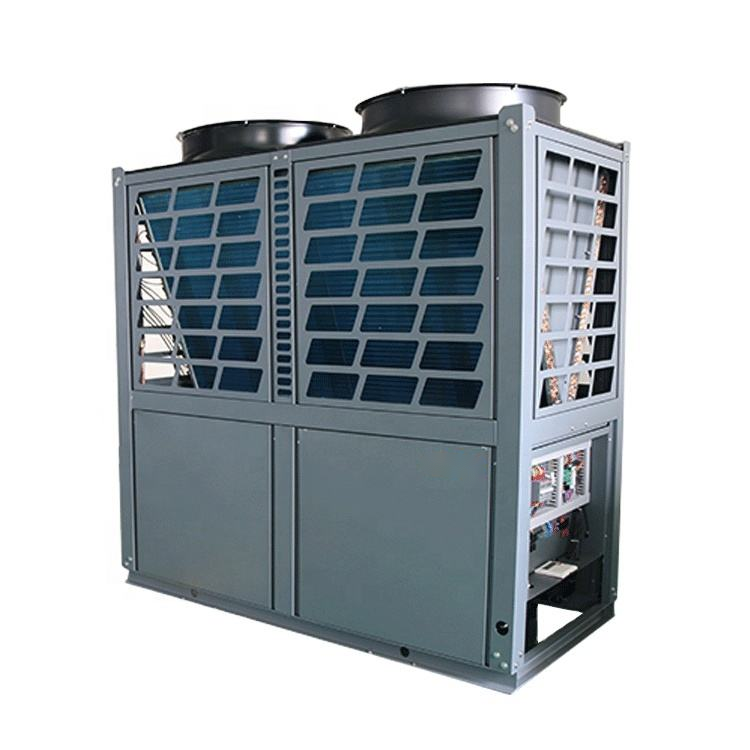

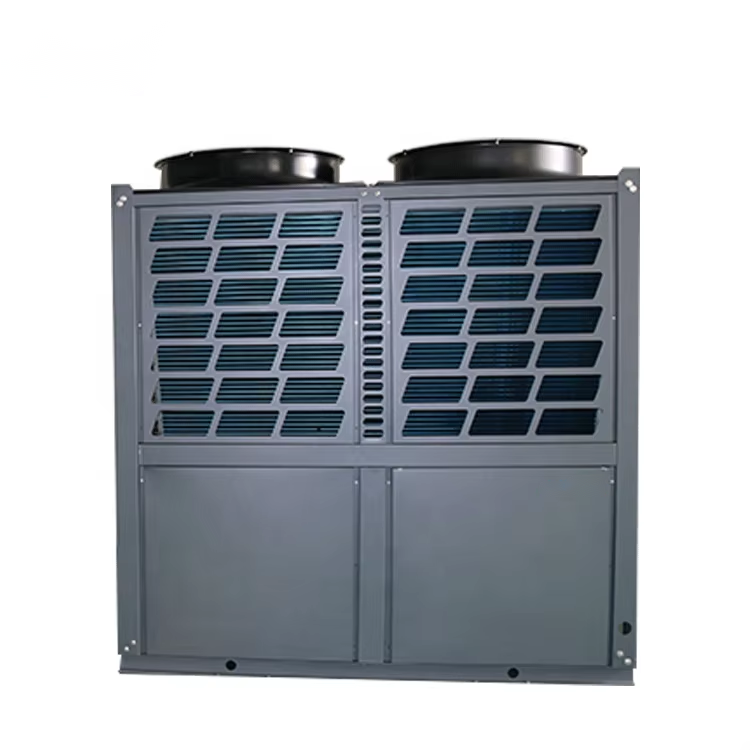

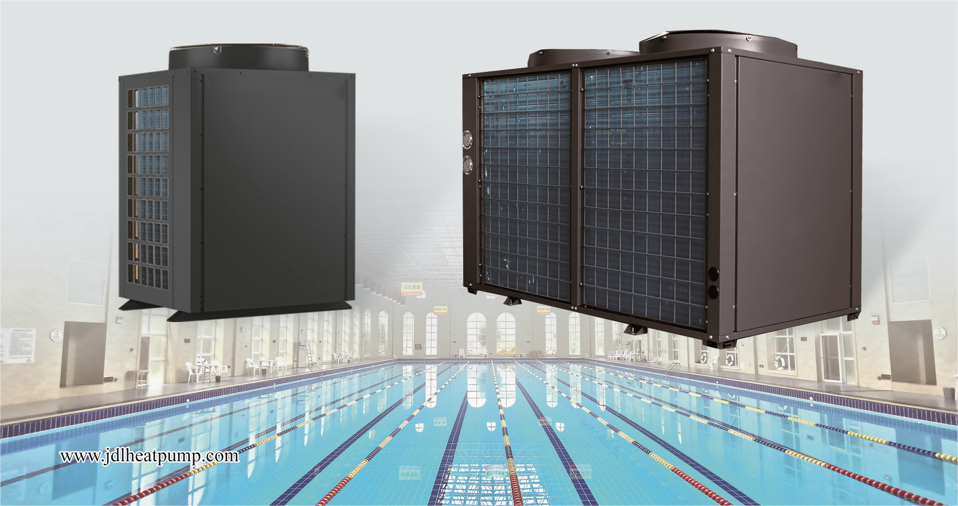

ON/OFF Household and Commercial Swimming Pool Heat Pump
Power consumption is only used to "move heat," not generate it, saving 70%-80% more energy than electric heating and being more environmentally friendly than gas heating (no exhaust emissions).
- Introduction
- Main features
- Specifications
- Recommended
Product Introduction
Working principle:
1.Heat Absorption Stage (Capturing Heat Energy from Air): The evaporator (outdoor unit) of the heat pump absorbs low-temperature heat energy from the surrounding air. Meanwhile, the refrigerant (a special medium with an extremely low boiling point) inside the evaporator absorbs this heat energy and vaporizes, turning into low-temperature, low-pressure gaseous refrigerant.
2.Compression and Temperature Rise Stage (Amplifying Heat Energy): The low-temperature, low-pressure gaseous refrigerant is drawn into the compressor. The compressor rapidly compresses the refrigerant, converting it into high-temperature, high-pressure gaseous refrigerant.
3.Heat Release and Water Heating Stage (Heating Pool Water): The high-temperature, high-pressure gaseous refrigerant enters the condenser. The condenser transfers the high-temperature heat energy of the refrigerant to the pool water flowing through it, raising the temperature of the pool water. As the refrigerant releases heat energy, it condenses into high-pressure liquid refrigerant.
4.Throttling and Pressure Reduction Stage (Cycle Reuse): The high-pressure liquid refrigerant passes through the throttling device, where its pressure drops sharply and its temperature decreases. It then turns back into low-temperature, low-pressure liquid refrigerant, flows into the evaporator again, and repeats the above four steps to form a continuous heating cycle, maintaining a constant temperature of the pool water.
1.Heat Absorption Stage (Capturing Heat Energy from Air): The evaporator (outdoor unit) of the heat pump absorbs low-temperature heat energy from the surrounding air. Meanwhile, the refrigerant (a special medium with an extremely low boiling point) inside the evaporator absorbs this heat energy and vaporizes, turning into low-temperature, low-pressure gaseous refrigerant.
2.Compression and Temperature Rise Stage (Amplifying Heat Energy): The low-temperature, low-pressure gaseous refrigerant is drawn into the compressor. The compressor rapidly compresses the refrigerant, converting it into high-temperature, high-pressure gaseous refrigerant.
3.Heat Release and Water Heating Stage (Heating Pool Water): The high-temperature, high-pressure gaseous refrigerant enters the condenser. The condenser transfers the high-temperature heat energy of the refrigerant to the pool water flowing through it, raising the temperature of the pool water. As the refrigerant releases heat energy, it condenses into high-pressure liquid refrigerant.
4.Throttling and Pressure Reduction Stage (Cycle Reuse): The high-pressure liquid refrigerant passes through the throttling device, where its pressure drops sharply and its temperature decreases. It then turns back into low-temperature, low-pressure liquid refrigerant, flows into the evaporator again, and repeats the above four steps to form a continuous heating cycle, maintaining a constant temperature of the pool water.
Main features
Features:
Power consumption is only used to "move heat," not generate it, saving 70%-80% more energy than electric heating and being more environmentally friendly than gas heating (no exhaust emissions).
Specifications
| ON/OFF HOUSEHOLD AND COMMERCIAL SWIMMING POOL HEAT PUMPS | |||||||||
| JDLKRY-5FE1 | JDLKRY-8FE2 | JDLKRY-13FE1 | JDLKRY-16FE1 | JDLKRY-20E2 | JDLKRY-25E2 | JDLKRY-50E2 | JDLKRY-100E2 | ||
| Refrigerant | R32 | R410A | |||||||
| Power supply (V/PH/Hz) | 220-240/1/50 | 380/3N-50Hz | |||||||
| YL-H01-Heating: A24℃/W26℃ | Heating Capacity (KW) | 4.8 | 7.4 | 12.6 | 16 | 20 | 25 | 49 | 98 |
| Heating Capacity (BTU/h) | 16378 | 25250 | 42993 | 54594 | 68243 | 85304 | 167195 | 304390 | |
| Power Input (KW) | 0.8 | 1.16 | 2.03 | 2.8 | 3.1 | 4.4 | 8.6 | 17.3 | |
| Current (A) | 3.7 | 5.4 | 9.3 | 13.3 | 7 | 9.3 | 9.6 | 39 | |
| COP (W/W) | 6 | 6.4 | 6.2 | 5.7 | 6.5 | 5.7 | 5.7 | 5.7 | |
| YL-H02-Heating: A15℃/W26℃ | Heating Capacity (KW) | 3.9 | 6.2 | 10.5 | 13.2 | 16.7 | 21 | 42 | 84 |
| Heating Capacity (BTU/h) | 13307 | 21155 | 35827 | 45040 | 56983 | 71655 | 143310 | 286620 | |
| Power Input (KW) | 0.82 | 1.2 | 2.04 | 2.74 | 3.15 | 4.25 | 8.5 | 16.9 | |
| Current (A) | 3.8 | 5.7 | 9.3 | 13 | 7.1 | 9.2 | 19 | 37 | |
| COP (W/W) | 4.8 | 5.2 | 5.1 | 4.8 | 5.3 | 4.9 | 4.9 | 5.0 | |
| YL-C01-Cooling: A35℃/W30℃ | Cooling Capacity (KW) | 3.2 | 5.2 | 7.7 | 8.1 | 12.8 | 14.5 | 28 | 62 |
| Cooling Capacity (BTU/h) | 10919 | 17743 | 26273 | 27638 | 43675 | 49476 | 95540 | 211553 | |
| Power Input (KW) | 1.06 | 1.6 | 2.73 | 3.8 | 4.1 | 5.5 | 10.5 | 22 | |
| Current (A) | 5 | 7.4 | 12.3 | 18 | 8.5 | 11 | 22 | 43 | |
| EER (W/W) | 3 | 3.3 | 2.8 | 2.1 | 3.1 | 2.6 | 2.7 | 2.8 | |
| YL-C02-Cooling: A43℃/W30℃ | Cooling Capacity (KW) | 2.64 | 4.2 | 6.2 | 6.5 | 10.5 | 12 | 24 | 46 |
| Cooling Capacity (BTU/h) | 9008 | 14331 | 21155 | 22179 | 35827 | 40946 | 81891 | 156958 | |
| Power Input (KW) | 1.25 | 1.86 | 2.95 | 3.3 | 5.08 | 6 | 12 | 23 | |
| Current (A) | 5.8 | 8.6 | 14.4 | 19 | 9 | 13 | 26 | 52 | |
| EER (W/W) | 2.1 | 2.3 | 2.1 | 2.0 | 2.1 | 2.0 | 2.0 | 2.0 | |
| OPERATING | Water outlet temp. range (℃) | 15~40 | |||||||
| Ambient temp. range (℃) | -7~43 | -15~43 | |||||||
| HEAT EXCHANGER | Compressor brand | HIGHLY | Copeland Scroll | ||||||
| Compressor type | Rotary-1 | Scroll-1 | Scroll-1 | Scroll-2 | Scroll-2 | ||||
| Controller | Micro processor based digital controller with LCD touch screen display | ||||||||
| Noise (dB(A)) | 47 | 50 | 52 | 54 | 60 | 60 | 64 | 72 | |
| MAX | Power input (KW) | 1.5 | 2 | 3.4 | 4.4 | 5.1 | 6 | 12 | 23 |
| Current (A) | 6.8 | 9.3 | 16 | 22 | 9 | 13 | 26 | 52 | |
| KEY | Type | Titanium / PVC | |||||||
| Standard water flow (m³/h) | 2 | 3.2 | 5.5 | 6.9 | 8.6 | 9.5 | 19 | 38 | |
| Suggested water flow (m³/h) | 1.8~3 | 3~5 | 6~8 | 6.5~8.5 | 8~10 | 9~11 | 19~21 | 38~40 | |
| Water pressure drop (KPa) | 4 | 6 | 10 | 14 | 15 | 16 | 55 | 55 | |
| Water connection (mm) | 50 | 50 | 50 | 50 | 40 | 40 | 50 | 80 | |
| FAN | Position | Side | Vertical | ||||||
| Material | Plastic | metal | |||||||
| Air flow (m³/h) | 1300 | 1800 | 3000 | 3000 | 5500 | 6500 | 13000 | 26000 | |
| DIMENSIONS (L×W×H) | Net (mm) | 955/396/570 | 955/396/570 | 1060/425/658 | 1060/425/658 | 750/750/1000 | 750/750/1000 | 1560/850/1100 | 2000/1000/2070 |
| WEIGHT | (kg) | 39/42 | 49/52 | 68/72 | 70/74 | 140 | 180 | 350 | 810 |
