R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP

R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP

The Demax DC Inverter Household Swimming Pool Heat Pump is a frequency-conversion heat pump device designed specifically for residential swimming pools. It focuses on an integrated "professional dehumidification + constant temperature" solution, adapting to various sizes of home pool scenarios. Meanwhile, it has obtained multiple international certifications including CB, CE, ERP, and SAA, ensuring strong compliance and safety.

Introduction
Main features
Specifications
Recommended

Product Introduction

Core Configuration & Certifications:

Core Medium: Adopts R32 refrigerant, balancing energy efficiency and environmental performance;
Key Components: Equipped with GMCC/Mitsubishi Electric rotary compressors, matched with titanium alloy/PVC heat exchangers for excellent corrosion resistance and durability;
Intelligent Control: Features a microprocessor controller with an LCD touch screen for easy operation;
Additional Function: Supports wireless connection (marked with WiFi logo on the unit), enabling remote/intelligent regulation.

R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP1.jpg

R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP1.jpg

Main features

Performance:

The product covers multiple models of the JDLKRY series, with core performance parameters as follows:

Heating Capacity: Under different working conditions (e.g., A27/W26℃, A15/W26℃), the heating power ranges from 3.8kW to 15.2kW, corresponding to heat output of 12968BTU/h to 51917BTU/h, with a maximum COP (Coefficient of Performance) of 8.5 for outstanding energy savings;
Cooling Capacity: Under A35/W30℃, A43/W30℃ working conditions, the cooling power ranges from 1.4kW to 4.8kW, corresponding to cooling capacity of 4775BTU/h to 15278BTU/h, with a maximum EER (Energy Efficiency Ratio) of 5.6;
Operating Parameters: Adapts to an ambient temperature range of 5-43℃ (some models support -10-43℃), with a water flow rate of 1.2-6.7m³/h and an operating noise as low as 45dBA, balancing high efficiency and quiet operation.

Core Features：

DC Inverter Technology: Achieves dynamic energy efficiency optimization via frequency conversion adjustment, with lower energy consumption and more stable operation;
Dual Functions (Dehumidification + Constant Temperature): Not only maintains stable pool water temperature but also solves the humidity issue in the pool environment simultaneously;
Durable Design: Titanium alloy/PVC heat exchangers are suitable for pool water quality, with strong corrosion resistance and long service life;
Smart & Convenient: LCD touch screen + wireless connection support precise regulation and remote management.

Application Scenarios:

Suitable for various residential swimming pools (different models match home pools of different volumes), especially ideal for household users who need stable pool water temperature and environmental humidity.

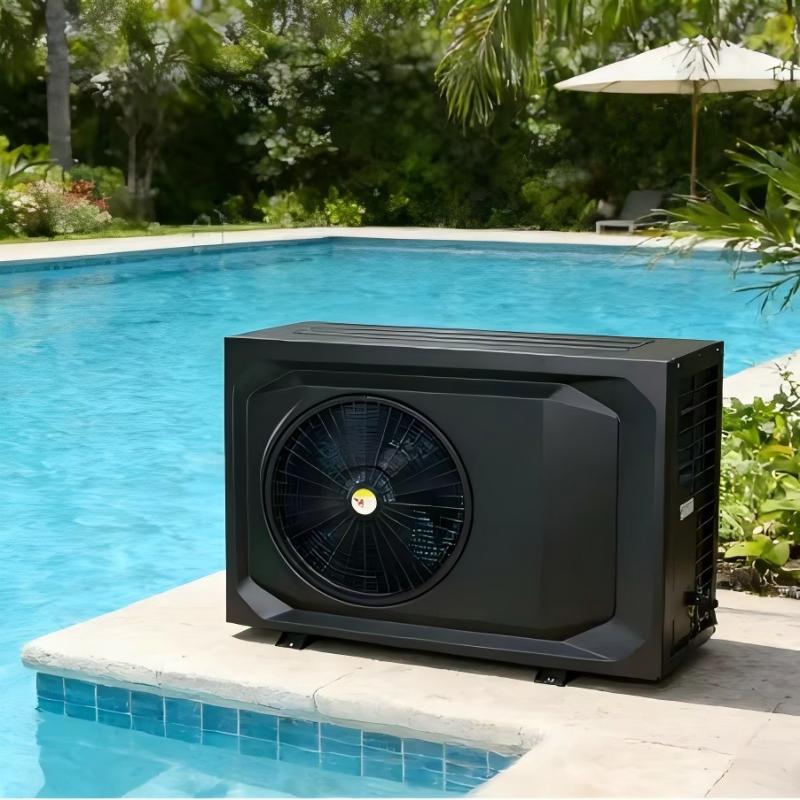

R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP2.jpg

R32 DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP2.jpg

Specifications

DC INVERTER HOUSEHOLD SWIMMING POOL HEAT PUMP
			JDLKRY-5FE1-2	JDLKRY-5FE1-1	JDLKRY-8FE1-1	JDLKRY-13FE1-1	JDLKRY-16FE1-1
Refrigerant	R32
Power supply		V/PHHz	220-240/1/50
YL-H01-Heating: A27/W26℃	Heating capacity	kW	3.8 6 8.6 12 15.2
			1.2-4.4	1.5-7	2.2-10.2	3.1-13.5	3.9-17
		BTU/h	12966 20473 29344 40946 51865
	Power input	kW	0.59	0.95	1.18	1.65	2.3
	Current	A	2.7 4.3 5.4 7.5 10.5
	COP	W/W	6.4	6.3	7.3	7.3	6.6
YL-H02-Heating: A15/W26℃	Heating capacity	kW	2.7 4.5 6.4 8.6 11
			1-2.7	1.1-5.2	1.7-7.5	2.3-9.5	2.8-12.4
		BTU/h	9213 15355 21838 29344 37534
	Power input	kW	0.61	0.98	1.25	1.73	2.34
	Current	A	2.8 4.5		5.7 7.9 10.6
	COP	WW	4.4	4.6	5.1	5.0	4.7
YL-C01-Cooling: A35/W30℃	Cooling capacity	kW	1.8	4.3	5.4	7.6	8
		BTU/h	6142	14672	18426	25932	27297
	Power input	kW	0.7 1.3 1.7 2.3 3.1
	Current	A	3.2	5.9	7.7	10.5	14.1
	EER	W/W	2.6 3.3 3.2 3.3 2.6
YL-C02-Cooling: A43//W30℃		kW	1.2	3.7	4.1	5.6	4.8
	Cooling capacity	BTU/h	4095 12625 13990 19108 16378
	Power input	kW	0.63	1.4	1.57	1.8	2.4
	Current	A	2.9 6.4 7.1 8.2 10.9
	EER	W/W	1.9	2.6	2.6	3.1	2.0
OPERATING	Water outlet temp.range	℃	15-35	15-40	15-40	15-40	15-40
	Ambient temp.range	℃	5-43	-10-43	-10-43	-10-43	-10-43
HEAT EXCHANGER	Compressor brand	GMCC MITSUBISHI ELECTRIC
	Compressor type		Rotary*1	Rotary*1	Rotary*1	Rotary*1	Rotary*1
	Controller
	Noise	dB(A)	52	47	50	52	54
MAX	Power input	KW	0.95	1.5	2.2	2.6	3
	Current	A	4.3	6.8	10.0	11.8	15.0
KEY	Type	Titanium /PVC
	Standard water flow	m³/h	1.6	2.6	3.7	5.2	6.7
	Suggested water flow	m³/h	1.2-2 2-3 3-5 4.26 6-8
	Water pressure drop(max)	KPa	4	4	6	8	12
	Water pipe	Micro processor based digital controller with LCD touch screen disply
	Water connection	mm	25	50	50	50	50
FAN	Position	Side
	Material		Plastic	Plastic	Plastic	Plastic	Plastic
	Air flow	m³/h	1000	1300	1800	2500	2800
DIMENSIONS (Lx Wx H)	Net	mm	425/325/430	995/396/570	995/396/570	995/396/570	995/396/570
WEIGHT		kg	22.5/24	35/38	37/40	40/44	43/47
